Condenser Fan: Testing and Inspection

HEATING / AIR CONDITIONING: CONDENSER FAN: INSPECTION

1. INSPECT SHROUD BLOWER ASSEMBLY

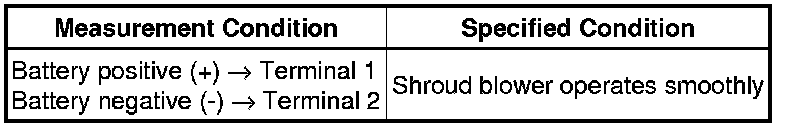

(a) Apply battery voltage and check the operation of the shroud blower as shown in the table.

OK:





If the result is not as specified, replace the shroud blower assembly.
