Rear Evaporator Temperature Sensor

HEATING / AIR CONDITIONING: REAR EVAPORATOR TEMPERATURE SENSOR: INSPECTION

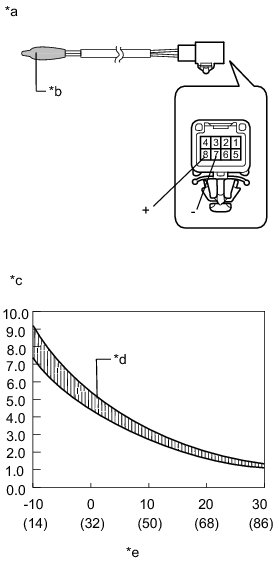

1. INSPECT REAR EVAPORATOR TEMPERATURE SENSOR





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the rear evaporator temperature sensor.

NOTICE:
* Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
* When measuring, the sensor temperature must be the same as the ambient temperature.

HINT
As the temperature increases, the resistance decreases (see the graph).

Text in Illustration
