Accessory Meter Does Not Illuminate

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: Accessory Meter does not Illuminate
- Accessory Meter does not Illuminate

DESCRIPTION

This circuit provides power to the accessory meter assembly.

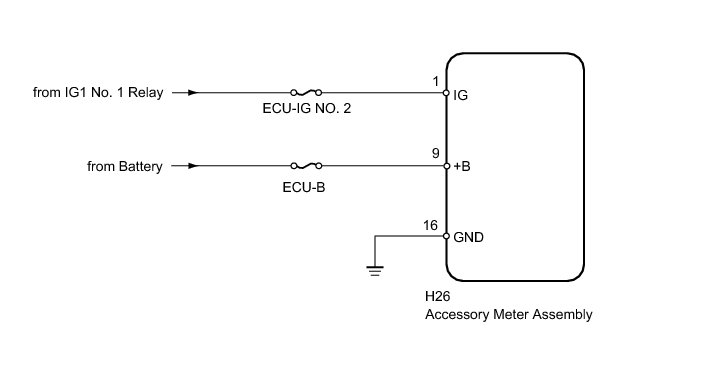

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (ACCESSORY METER ASSEMBLY CIRCUIT)

(a) Disconnect the H26 accessory meter connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ACCESSORY METER ASSEMBLY Removal
