Emission Control Systems: Description and Operation

1UR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

1. EMISSION CONTROL SYSTEM DIAGRAM





Text in Illustration

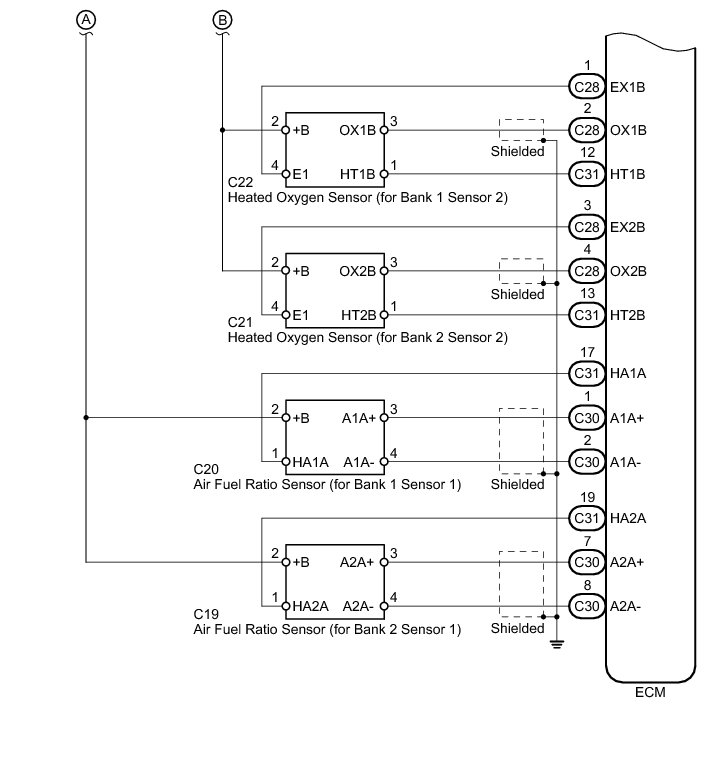

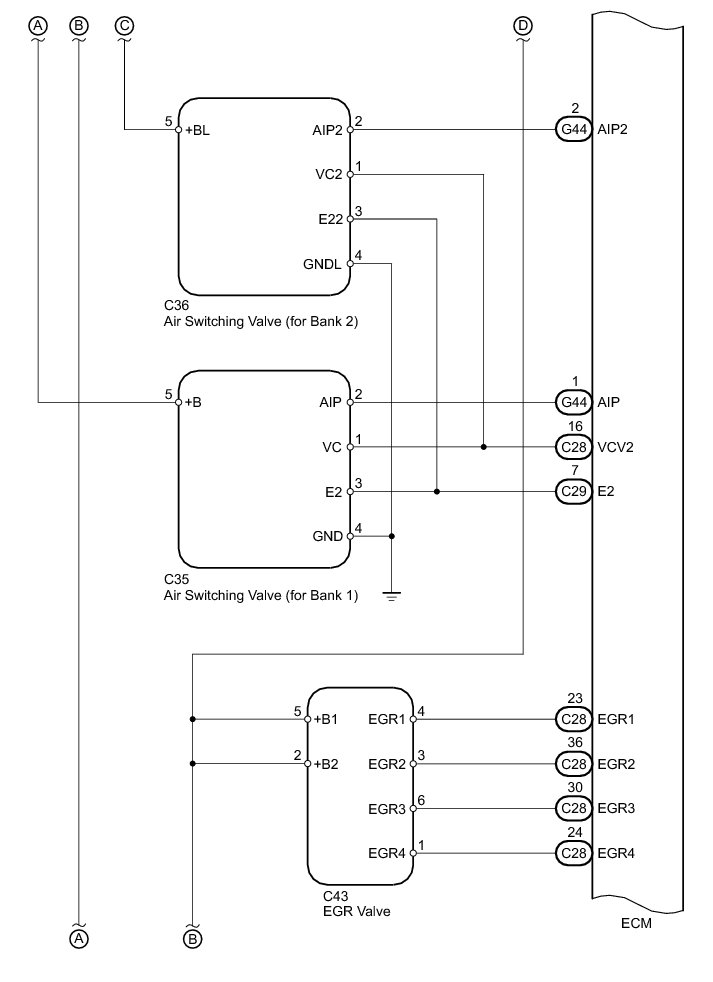

2. EMISSION CONTROL SYSTEM WIRING DIAGRAM

















3. EVAP CONTROL SYSTEM DIAGRAM

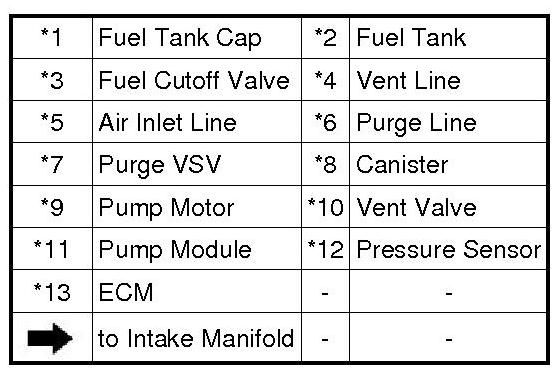

Text in Illustration

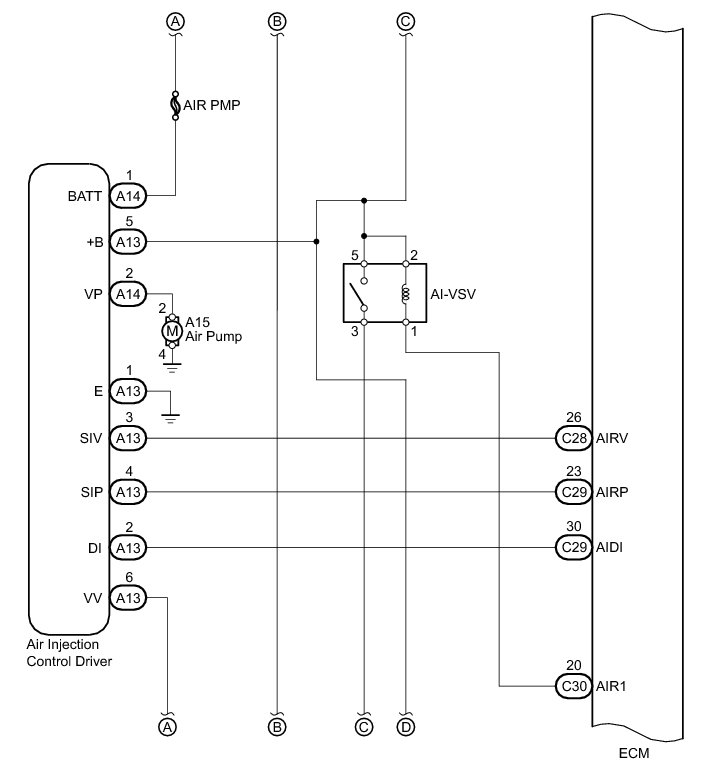

4. EVAP CONTROL SYSTEM WIRING DIAGRAM
