Electrical Specifications





SPECIFICATIONS: 1UR-FE EMISSION CONTROL: SERVICE DATA

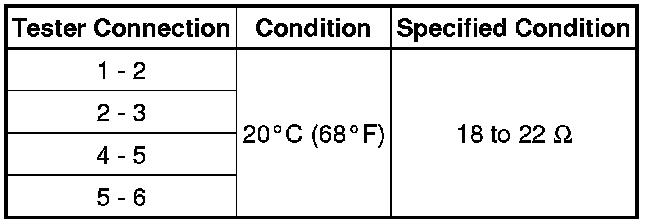

EGR Valve:

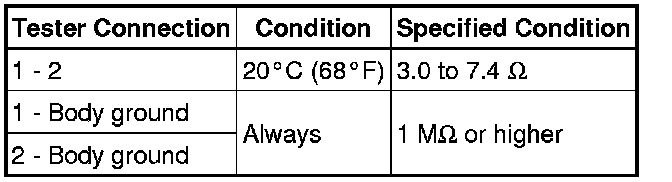

Air Pump:





Air Switching Valve (for Bank 1):





Air Switching Valve (for Bank 2):





Purge VSV:
