Home >> Lexus Truck >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Locations

Power Seat Switch: Locations

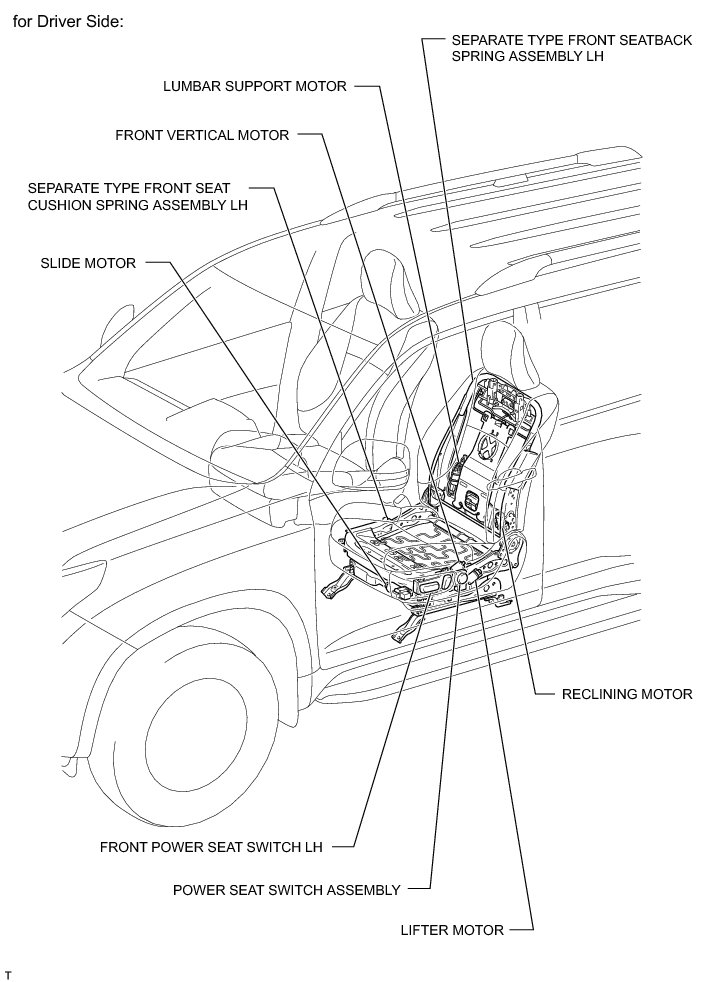

SEAT: FRONT POWER SEAT CONTROL SYSTEM: PARTS LOCATION
