Torque Specifications





SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

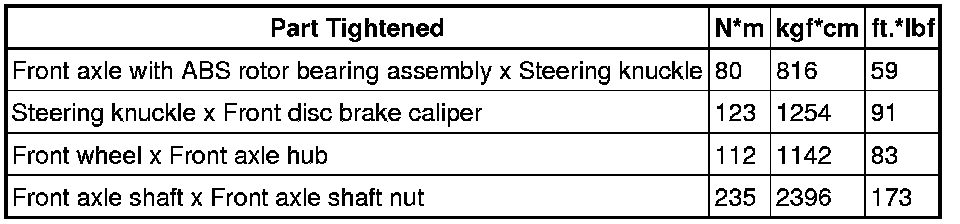

Front Axle Hub





Steering Knuckle





Rear Axle Shaft

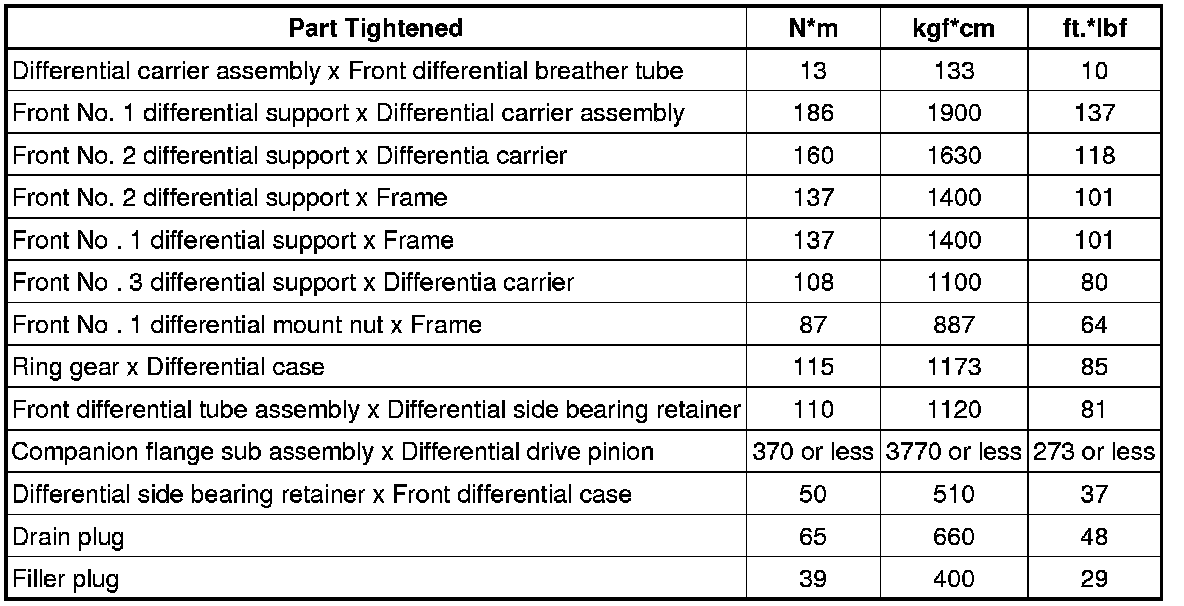

Front Differential

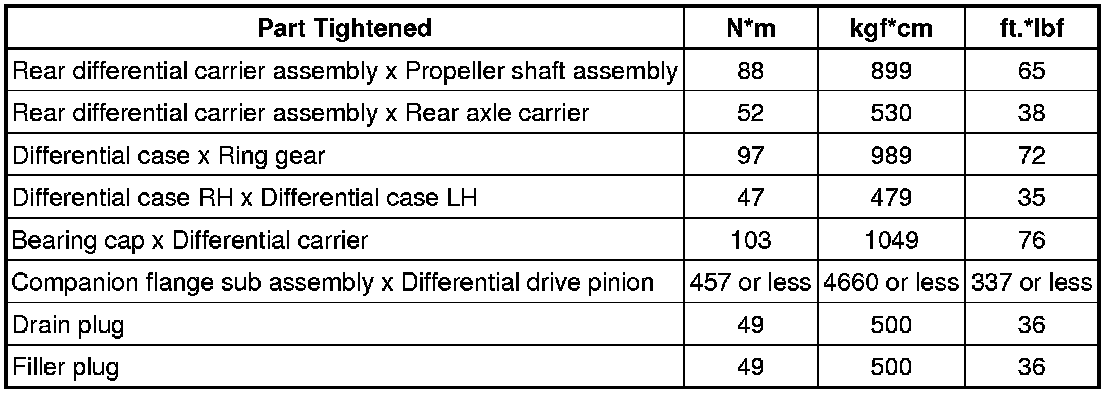

Rear Differential
