Heating and Air Conditioning
SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS
REFRIGERANT LINE

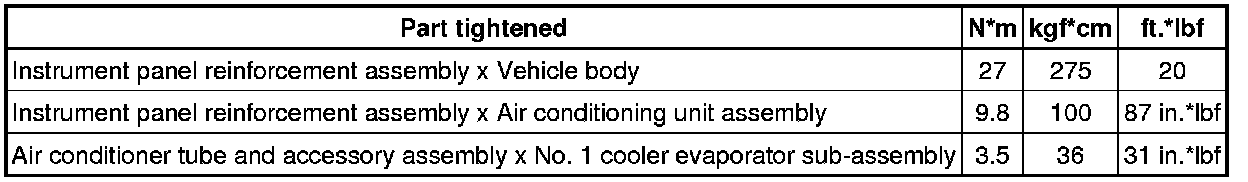

FRONT AIR CONDITIONING UNIT
REAR AIR CONDITIONING UNIT
BLOWER UNIT

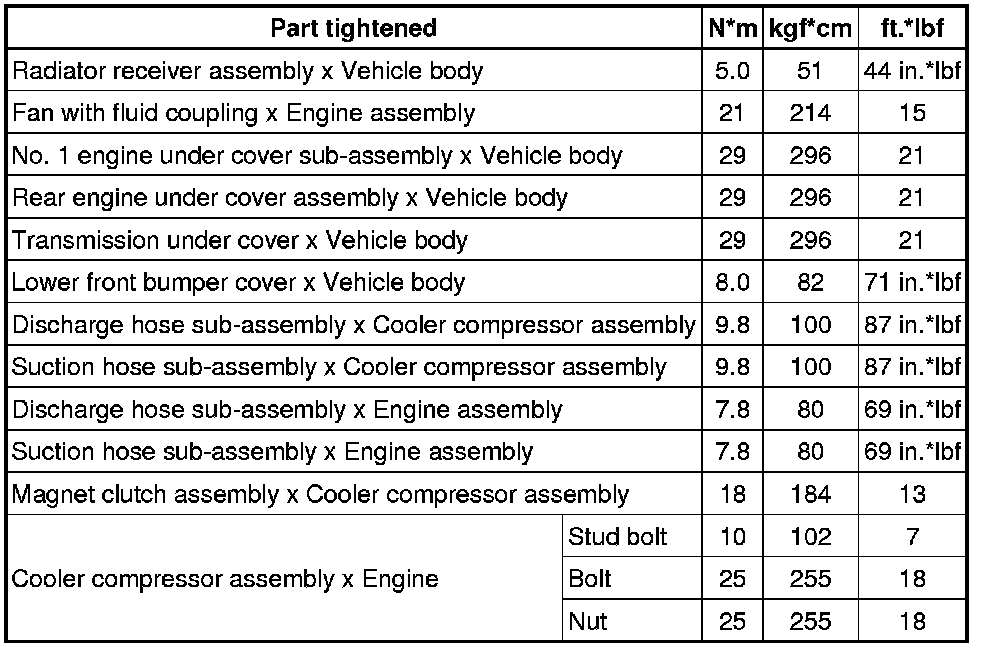

COMPRESSOR

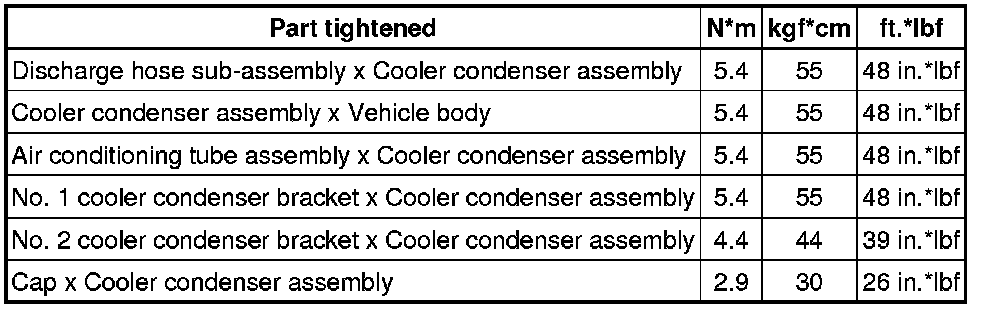

CONDENSER
CONDENSER FAN
FRONT EVAPORATOR TEMPERATURE SENSOR
REAR EVAPORATOR TEMPERATURE SENSOR
AIR CONDITIONING PRESSURE SENSOR

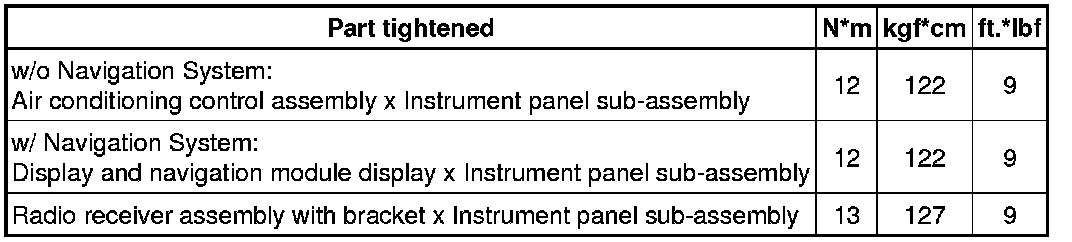

AIR CONDITIONING PANEL
