Service Data

SPECIFICATIONS: VF4BM TRANSFER / 4WD / AWD: SERVICE DATA

Output Shaft Rear

Input shaft

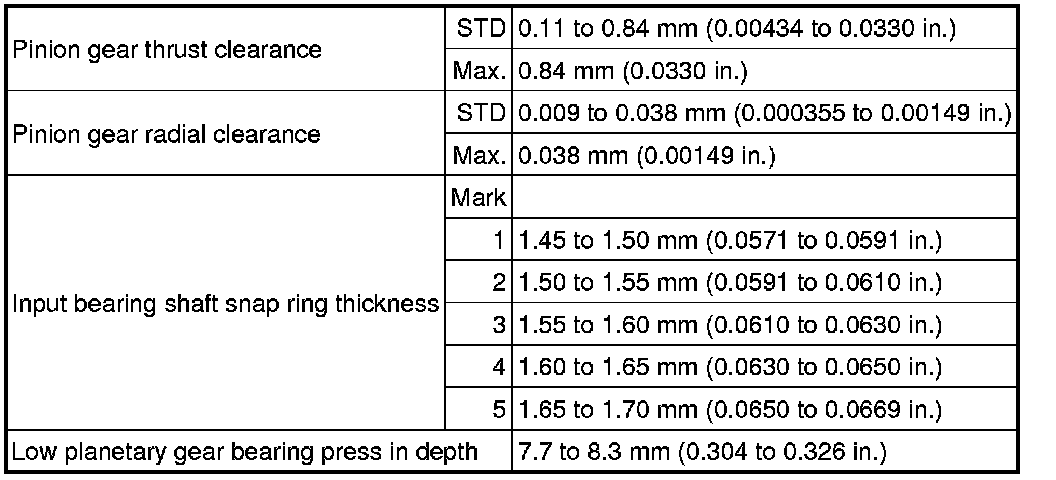

Planetary gear
