System Specifications





SPECIFICATIONS: 1UR-FE ENGINE MECHANICAL: SERVICE DATA

ENGINE

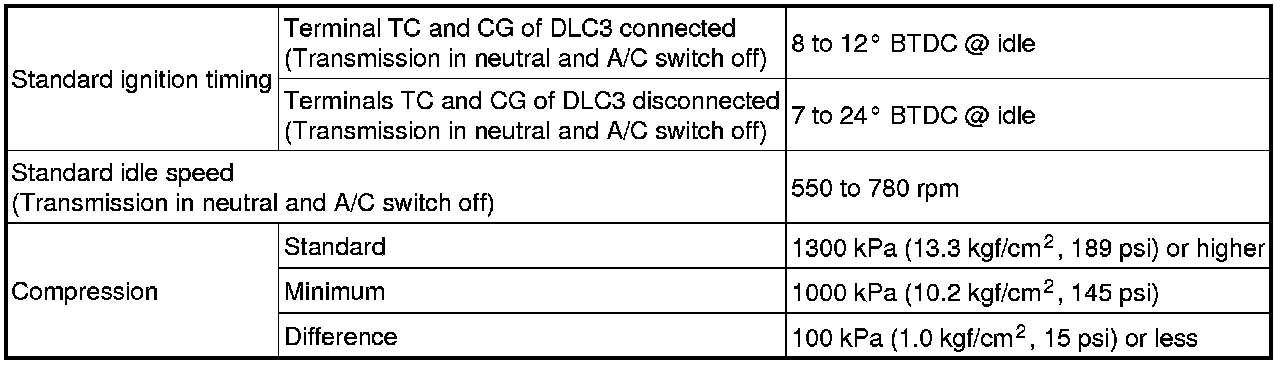

ENGINE UNIT

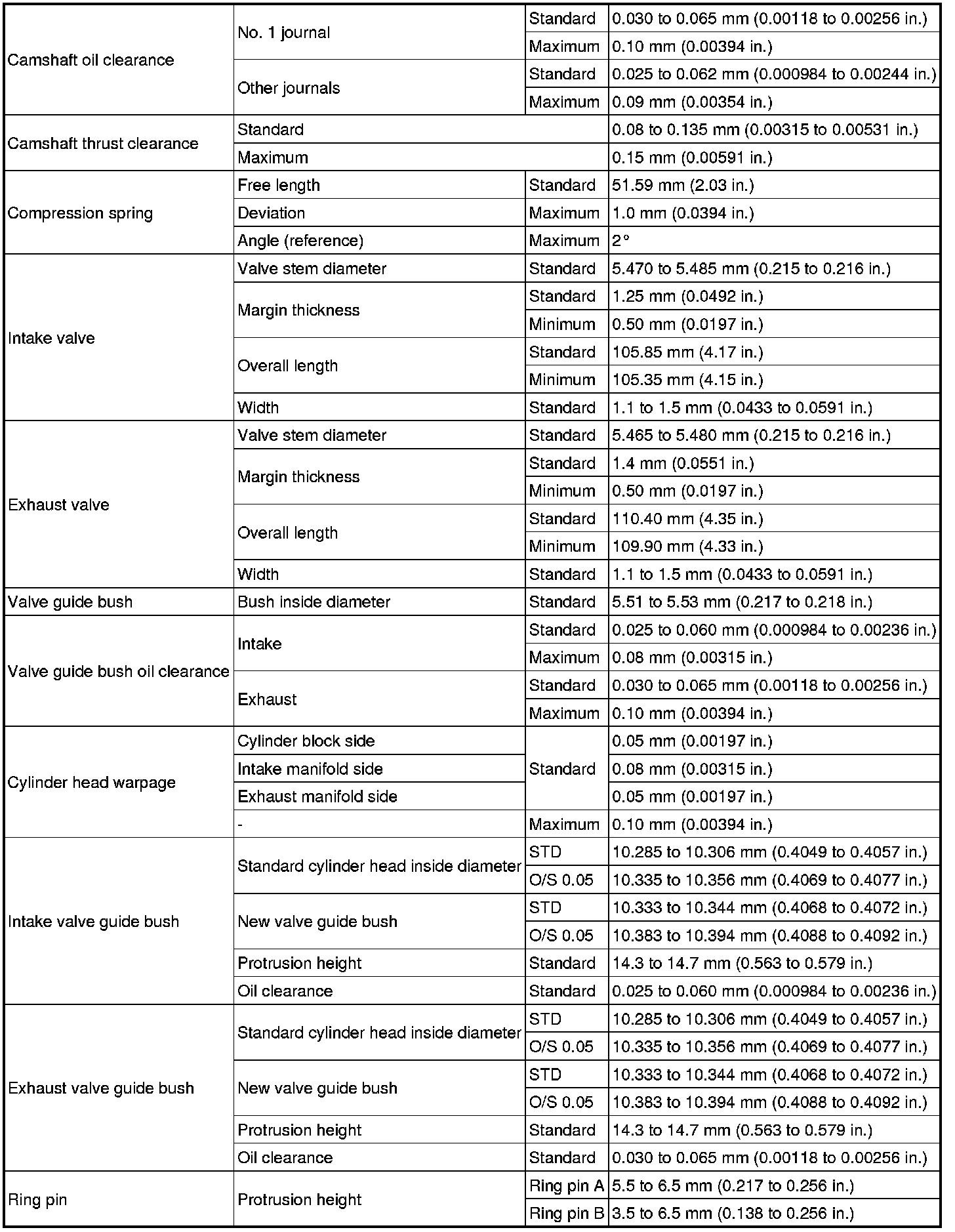

CYLINDER HEAD

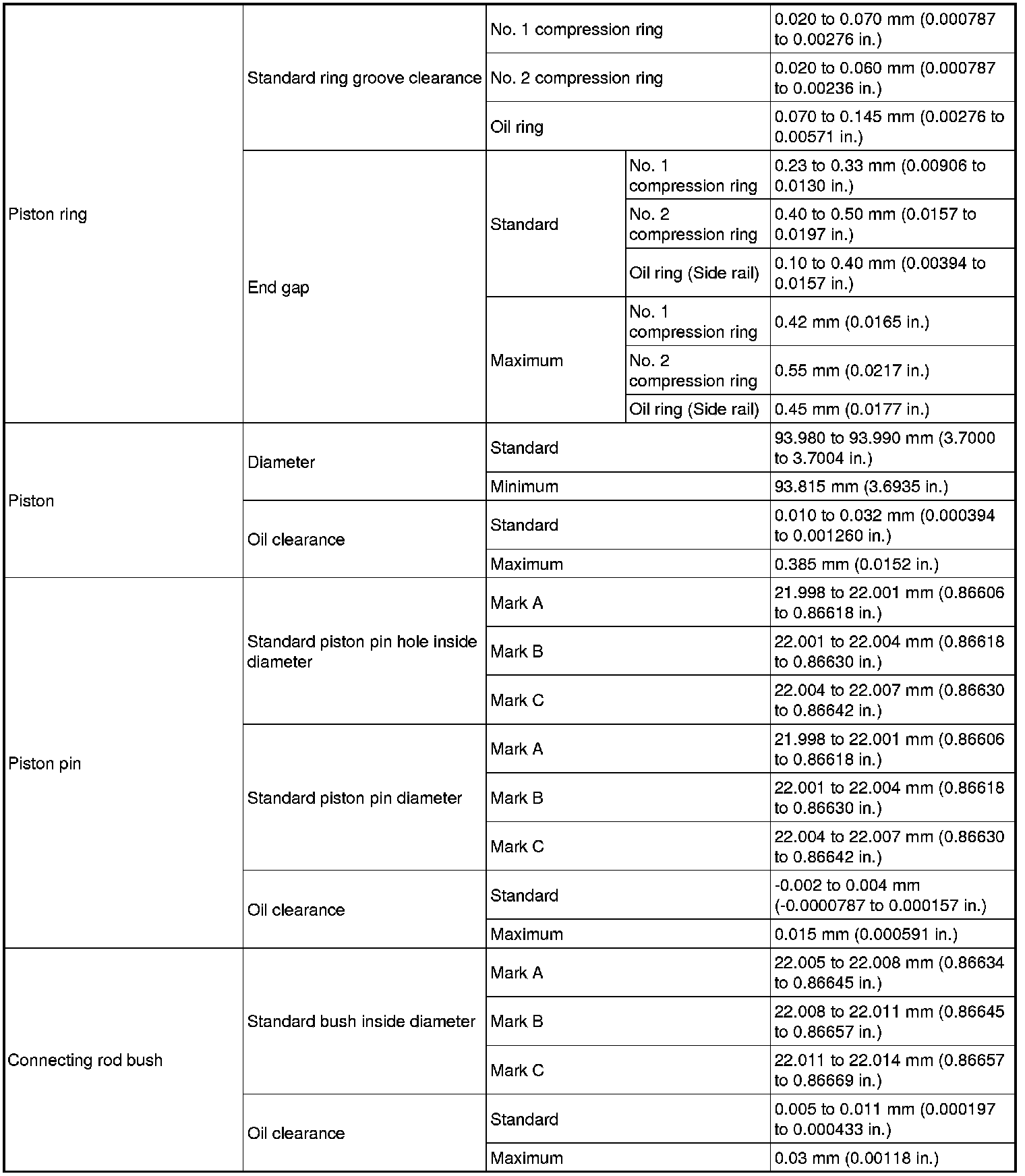

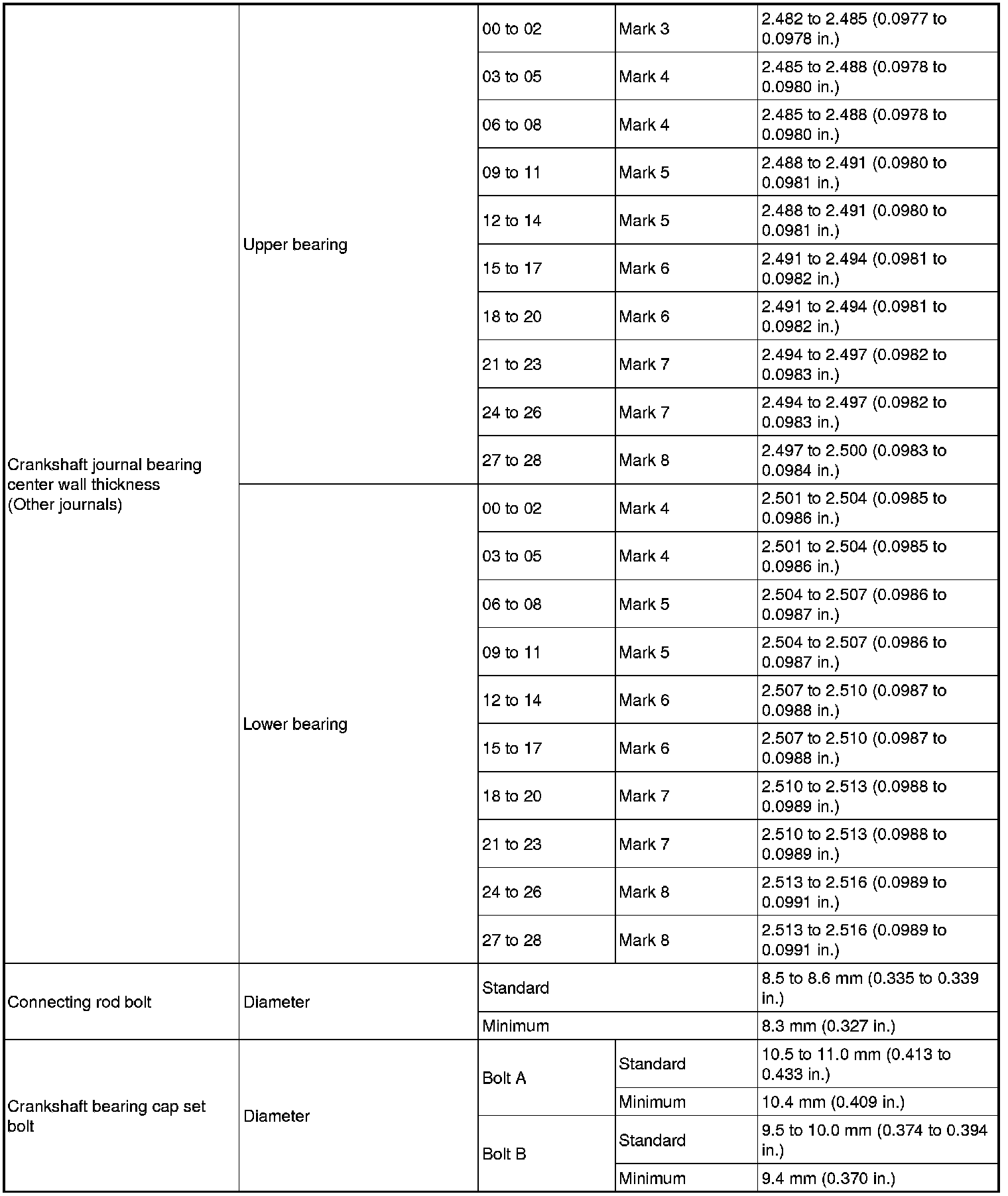

CYLINDER BLOCK
