Pressure, Vacuum and Temperature Specifications

SPECIFICATIONS: A760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

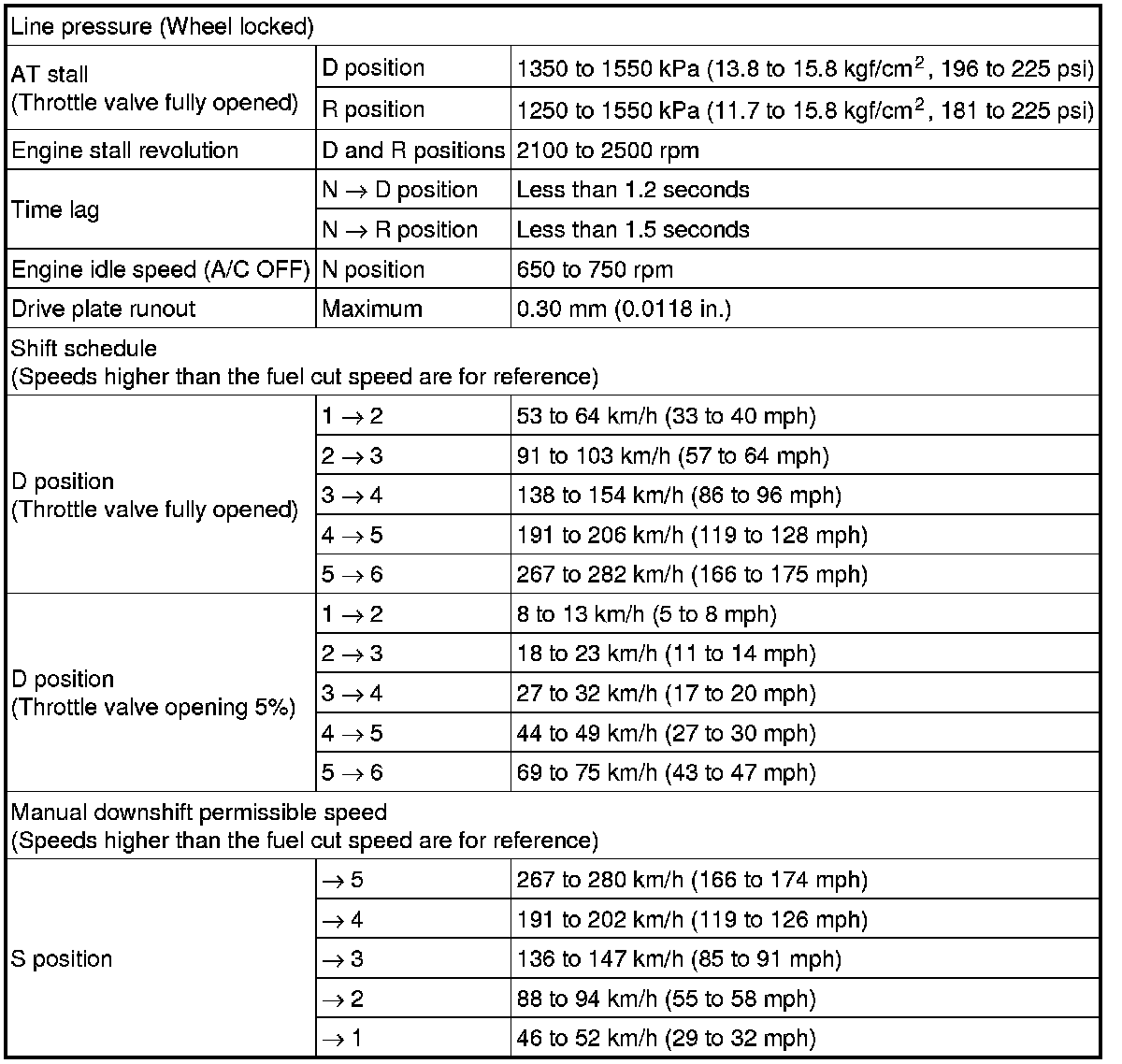

Line Pressure and Shift Schedule
