Transfer Case: Description and Operation

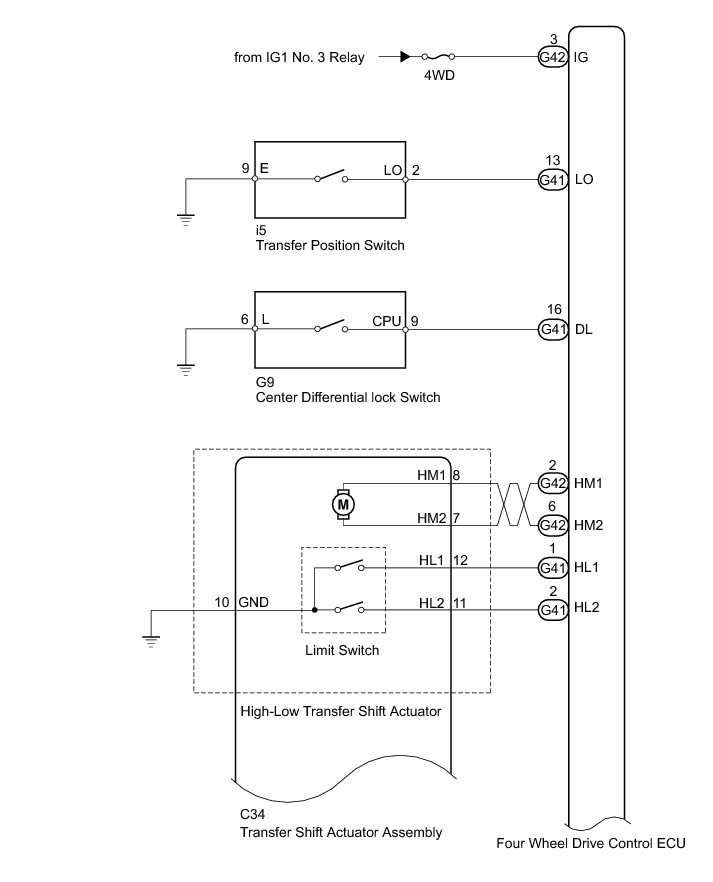

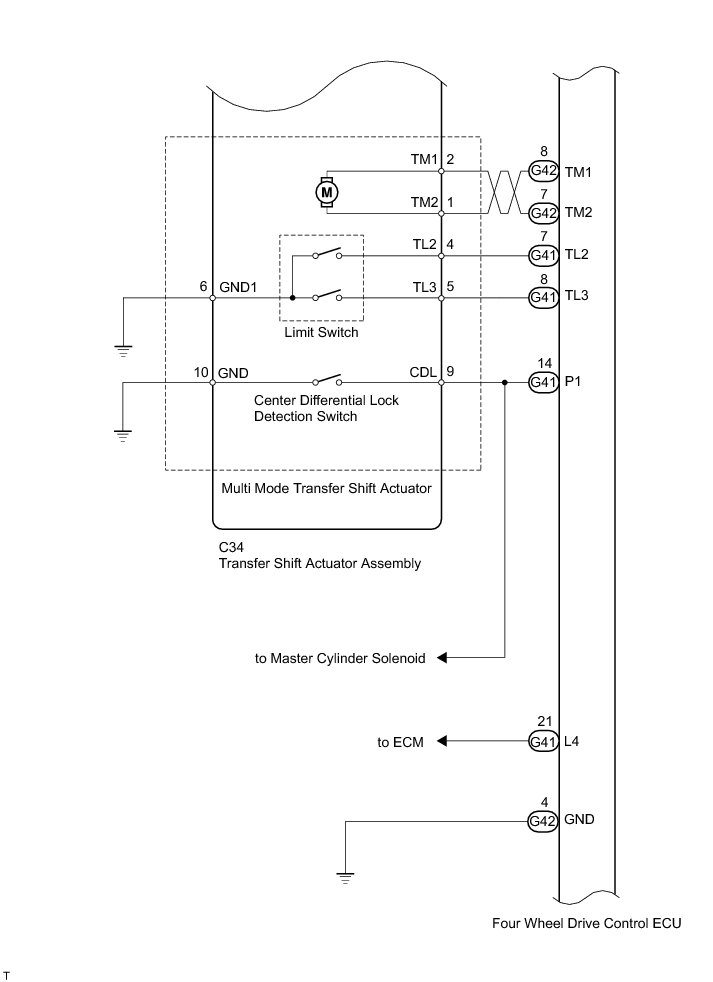

VF4BM TRANSFER / 4WD / AWD: TRANSFER SYSTEM: SYSTEM DIAGRAM
