Electrical Diagrams

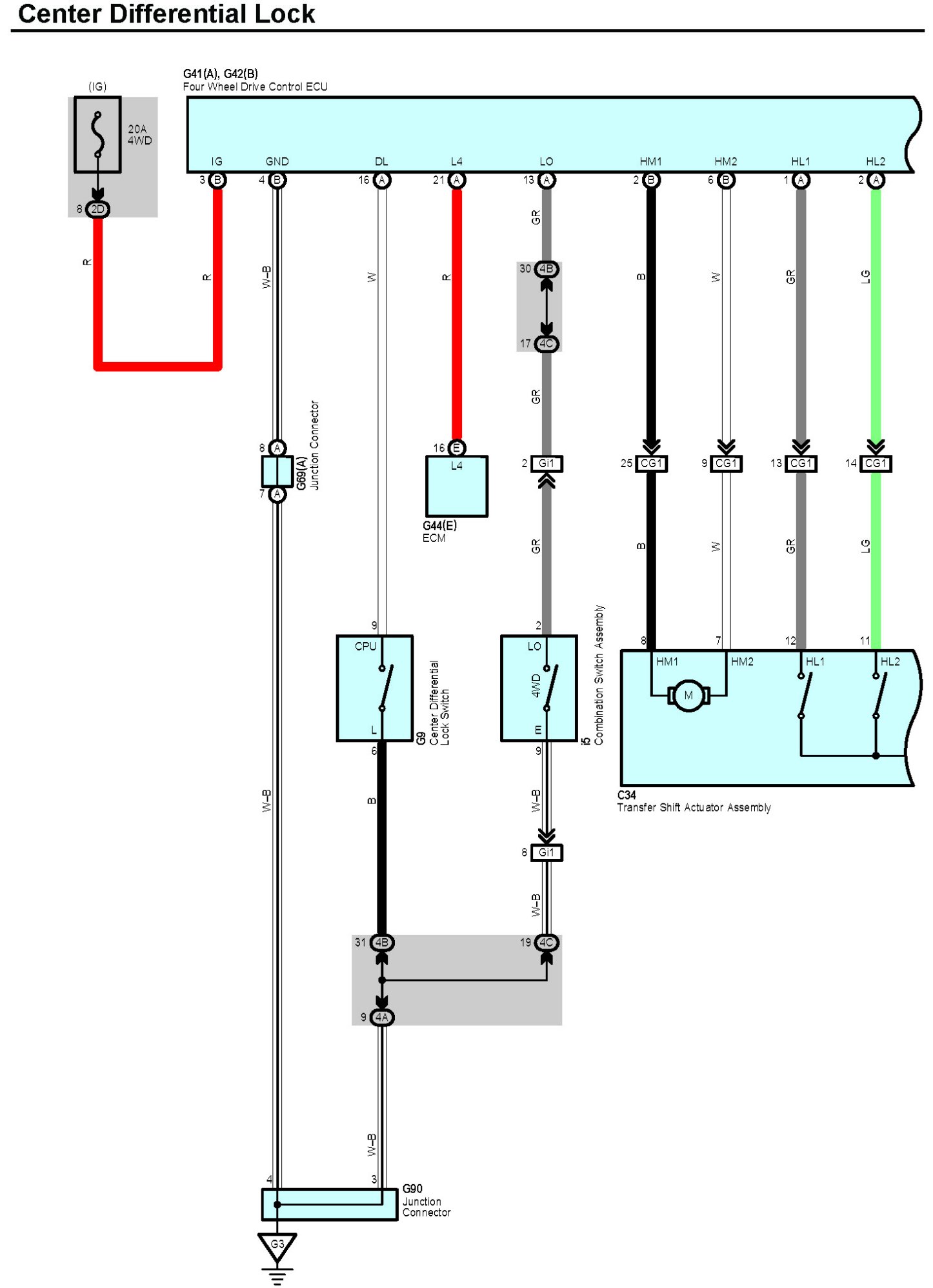

Center Differential Lock Part 1:

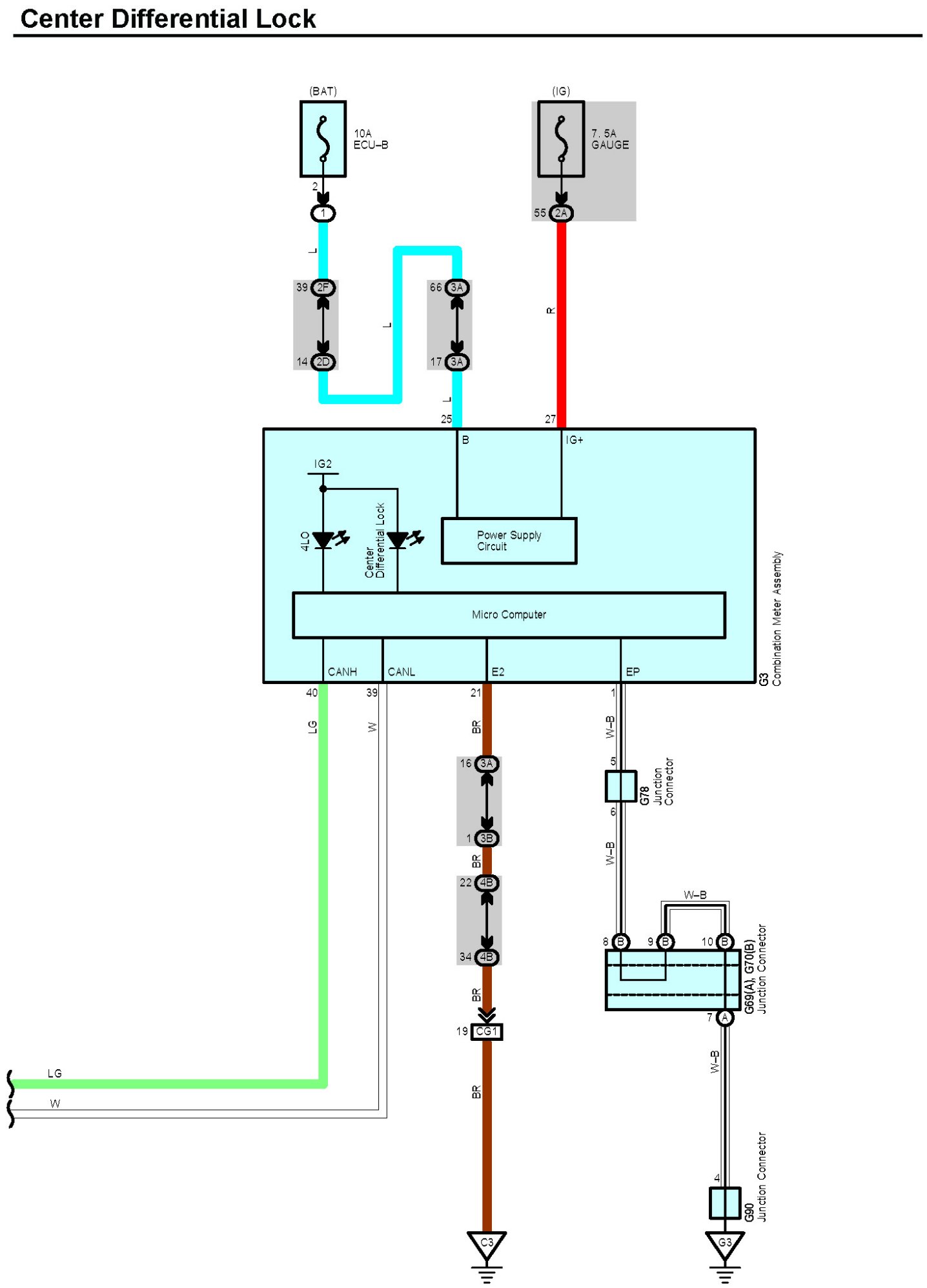

Center Differential Lock Part 2:

Center Differential Lock Part 3:

Center Differential Lock Part 4:

Center Differential Lock Part 5:

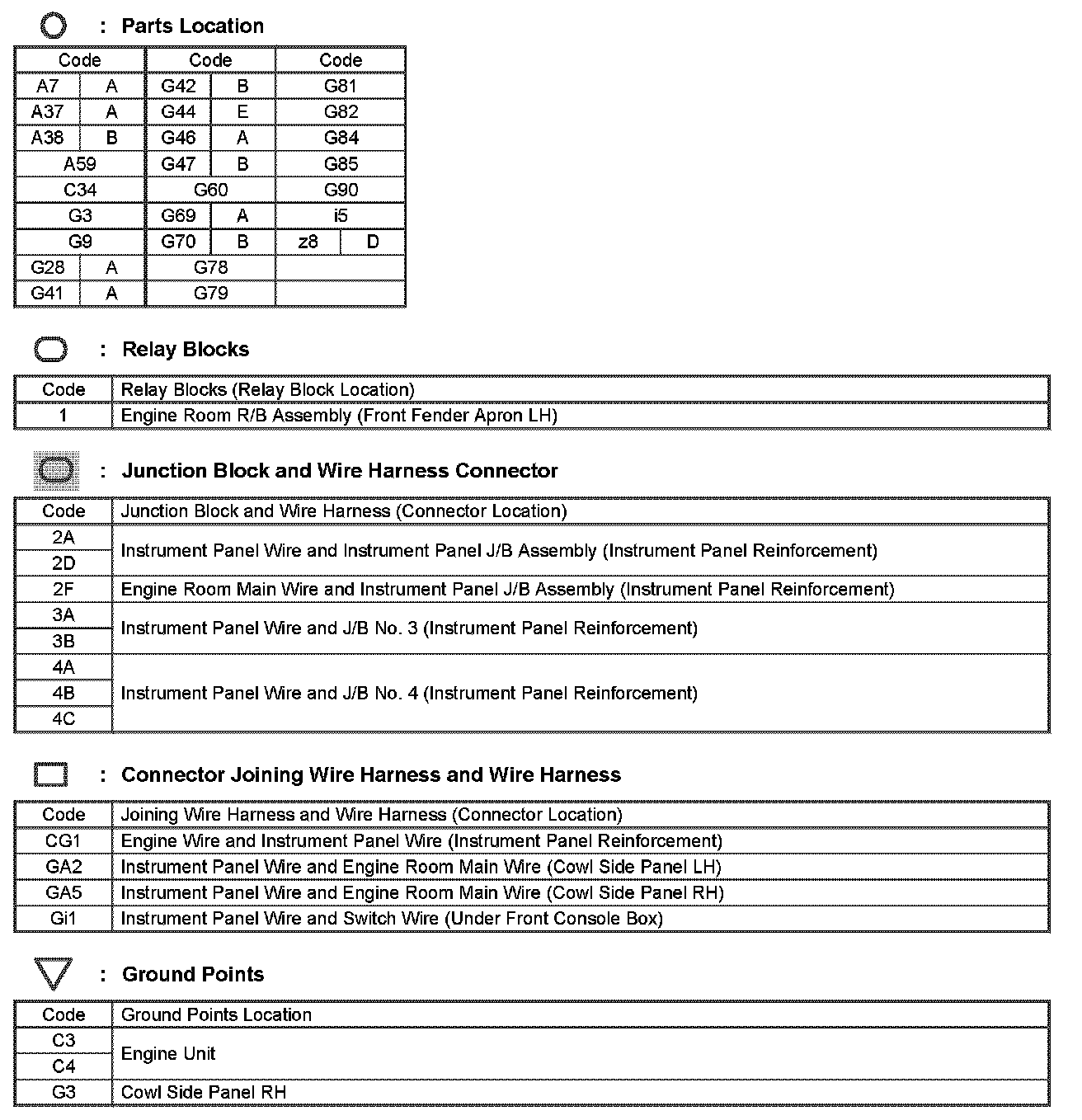

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
