Wide View Front Monitor System

PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: SYSTEM DIAGRAM





Communication Table









SYSTEM DESCRIPTION

1. GENERAL

(a) This system has a front television camera assembly to display the front view of the vehicle on the display and navigation module display.

(b) This system consists of the following components:

(1) Front television camera assembly

(2) Parking assist ECU

(3) Display and navigation module display

(4) Main body ECU

(5) Skid Control ECU

(6) Front and side monitor main switch

(c) This system is equipped with a self-diagnosis system, which is operated on a designated window that appears on the display panel, just as in the navigation system.

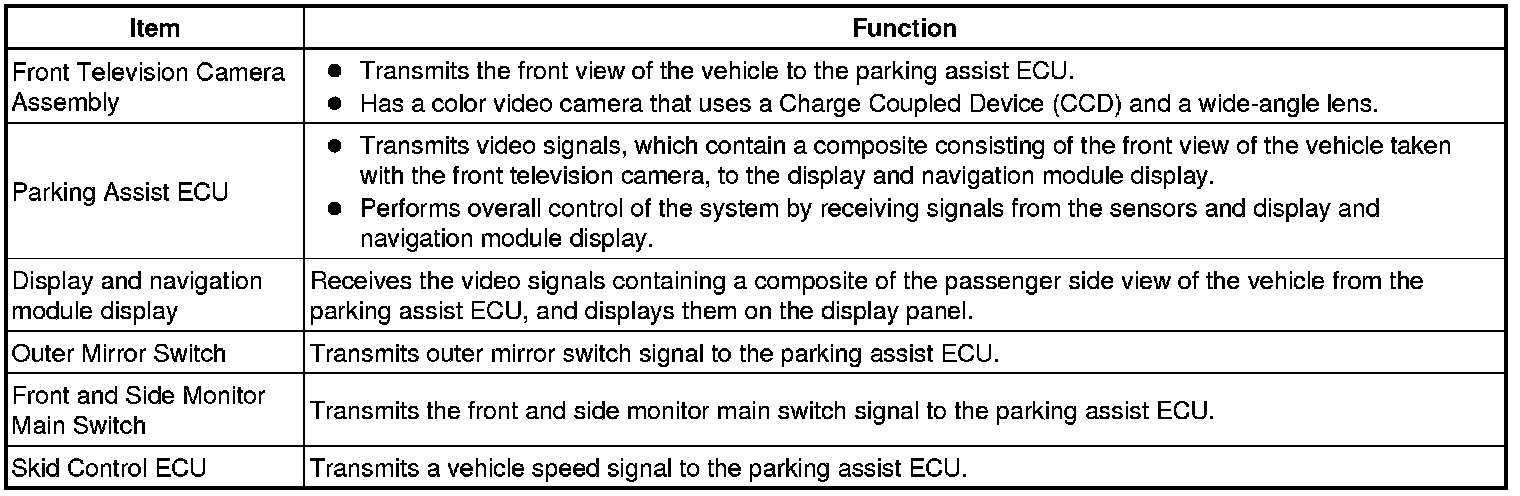

2. FUNCTION OF COMPONENTS

(a) The parking assist ECU controls the system by using information from the following components.





3. OPERATION EXPLANATION

(a) The front and side monitor main switch ON signal is sent from the front and side monitor main switch to the parking assist ECU.

After receiving the front and side monitor main switch ON signal, the parking assist ECU switches the display signal for the display and navigation module display from the navigation system to the wide view front monitor system.

4. DISPLAY CONDITIONS FOR FRONT MONITOR DISPLAY

(a) Screen display operation





Text in Illustration





(1) After the display conditions have been met while the wide view front monitor system and the side monitor system are operating normally (when no DTCs are output), the wide view front and side monitor screen will be the initial display in both manual and automatic modes.

HINT
* When the shift lever is in a position other than R, and the wide view front and side monitor screen displays the change display mode switch or the automatic mode set / cancel switch, the following operations are possible.
* Change display mode button.






* Automatic display mode set/cancel button

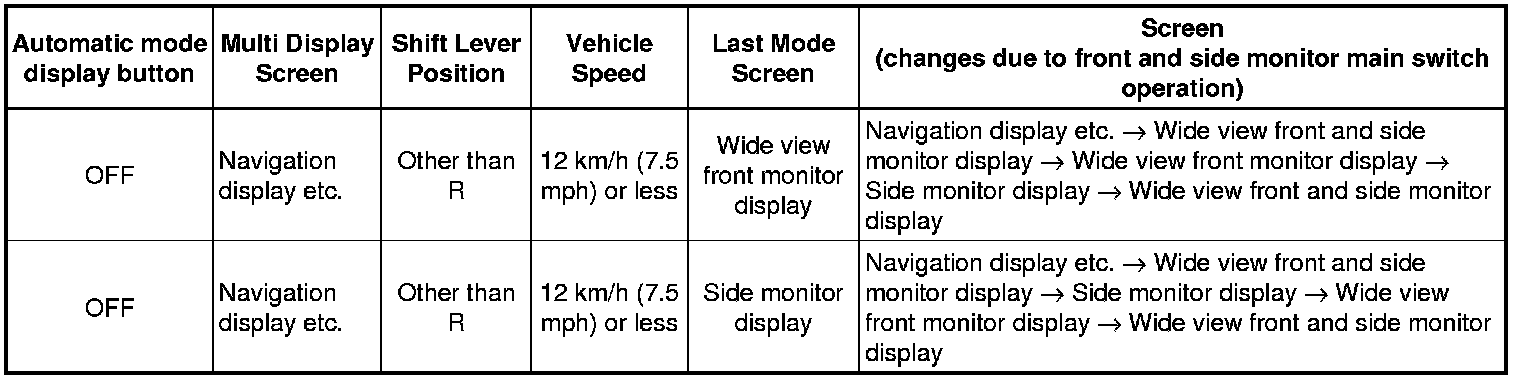

(b) Display conditions for manual display mode (Shift lever in a position other than R)





Text in Illustration





(1) During manual display mode (shift lever in a position other than R), during IG ON or engine start-up (no DTCs are output), if the following conditions have been met, pressing the front and side monitor main switch will change the display mode as follows.





HINT
*1: In this case, the side monitor display is in path line deletion mode.

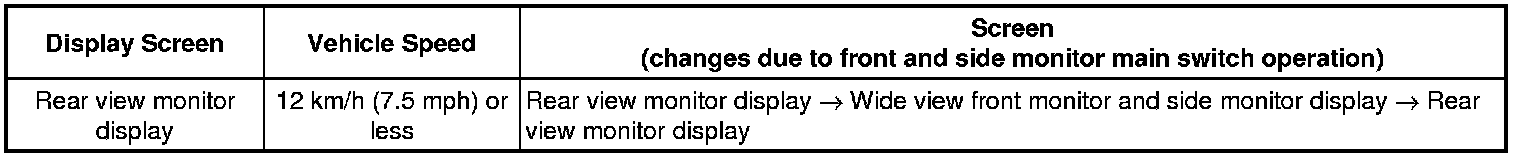

(c) Display conditions for manual display mode (Shift lever in R)





Text in Illustration





(1) During manual display mode (shift lever in R position), during IG ON or engine start-up (no DTCs are output), if the following conditions have been met, pressing the front and side monitor main switch will change the display mode as follows.

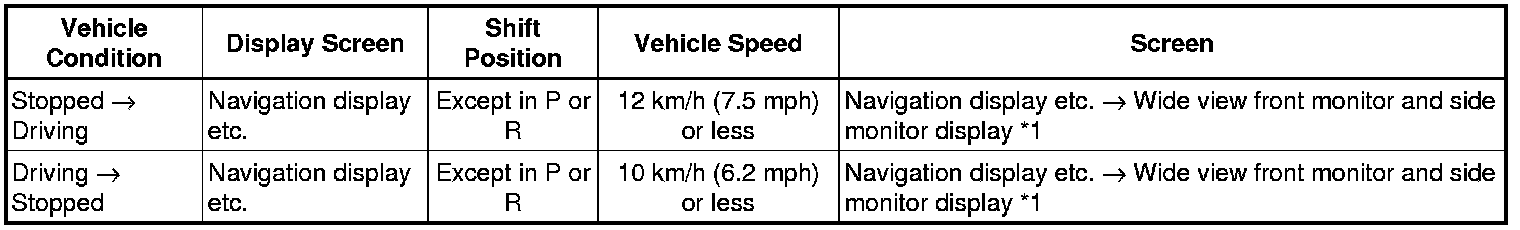

(d) Display conditions for automatic display mode

(1) In automatic display mode, the side monitor system automatically changes the displayed image depending on the vehicle conditions while the following conditions are met and the system is operating normally (no DTCs output).





*1: Screen changes and screen transition conditions after the screen is automatically changed are the same as those for manual display mode (shift lever in a position other than R).

5. COMMUNICATION SYSTEM OUTLINE

(a) The components of the wide view front monitor system communicate with each other through the AVC-LAN.

(b) If a short circuit or open circuit occurs in the AVC-LAN, communication is interrupted and the side monitor system will stop functioning.

6. DIAGNOSTIC FUNCTION OUTLINE

(a) This wide view front monitor system has a diagnostic function displayed in the display and navigation module display Diagnosis System.

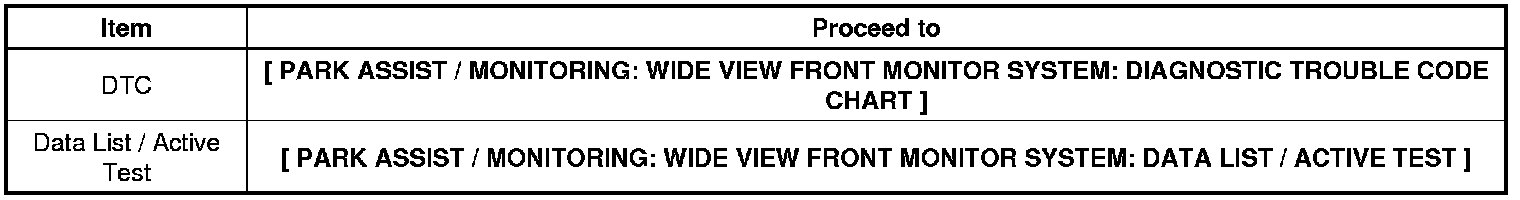

(b) The system can check the following items by using the Techstream.
