Pinout Values and Diagnostic Parameters

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: TERMINALS OF ECU

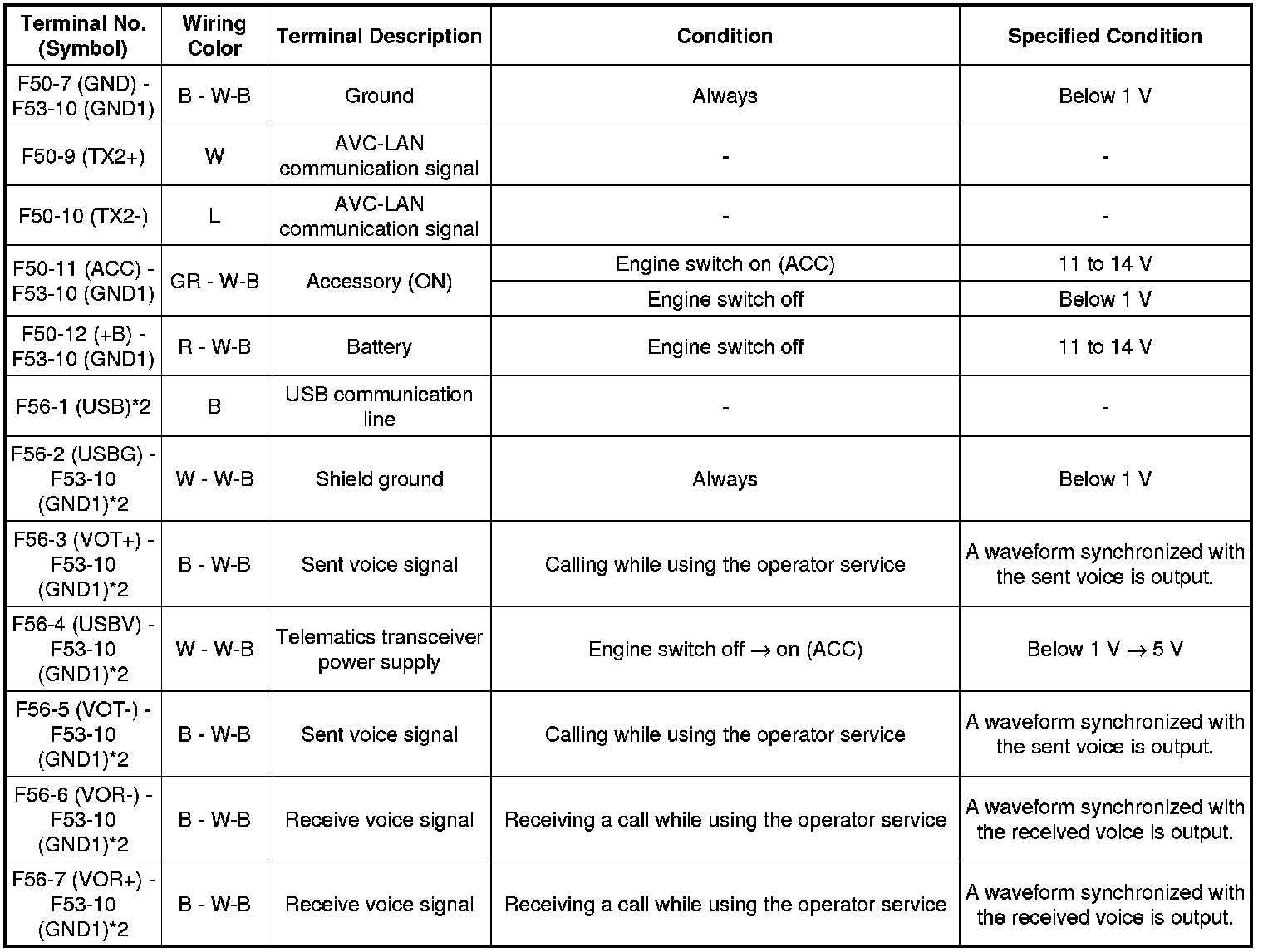

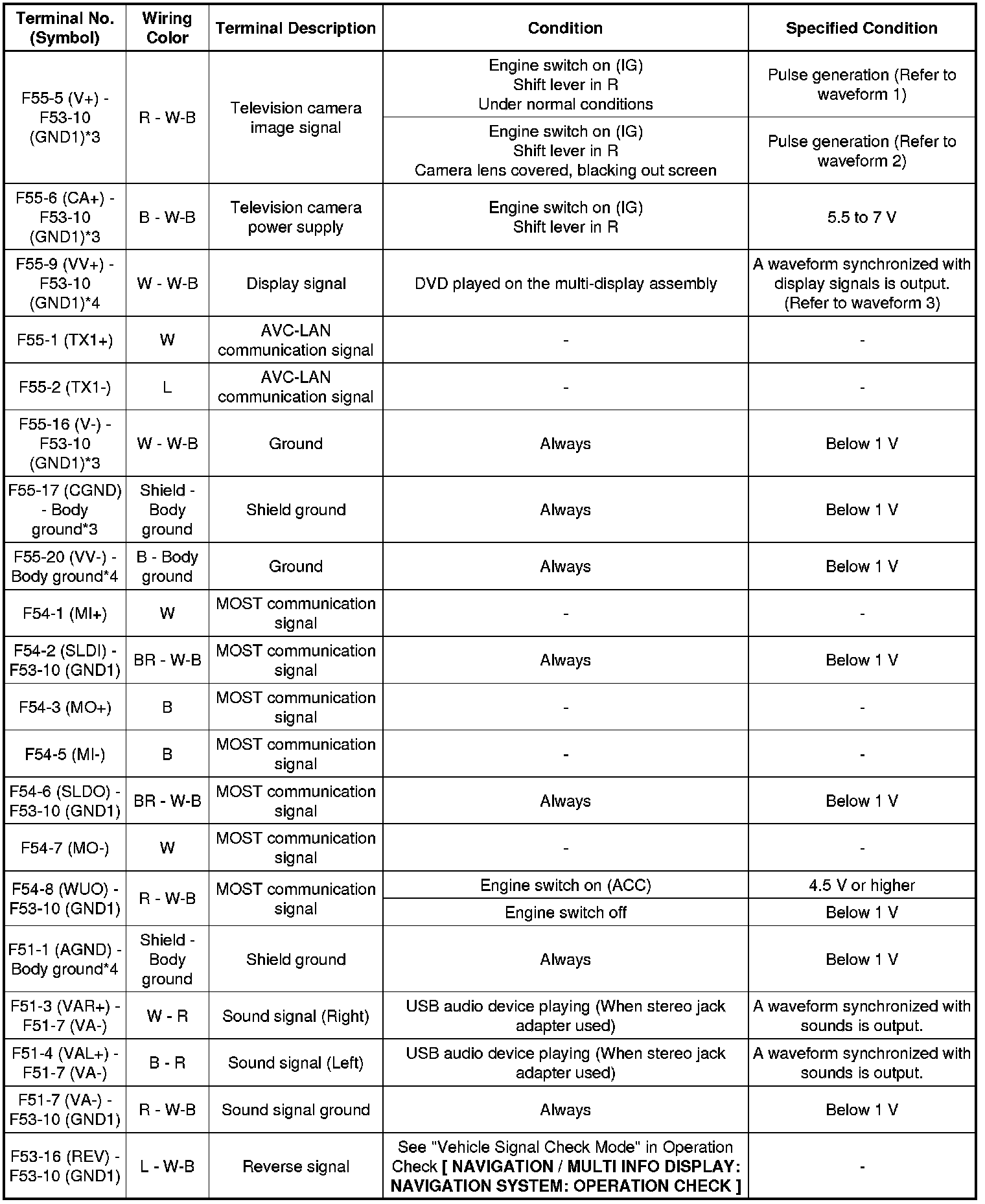

1. DISPLAY AND NAVIGATION MODULE DISPLAY

















*1: w/o Manual (SOS) Switch

*2: w/ Manual (SOS) Switch

*3: w/ Side Monitor System

*4: w/ DVD Player

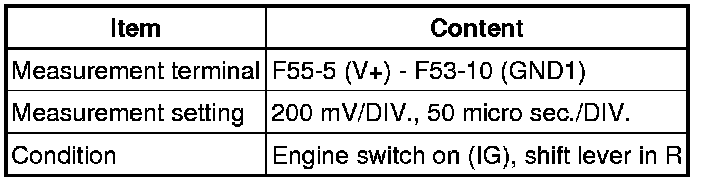

(a) Reference (Oscilloscope waveform):





(1) Waveform 1 (under normal conditions)





HINT
The video waveform changes according to the image from the television camera assembly.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image that the television camera assembly projects.

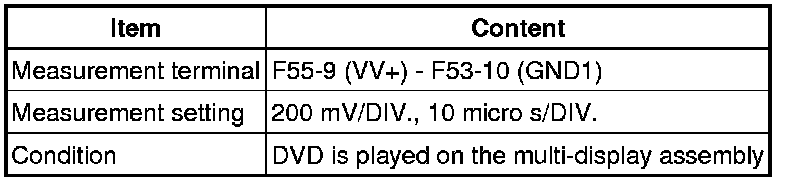

(b) Reference (Oscilloscope waveform):





(1) Waveform 3





HINT
The video waveform changes according to the image input from the radio receiver assembly to the display and navigation module display, but the synchronization signal does not change.

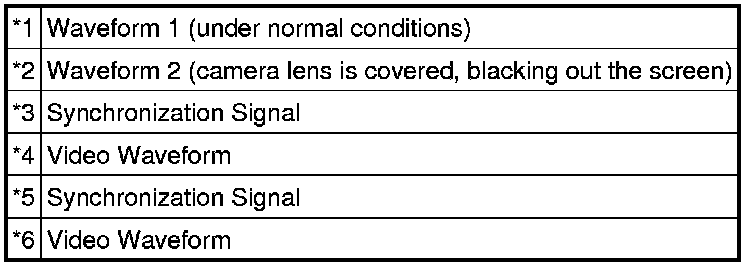

Text in Illustration





2. RADIO RECEIVER ASSEMBLY Pinout Values and Diagnostic Parameters

3. STEREO COMPONENT AMPLIFIER ASSEMBLY Pinout Values and Diagnostic Parameters

4. MULTI-MEDIA INTERFACE ECU Pinout Values and Diagnostic Parameters

5. WIDE VIEW FRONT MONITOR SYSTEM Wide View Front Monitor System

6. SIDE MONITOR SYSTEM Side Monitor System

7. TELEMATICS TRANSCEIVER Safety Connect System
