Interior Moulding / Trim: Specifications

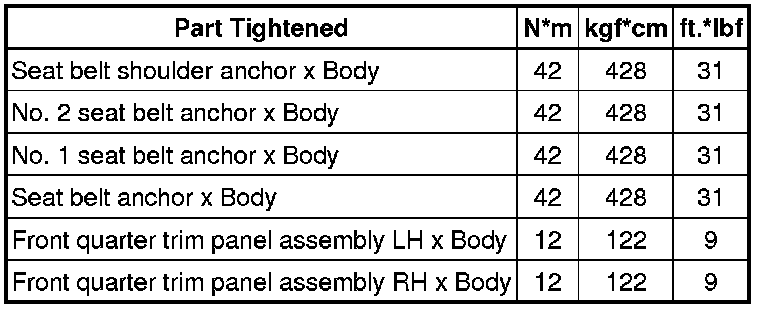

SPECIFICATIONS: INTERIOR PANELS / TRIM: TORQUE SPECIFICATIONS

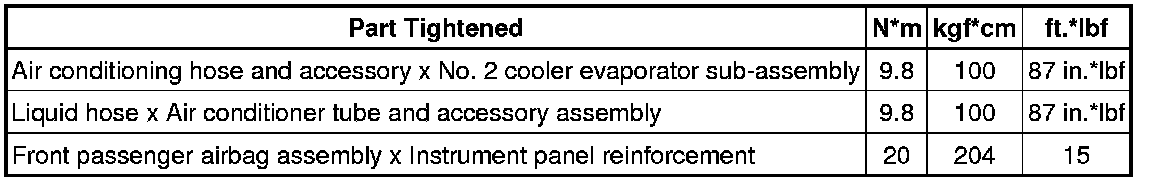

INSTRUMENT PANEL SAFETY PAD

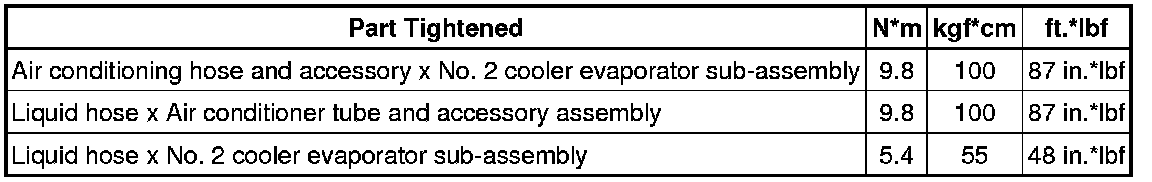

FRONT CONSOLE BOX (w/ Cool Box)

ROOF HEADLINING
