Seat Temperature Control Module: Locations

NETWORKING: LIN COMMUNICATION SYSTEM: PARTS LOCATION

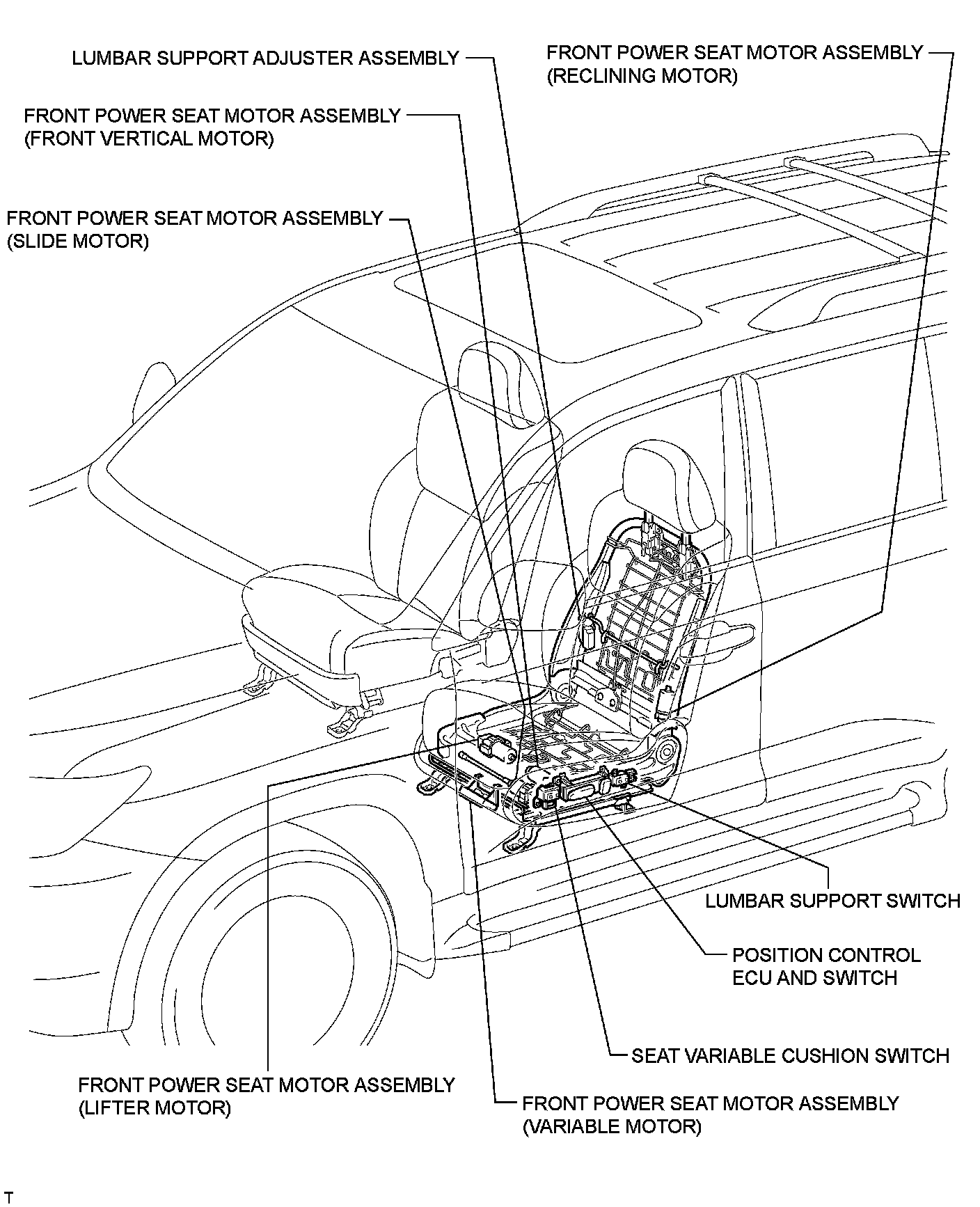

SEAT: FRONT POWER SEAT CONTROL SYSTEM: PARTS LOCATION
