Position of Parts In Engine Compartment
Position of Parts In Engine Compartment

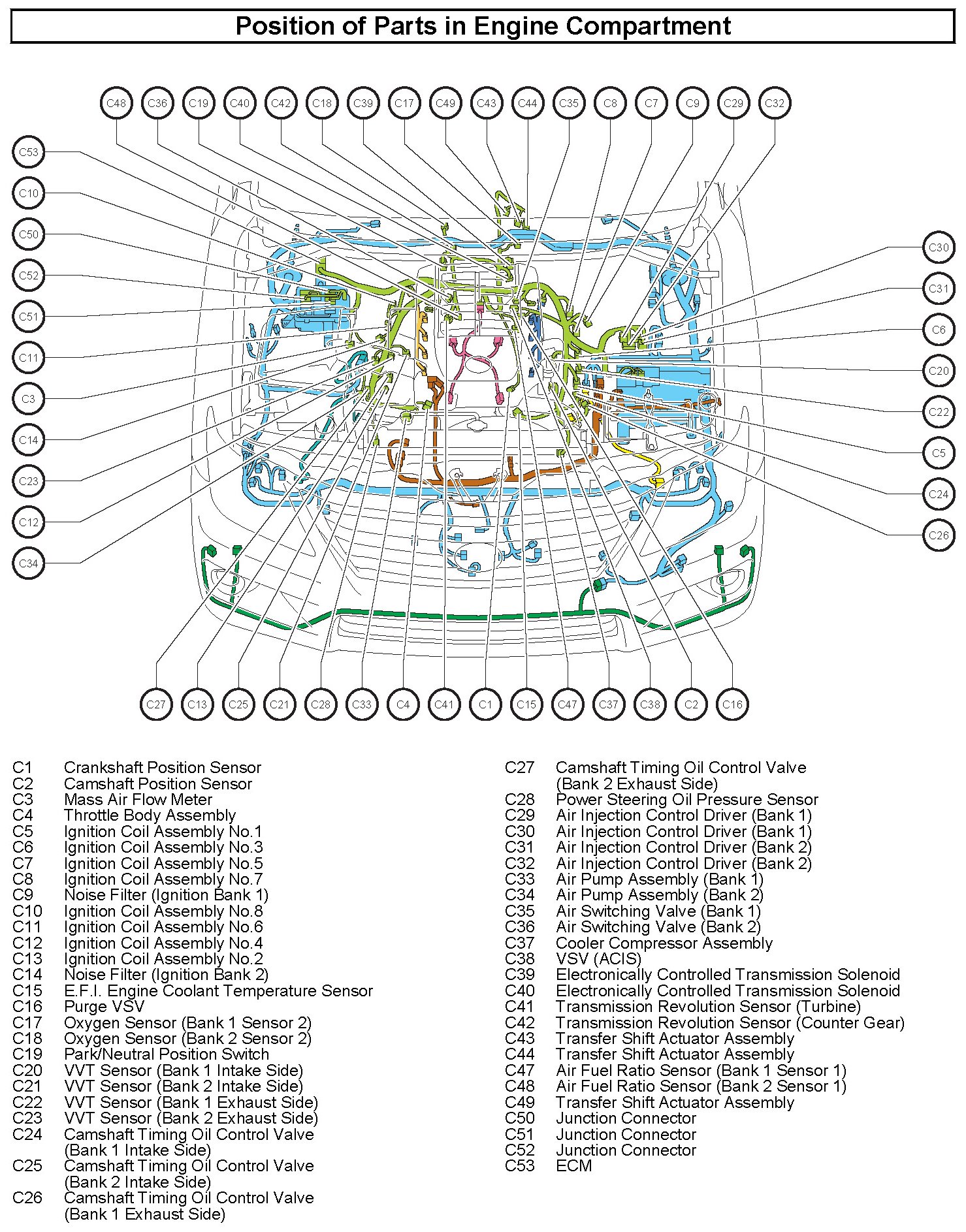

Position Of Parts In Engine Compartment:

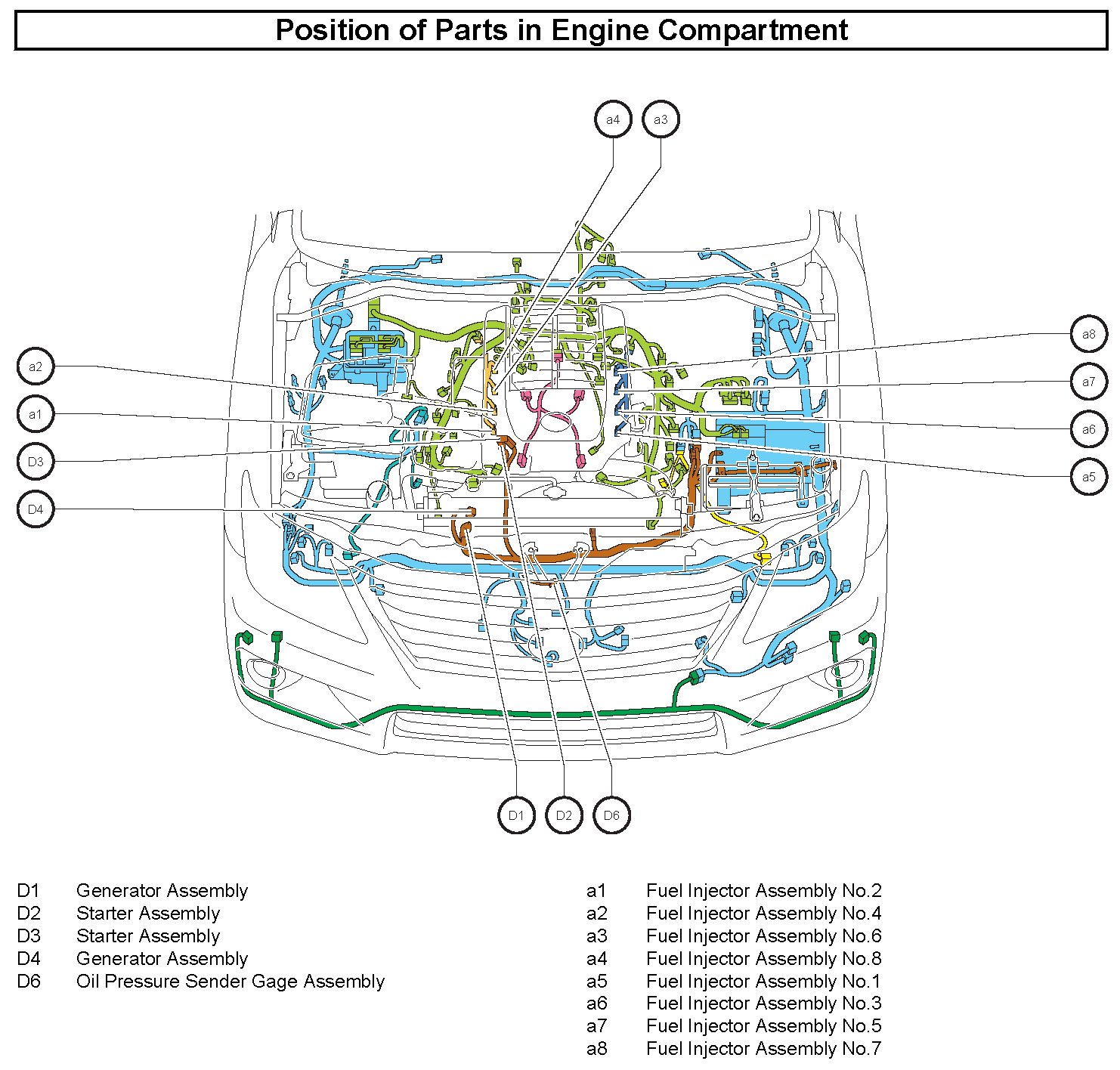

Position Of Parts In Engine Compartment:

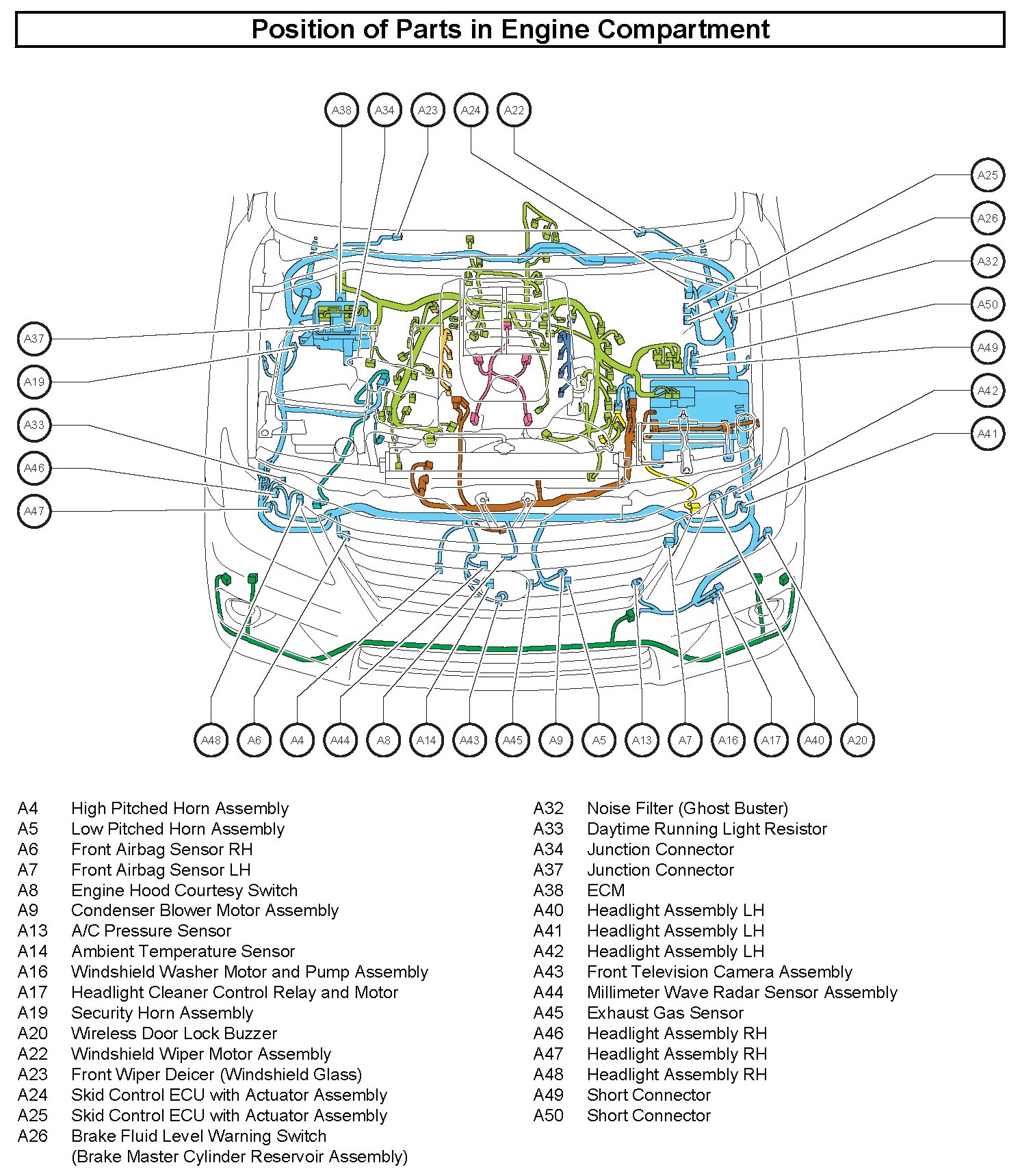

Position Of Parts In Engine Compartment:
Position Of Parts In Engine Compartment:
