Antitheft and Alarm Systems

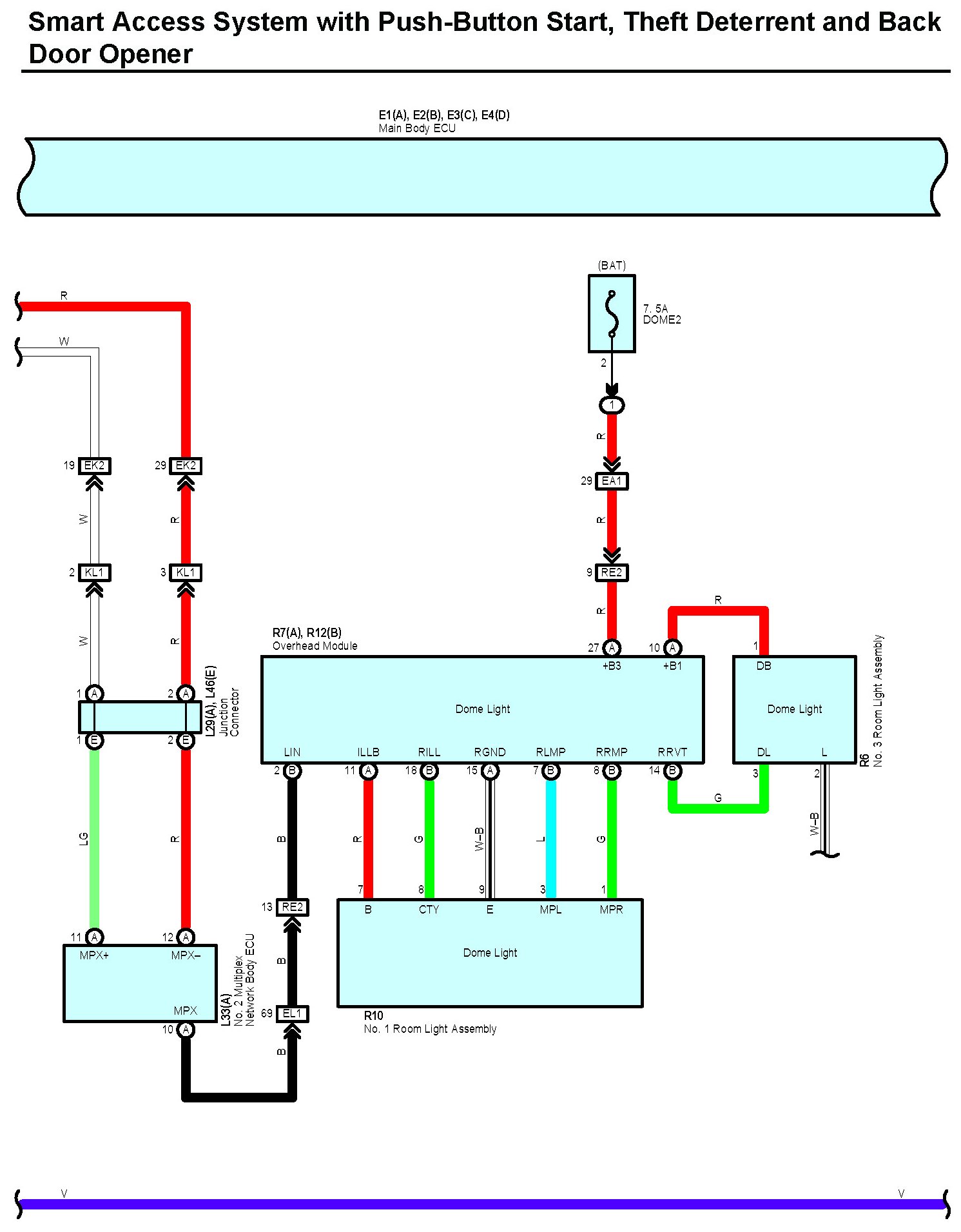

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 1:

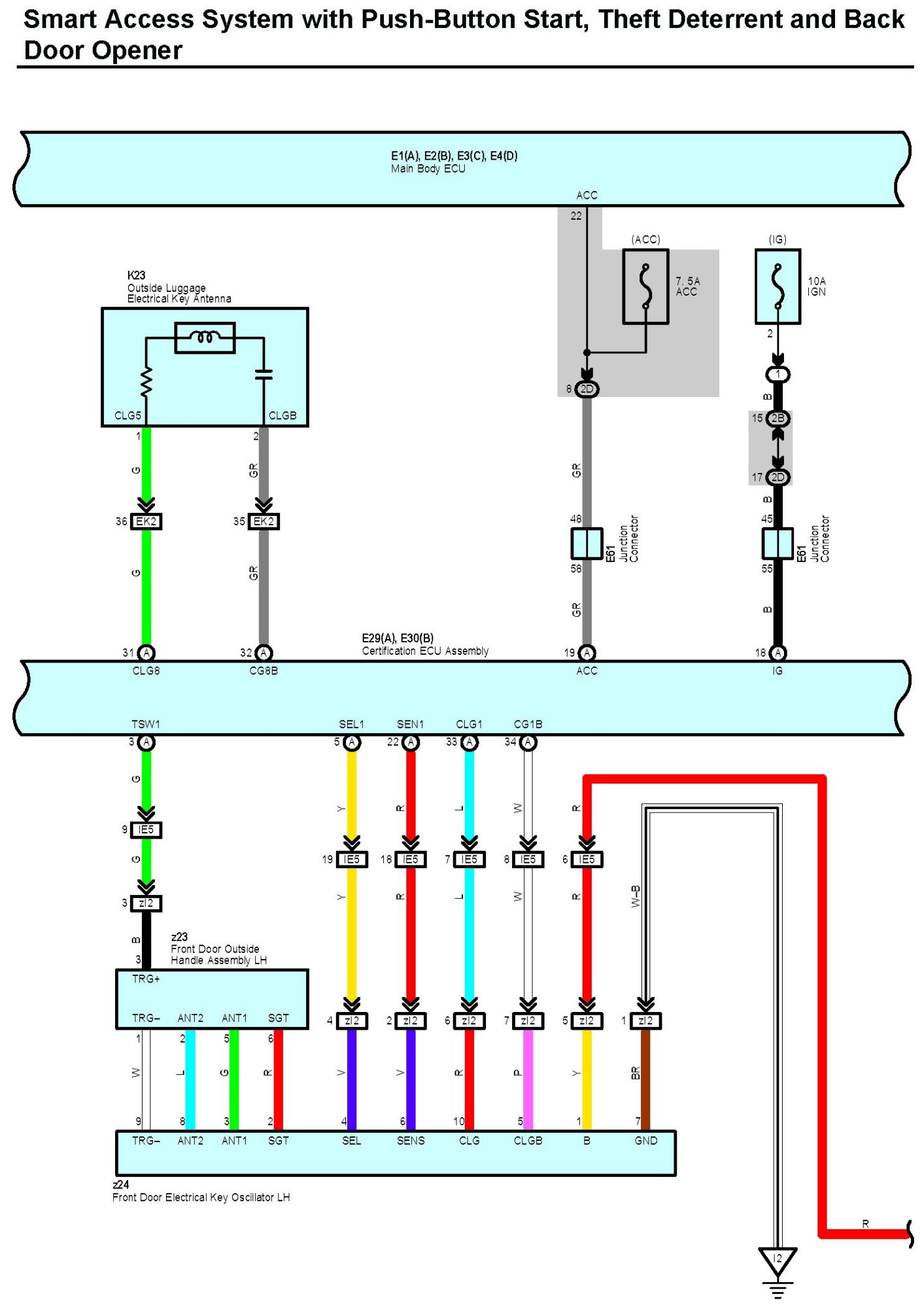

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 2:

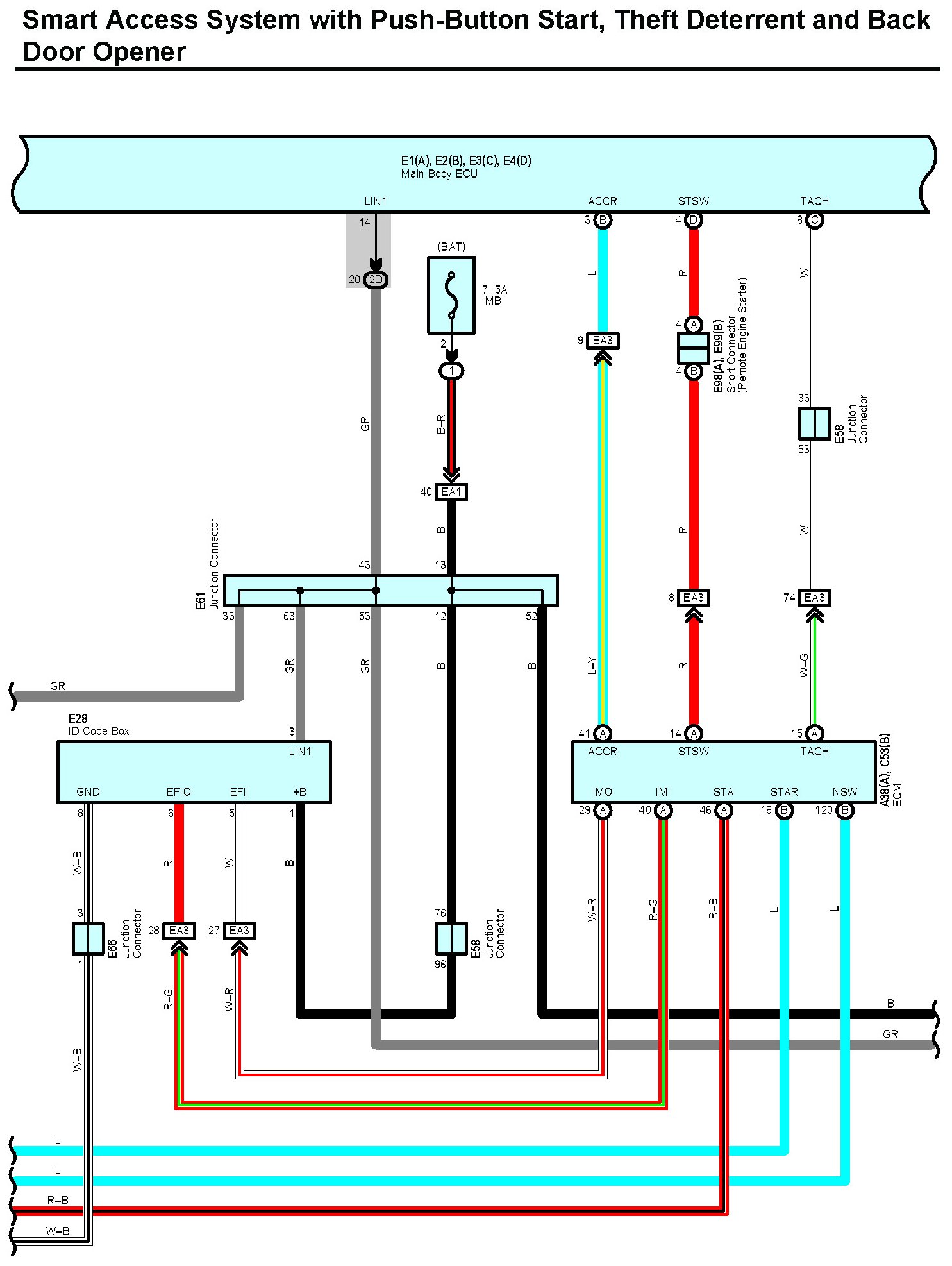

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 3:

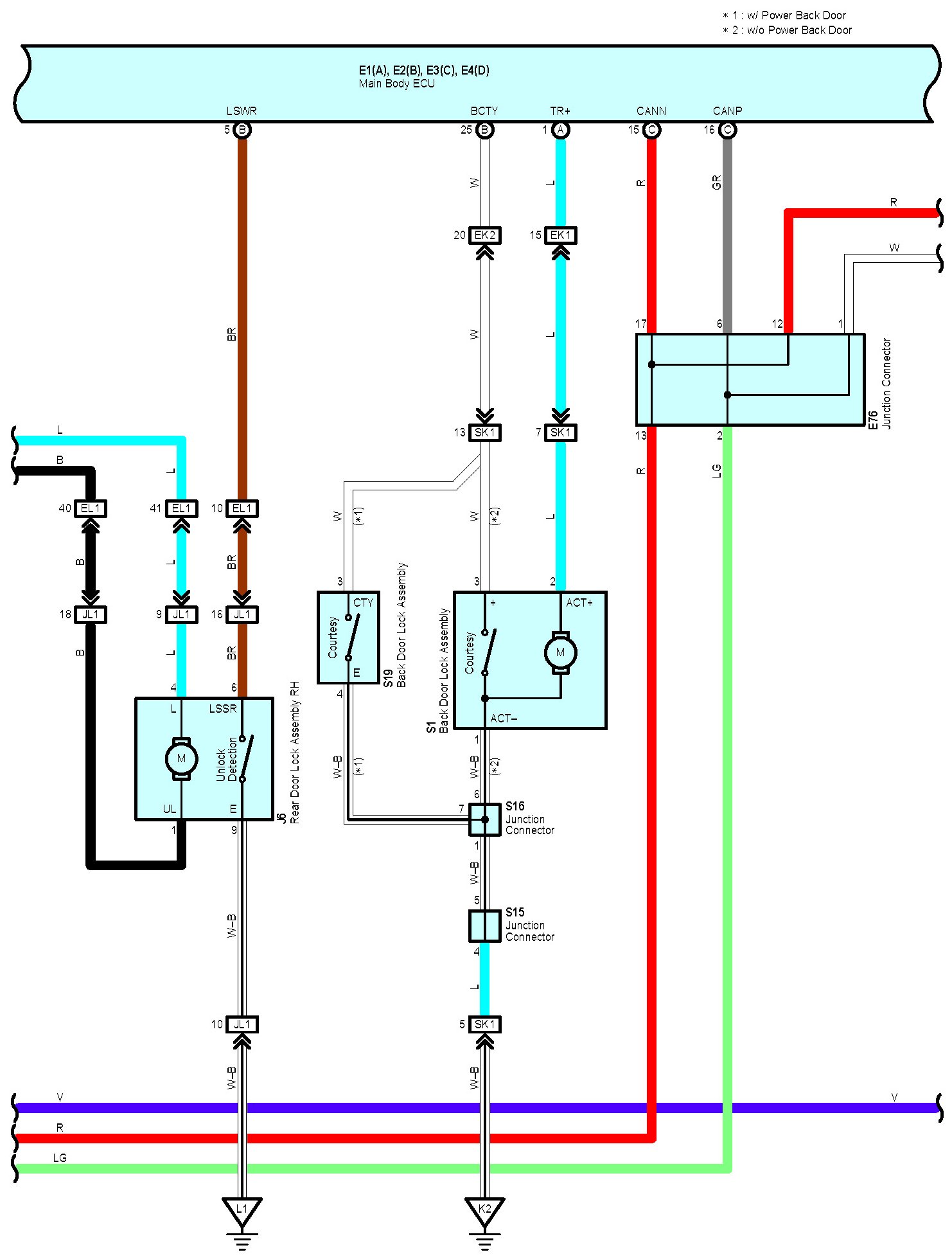

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 4:

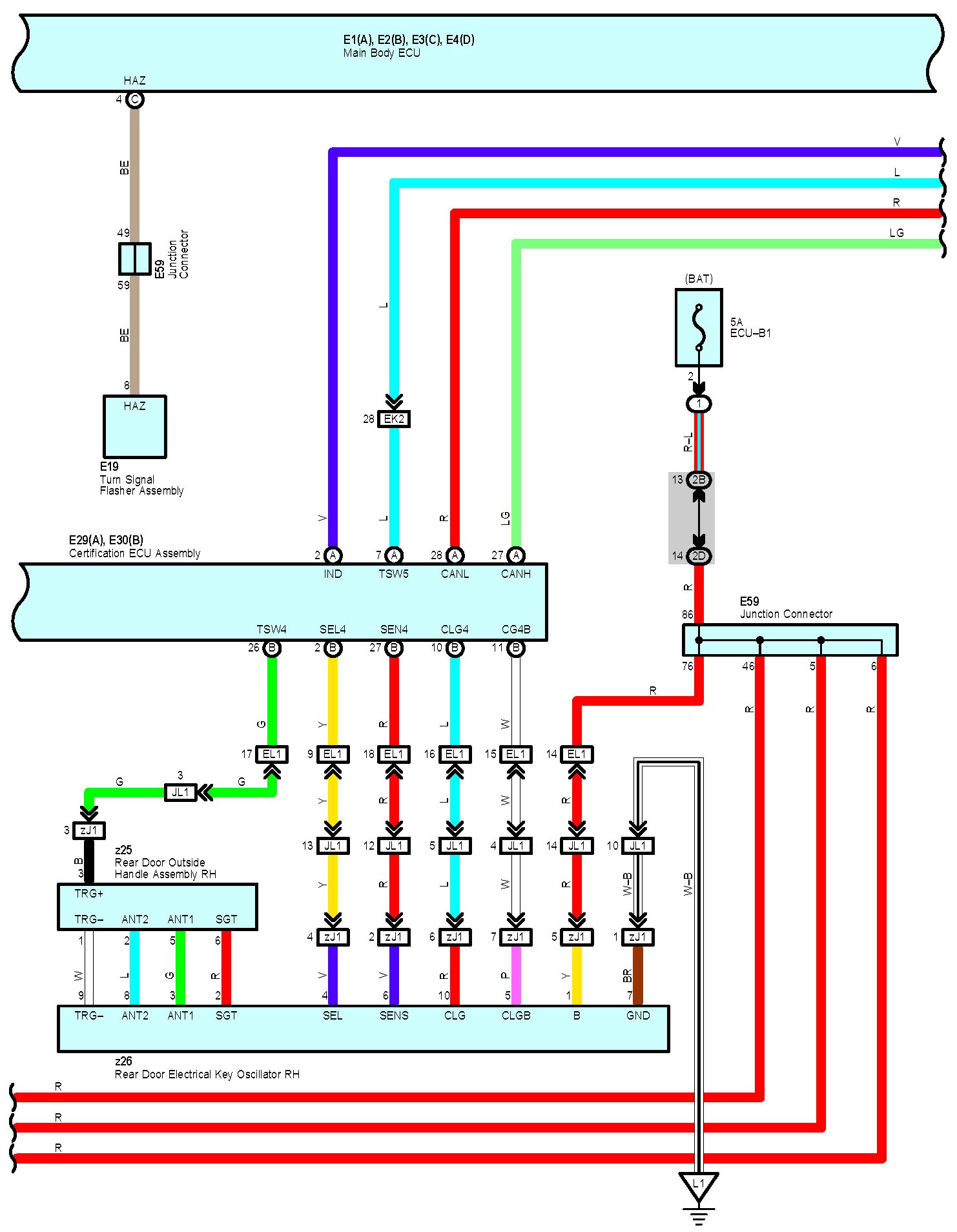

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 5:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 6:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 7:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 8:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 9:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 10:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 11:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 12:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 13:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 14:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 15:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 16:

Smart Access System with Push-Button Start, Theft Deterrent And Back Door Opener Part 17:

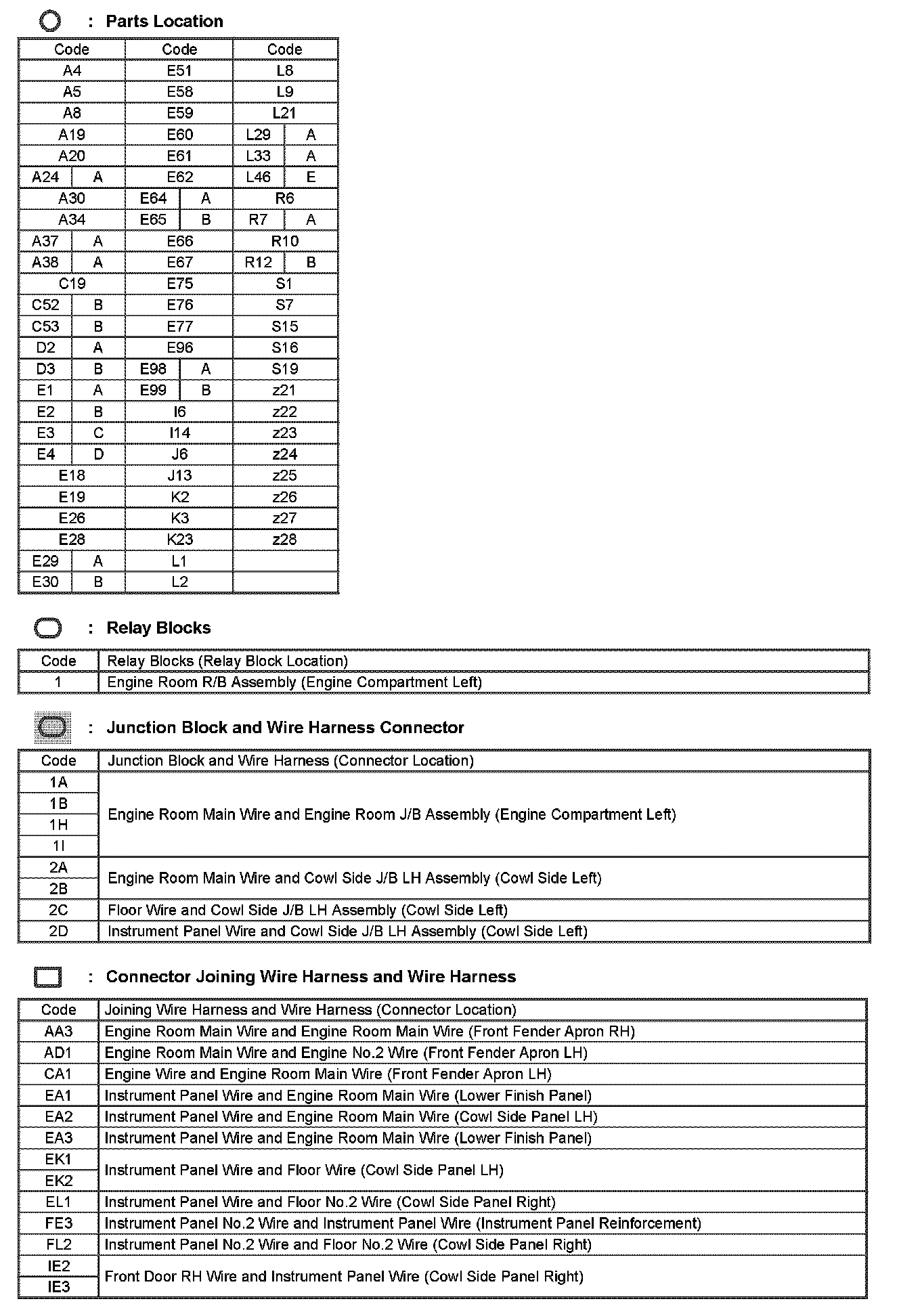

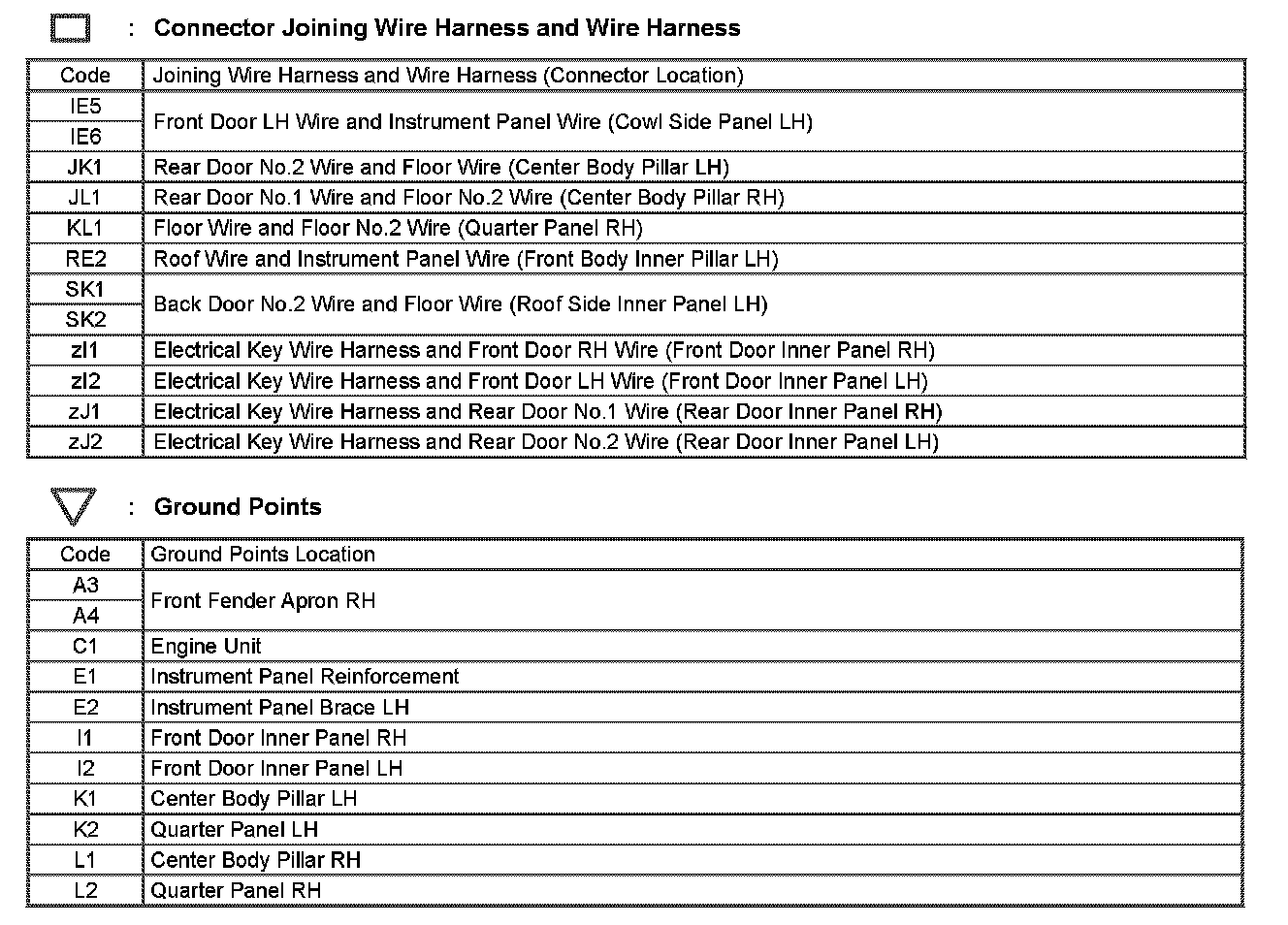

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
