Suspension Control ( Automatic - Electronic )

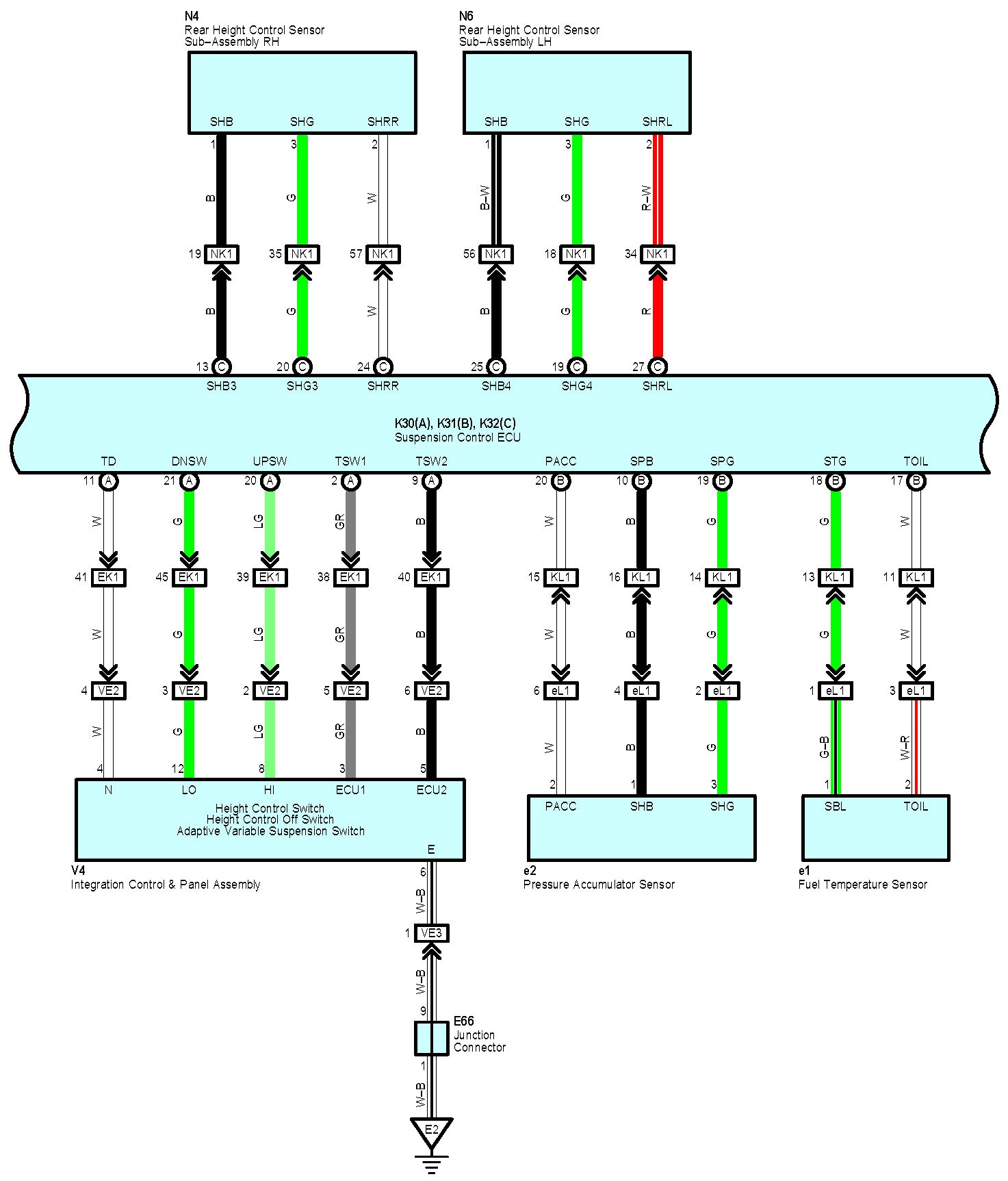

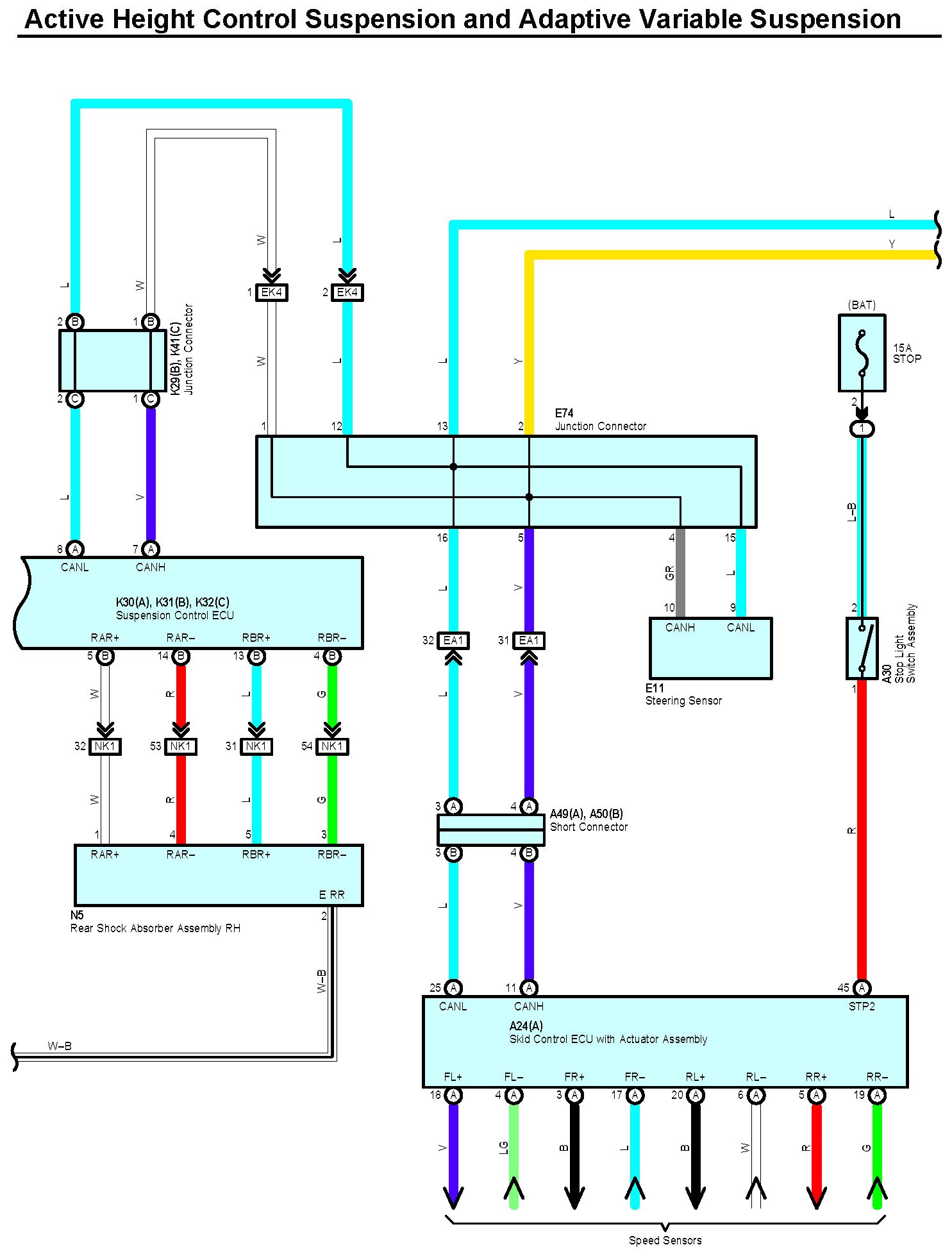

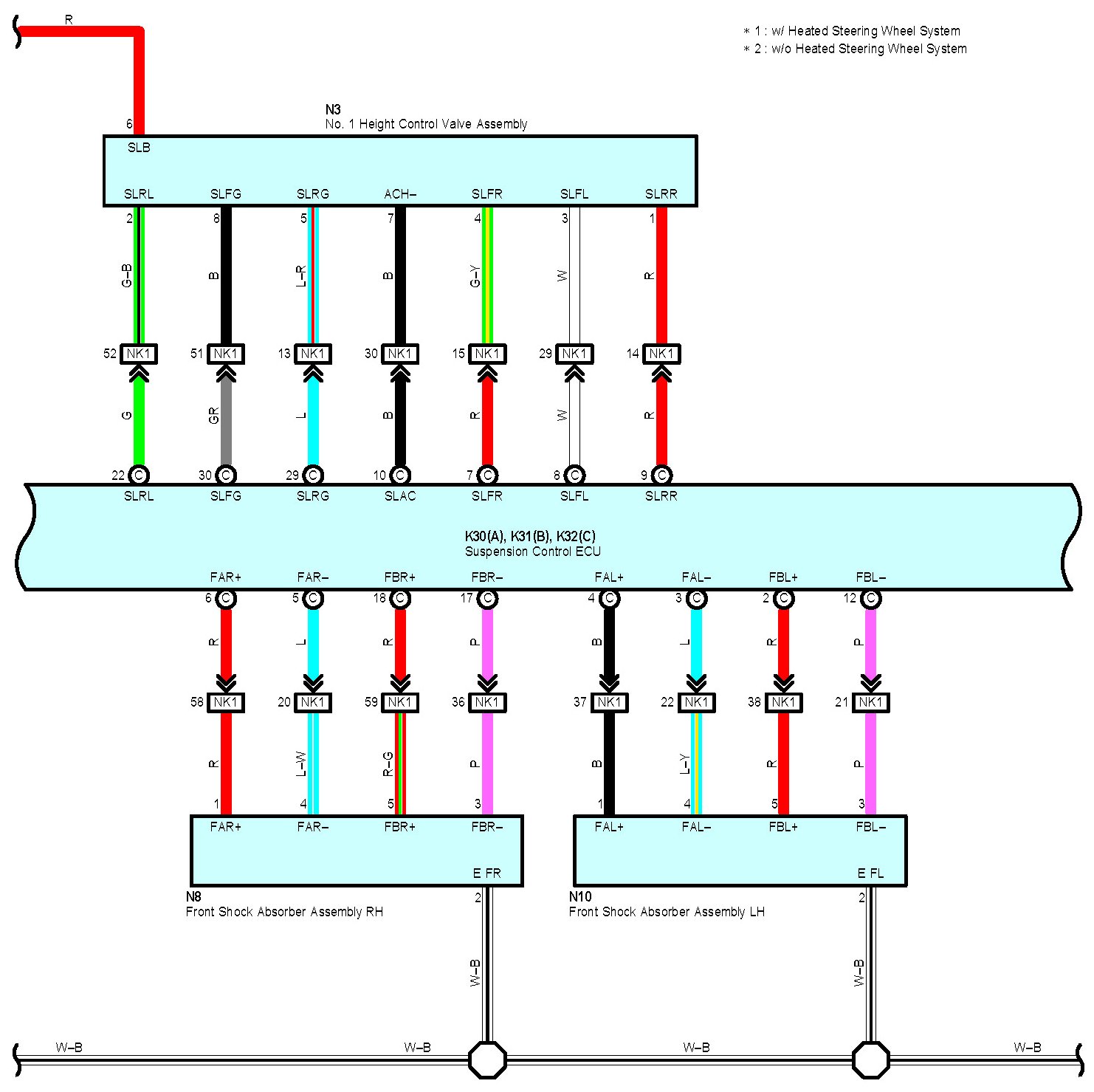

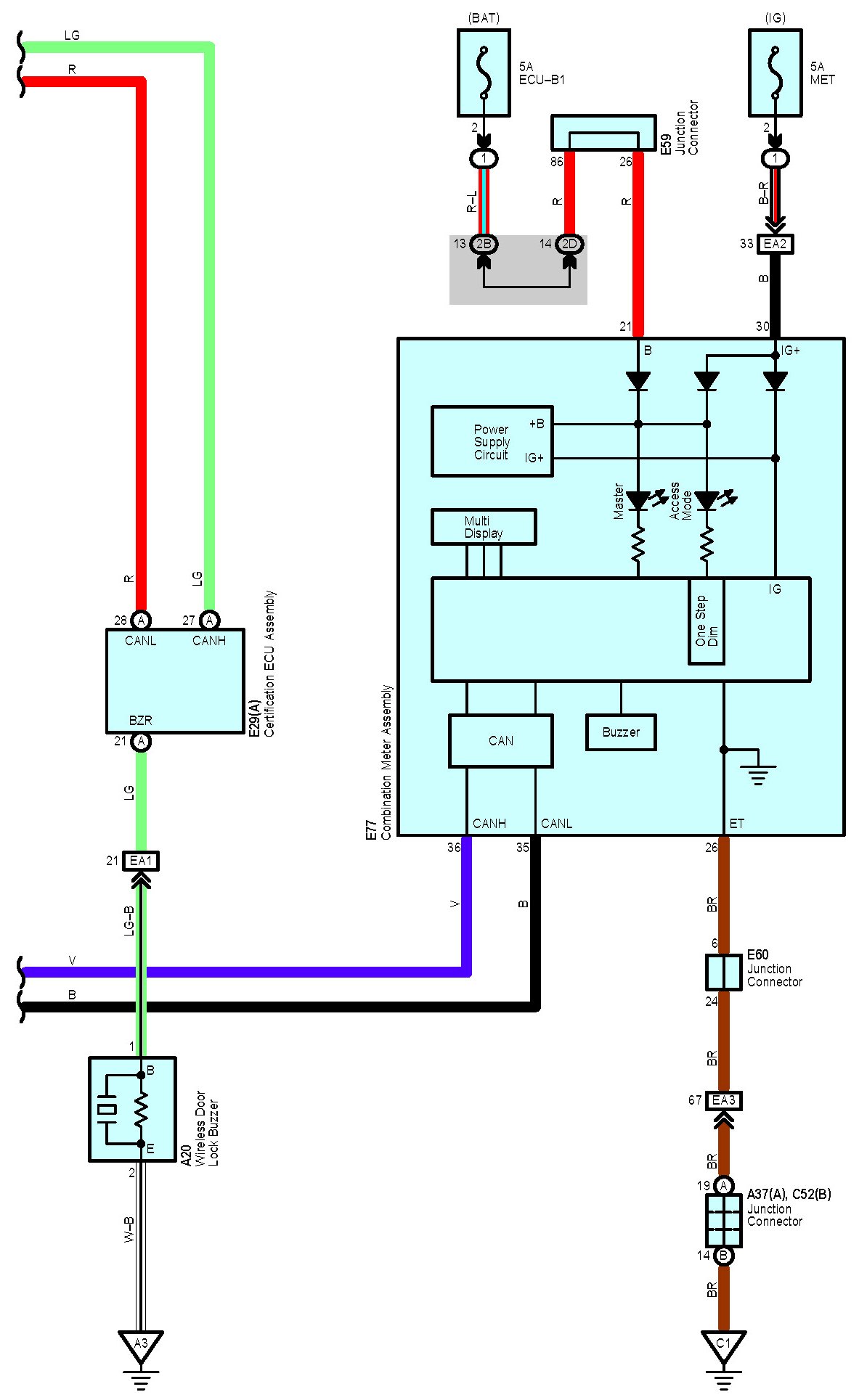

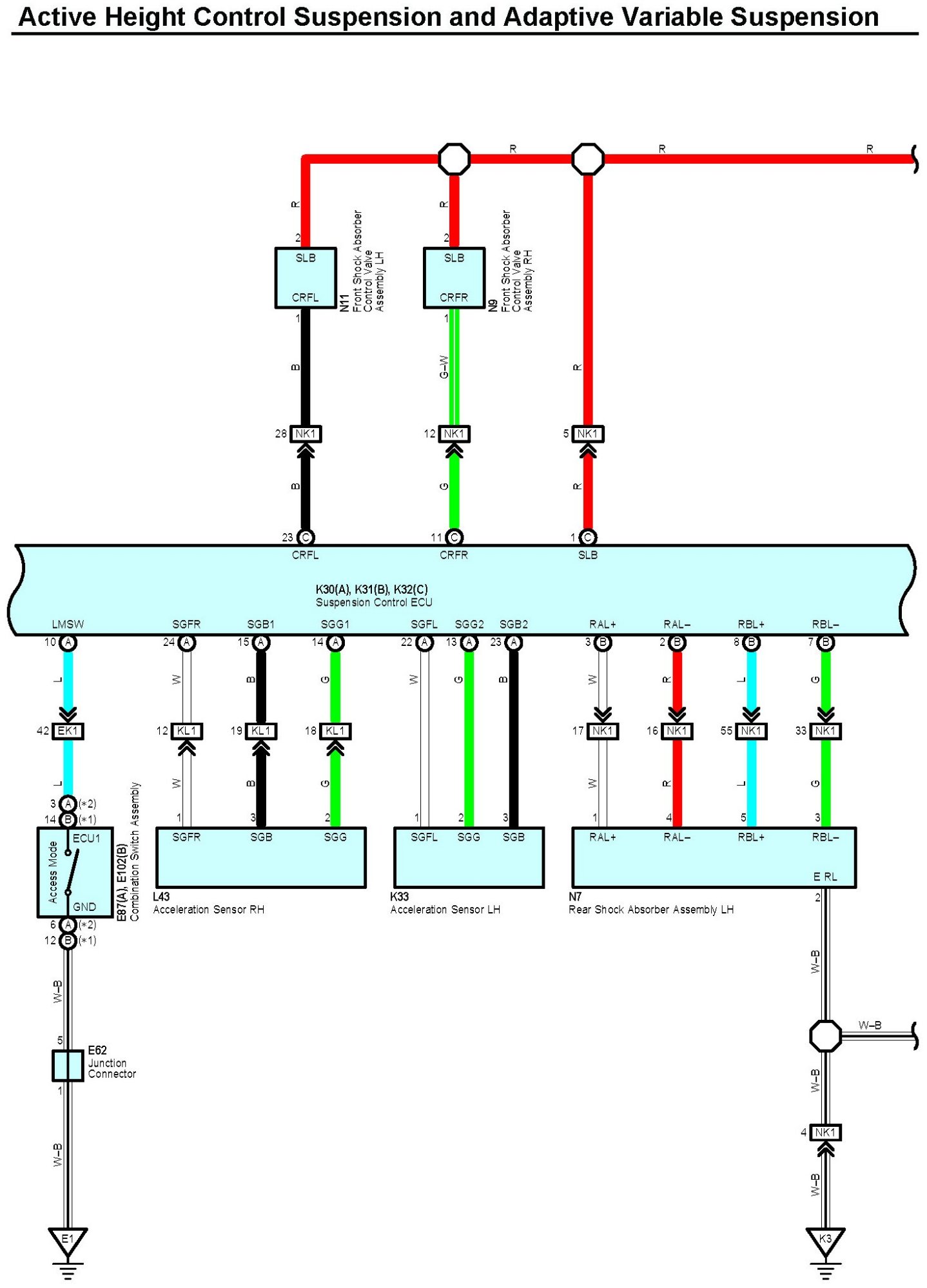

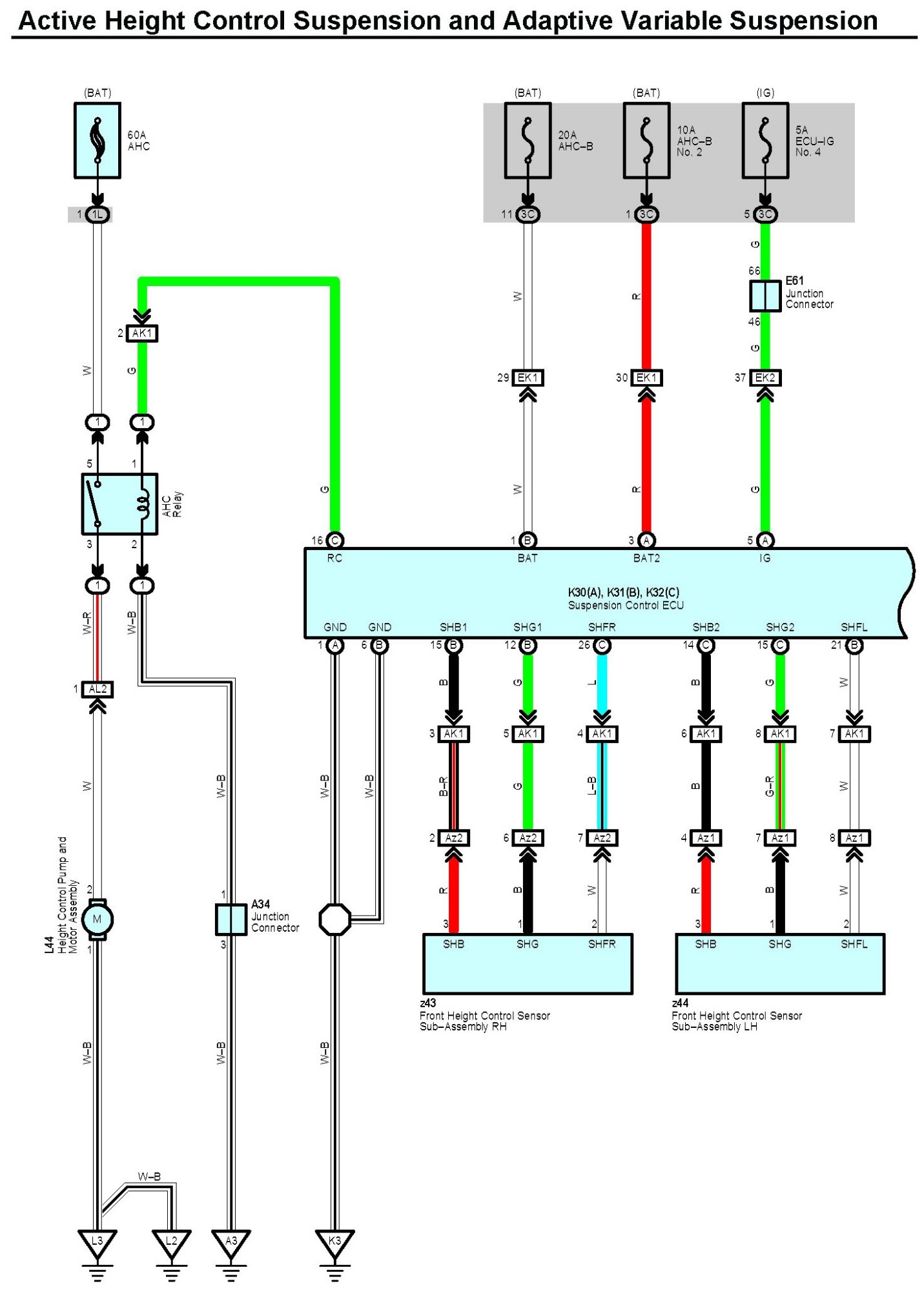

Active Height Control Suspension And Adaptive Variable Suspension Part 1:

Active Height Control Suspension And Adaptive Variable Suspension Part 2:

Active Height Control Suspension And Adaptive Variable Suspension Part 3:

Active Height Control Suspension And Adaptive Variable Suspension Part 4:

Active Height Control Suspension And Adaptive Variable Suspension Part 5:

Active Height Control Suspension And Adaptive Variable Suspension Part 6:

Active Height Control Suspension And Adaptive Variable Suspension Part 7:

Active Height Control Suspension And Adaptive Variable Suspension Part 8:

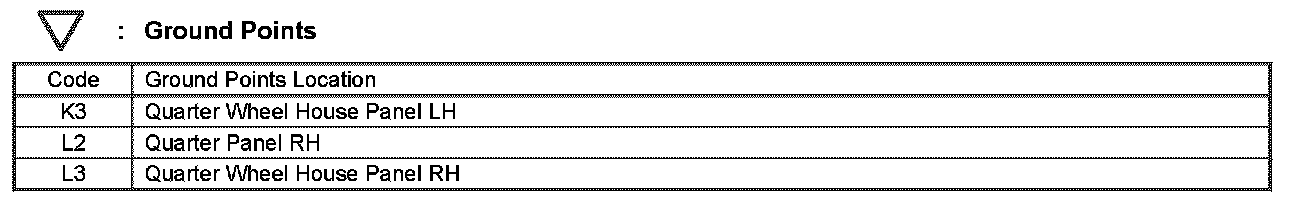

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
