Instrument Panel, Gauges and Warning Indicators: Description and Operation

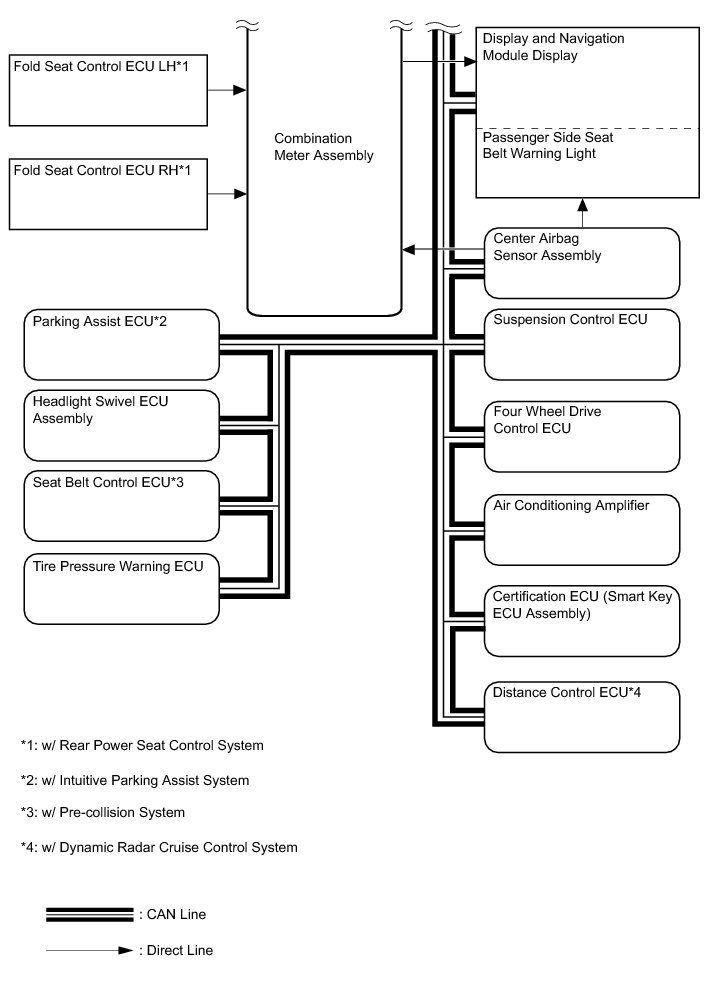

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

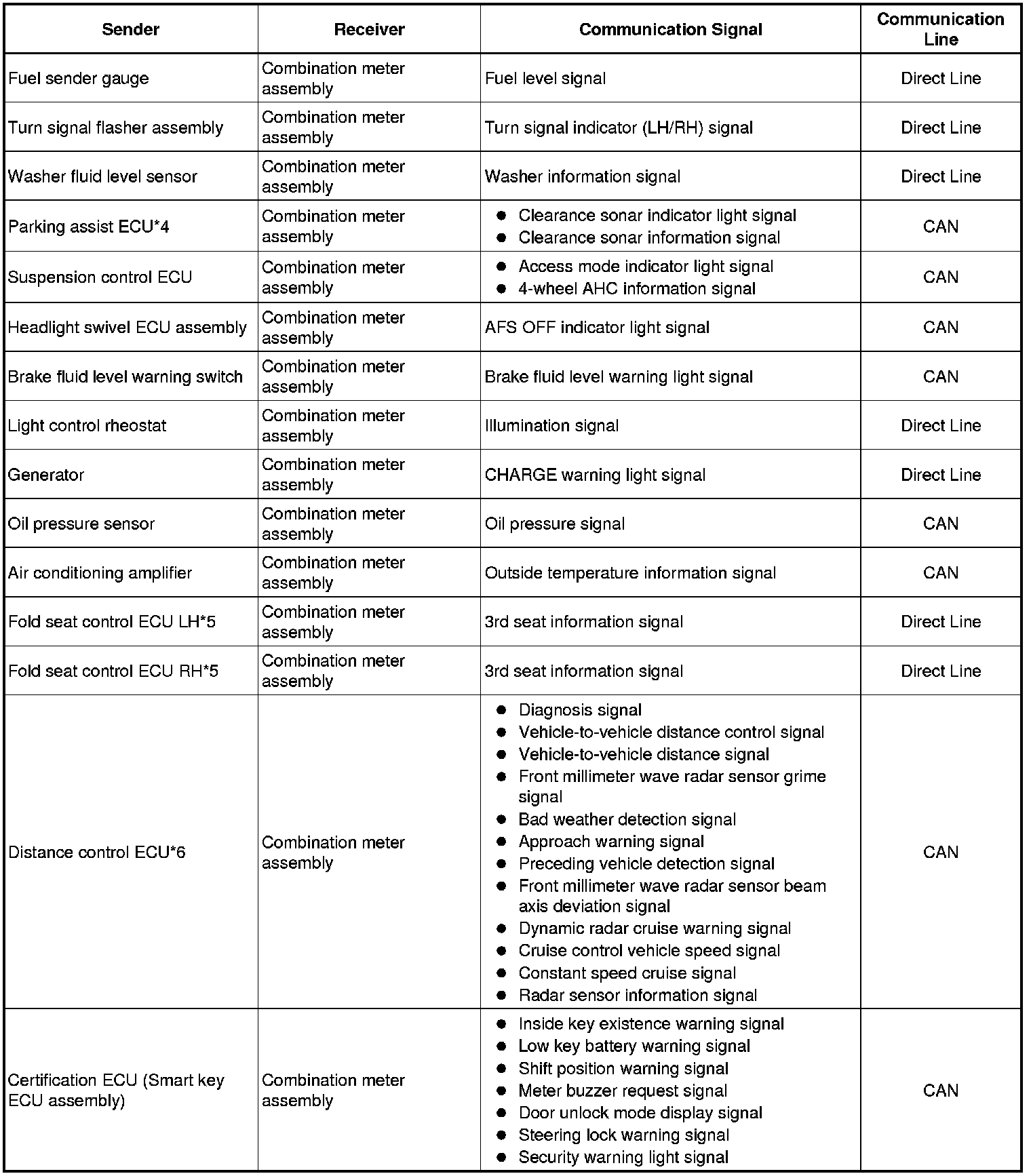

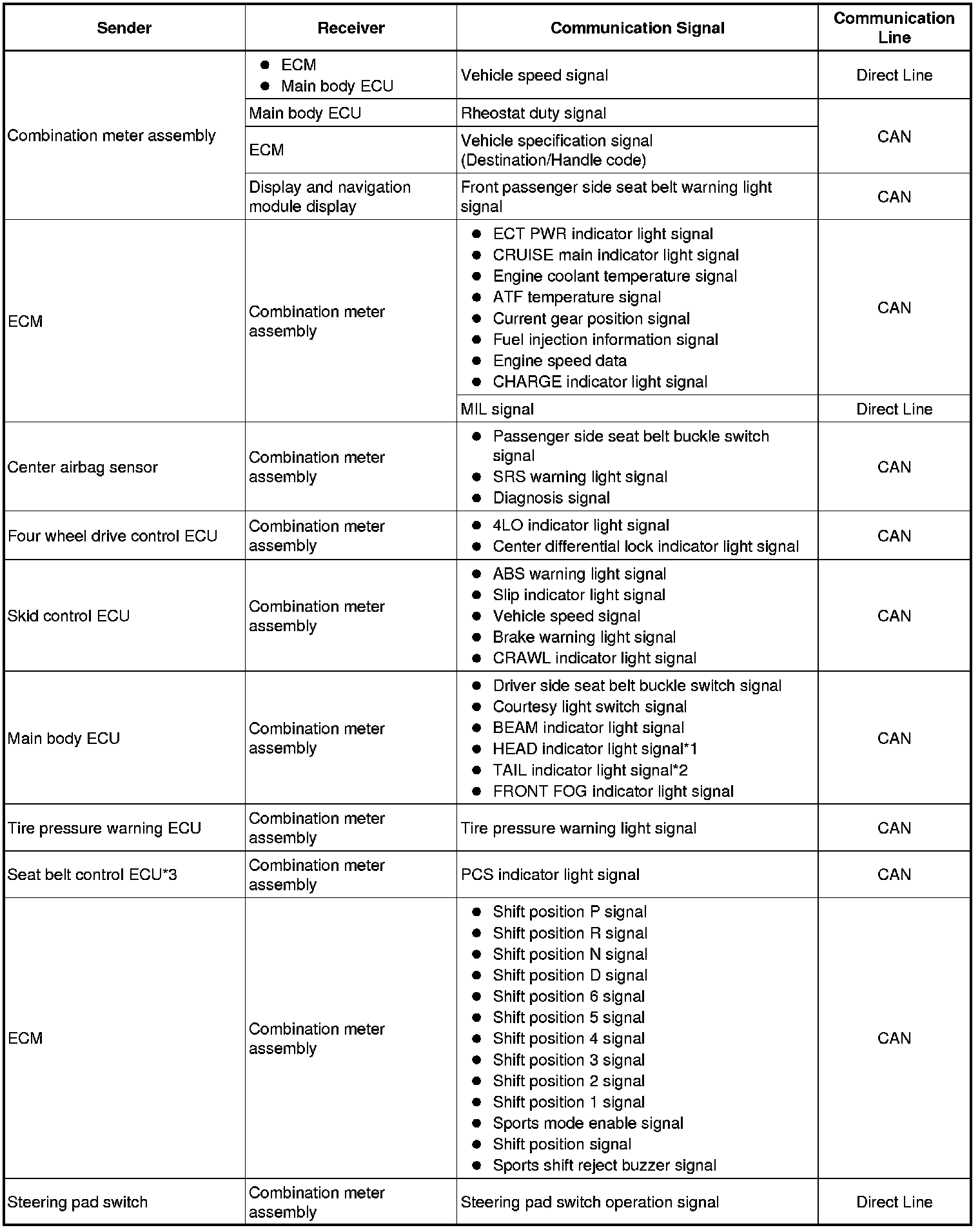

Communication Table









*1: for U.S.A.

*2: except U.S.A.

*3: w/ Pre-collision System

*4: w/ Intuitive Parking Assist System

*5: w/ Rear Power Seat Control System

*6: w/ Dynamic Radar Cruise Control System





SYSTEM DESCRIPTION

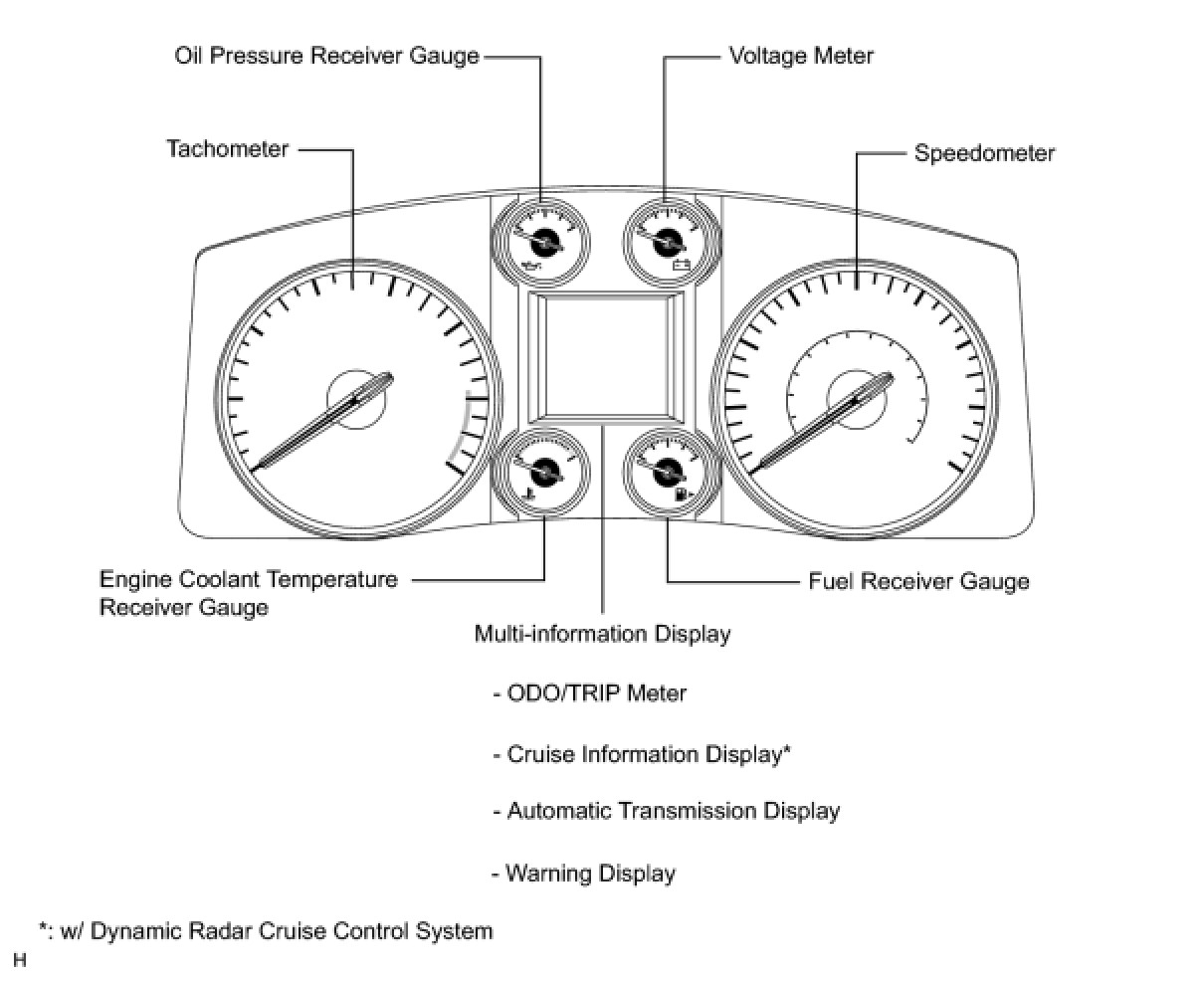

1. METER GAUGE AND WARNING/INDICATOR

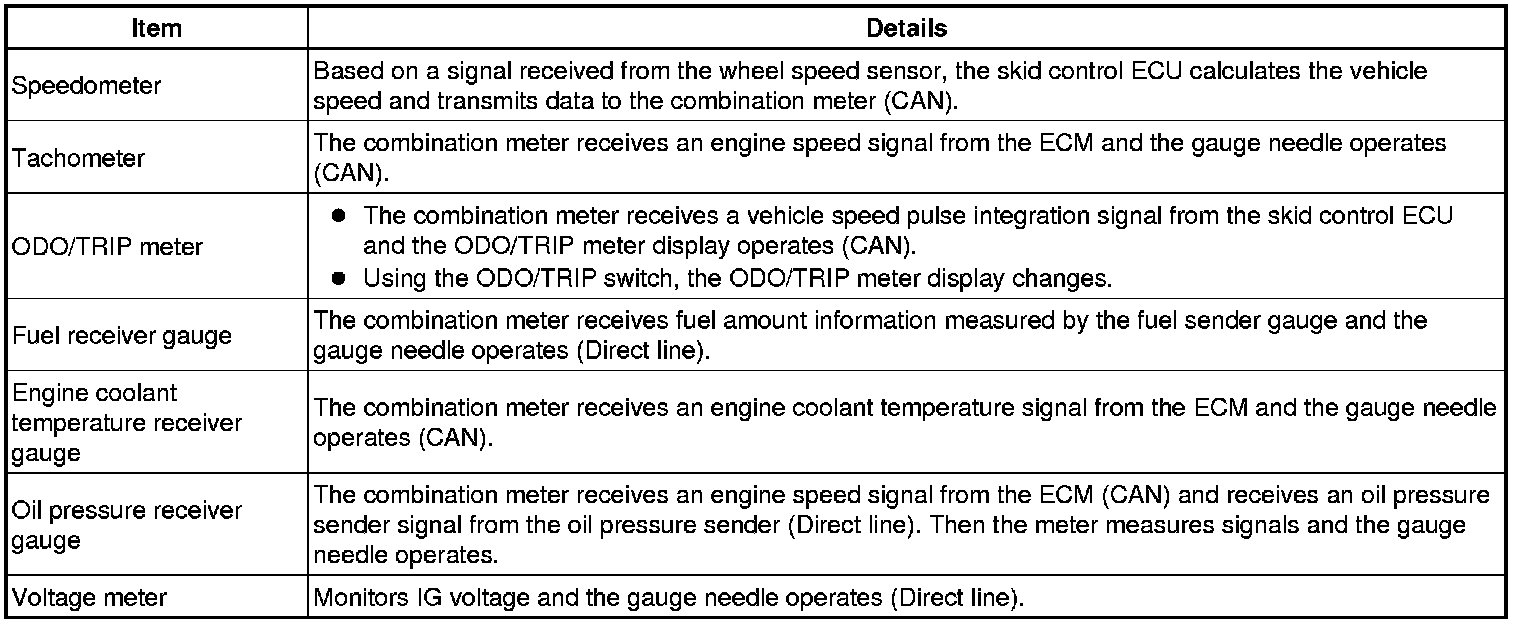

Meter/Gauge





Warning/Indicator









*1: for U.S.A.

*2: except U.S.A.

*3: w/ Intuitive Parking Assist System

*4: w/ Pre-collision System

2. MULTI-INFORMATION DISPLAY

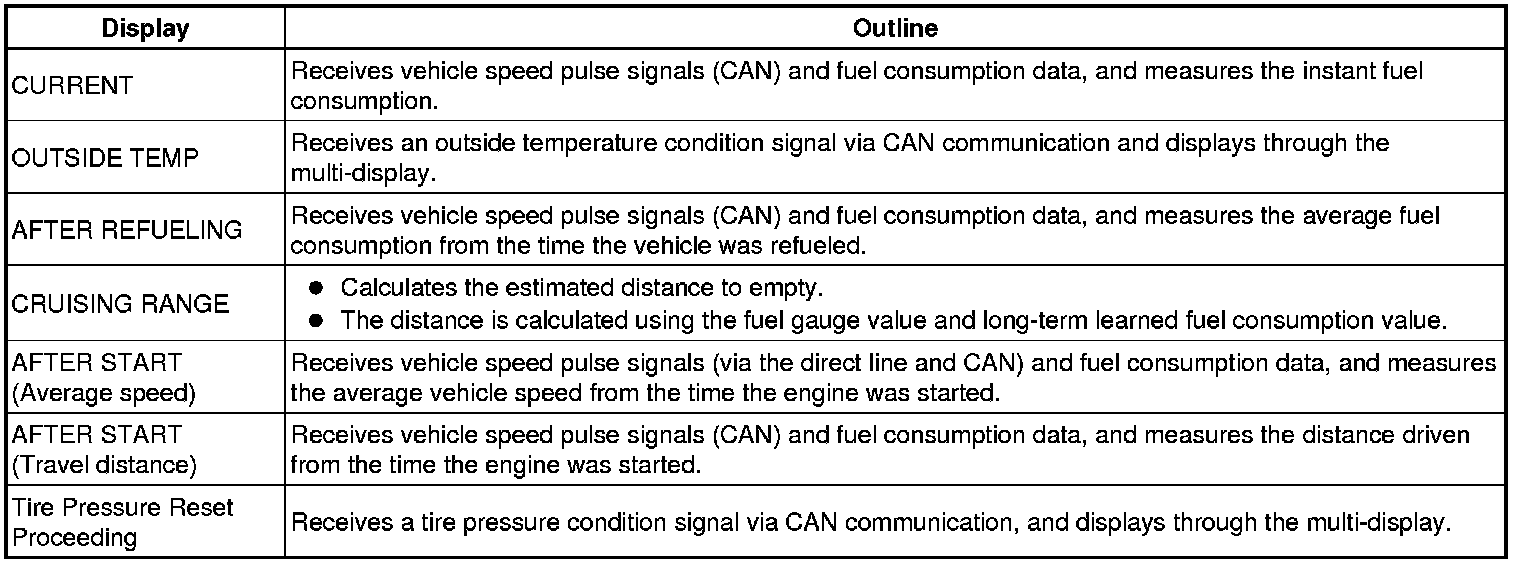

(a) Cruise information display:

The cruise information is displayed in the following order each time the DISP switch is pressed.

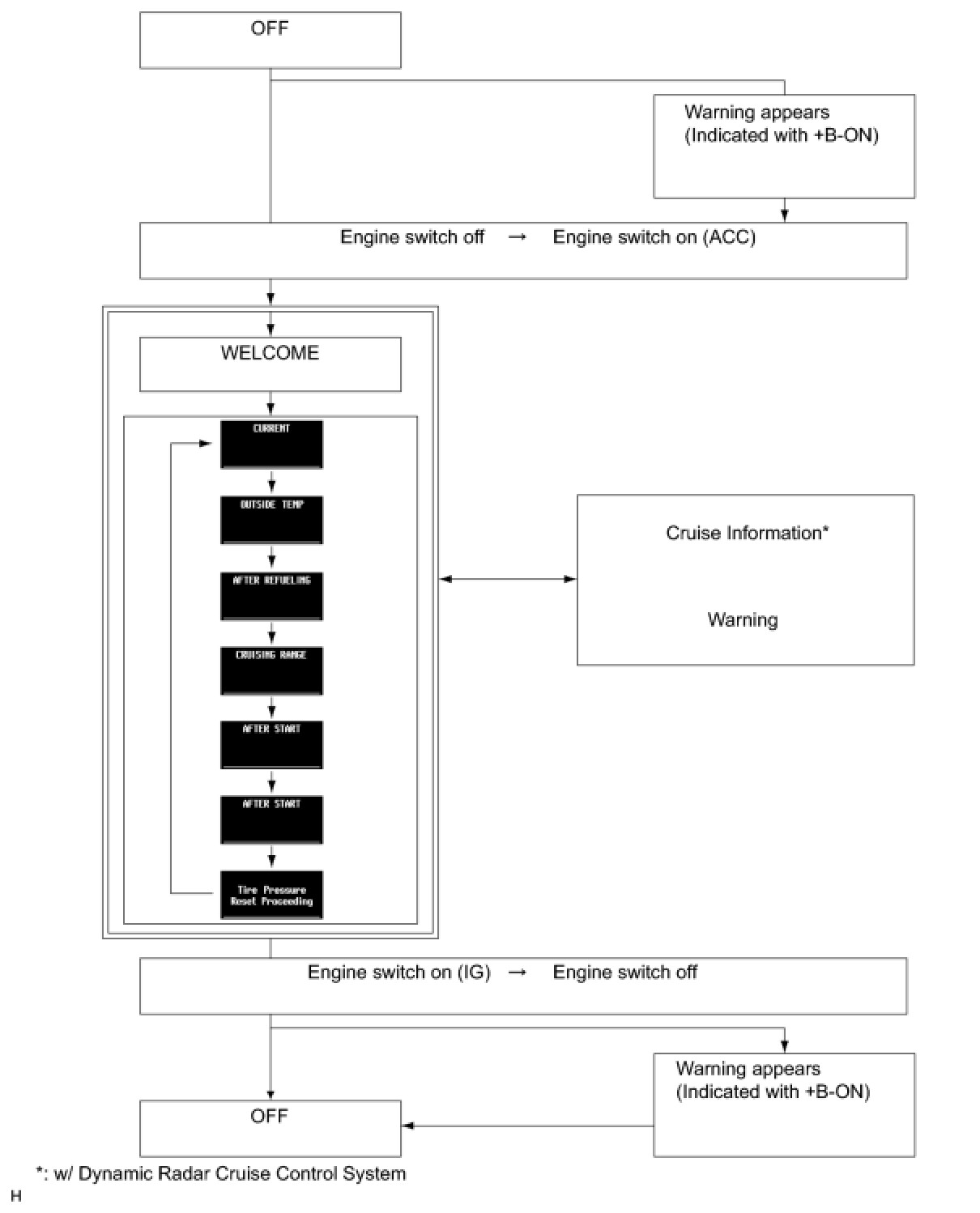

(b) Basic Flowchart.





(c) Multi-information display:

When a warning is necessary, the warning display interrupts the multi-information display.

The master warning light may illuminate or blink and a buzzer may sound depending on the item in the multi-information display.
