Fuse: Locations

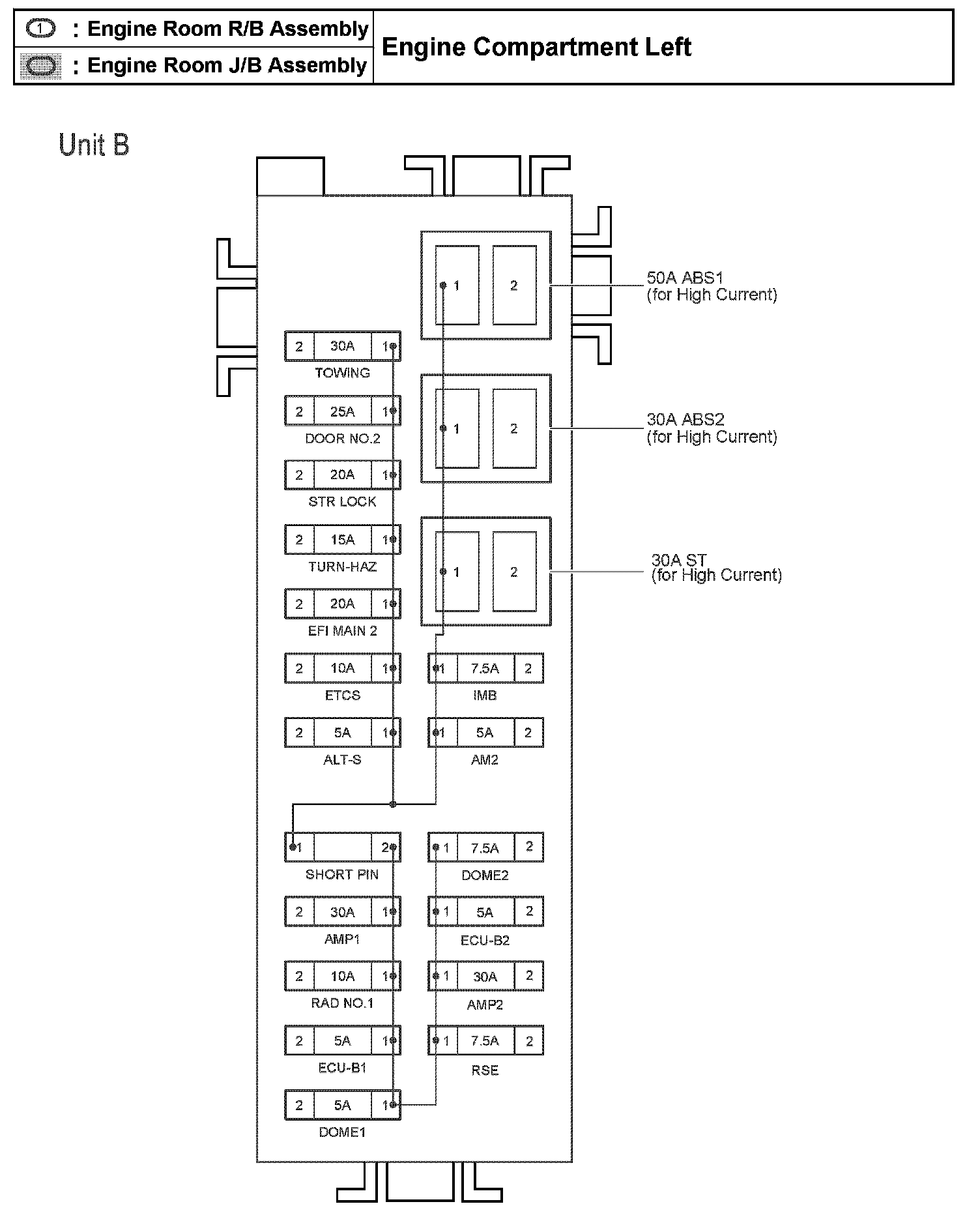

Engine Room R/B, J/B Assembly - Engine Compartment Left:

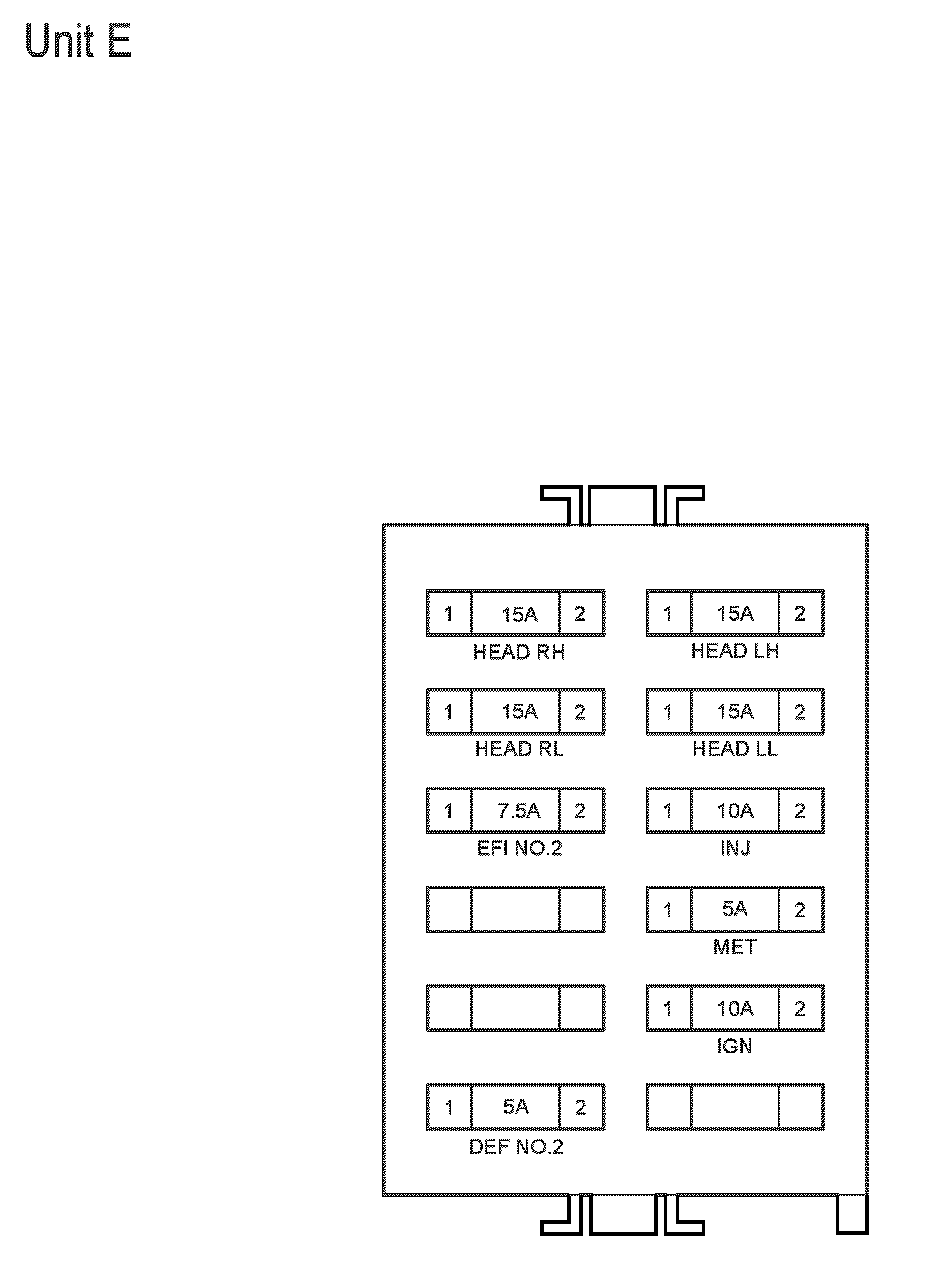

Engine Room R/B, J/B Assembly - Engine Compartment Left:

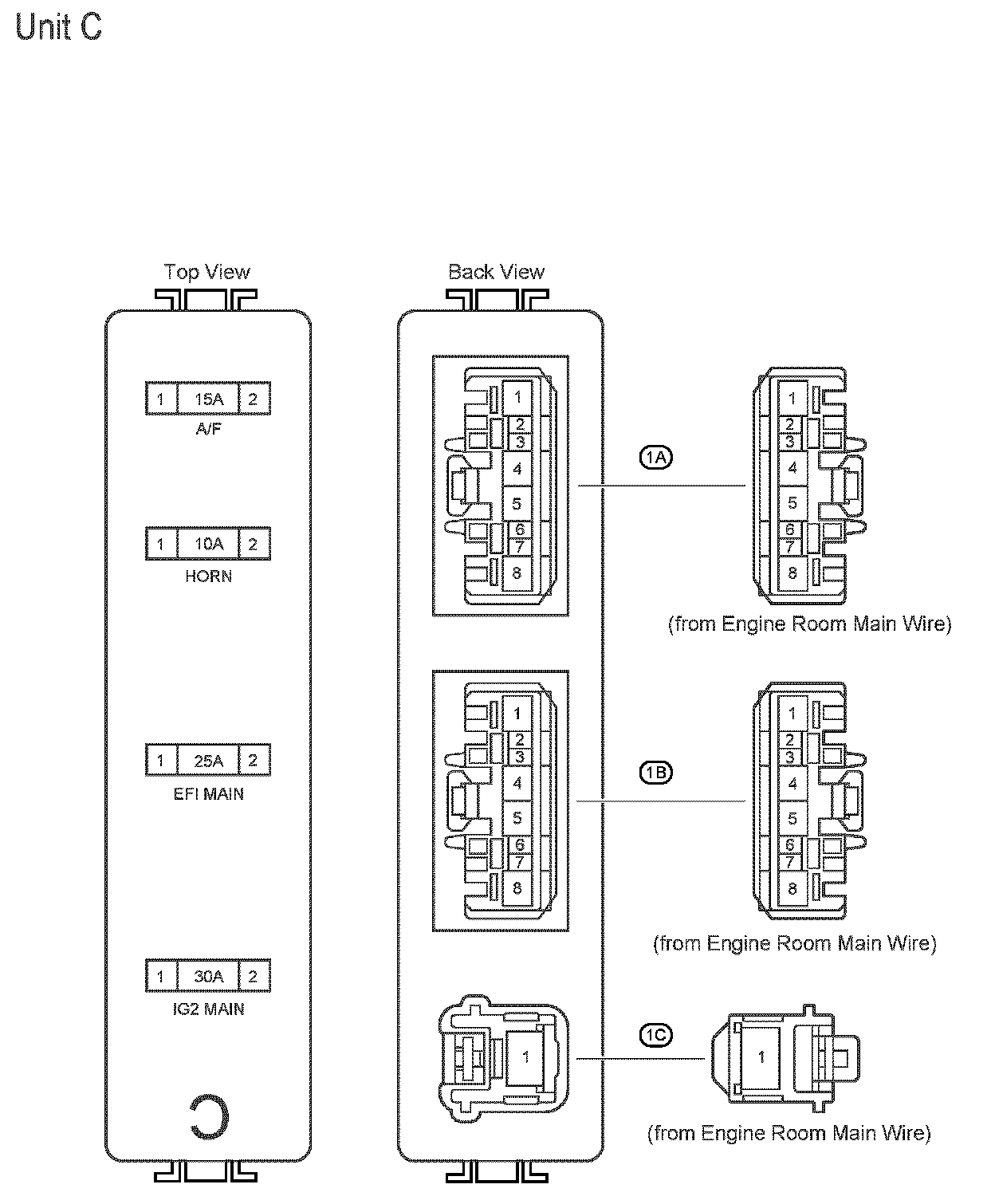

Engine Room R/B, J/B Assembly - Engine Compartment Left:

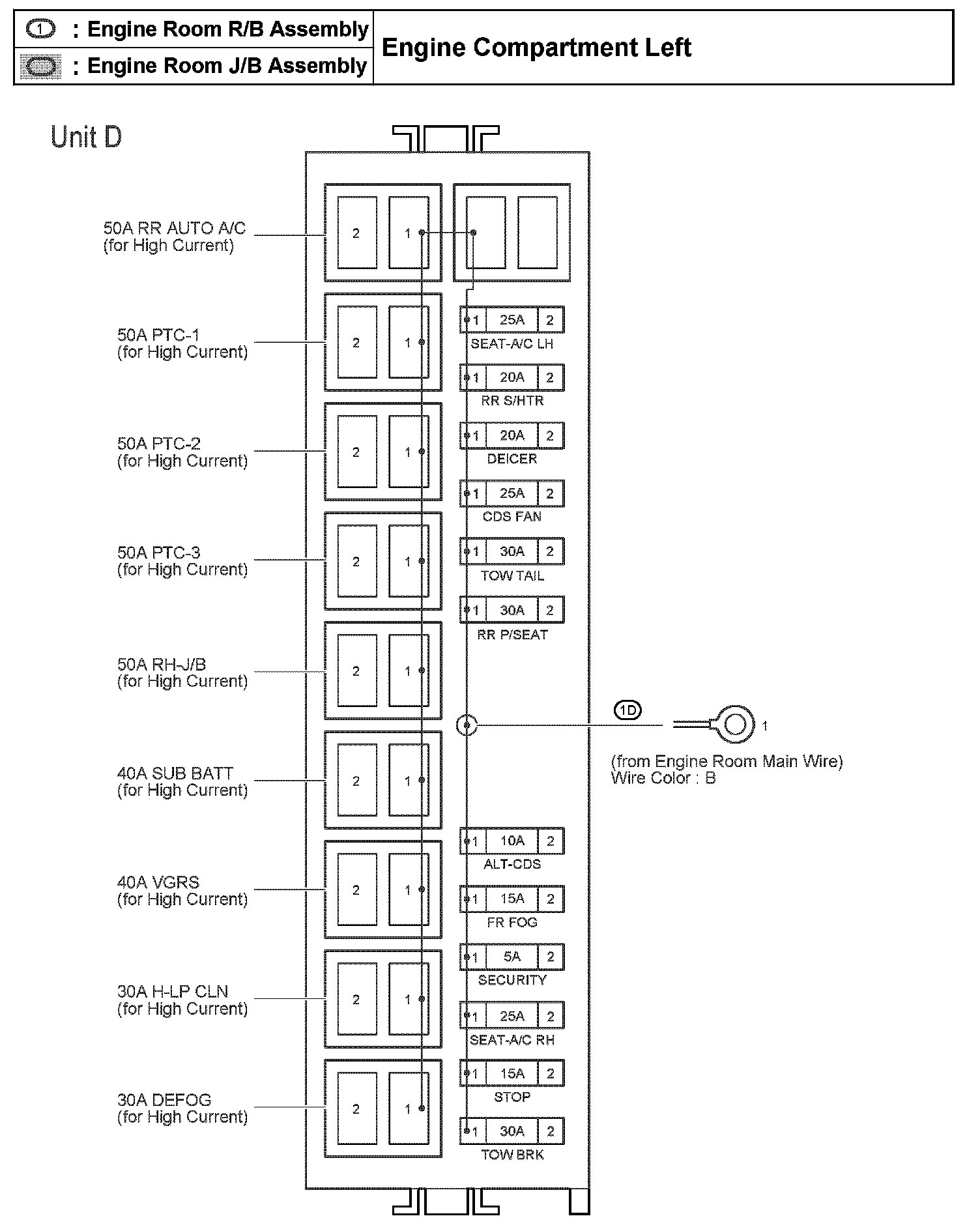

Engine Room R/B, J/B Assembly - Engine Compartment Left:

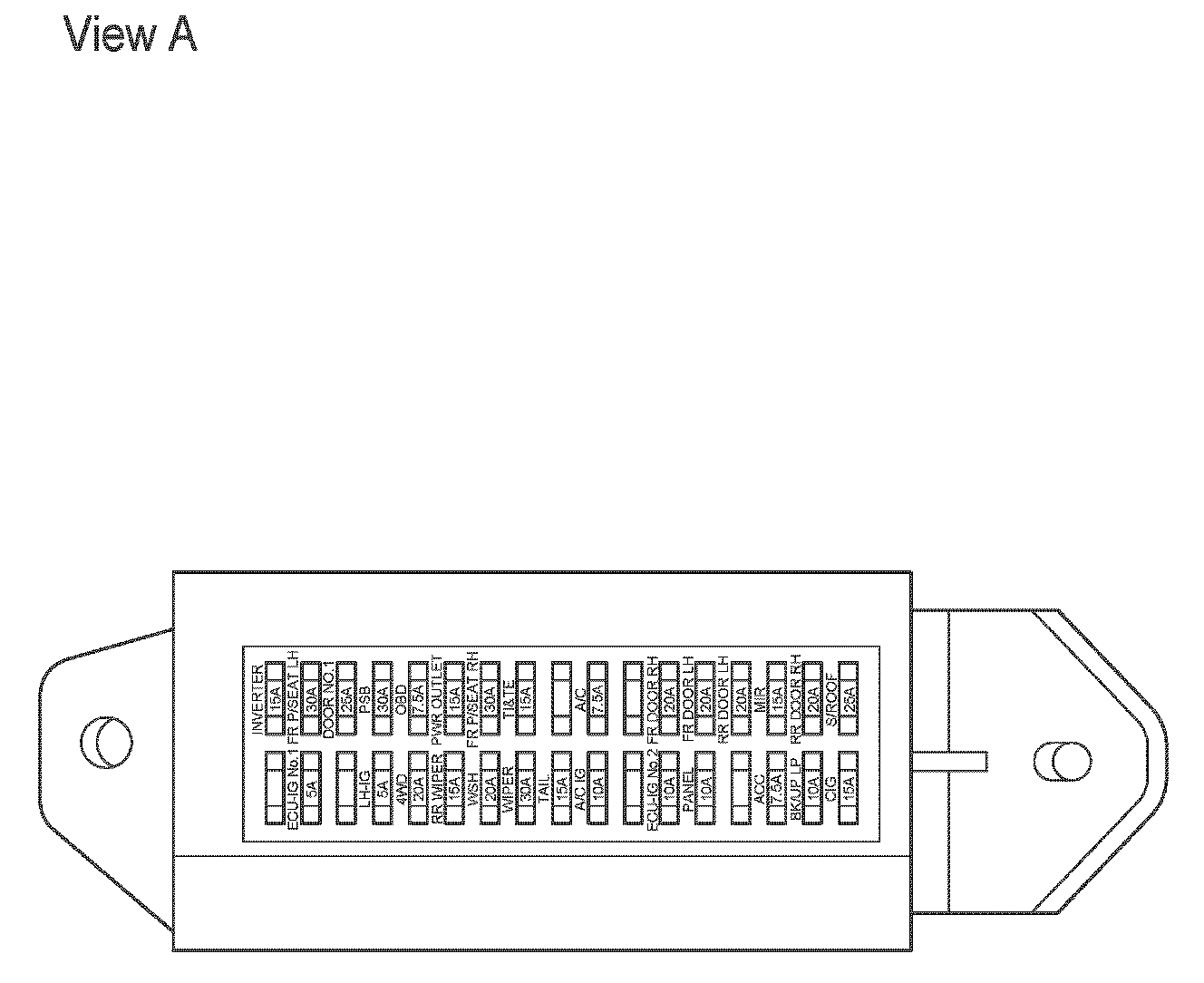

Cowl Side J/B LH Assembly - Cowl Side Left:

Cowl Side J/B RH Assembly - Cowl Side Right:
