Multiple Junction Connector: Locations
AA2-CU1:

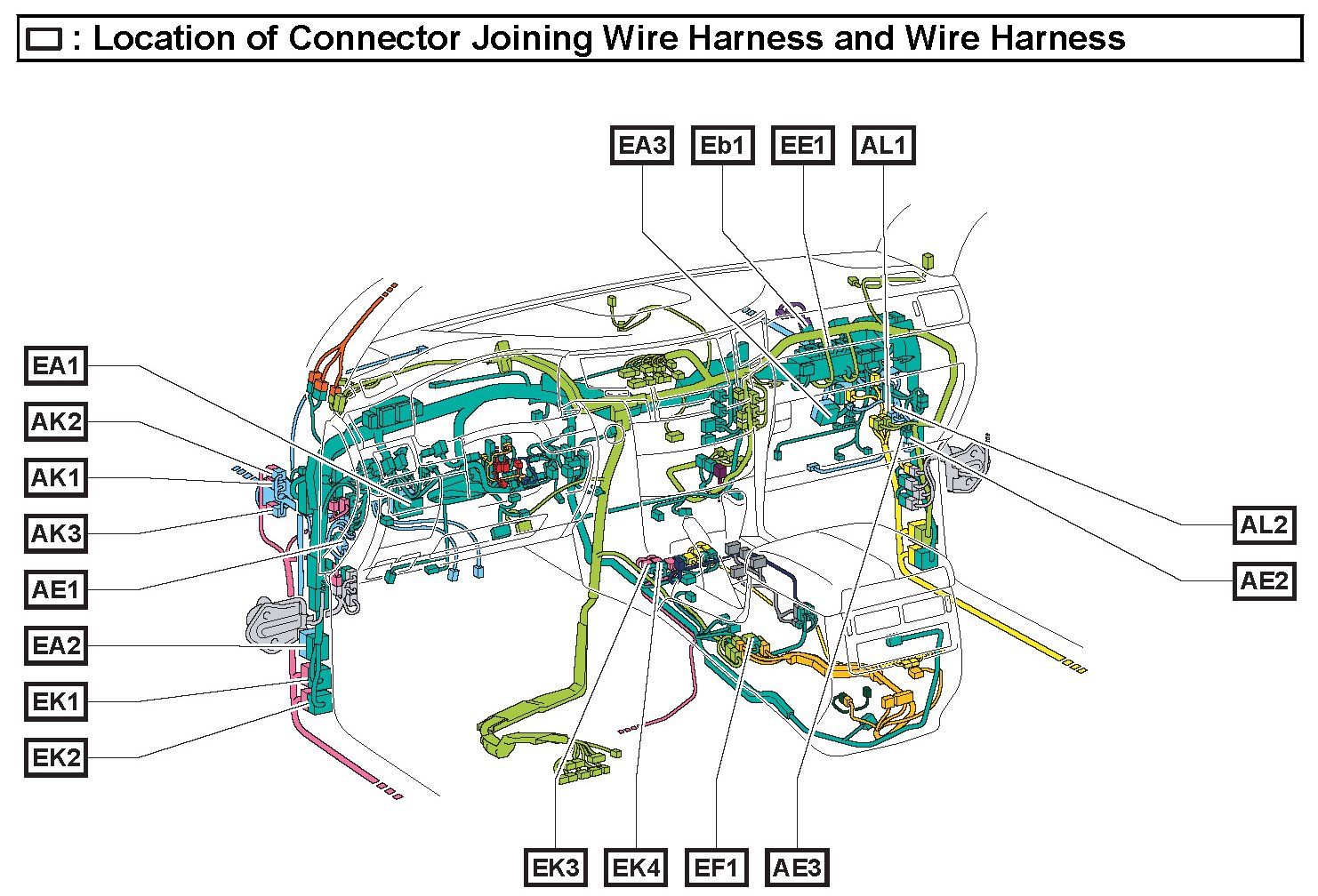

AE1-EK4:
EL1-FL5:
IE1-VE3:

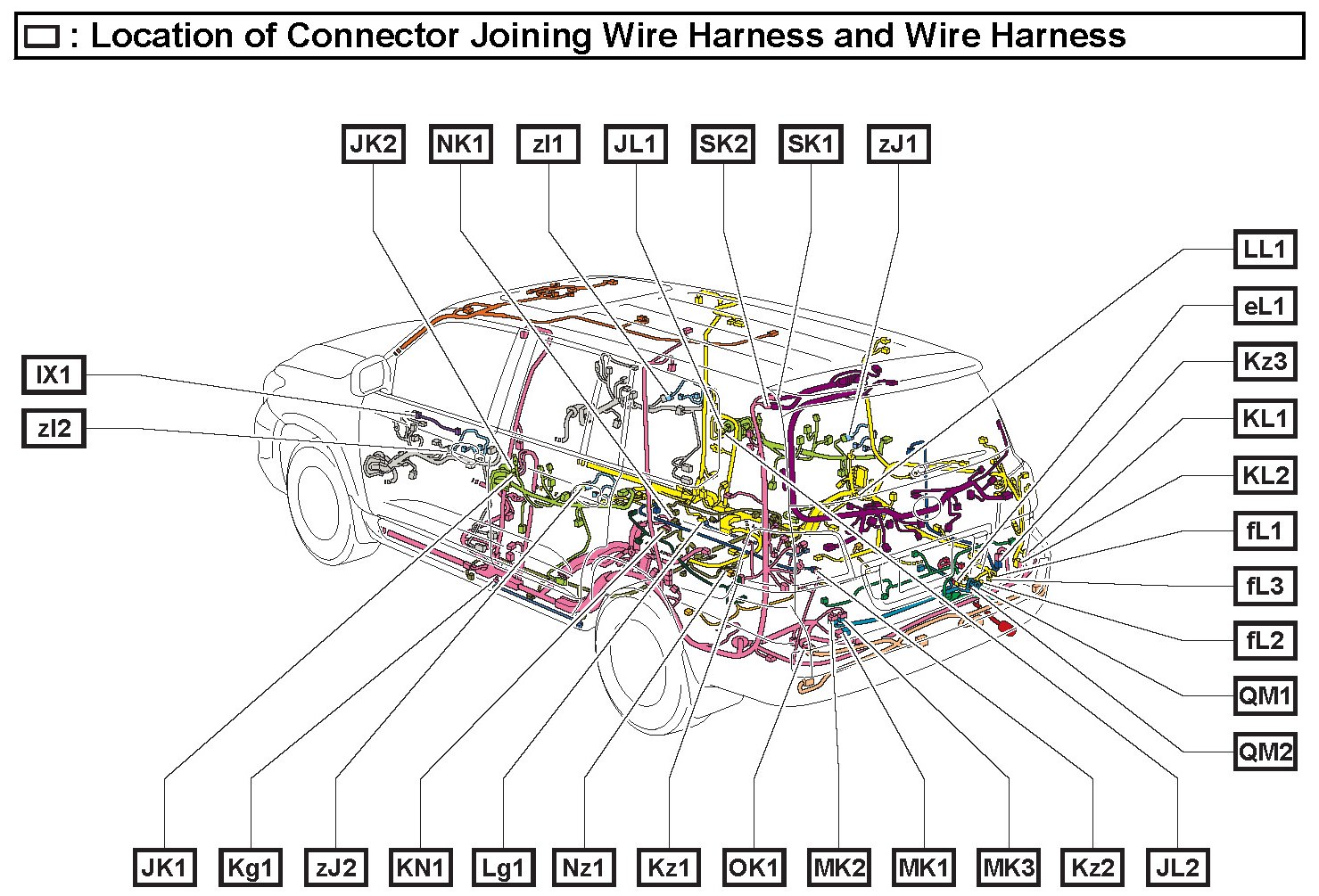

eL1-zl2:

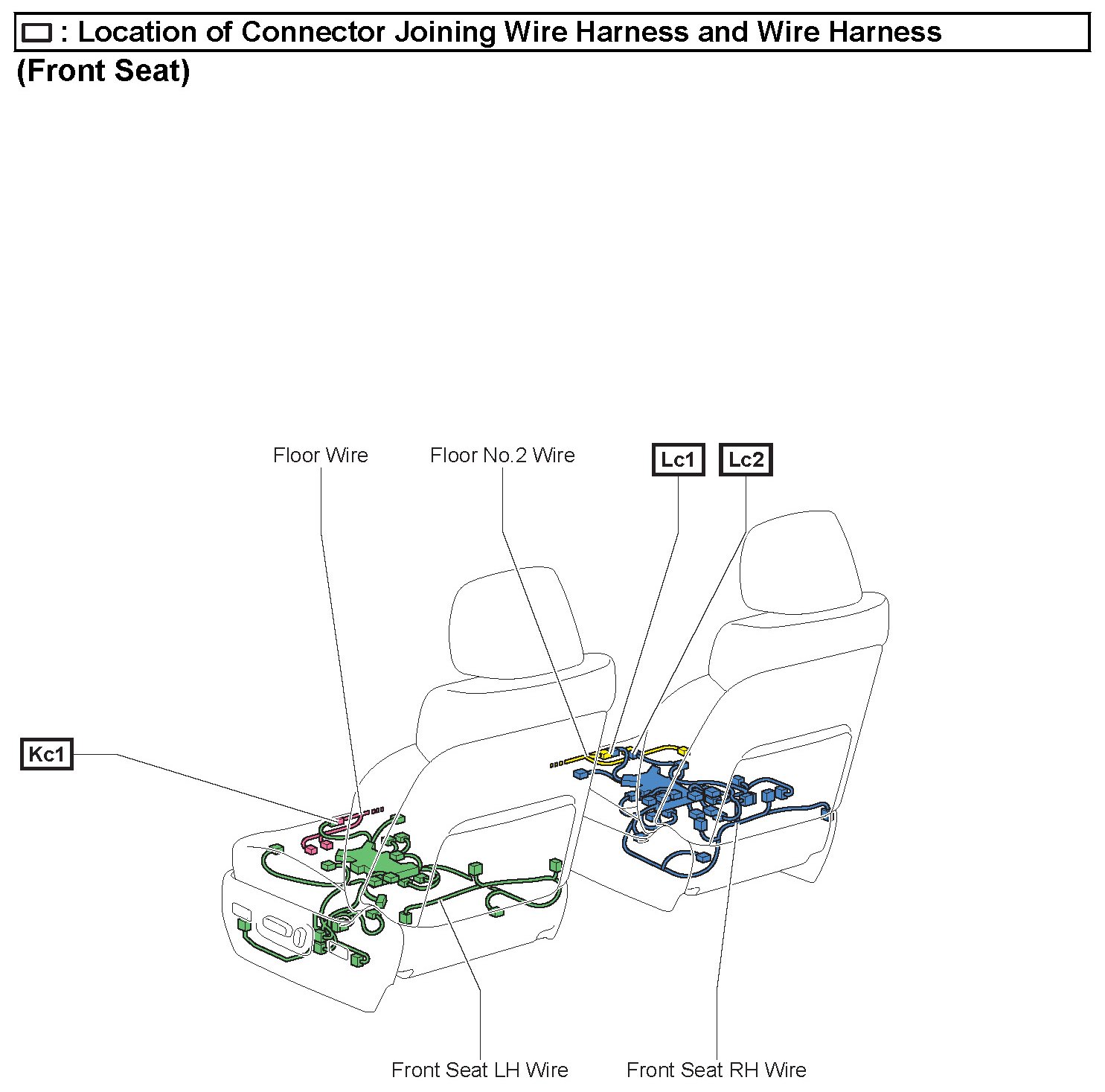

Lc1-Kc1:
Ld1-Kd1:
Li1-Ki1:
