Heating and Air Conditioning
SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS

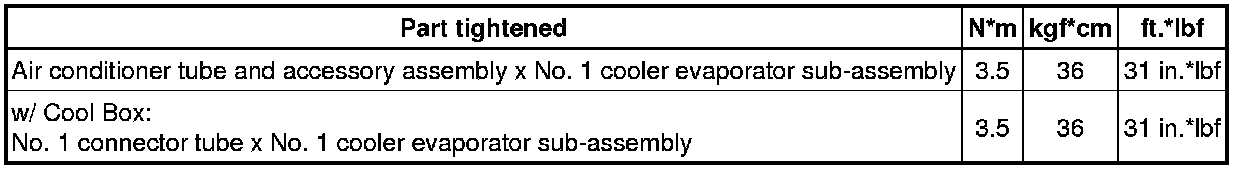

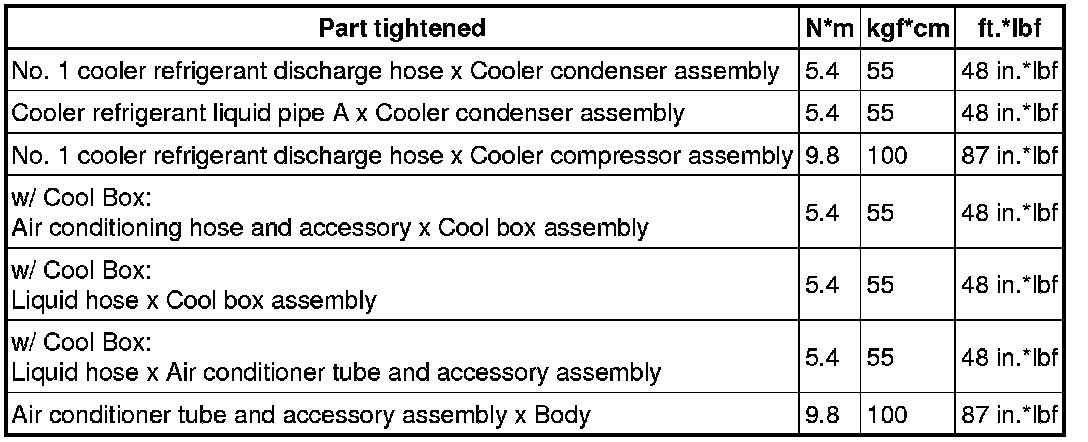

REFRIGERANT LINE

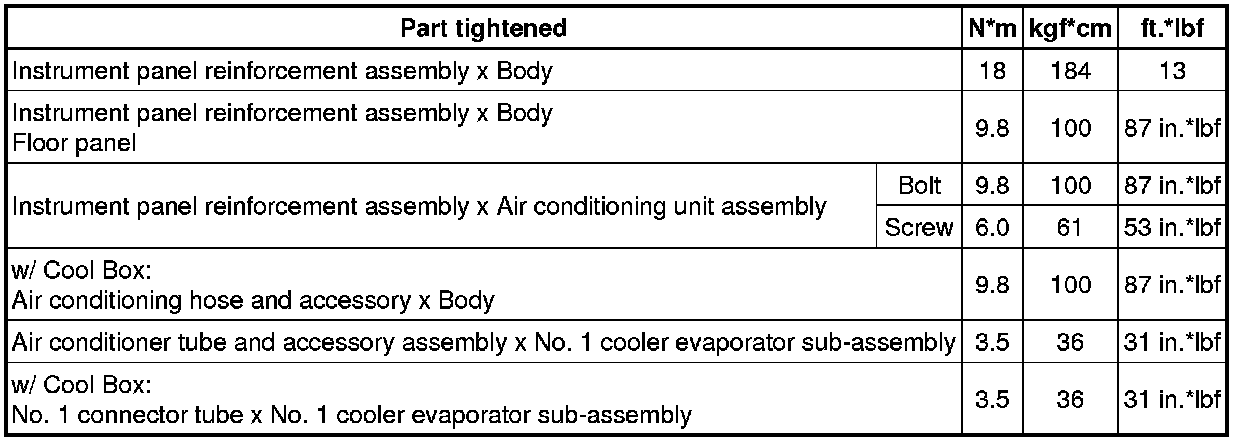

FRONT AIR CONDITIONING UNIT

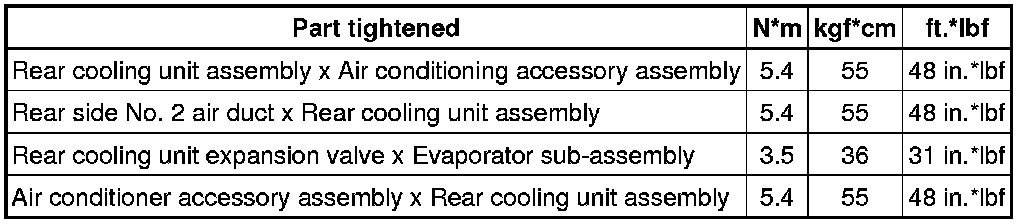

REAR AIR CONDITIONING UNIT
REAR BLOWER MOTOR
BLOWER MOTOR CONTROLLER (for Rear Air Conditioning System)

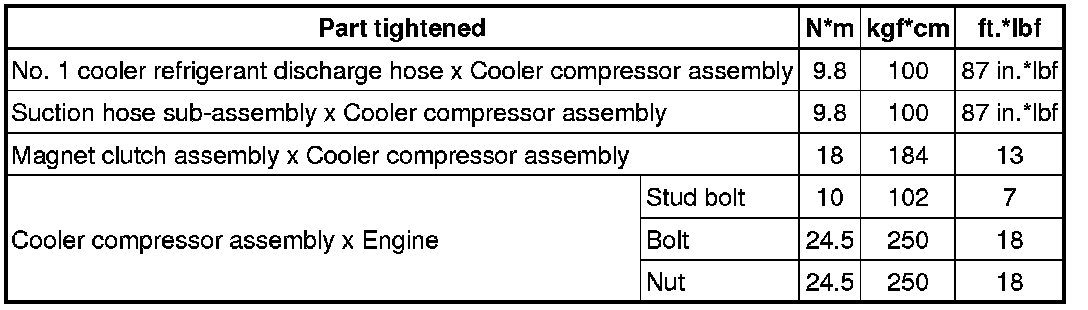

COMPRESSOR

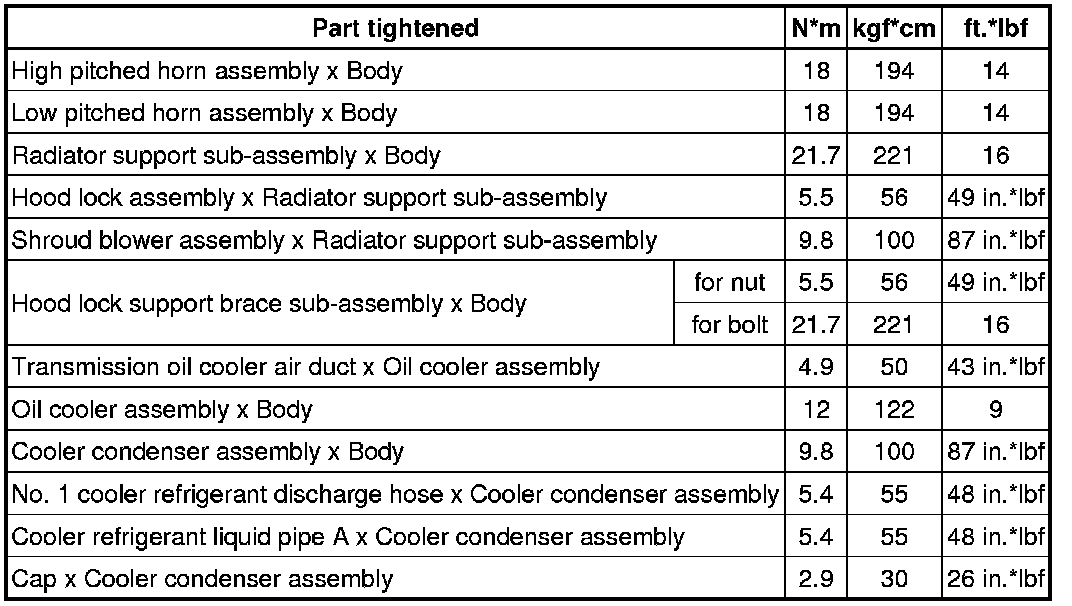

CONDENSER
CONDENSER FAN
FRONT EVAPORATOR TEMPERATURE SENSOR
REAR EVAPORATOR TEMPERATURE SENSOR
SMOG VENTILATION SENSOR
AIR CONDITIONER PRESSURE SENSOR
AIR CONDITIONING PANEL
