Initial Inspection and Diagnostic Overview

FRONT SUSPENSION: FRONT SUSPENSION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT

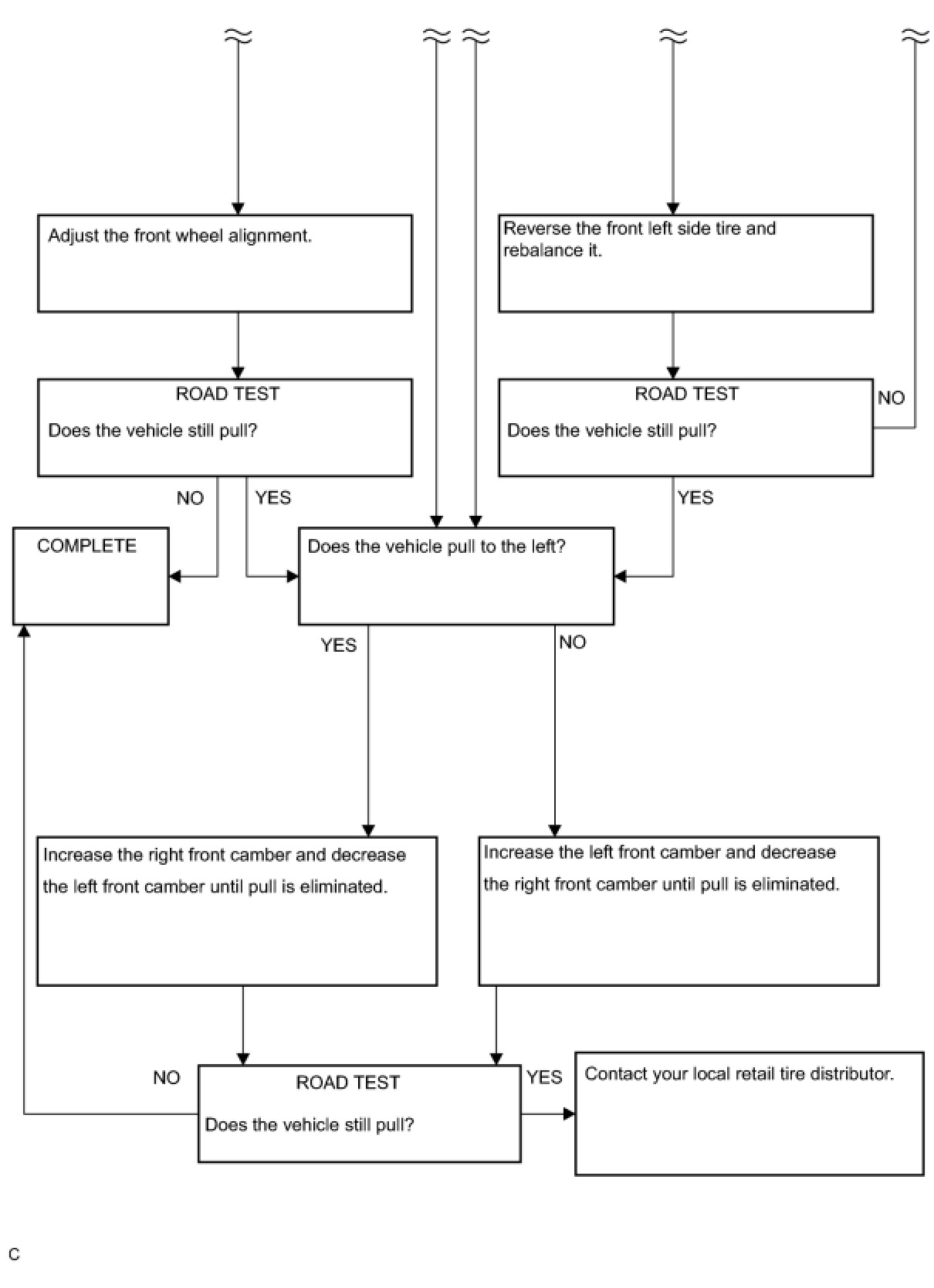

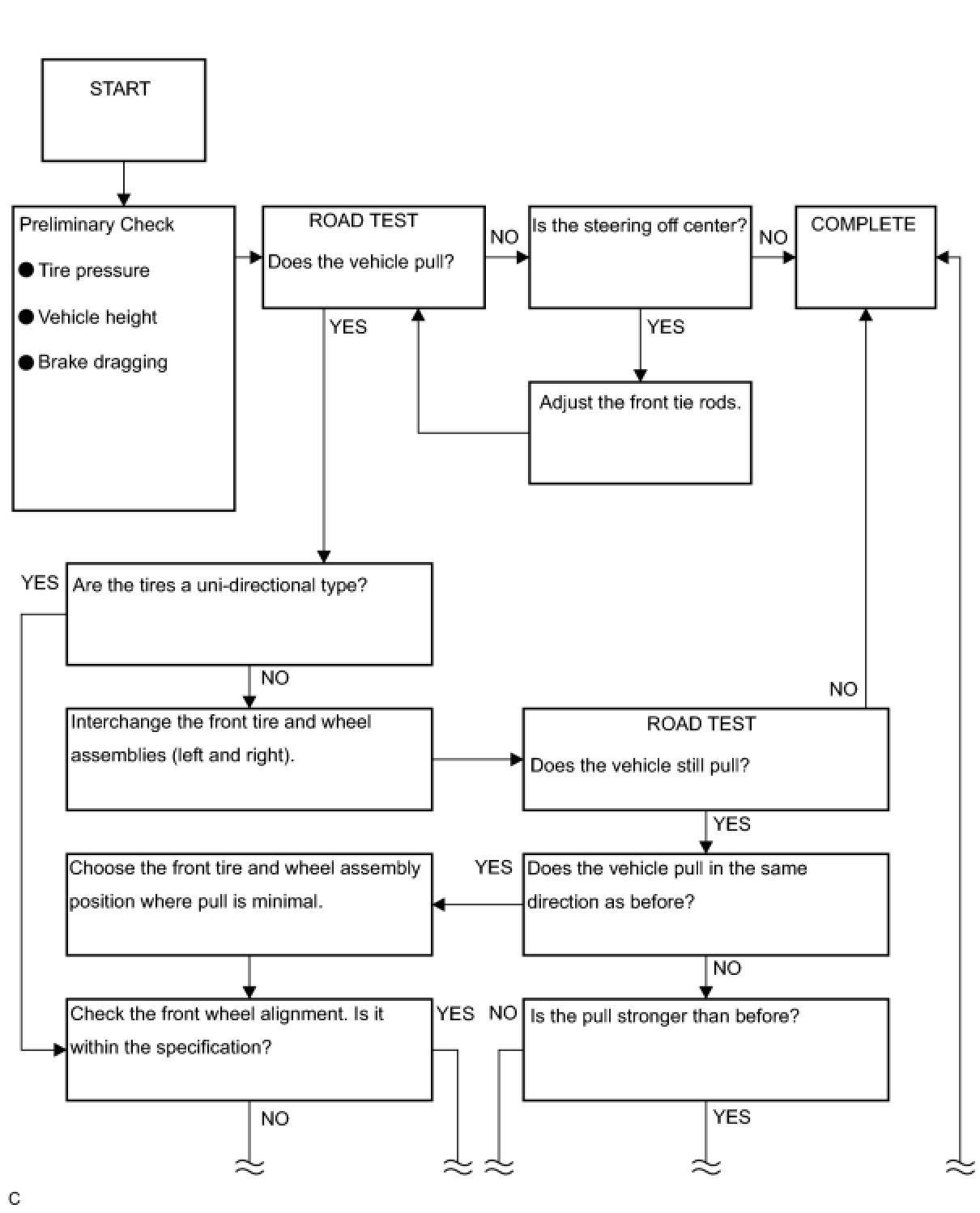

This is a flowchart for vehicle pull.
