Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

(a) POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

Tilt & Telesco

(b) INTUITIVE PARKING ASSIST SYSTEM

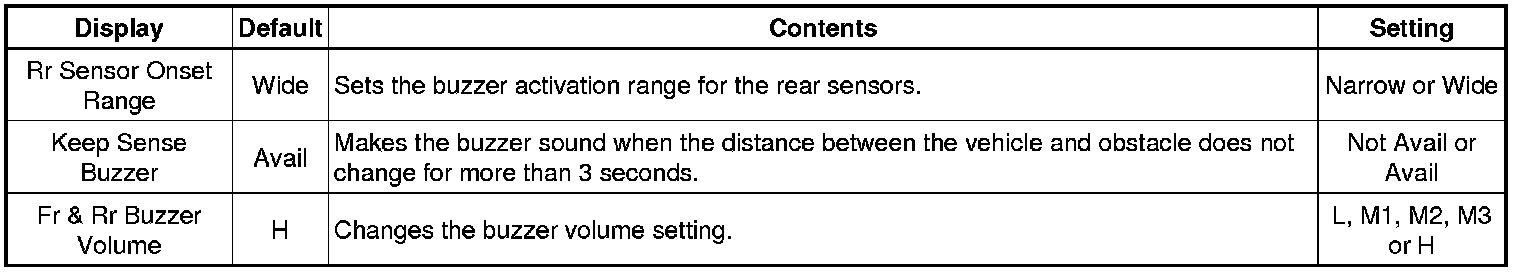

Warning

Sensor

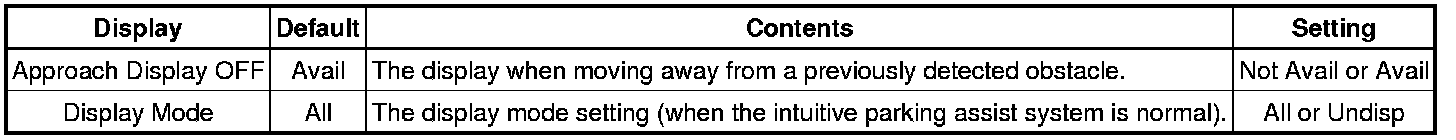

Display

(d) WIRELESS DOOR LOCK CONTROL SYSTEM

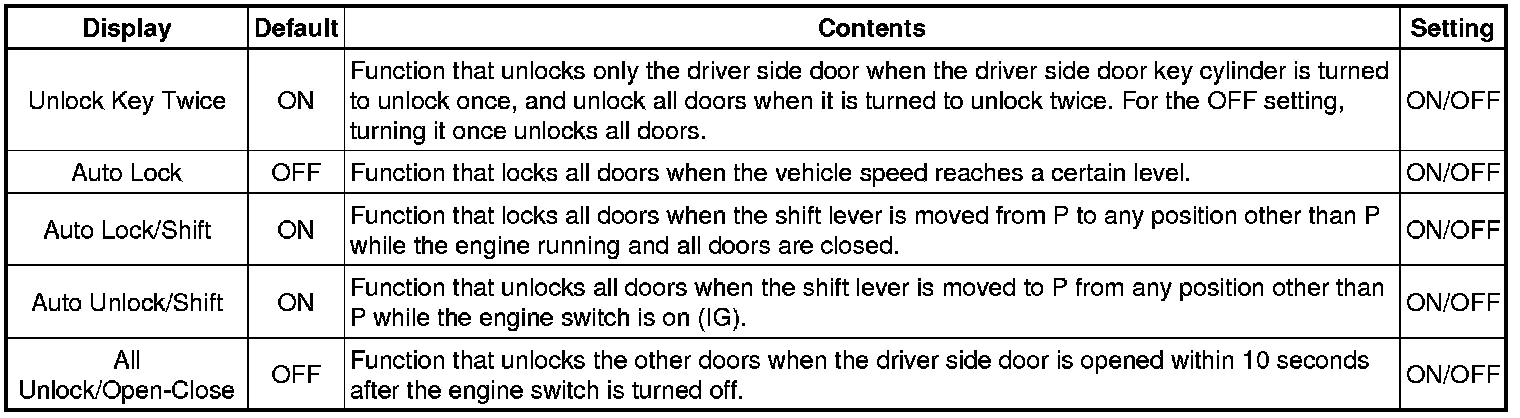

Wireless Door Lock

PSD&PBD Operation (w/ Power Back Door System)

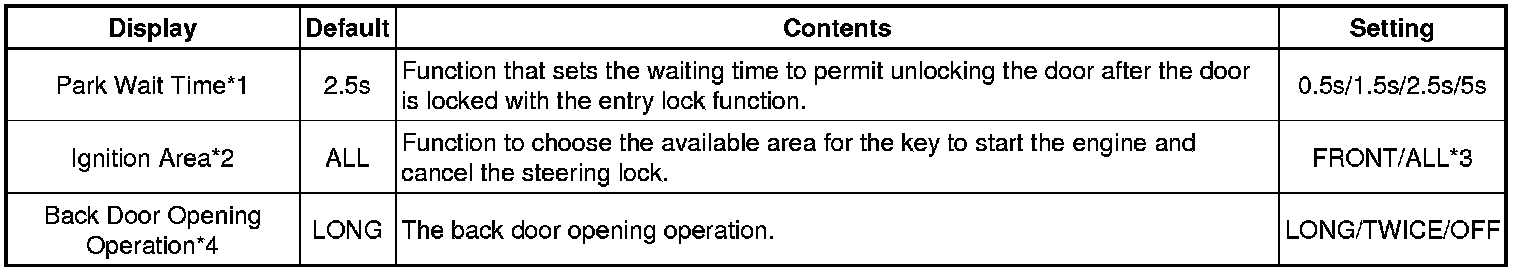

(e) SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

Smart Key / Access

Warning

HINT
*1: Waiting time to permit unlocking door after locking.

*2: Entry ignition available area.

*3: "FRONT" means front, and "ALL" means front floor, rear floor and luggage compartment.

*4: Back door open mode when vehicle is locked.

*5: Warn when key battery becomes weak.

(f) ENTRY UNLOCK MODE SWITCHING FUNCTION

(1) Check that the power source mode is off and the LED on the key is not blinking. Press the lock switch and one of the other switches on the key at the same time for approximately 5 seconds while the key is in the actuation area.

When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.

NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

Driver door unlock mode (default):

When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

All door unlock mode:

When a touch sensor is touched, all doors unlock.

(2) The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart access system with push-button start to the entry unlock mode.

(3) The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.

HINT
The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.

Driver door unlock mode:

All door unlock mode:

(g) KEY CANCEL

The key cancel operation disables the following functions:

Entry Unlock/Lock

Key Lock-in Prevention

Memory Call

Entry Back Door Open

Warning

Entry Ignition

(1) The operation procedures are as follows:

Precondition:

Engine switch off, driver side door closed and unlocked.

Unlock the driver side door once with the unlock switch of the key.

Open the driver door within 5 seconds.

Unlock the driver side door twice with the unlock switch of the key within 5 seconds.

Perform close -> open twice for the driver door within 30 seconds.

(Driver door: Open condition -> Close -> Open -> Close -> Open)

Unlock the driver side door twice with the unlock switch of the key within 5 seconds.

Perform close -> open once for the driver door within 30 seconds.

(Driver door: Open condition -> Close -> Open)

Close the driver door within 5 seconds.

When key cancel is activated, the wireless door lock buzzer sounds twice.

To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

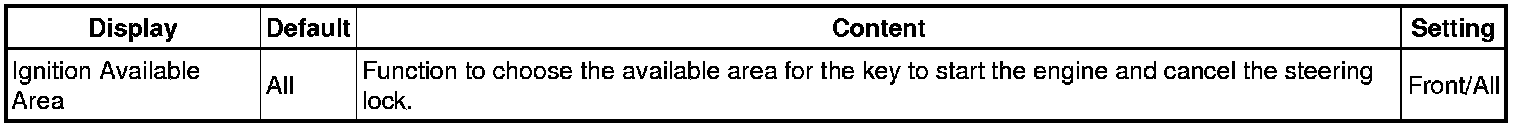

(h) SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

Smart Key / Access

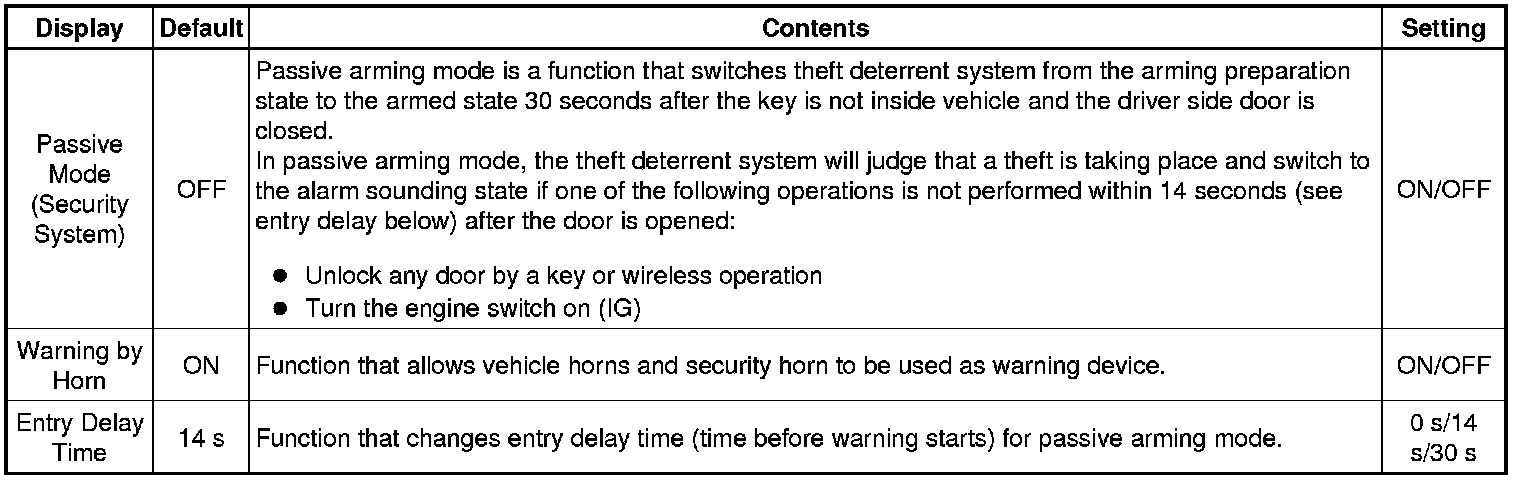

(i) THEFT DETERRENT SYSTEM

Security

(j) METER AND GAUGE SYSTEM

Warning

Unit Conversion

Display

(k) SEAT BELT WARNING SYSTEM

Seat Belt Warning

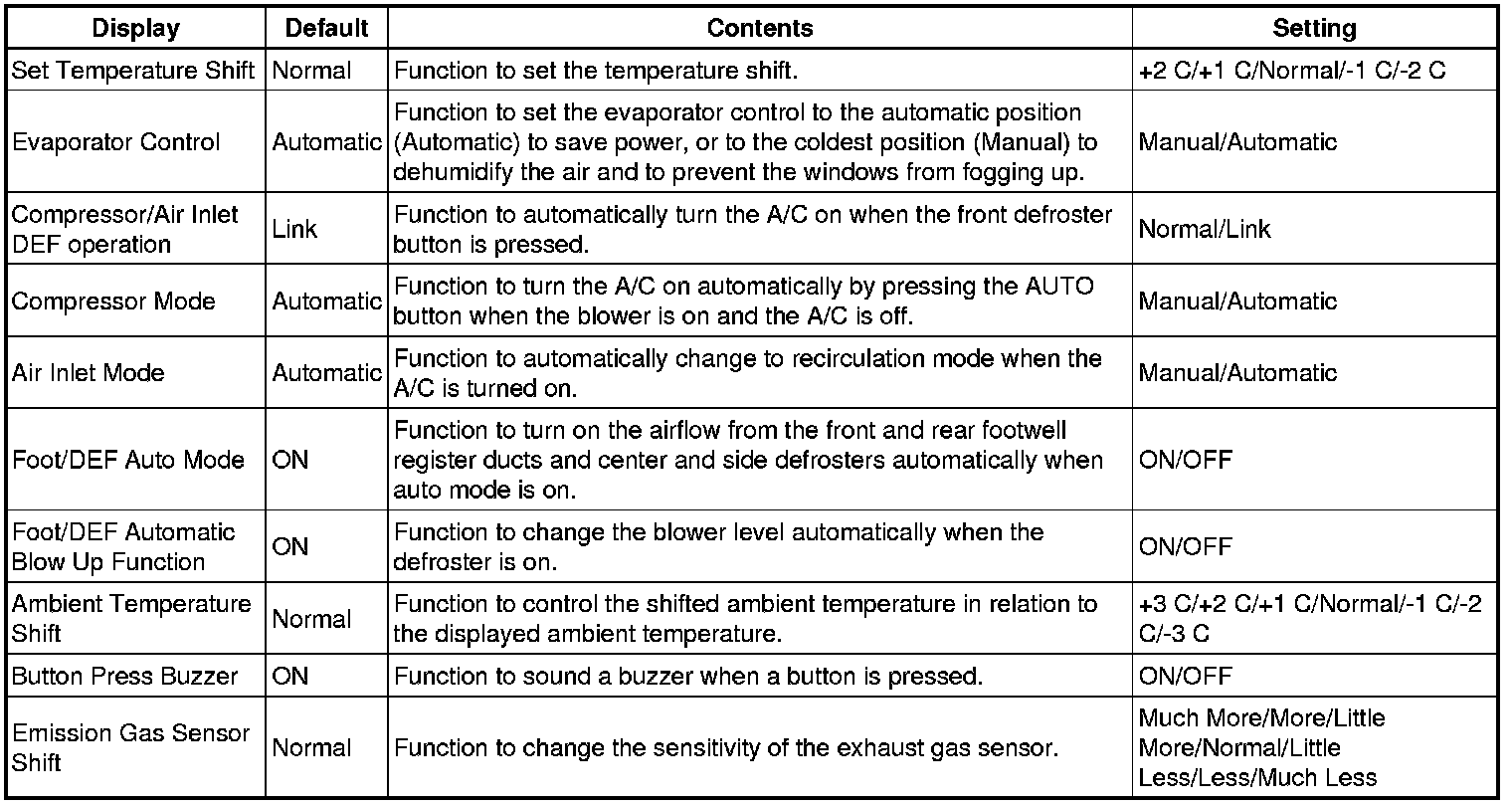

(l) AIR CONDITIONING SYSTEM

Air Conditioner

(m) POWER WINDOW CONTROL SYSTEM

Power Window

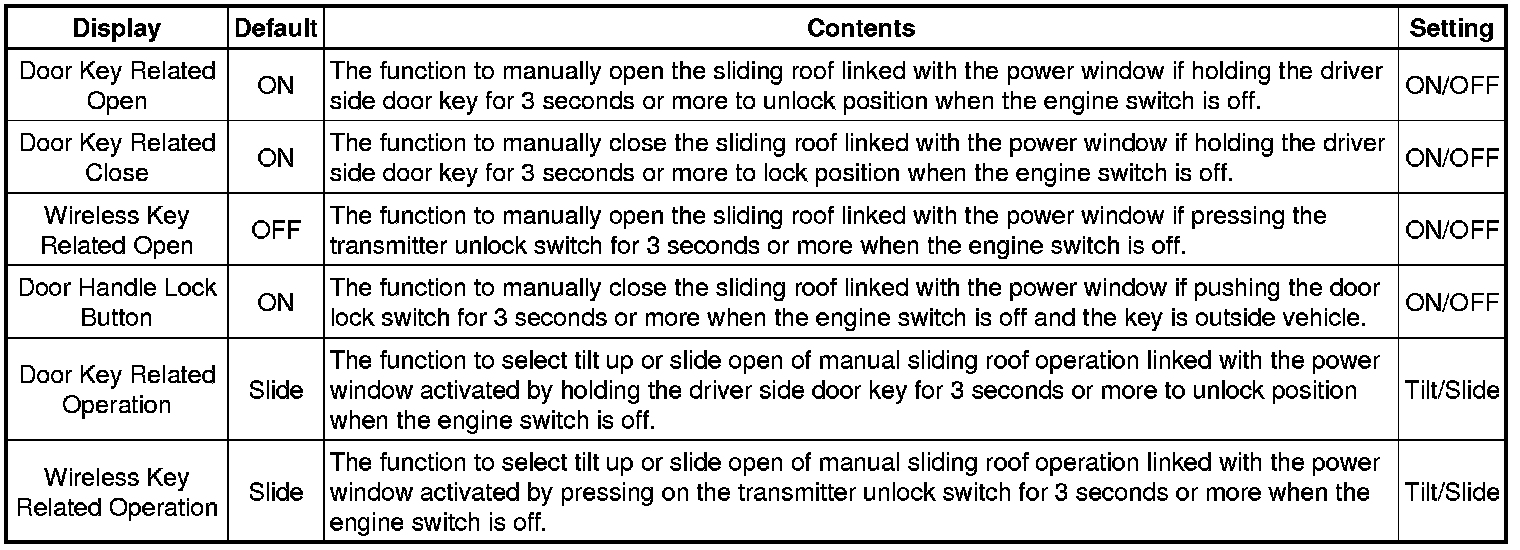

(n) SLIDING ROOF SYSTEM

Slide Roof

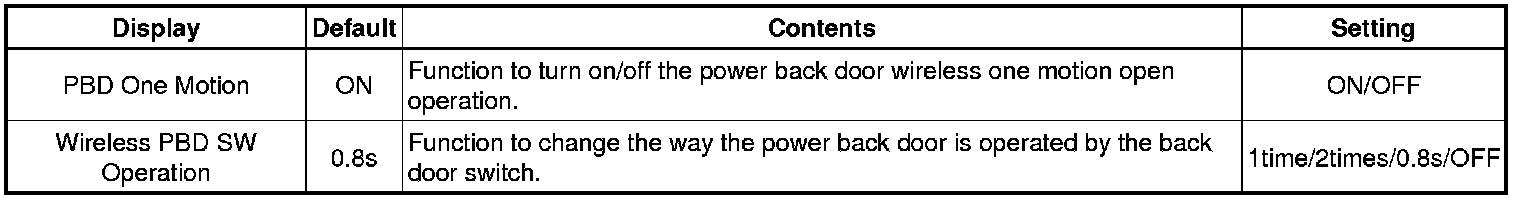

(o) POWER BACK DOOR SYSTEM

PSD & PBD Operation

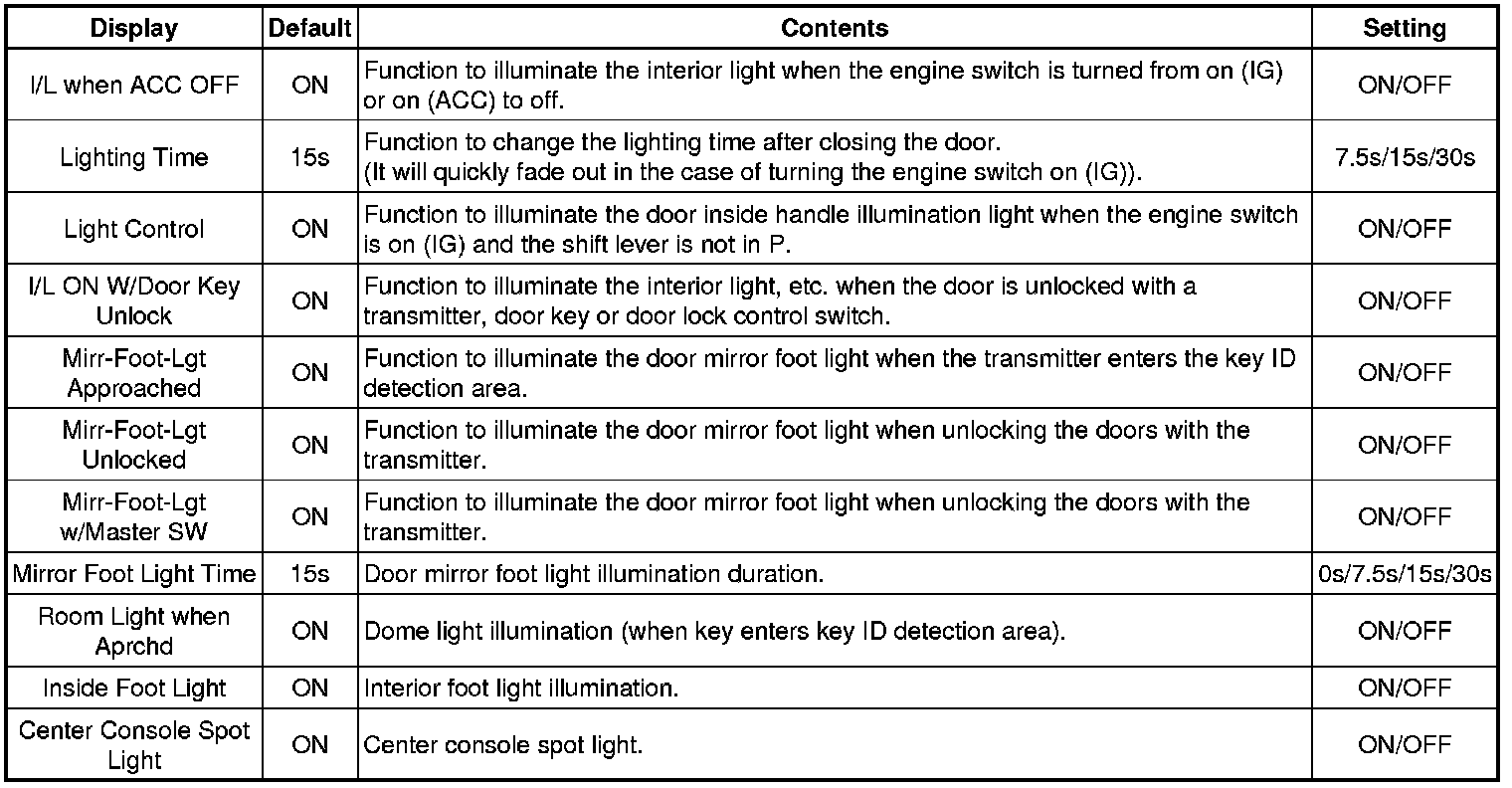

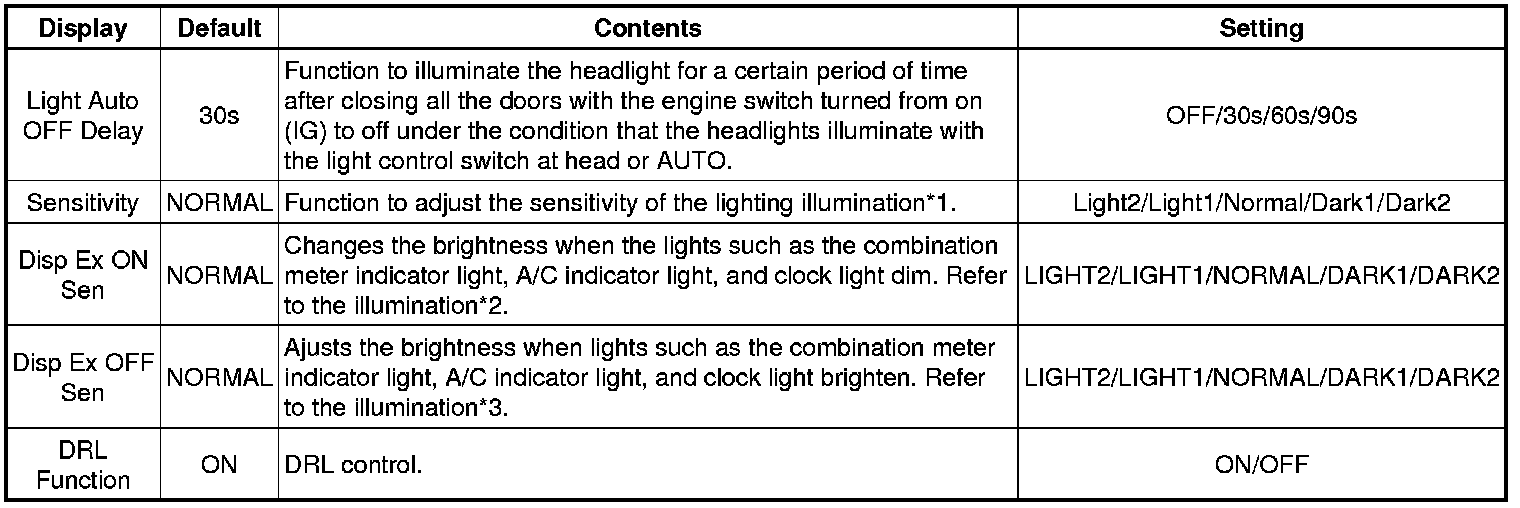

(p) LIGHTING SYSTEM

Illuminated Entry

Light Control

HINT
The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle of the customer.

Illumination*1

Illumination*2

Illumination*3

(q) DOOR LINKED MAP LIGHT AND PERSONAL LIGHT ILLUMINATION CONTROL

Mode 1: When door is opened, map light of opened door illuminates, or personal light illuminates

Mode 2: When door is opened, all map lights and personal lights illuminate

Mode 3: Map lights and personal lights are not linked to doors

(1) To change modes, press the map light assembly DOOR and on switch simultaneously, and then turn the engine switch from off to on (IG). Each engine switch off to on (IG) operation will change the mode (Mode 1 -> Mode 2 -> Mode 3 -> Mode 1).

HINT
After changing modes, the map light responds by blinking as follows: Mode 1: once; Mode 2: twice; Mode 3: three times.
