Pressure, Vacuum and Temperature Specifications
SPECIFICATIONS: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA
Speed Sensor NT and SP2
Transmission Wire
Shift Solenoid Valve SL1
Shift Solenoid Valve SL2
Shift Solenoid Valve SLT
Shift Solenoid Valve SLU
Shift Solenoid Valve S1
Shift Solenoid Valve S2
Shift Solenoid Valve S3
Shift Solenoid Valve S4
Shift Solenoid Valve SR
Shift Lock Solenoid

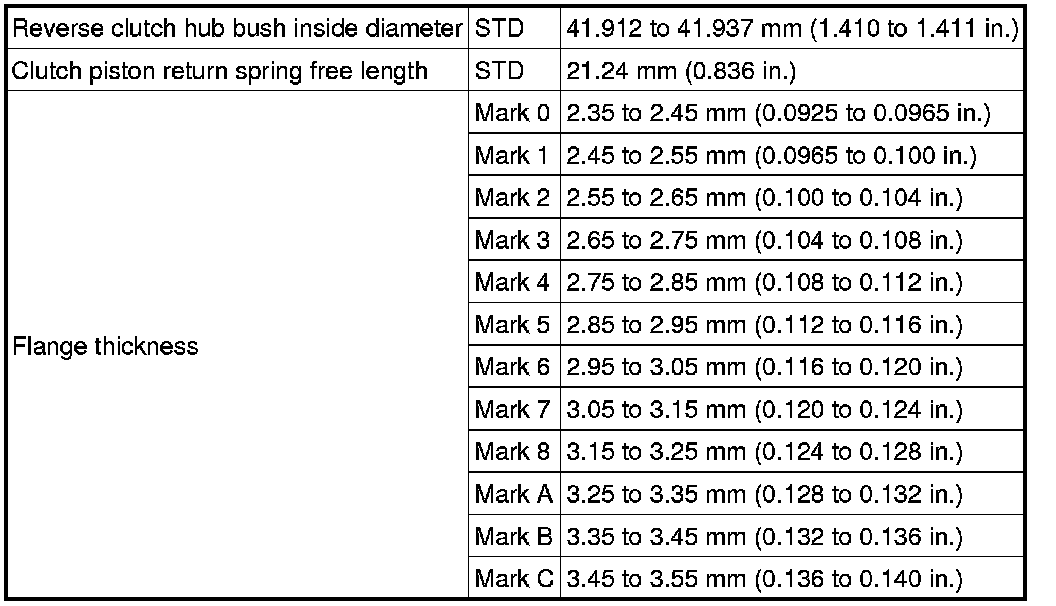

Reverse Clutch
Forward Clutch
Direct Clutch
Coast Clutch
No. 3 Brake
Front Planetary Gear
No. 1 Brake
No. 2 Brake
Center Planetary Gear

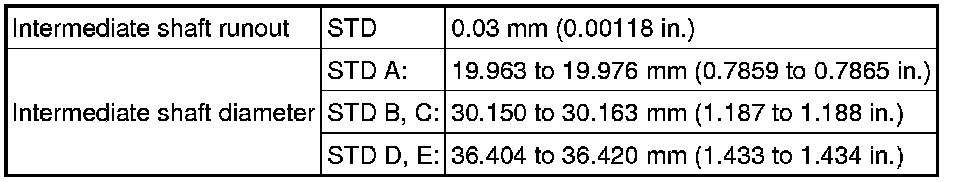

Intermediate Shaft
Rear Planetary Gear
No. 4 Brake
Accumulator

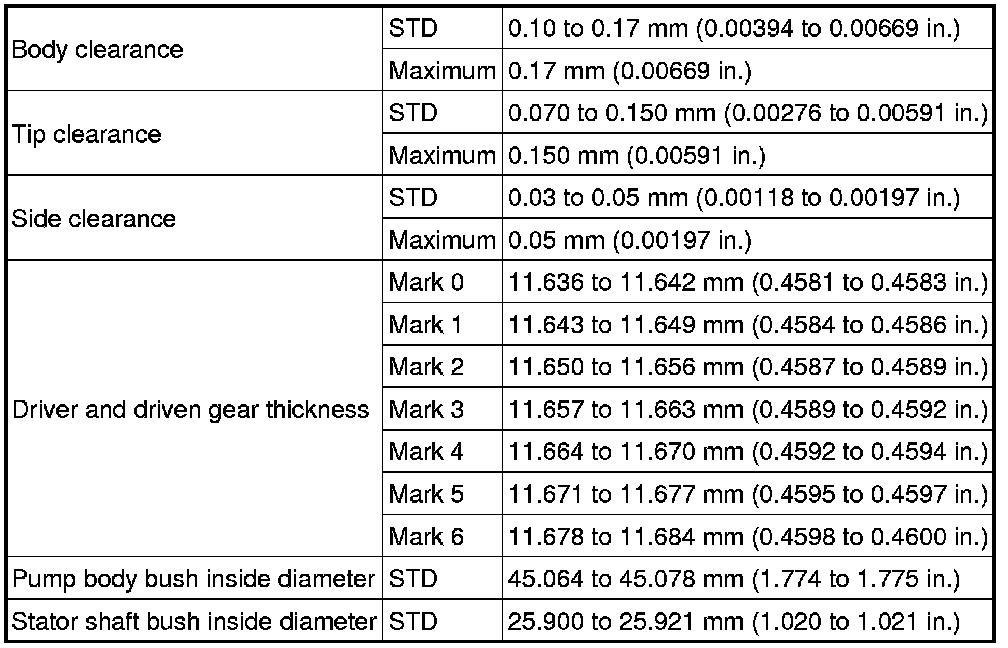

Oil Pump
