Window Defogger System

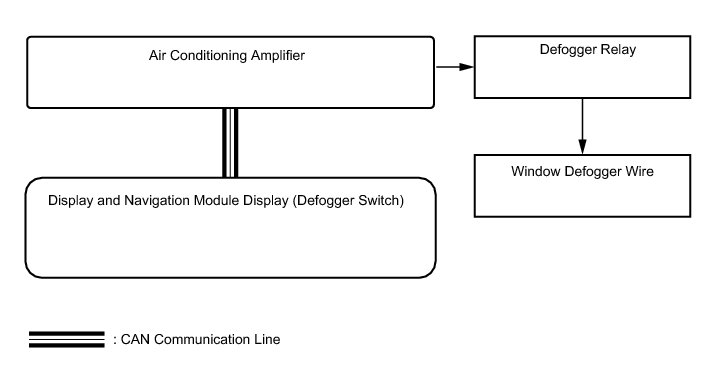

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM





Communication Table









SYSTEM DESCRIPTION

1. GENERAL

The thin heater wires of the defogger system are attached to the rear window and defog the rear window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

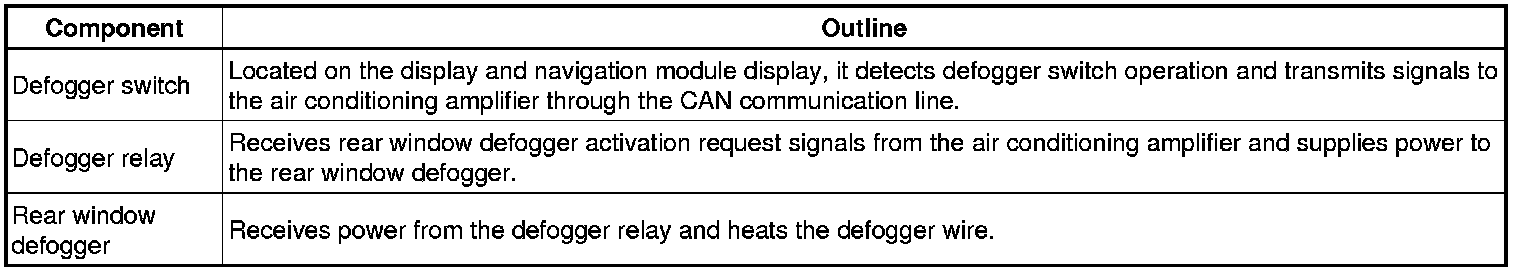

2. FUNCTION OF MAIN COMPONENT

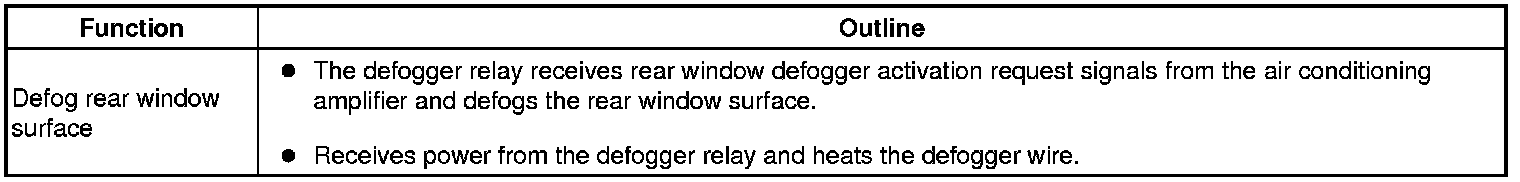

3. DESCRIPTION
