Side Monitor System (w/ Rear View Monitor System)

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM (w/ Rear View Monitor System): SYSTEM DIAGRAM





Communication Table









SYSTEM DESCRIPTION

1. GENERAL

(a) This system has a side television camera assembly built in the outer rear view mirror assembly RH to display the passenger side view of the vehicle on the multi-display assembly.

(b) This system consists of the following components:

(1) Side television camera assembly

(2) Parking assist ECU

(3) Multi-display assembly

(4) Main body ECU (multiplex network body ECU)

(5) ECM

(6) Steering pad switch assembly (side monitor main switch)

(7) Combination meter assembly

(c) This system is equipped with a self-diagnosis system, which is operated on a designated window that appears on the display panel, just as in the navigation system.

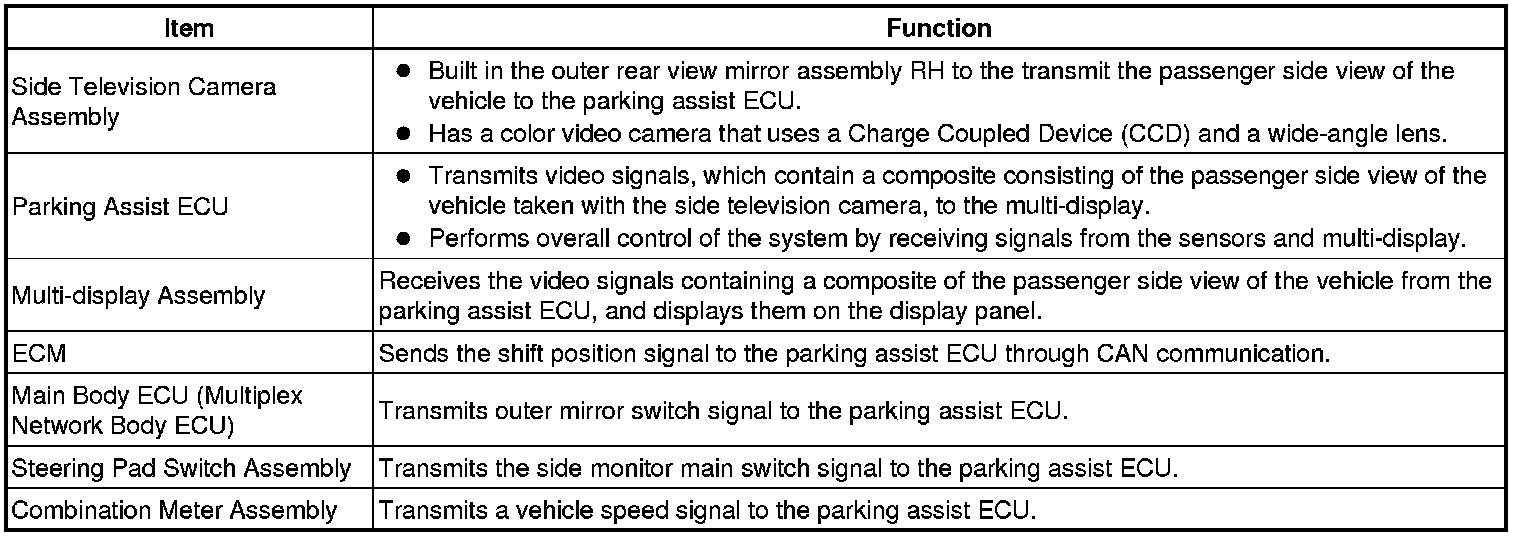

2. FUNCTION OF COMPONENTS

(a) The parking assist ECU controls the system by using information from the following components.





3. OPERATION EXPLANATION

(a) The side monitor main switch ON signal is sent from the steering pad switch to the parking assist ECU.

After receiving the side monitor main switch ON signal, the parking assist ECU switches the display signal for the multi-display from the navigation system to the side monitor system.

4. DISPLAY CONDITIONS FOR SIDE MONITOR DISPLAY

(a) Screen display operation





(1) After the display conditions are met while the side monitor system is operating normally (when no DTCs are output), the side monitor display will be displayed when in both manual and automatic display mode.

HINT
On the side monitor display, the display mode is as indicated below according to the operation of the automatic mode display button.

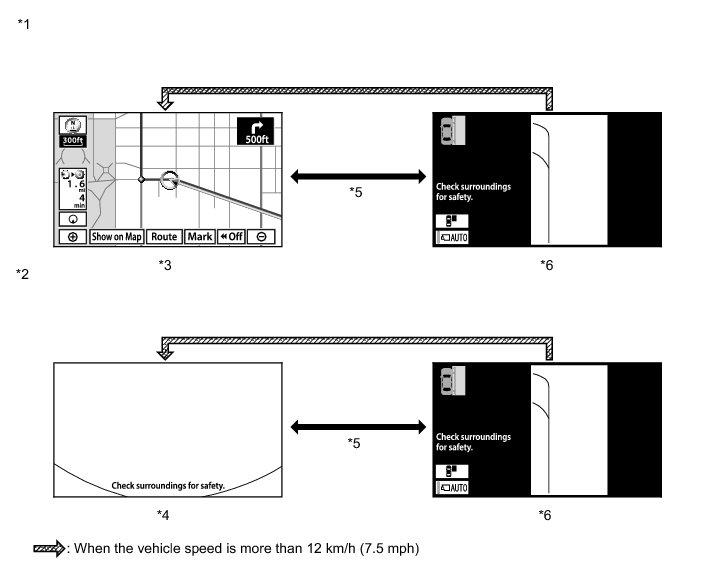

(b) Display conditions for manual display mode





Text in Illustration





(1) The side monitor system changes the displayed image when the side monitor main switch is operated while the following conditions are met and either the engine switch is on (IG) or the engine is running (when no DTCs are output).





HINT
*1: In this case, the side monitor display is in path line deletion mode.

(c) Display conditions for automatic display mode

(1) In automatic display mode, the side monitor system automatically changes the displayed image depending on the vehicle conditions while the following conditions are met and the system is operating normally (no DTCs output).





*1: Screen changes and screen transition conditions after the screen is automatically changed are the same as those for manual display mode (shift lever in a position other than R).

5. DISPLAY RANGE SWITCHING

(a) The side monitor system switches between the forward view and overall side view when the display range button is selected.





Text in Illustration





6. COMMUNICATION SYSTEM OUTLINE

(a) The components of the side monitor system communicate with each other through the AVC-LAN.

(b) If a short circuit or open circuit occurs in the AVC-LAN, communication is interrupted and the side monitor system will stop functioning.

7. DIAGNOSTIC FUNCTION OUTLINE

(a) This side monitor system has a diagnostic function displayed in the multi-display assembly Diagnosis System.

(b) The system can check the following items by using the Techstream.
