Disassembly





INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: DISASSEMBLY

1. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

(a) Remove the 2 screws and No. 1 side defroster nozzle duct.





Text in Illustration





2. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

(a) Remove the 2 screws and No. 2 side defroster nozzle duct.





Text in Illustration





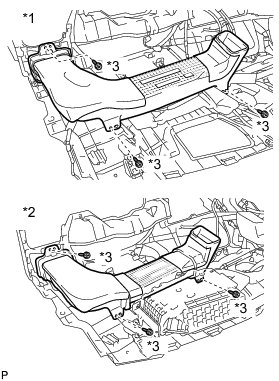

3. REMOVE DEFROSTER NOZZLE ASSEMBLY

(a) Remove the 3 screws and defroster nozzle assembly.





Text in Illustration





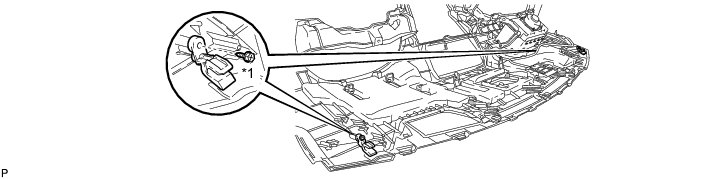

4. REMOVE NO. 1 HEATER TO REGISTER DUCT

(a) Remove the 3 screws and No. 1 heater to register duct.





Text in Illustration





5. REMOVE NO. 4 HEATER TO REGISTER DUCT

(a) Remove the 3 screws and No. 4 heater to register duct.





Text in Illustration

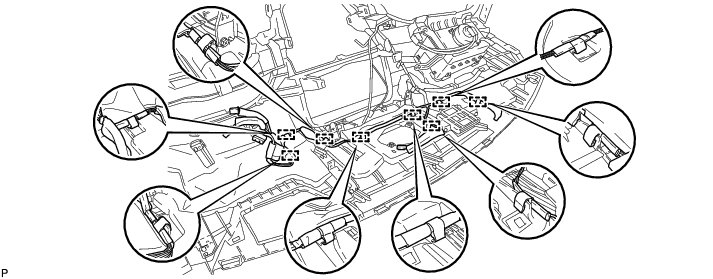

6. REMOVE NO. 3 INSTRUMENT PANEL WIRE

(a) w/ Head-up display:

(1) Disengage the connector.





(2) Disengage the clamp.

(b) Disengage the 8 clamps and remove the No. 3 instrument panel wire.





7. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System) Removal

8. REMOVE NO. 1 METER HOOD RETAINER

(a) Remove the 2 screws and 2 No. 1 meter hood retainers.





Text in Illustration





9. REMOVE NO. 2 INSTRUMENT PANEL MOUNTING BRACKET

(a) Remove the 2 screws and 2 No. 2 instrument panel mounting brackets.





Text in Illustration





10. REMOVE COMBINATION METER MIRROR ECU (w/ Head-up Display)

(a) Remove the 4 screws and combination meter mirror ECU.





11. REMOVE NO. 1 COMBINATION METER MIRROR BRACKET (w/ Head-up Display)

(a) Remove the 2 screws and No. 1 combination meter mirror bracket.





12. REMOVE NO. 2 COMBINATION METER MIRROR BRACKET (w/ Head-up Display)

(a) Remove the 2 screws and No. 2 combination meter mirror bracket.





13. REMOVE FRONT PASSENGER SIDE AIRBAG ASSEMBLY Removal

14. REMOVE NO. 1 INSTRUMENT PANEL PIN

(a) Remove the 2 screws and 2 No. 1 instrument panel pins.





Text in Illustration





15. REMOVE ENGINE SWITCH

(a) Disengage the 2 claws and remove the engine switch as shown in the illustration.





16. REMOVE NO. 1 SIDE DEFROSTER NOZZLE

(a) Disengage the 7 claws and remove the No. 1 side defroster nozzle.





17. REMOVE NO. 2 SIDE DEFROSTER NOZZLE

HINT
Use the same procedure as for the No. 1 side defroster nozzle.
