Position of Parts In Instrument Panel

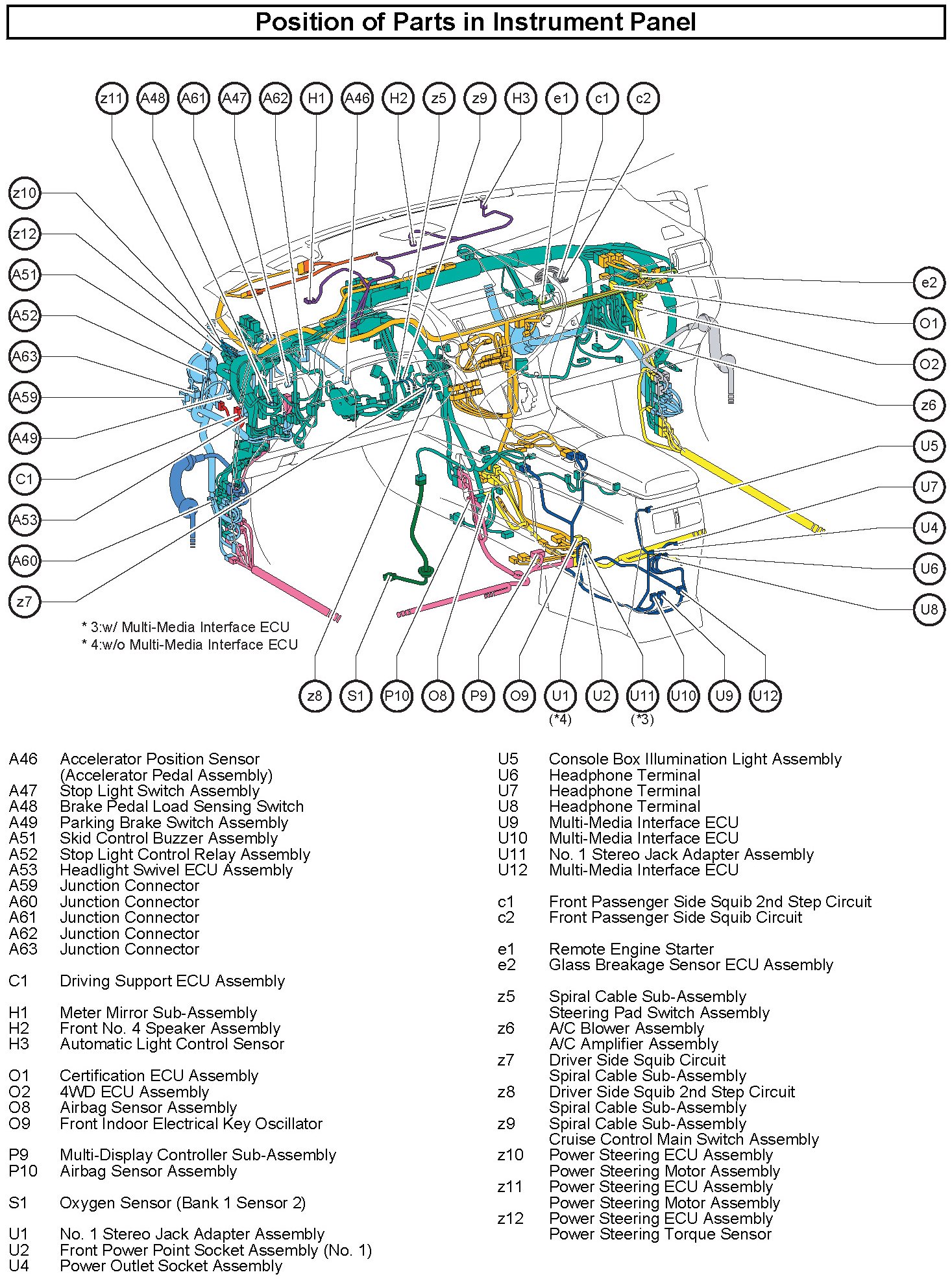

Positions Of Parts In Instrument Panel:

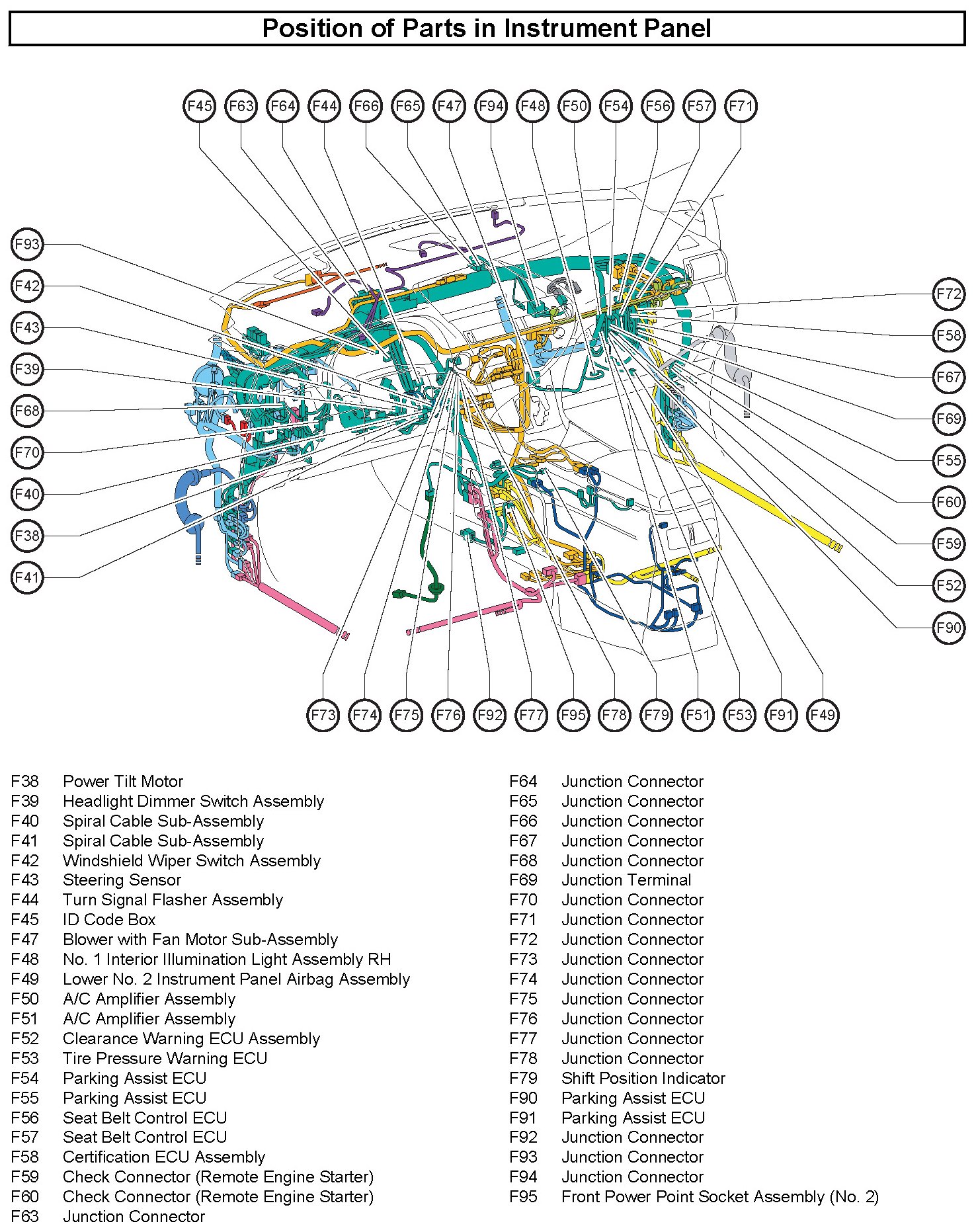

Positions Of Parts In Instrument Panel:




Positions Of Parts In Instrument Panel:




Positions Of Parts In Instrument Panel:
