Home >> Lexus Truck >> 2011 >> RX 350 AWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Junction Connectors (Wire Terminals) Part 1

Junction Connectors (Wire Terminals) Part 1

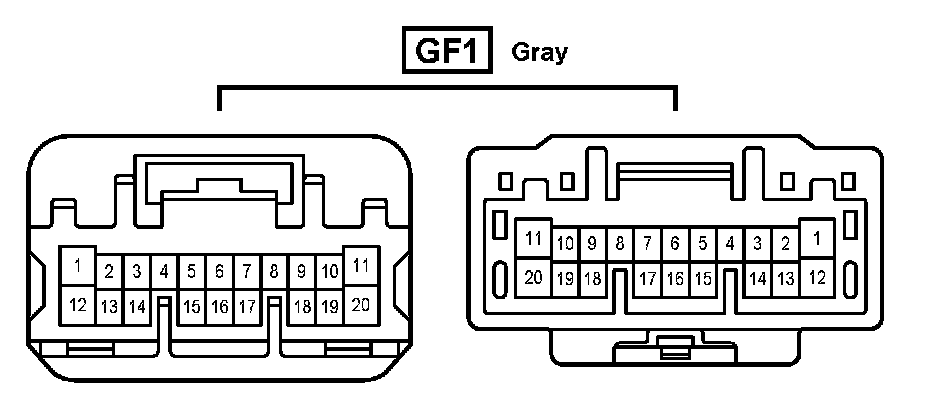

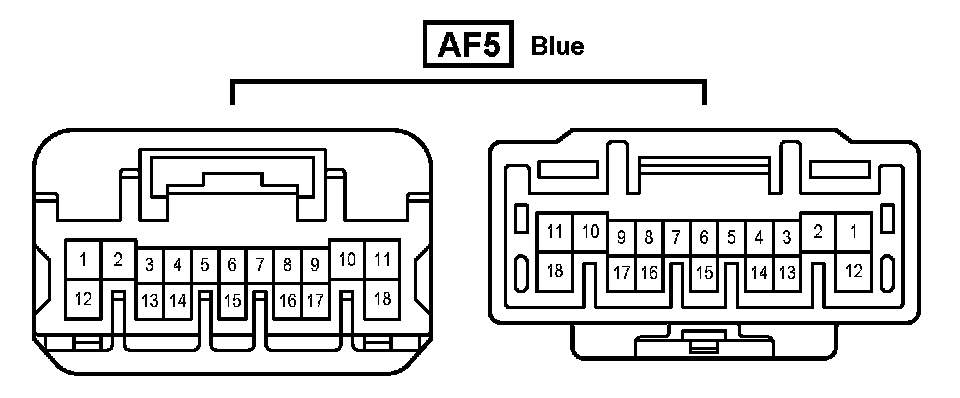

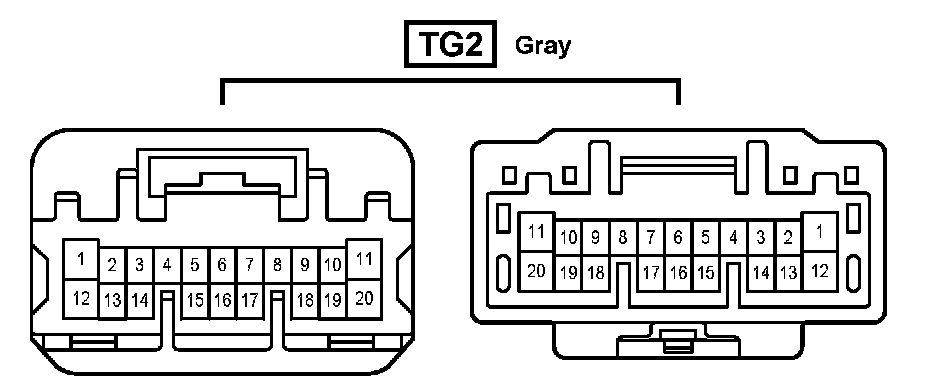

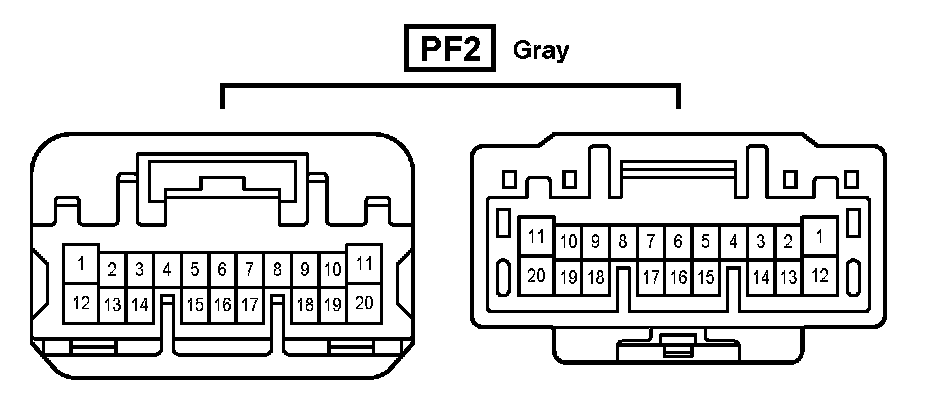

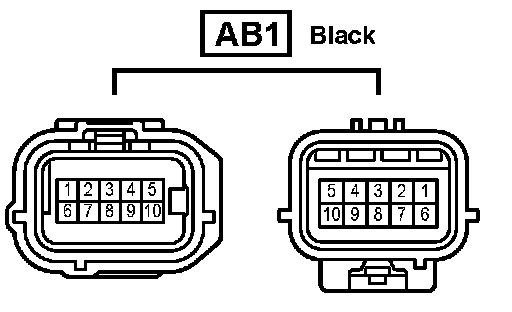

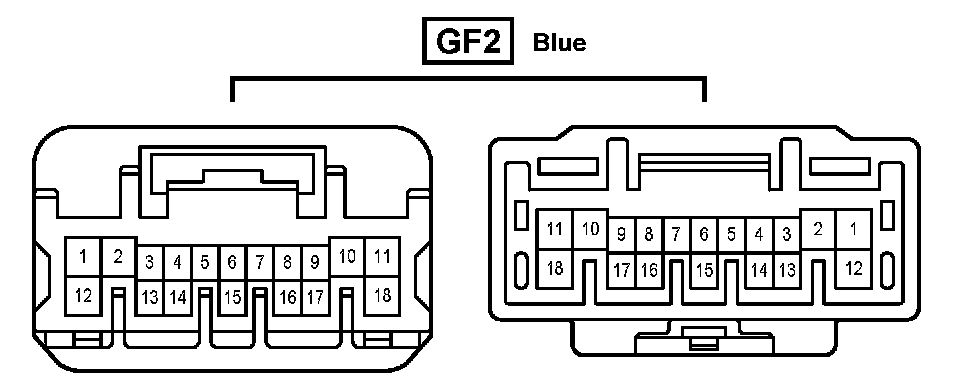

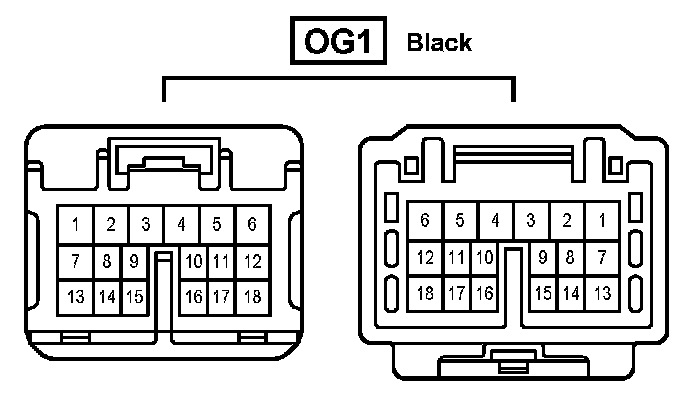

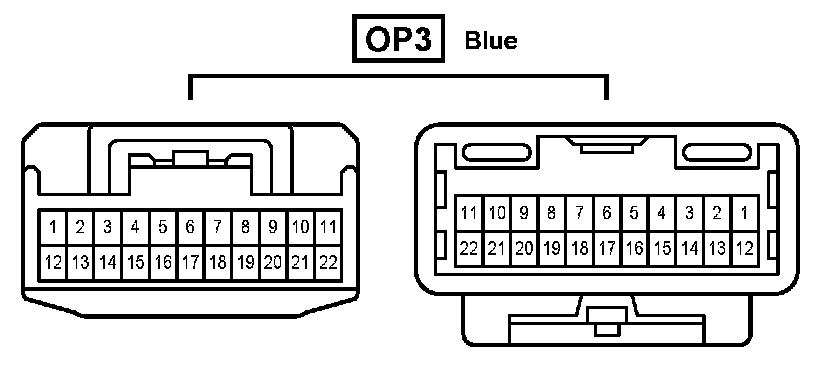

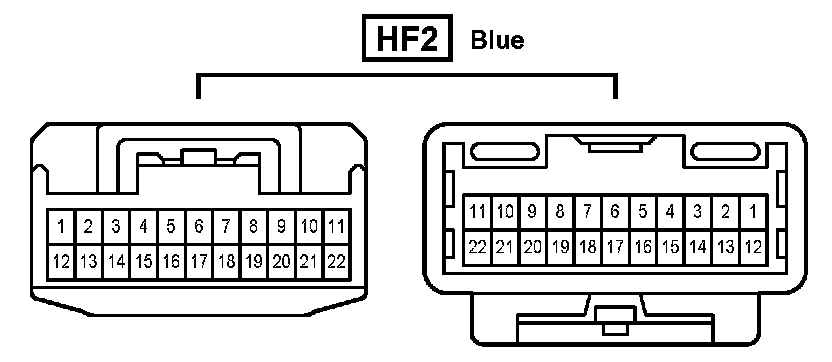

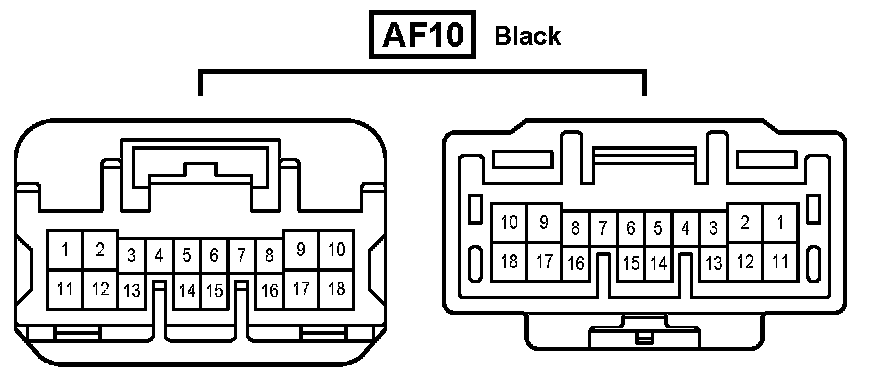

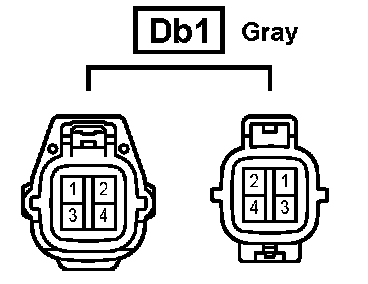

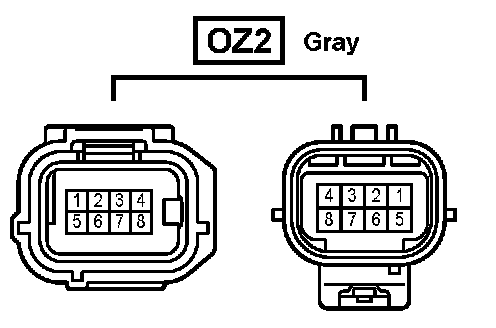

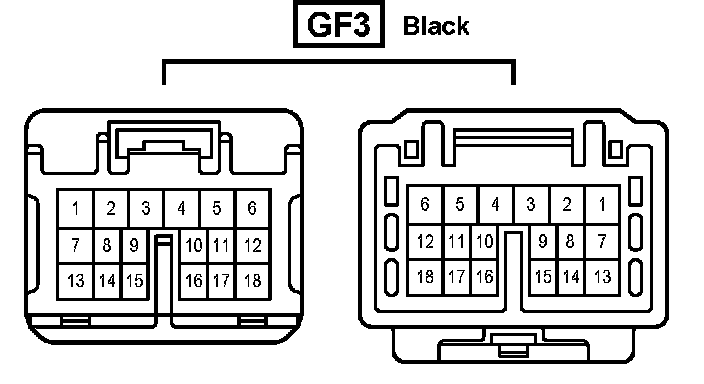

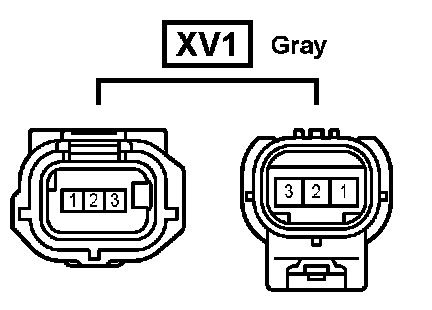

On Left: Female connector Shapes
On Right: Male connector Shapes

Connector Colors:

Black:






























Blue:




































Gray:
