Junction Connectors (Wire Terminals) Part 2

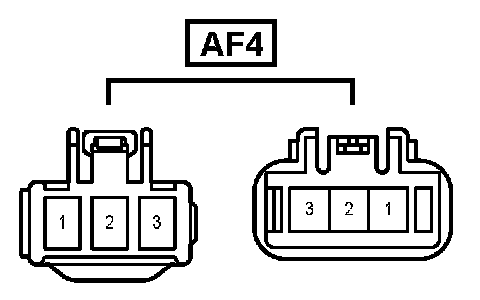

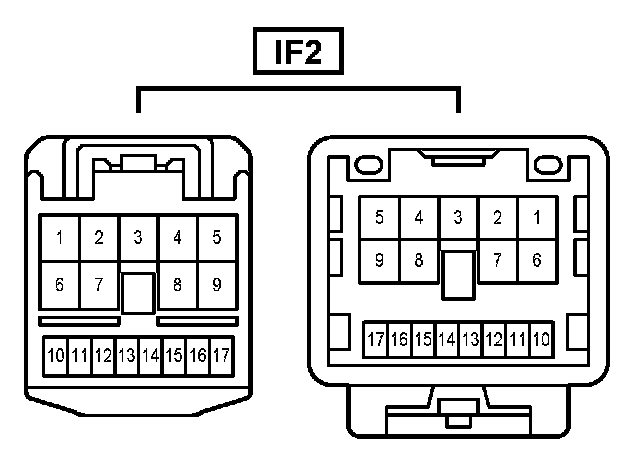

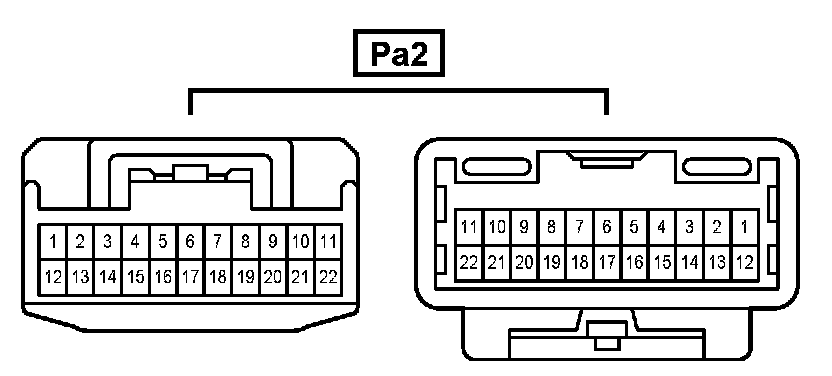

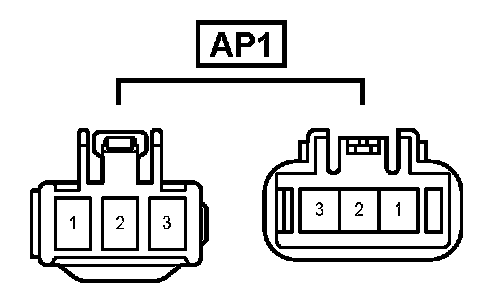

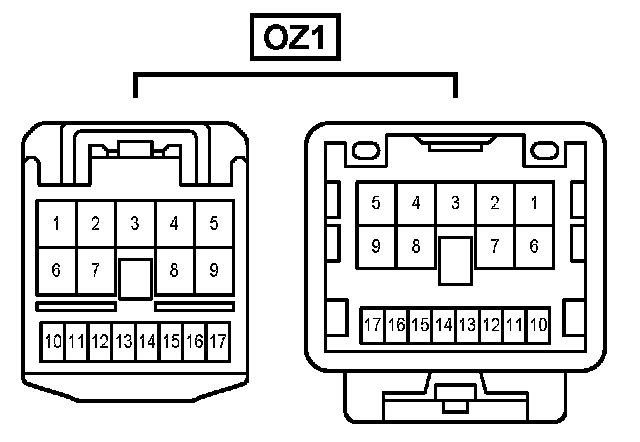

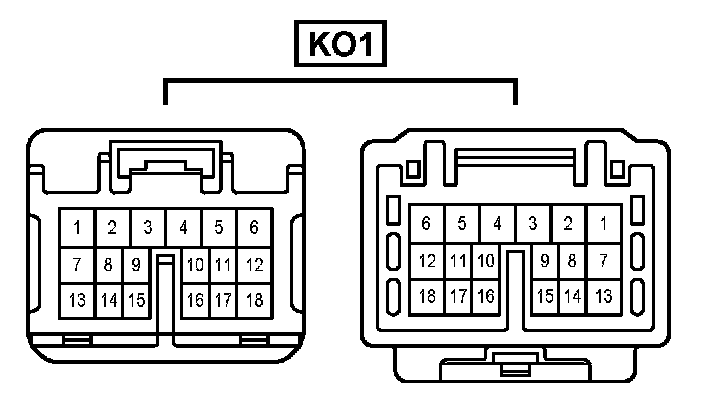

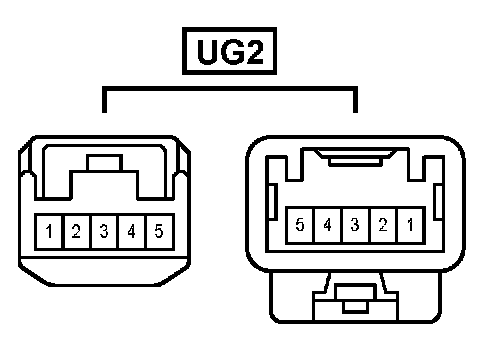

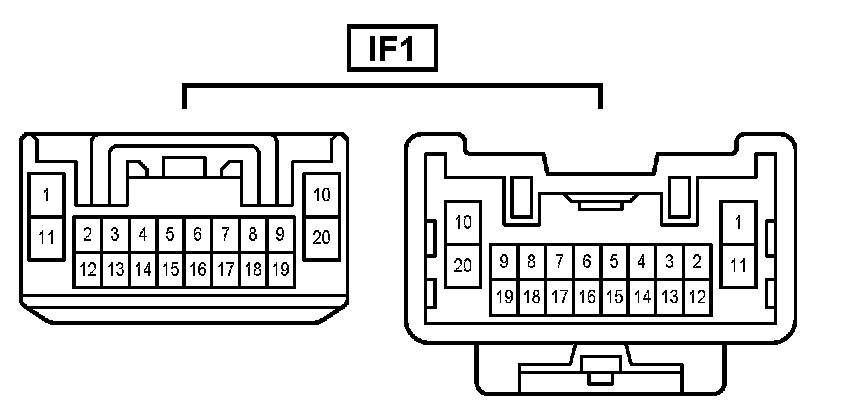

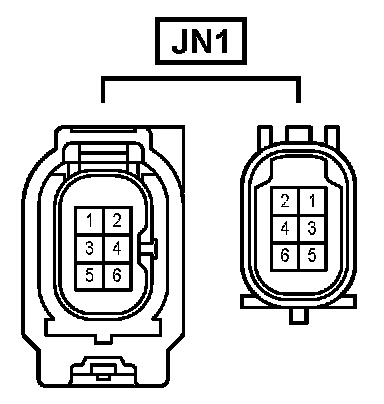

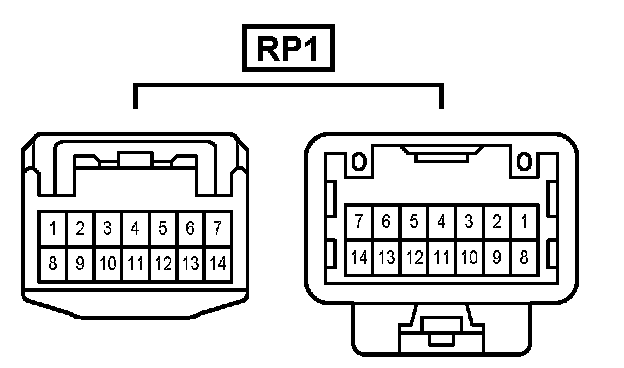

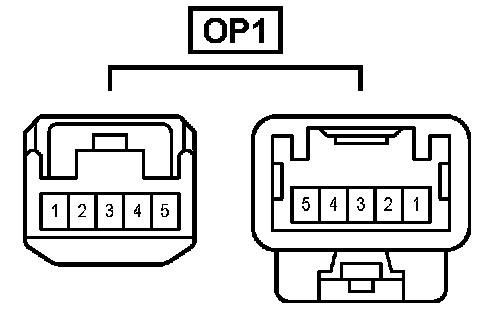

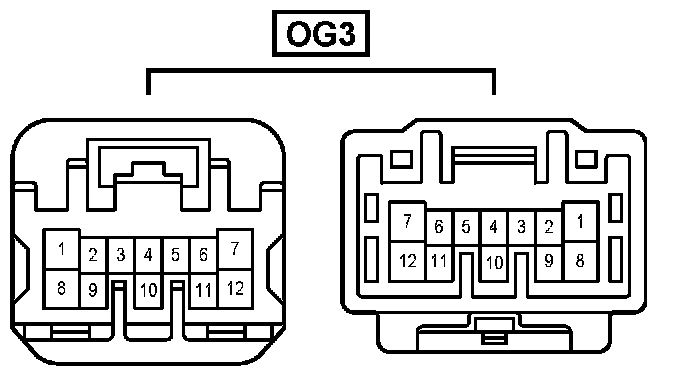

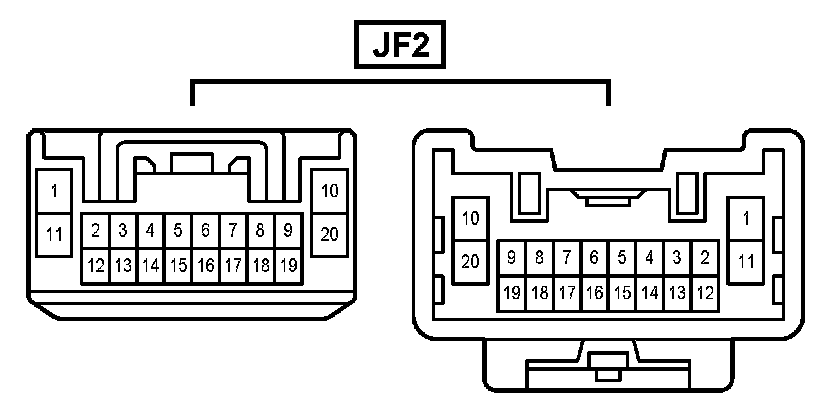

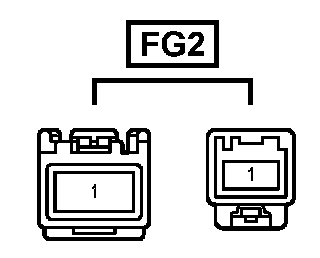

On Left: Female connector Shapes
On Right: Male connector Shapes

Connector Colors:

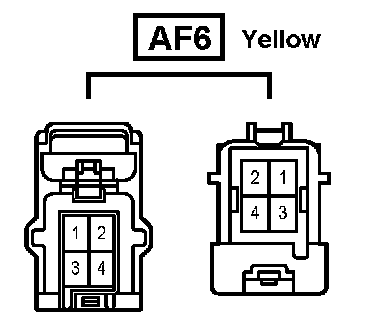

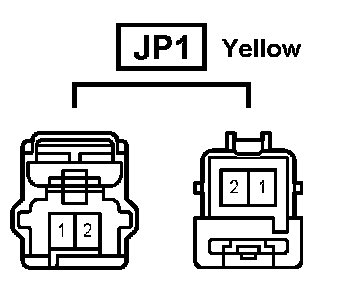

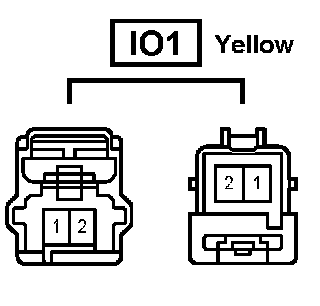

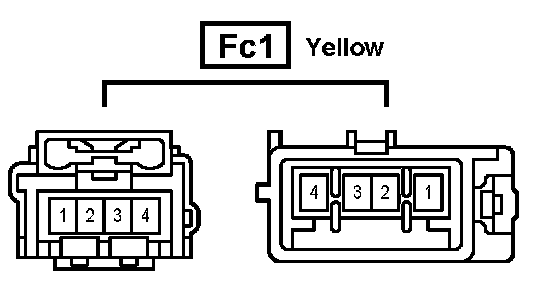

Yellow:

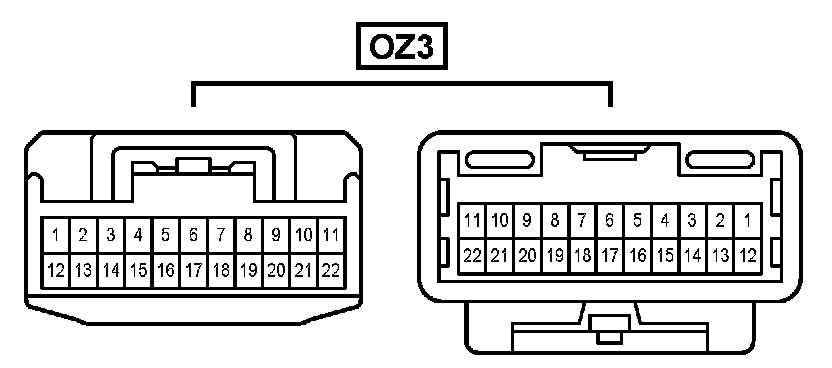

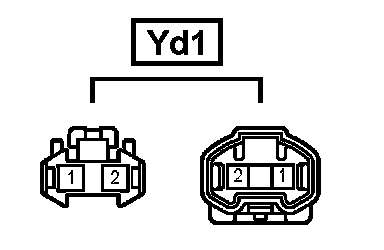

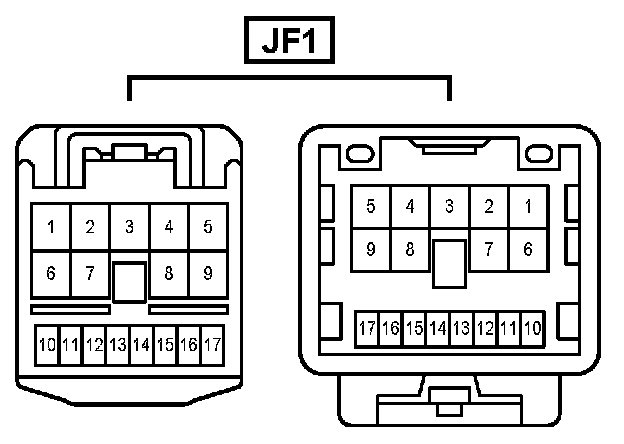

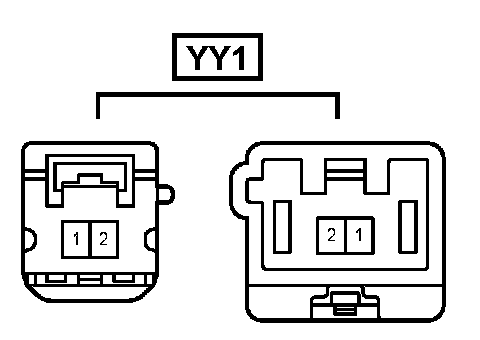

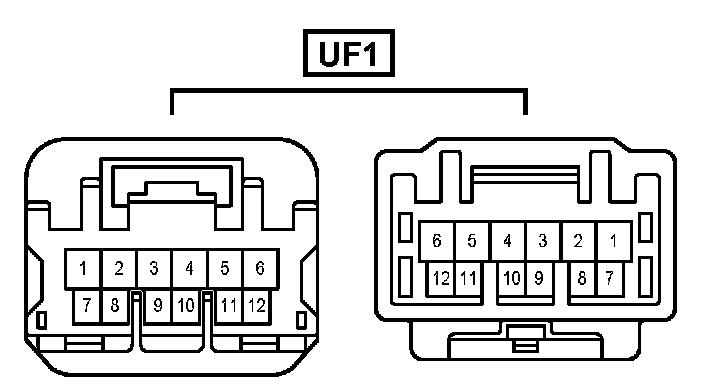

Connectors with no indicated colors are white in color:
