System Diagram

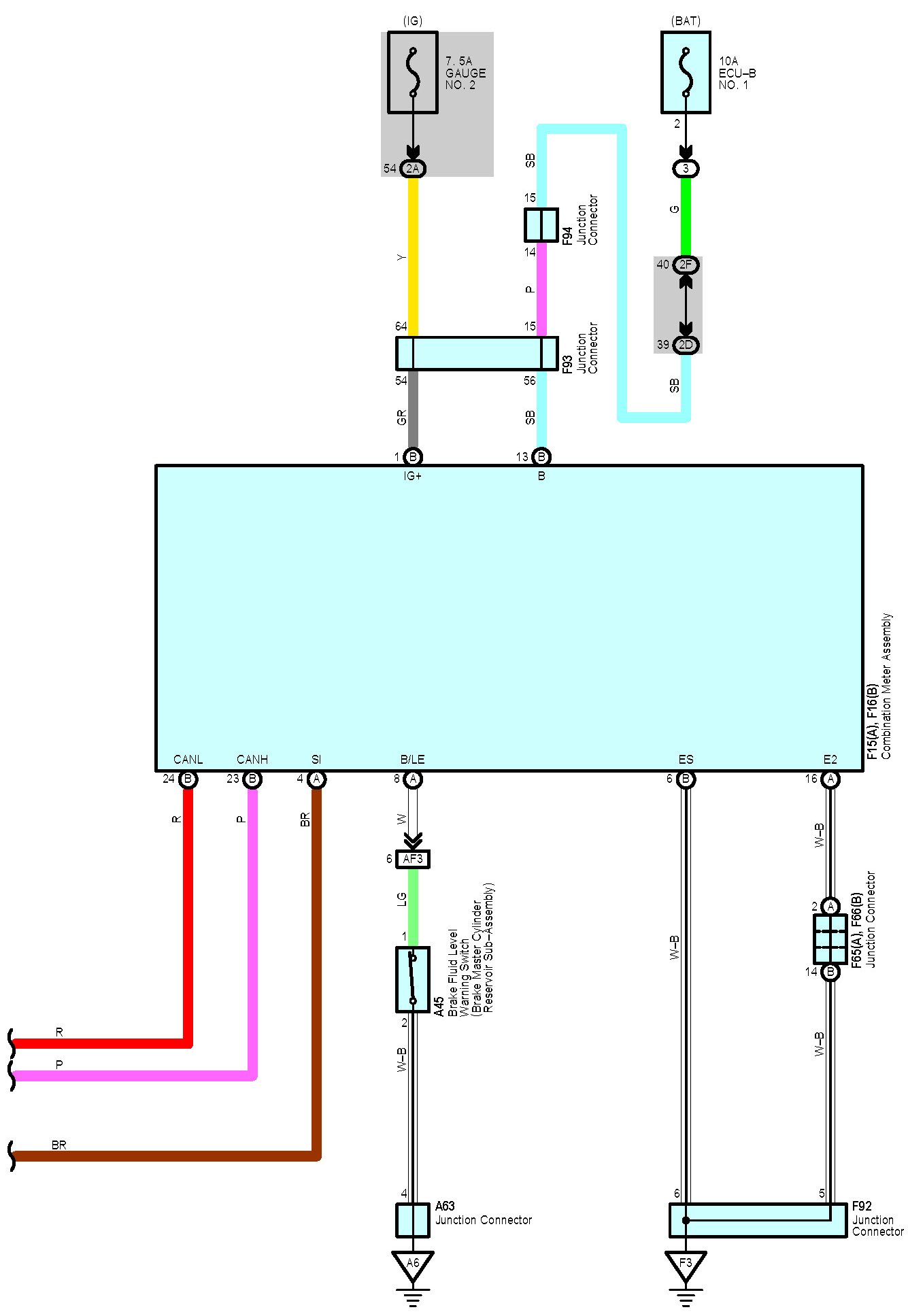

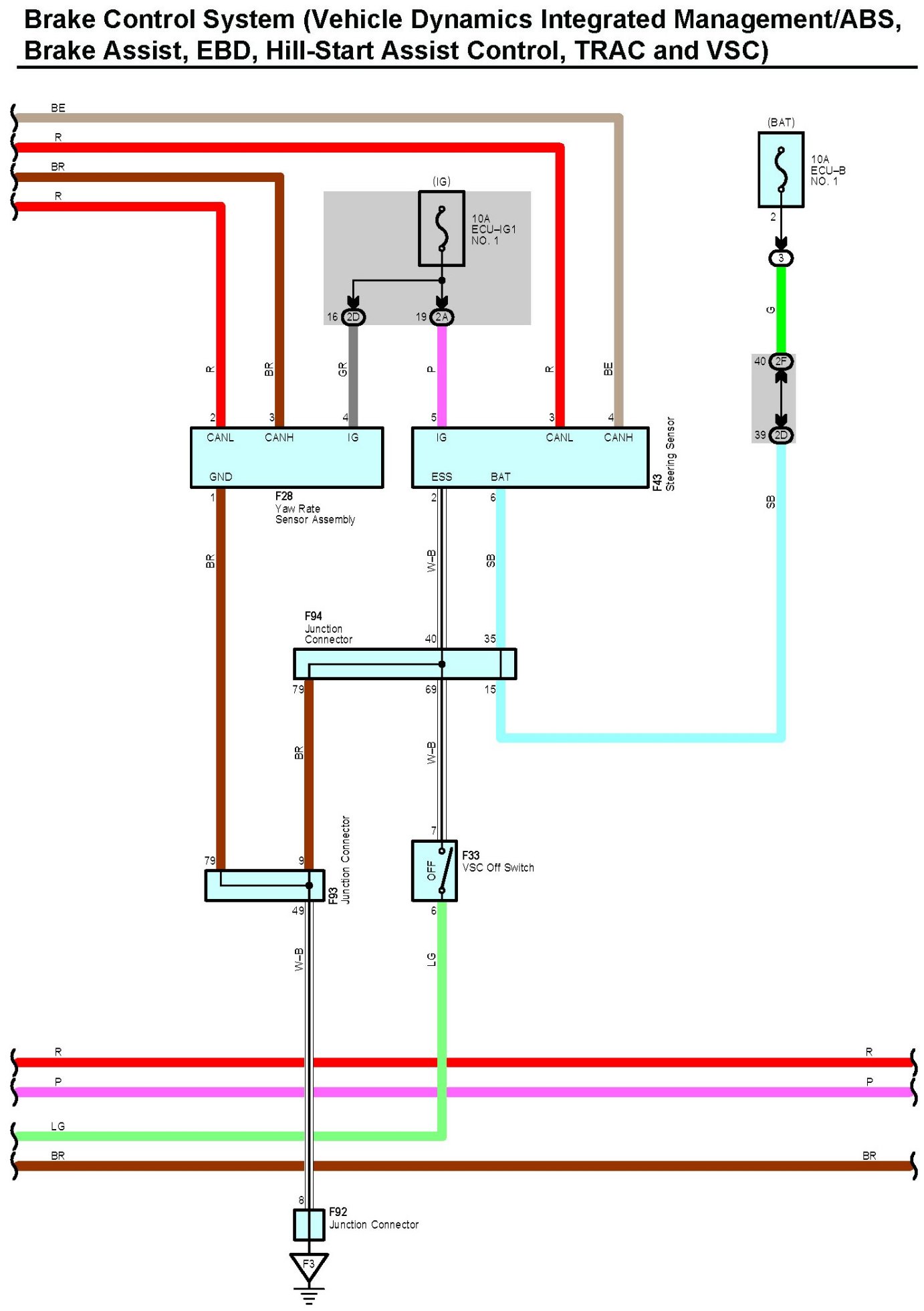

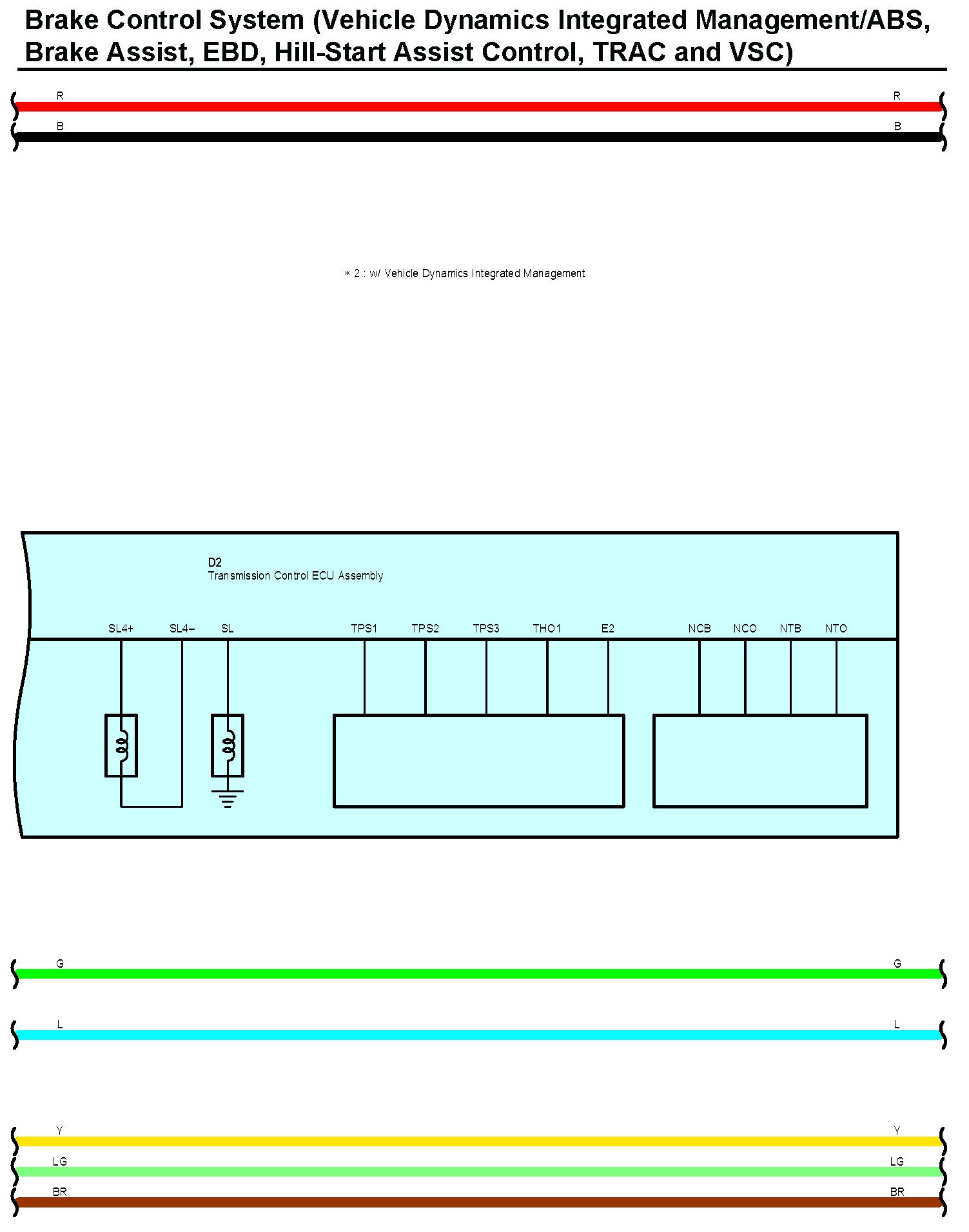

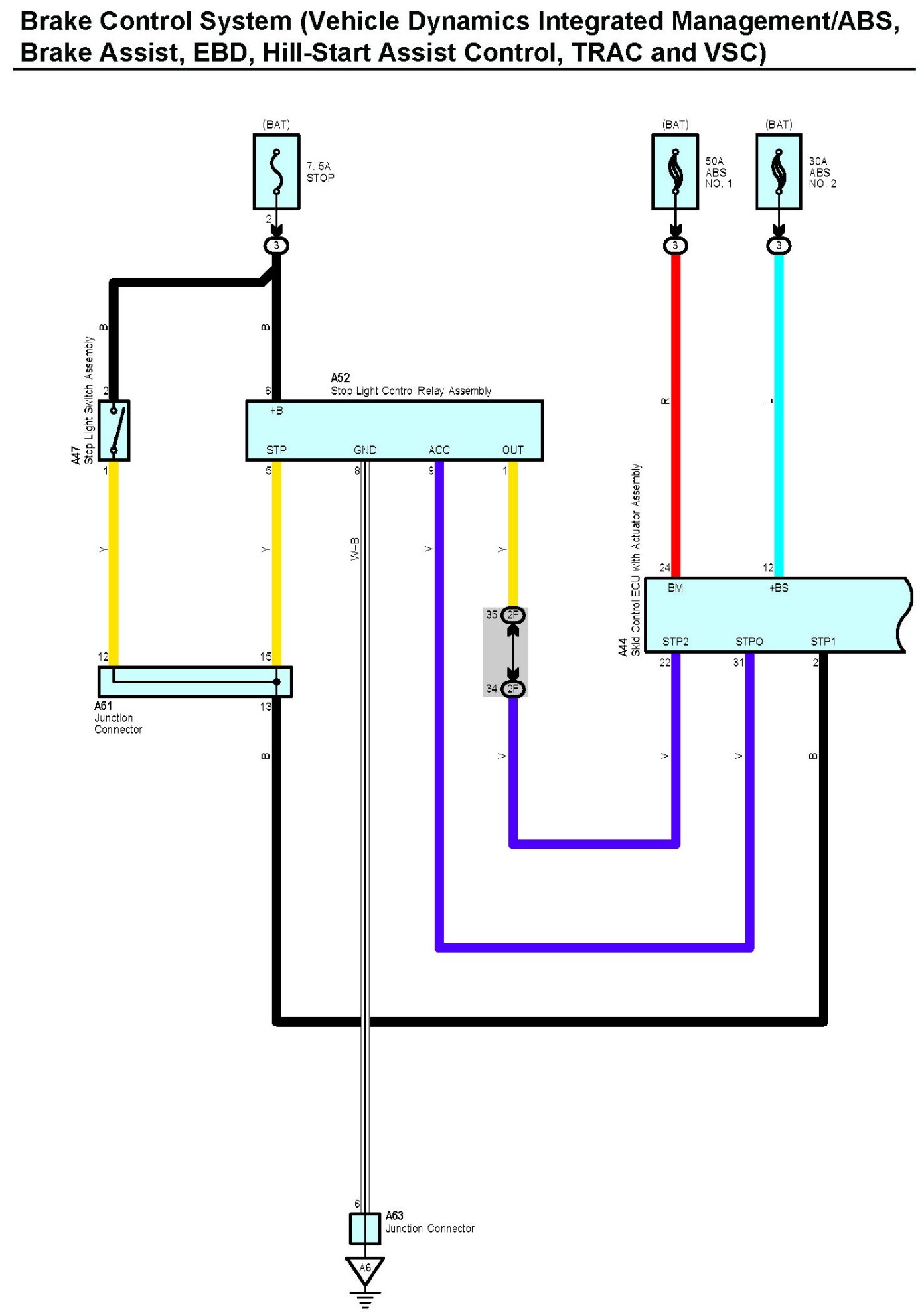

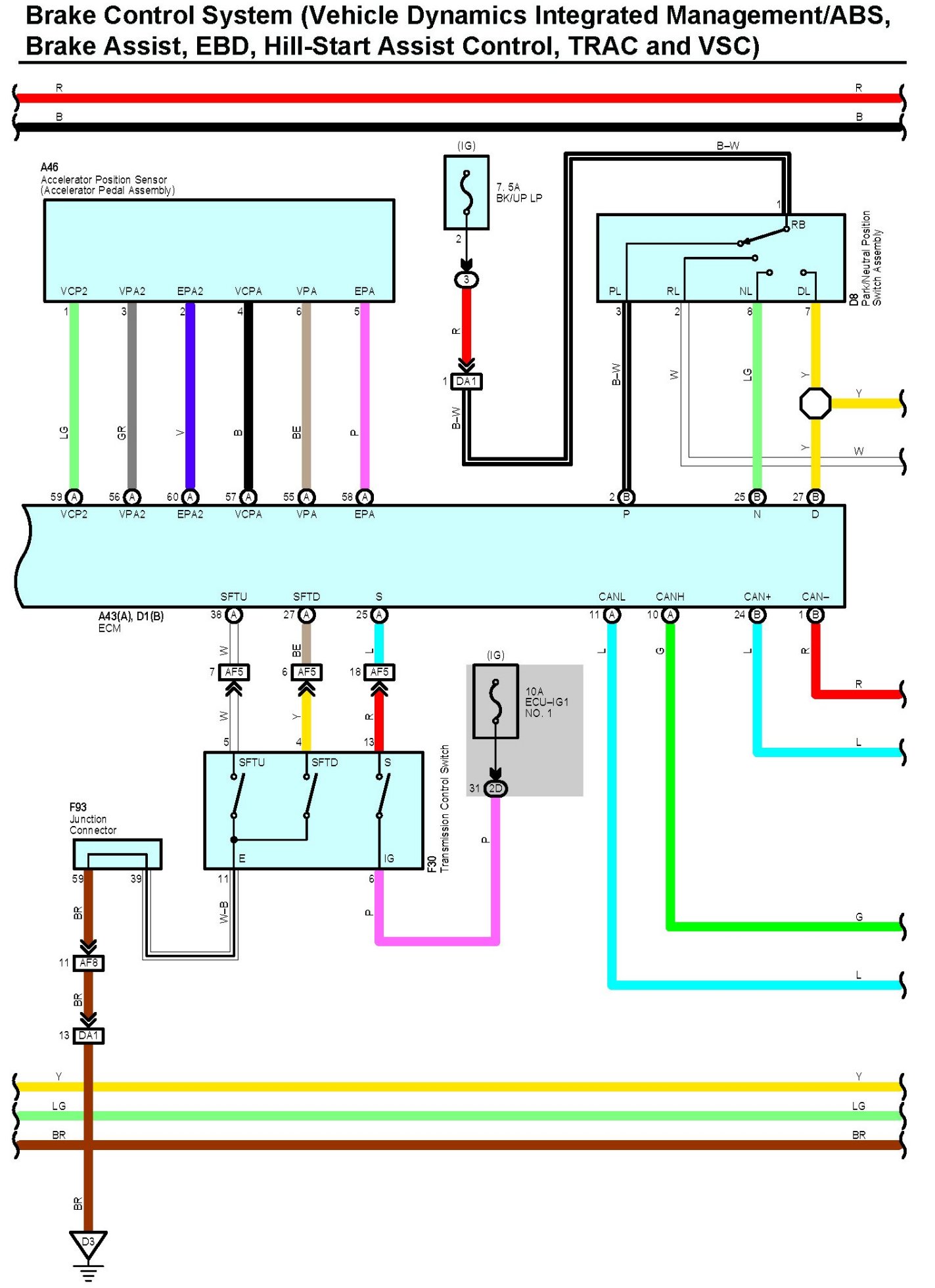

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 1:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 2:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 3:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 4:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 5:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 6:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 7:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 8:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 9:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 10:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 11:

Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) Part 12:

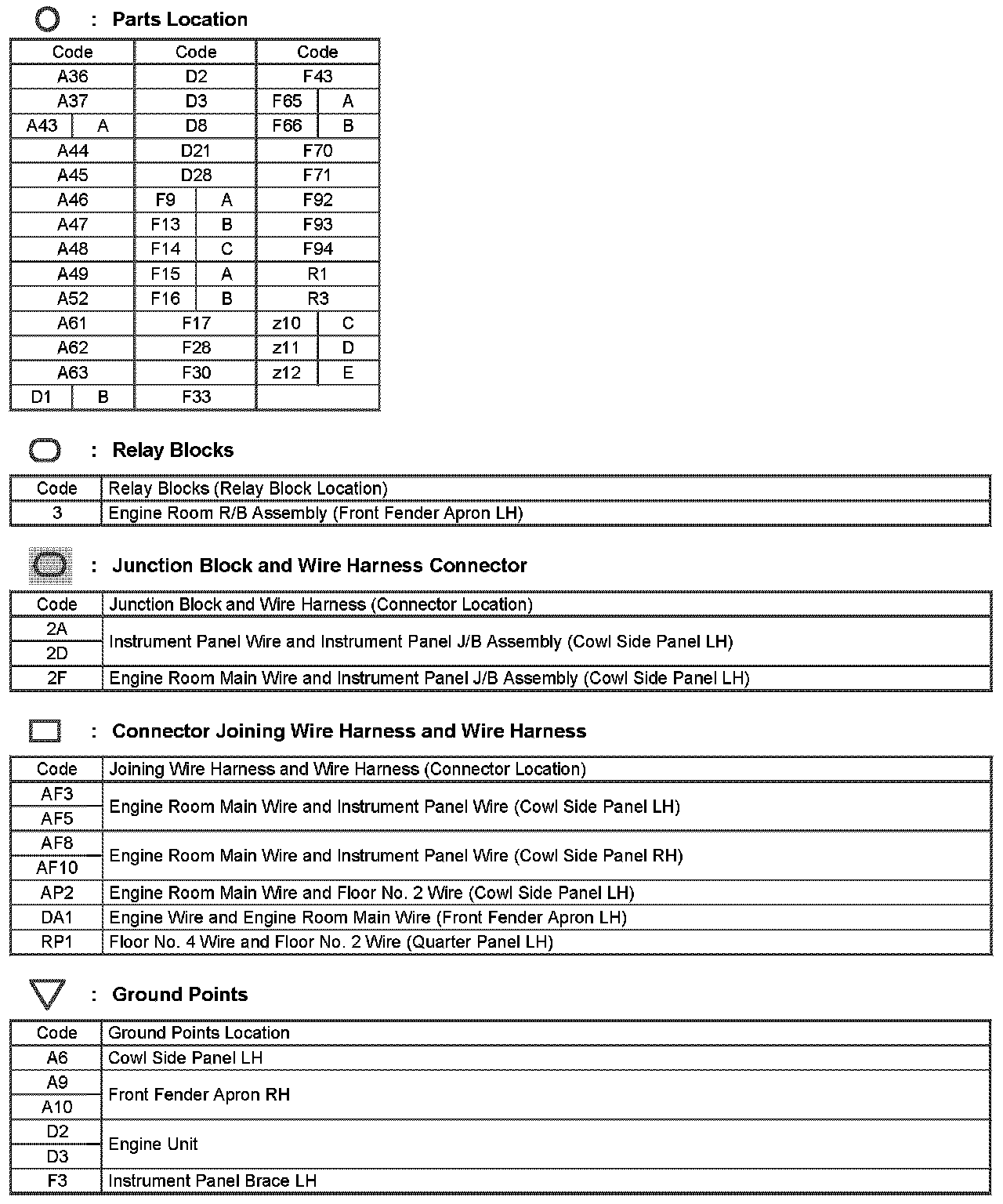

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
