Audible Warning Device

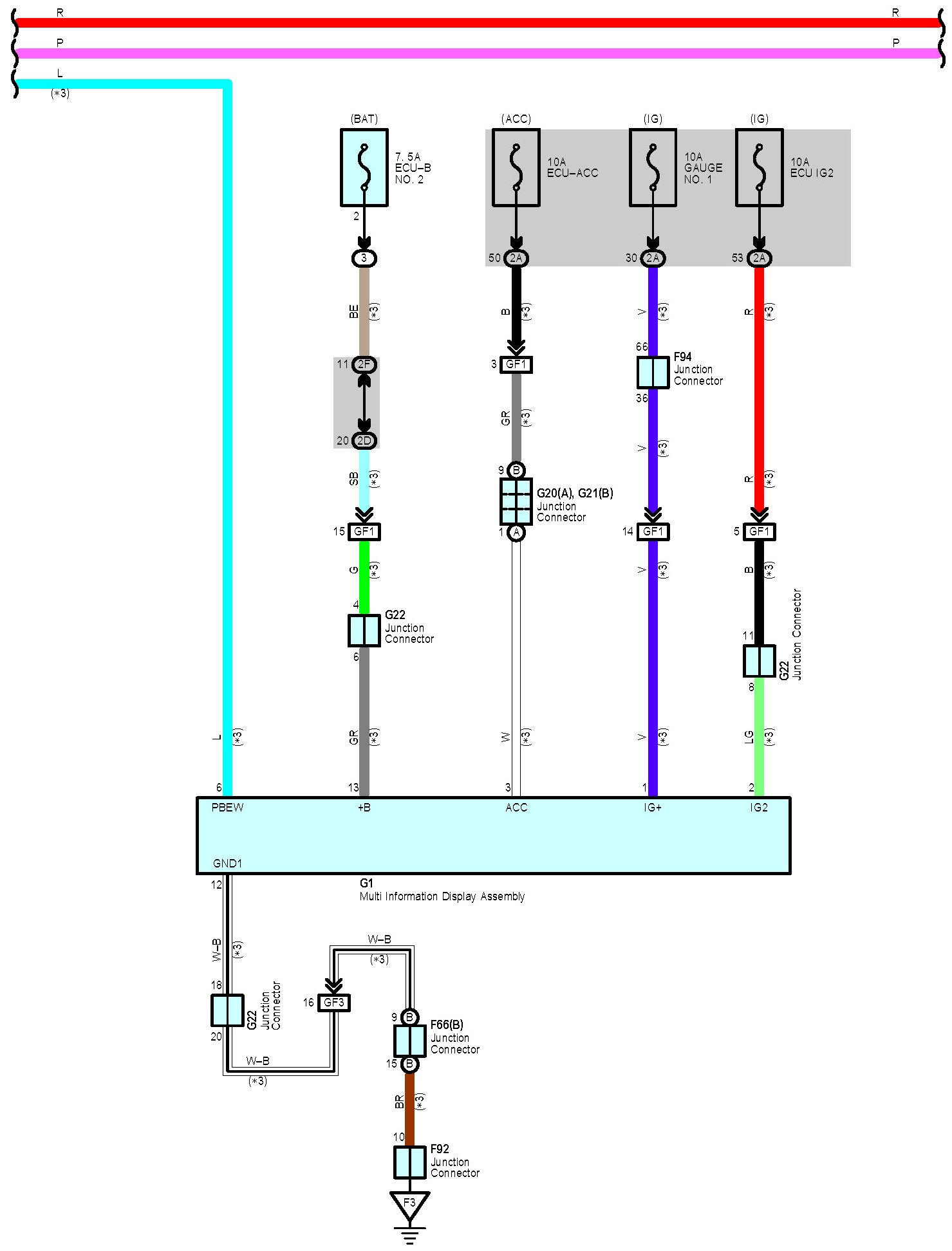

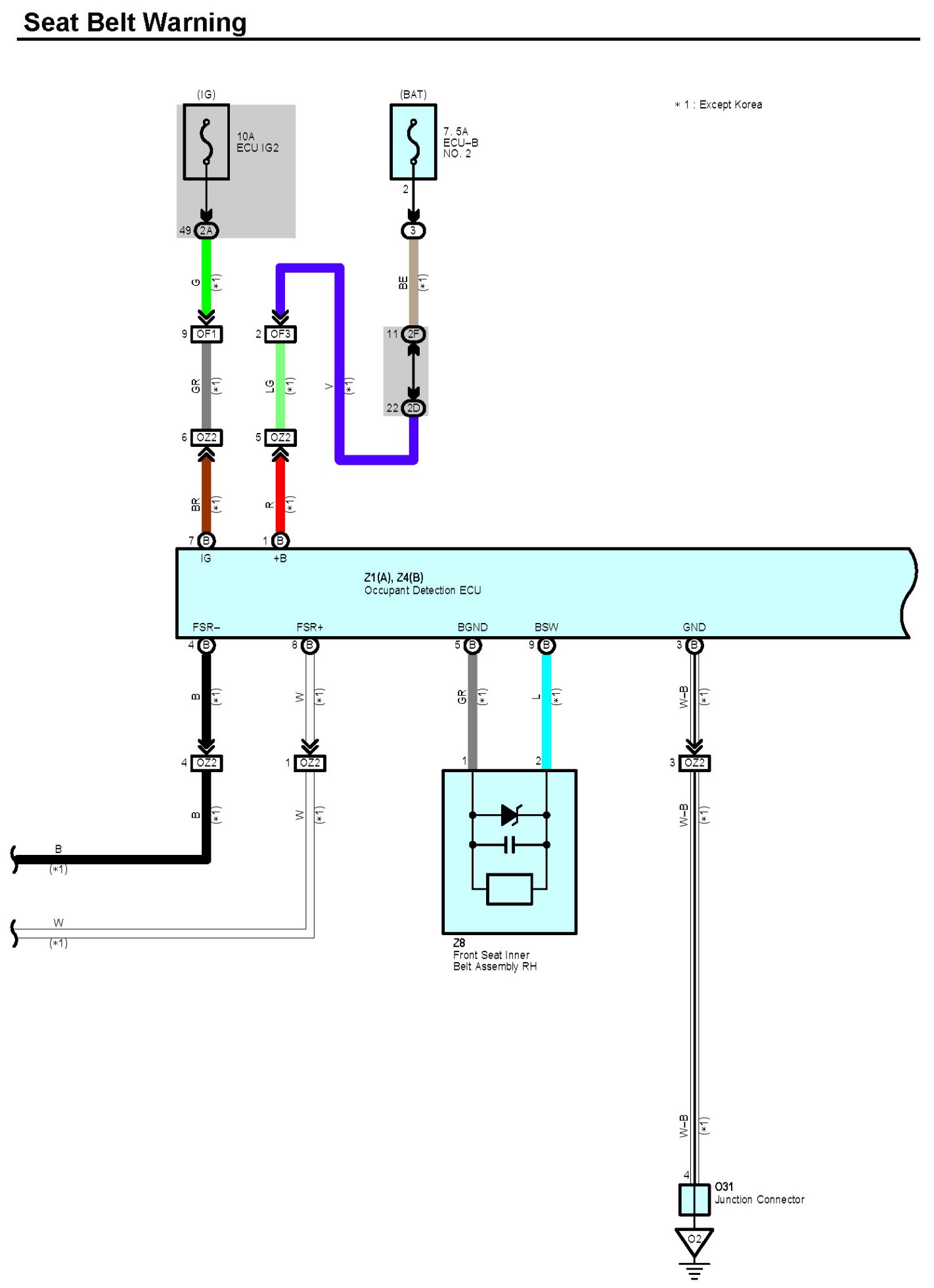

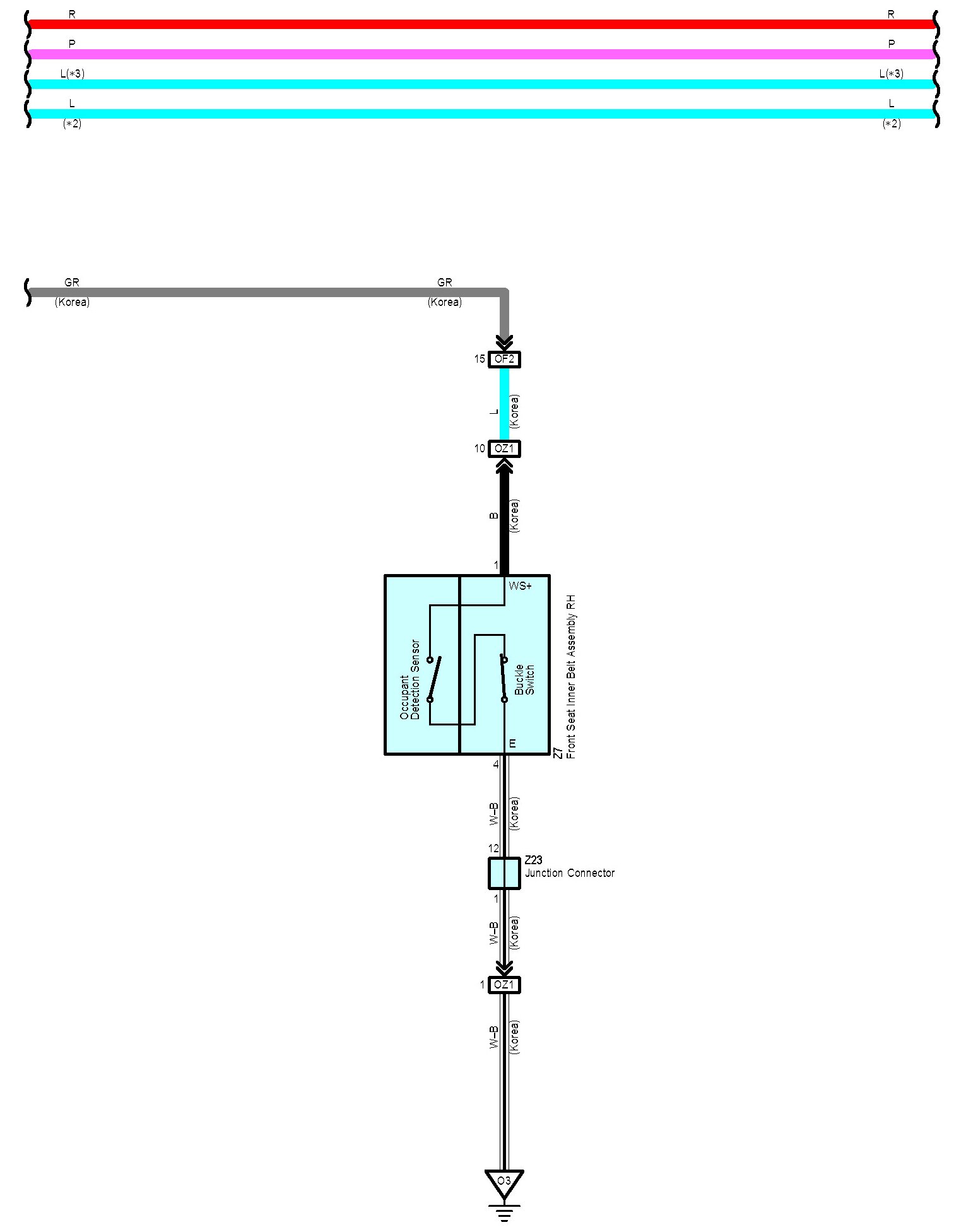

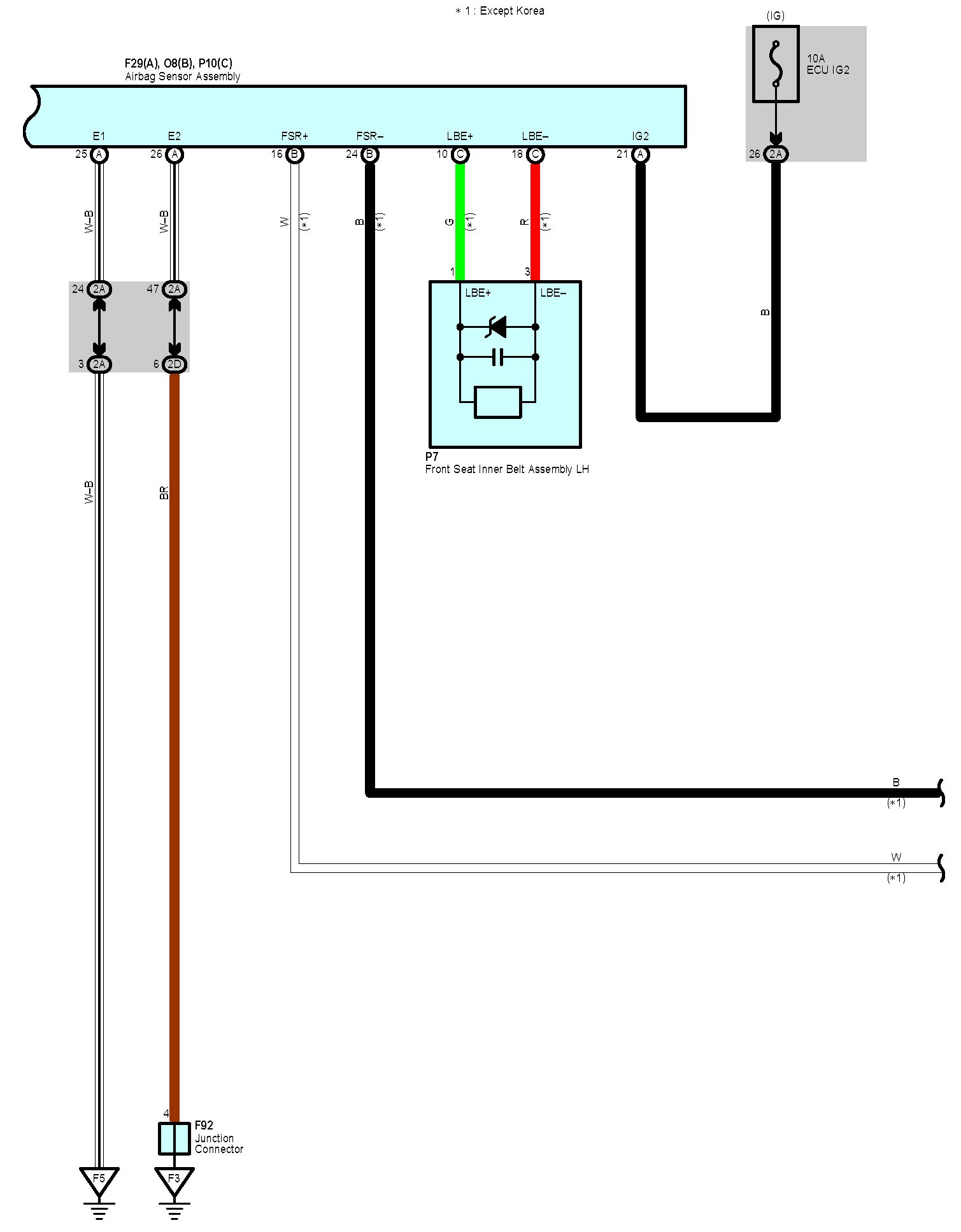

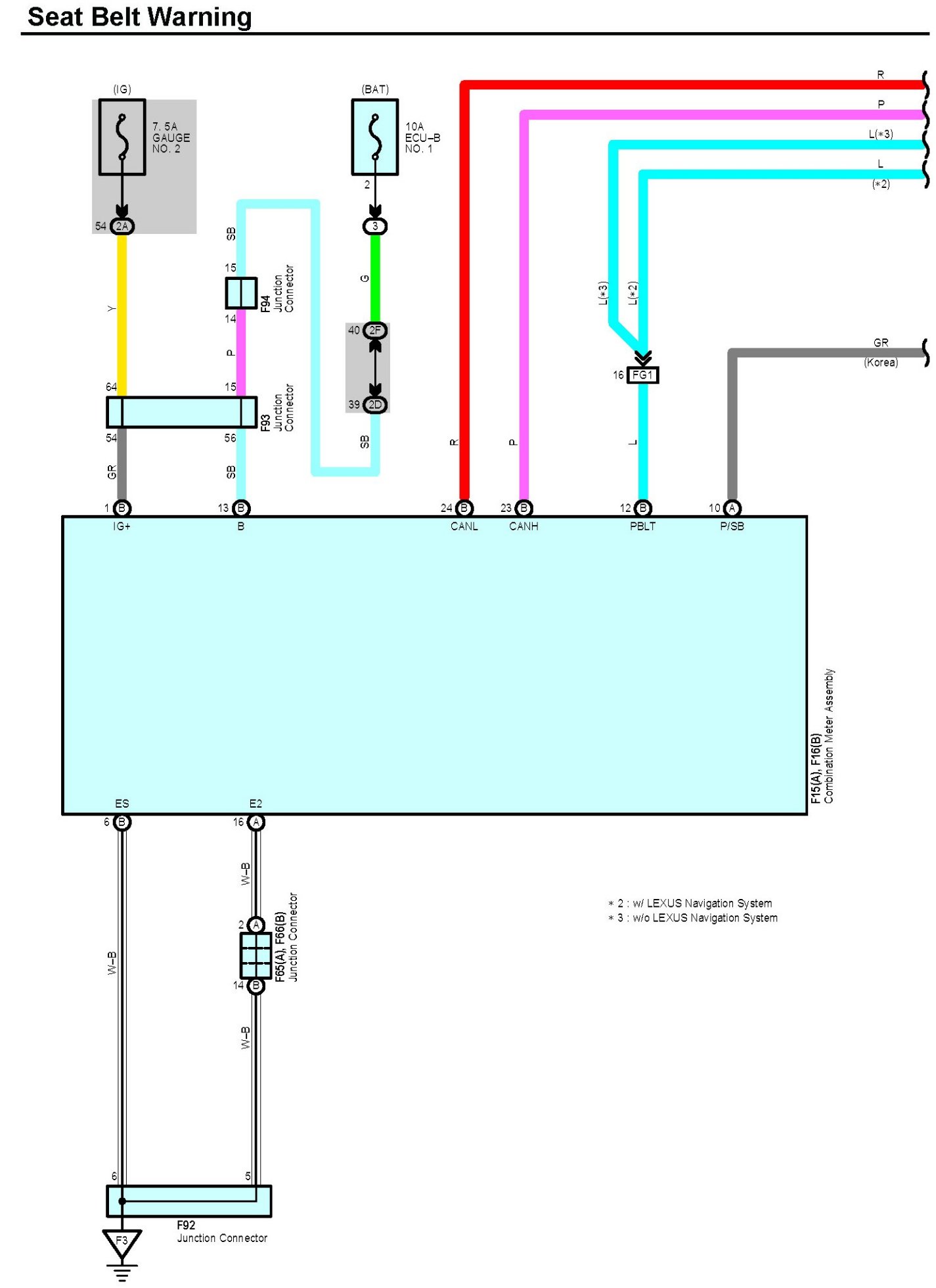

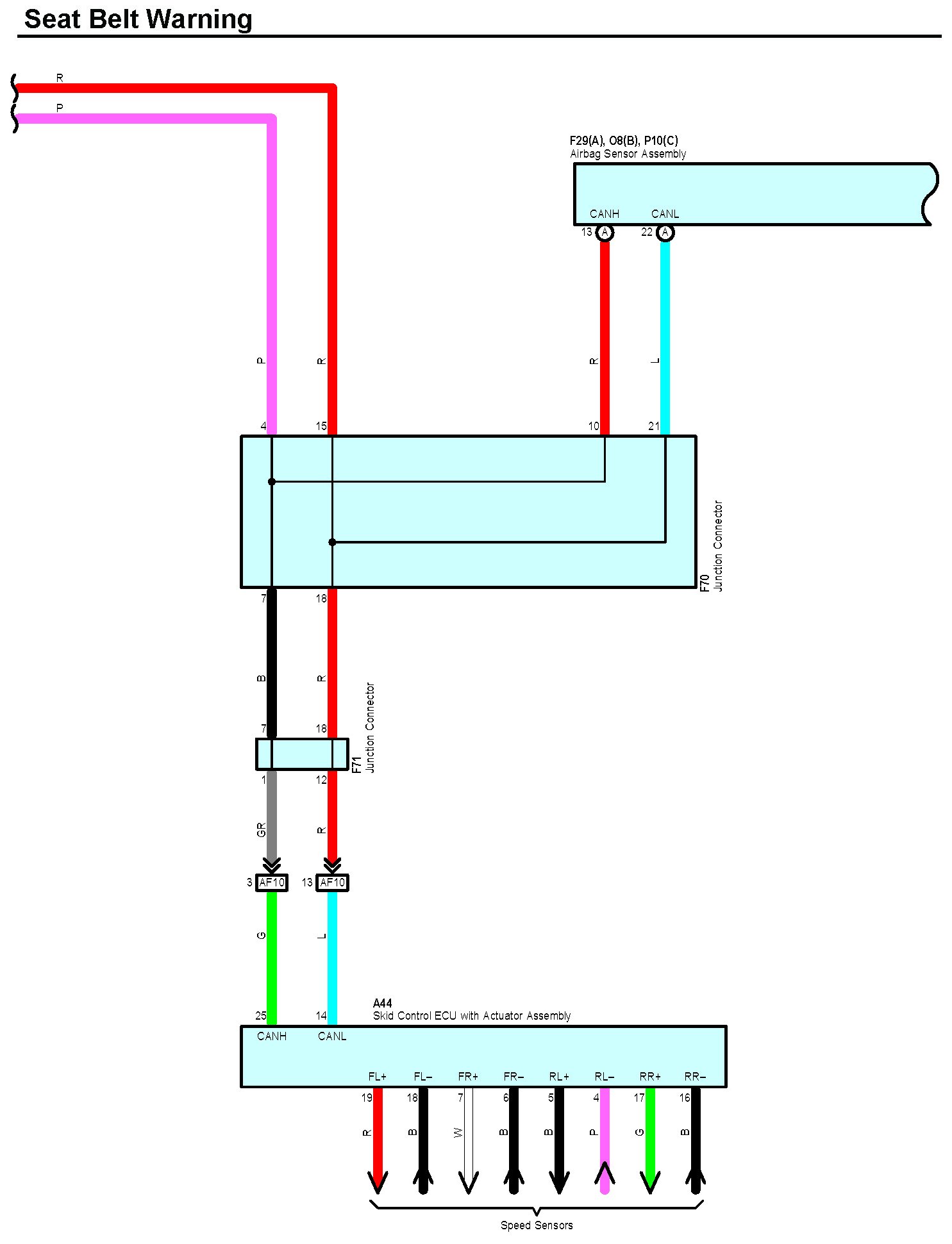

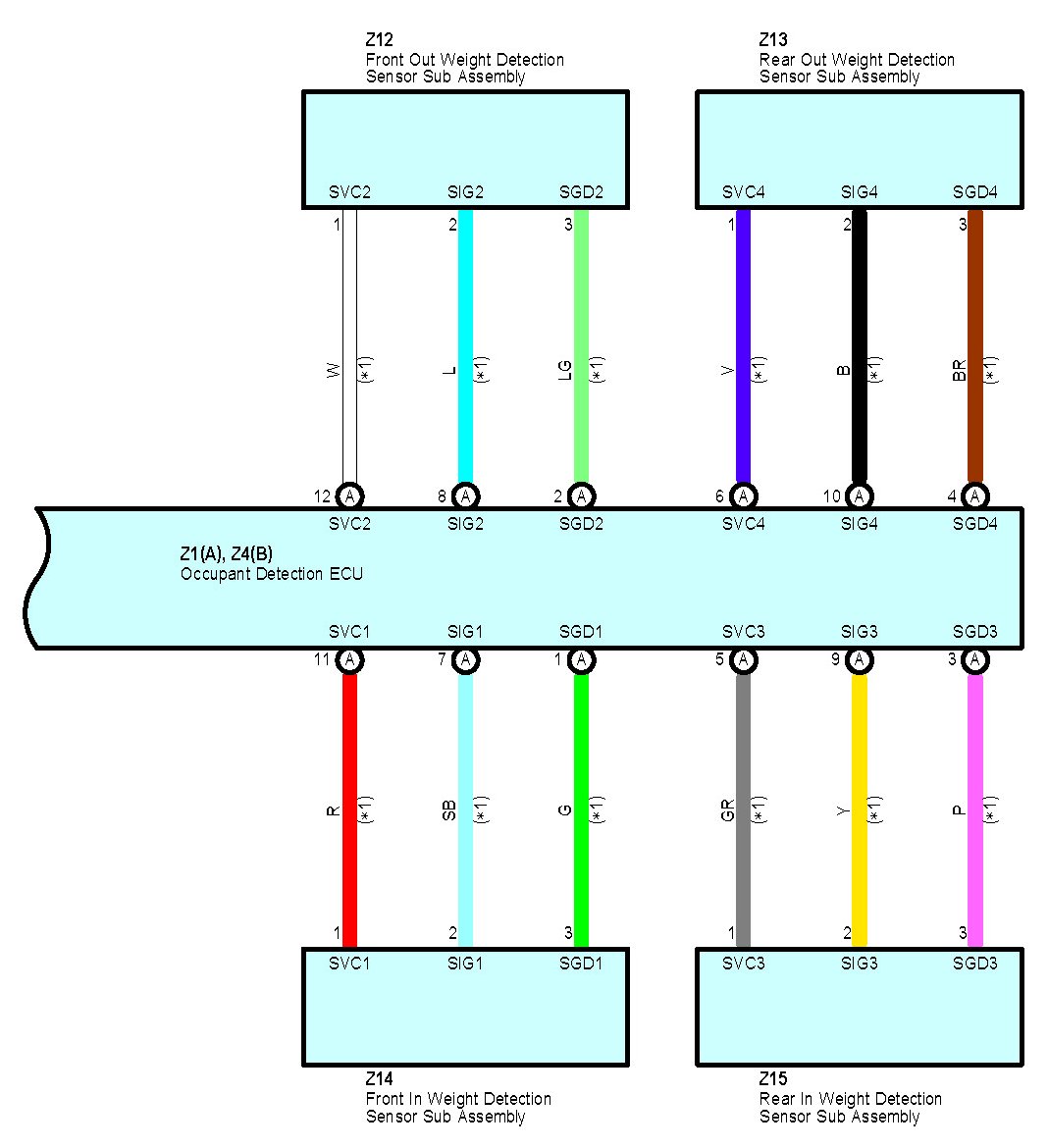

Seat Belt Warning Part 1:

Seat Belt Warning Part 2:

Seat Belt Warning Part 3:

Seat Belt Warning Part 4:

Seat Belt Warning Part 5:

Seat Belt Warning Part 6:

Seat Belt Warning Part 7:

Seat Belt Warning Part 8:

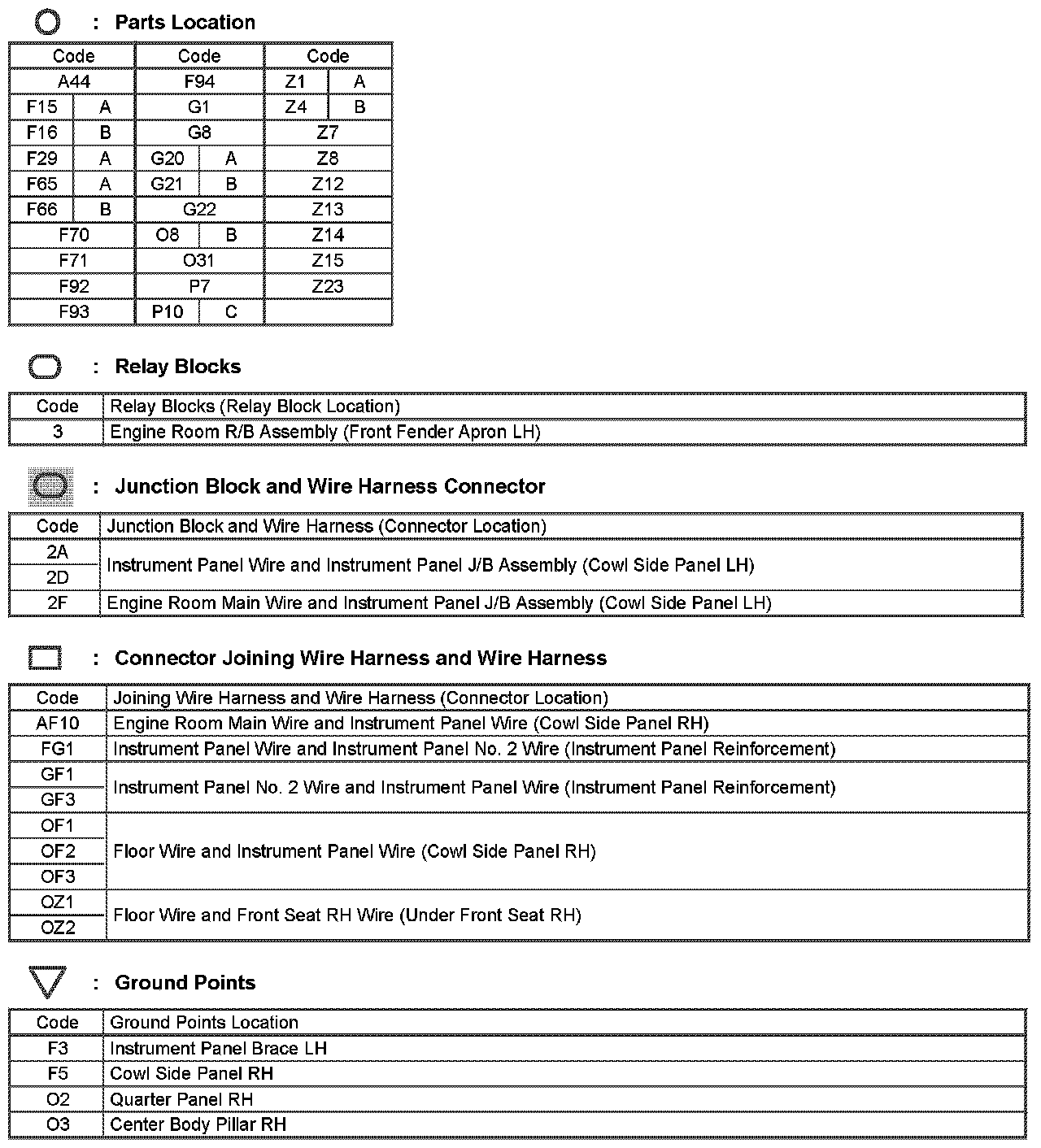

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
