Crankshaft Main Bearing

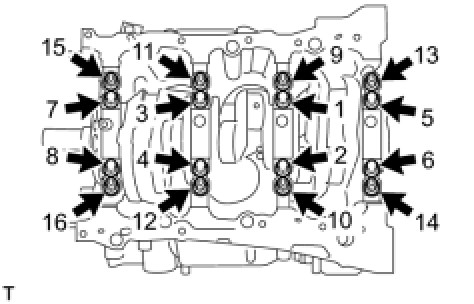

Main bearing cap





Step 1 61 Nm (622 kgf-cm, 45 ft-lbf)
Step 2 90°





Side bolts 52 Nm (525 kgf-cm, 38 ft-lbf)

Crankshaft oil clearance

Standard 0.026 to 0.047 mm (0.00102 to 0.00185 in)
Maximum 0.050 mm (0.00197 in)
