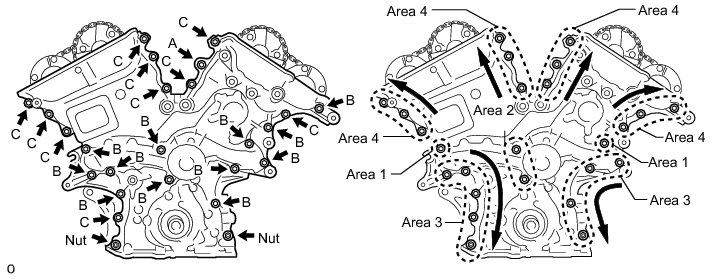

Timing Cover

Area 1 and Area 2 21 Nm (214 kgf-cm, 15 ft-lbf)
Area 3 21 Nm (214 kgf-cm, 15 ft-lbf)
Area 4
Bolt A 43 Nm (438 kgf-cm, 32 ft-lbf)
Except bolt A 21 Nm (214 kgf-cm, 15 ft-lbf)

Tighten the bolts in the order of lower to upper as shown in the illustration
