Canada - Wiper System - Auto Wipers Activating Without Rain

Bulletin
L-TCI-3089

Issue Date
December 20, 2011

Market
Canada

Title
AUTO WIPERS ACTIVATING WITHOUT RAIN

Service Category
Vehicle Exterior

Section
Wiper/Washer







APPLICABILITY:

INTRODUCTION:
Some 2011 RX350 or RX450h vehicles equipped with the Auto Rain Sensing Wipers may exhibit a condition where the wipers sweep when there is no rain while in the "AUTO" mode. Use the following procedure to replace the rain sensor to address this condition.

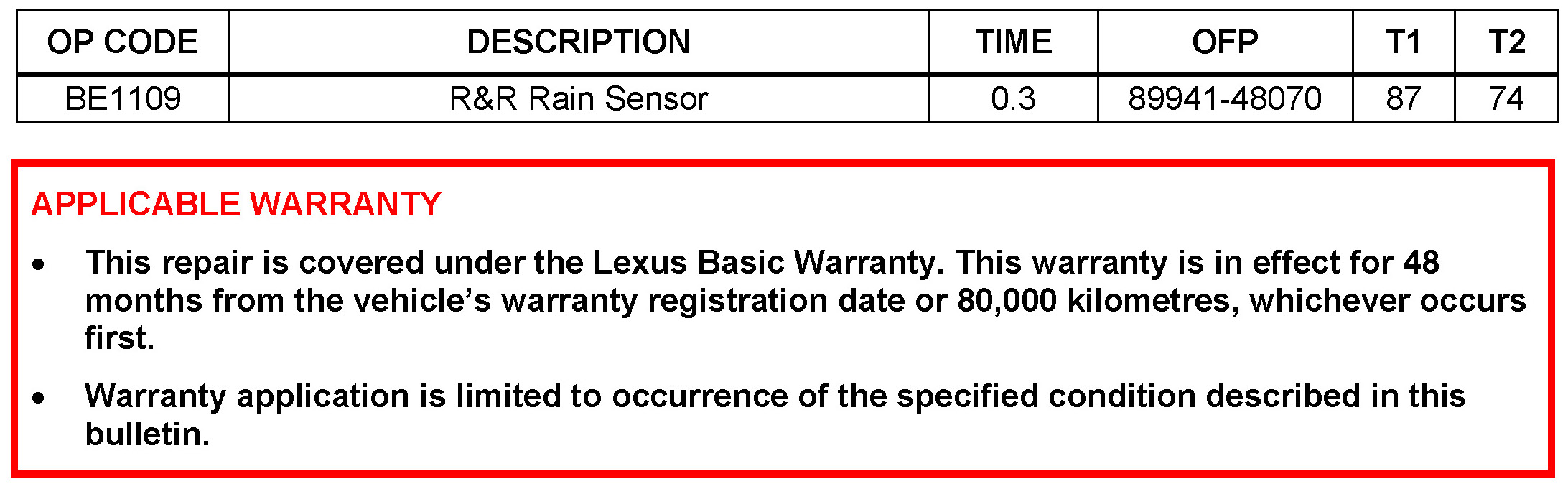

WARRANTY INFORMATION:







PARTS INFORMATION:

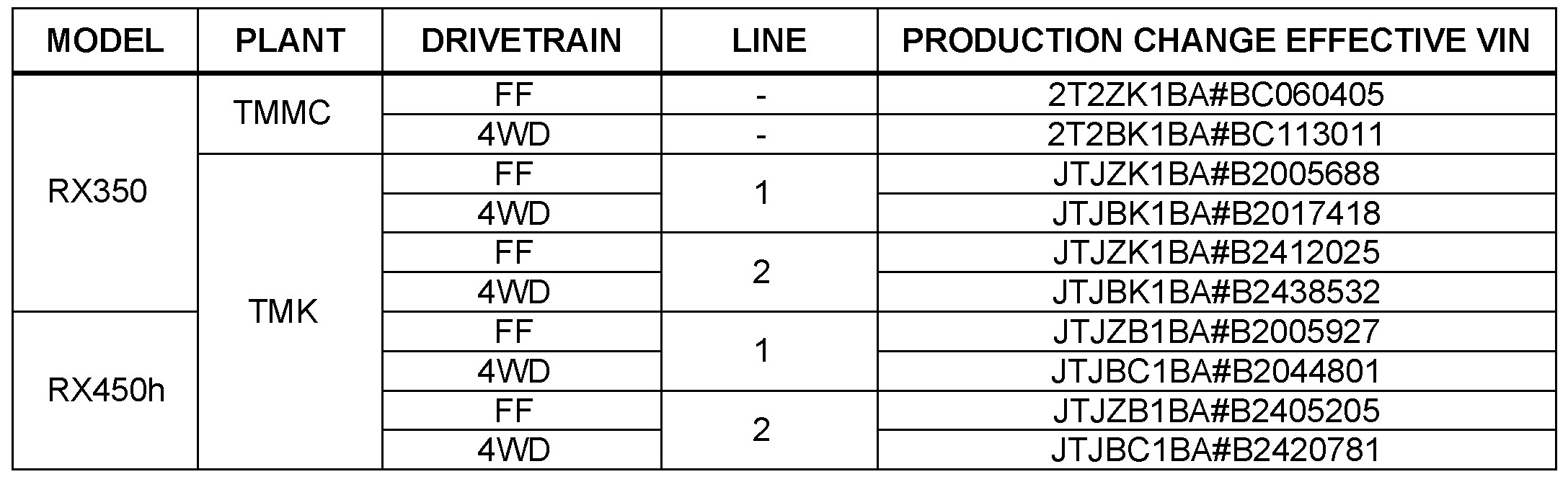

PRODUCTION CHANGE INFORMATION:








This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

REPAIR PROCEDURE:
1. Confirm the vehicle exhibits the condition as described in the introduction.
2. Verify whether the vehicle has a Lexus original equipment windshield or an aftermarket installation.

NOTE
- This TSB does not apply to Non Lexus original windshields.
- If the vehicle windshield is not Lexus original equipment, the rain sensor may NOT operate properly due to variations in the glass, tinting, etc.

3. Replace the rain sensor. Refer to ETAS/TIS library, applicable model year RX350/RX450h Repair Manual.
A. 2011 RX350 / RX450h
Vehicle Exterior - Wiper/Washer: "Rain Sensor: Removal"
B. 2011 RX350 / RX450h
Vehicle Exterior - Wiper/Washer: "Rain Sensor: Installation"

4. Confirm proper wiper operation.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
