Instruments - Compass Calibration Procedure

L-SB-0103-10

August 17, 2010

Initial Calibration of Compass During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

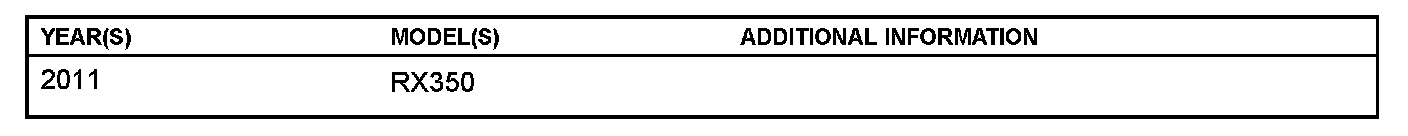

Applicability

Introduction





Some 2011 model RX350 vehicles are equipped with a compass in the rear view mirror. In order for the compass to correctly indicate the direction that the vehicle is heading it must be calibrated prior to vehicle delivery. Use the following procedure to perform initial calibration during Pre-Delivery Service (PDS).

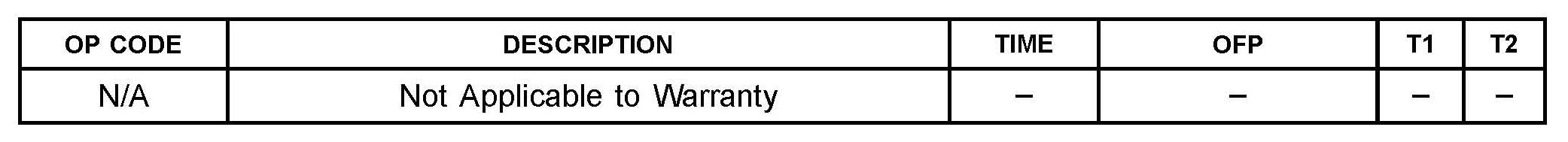

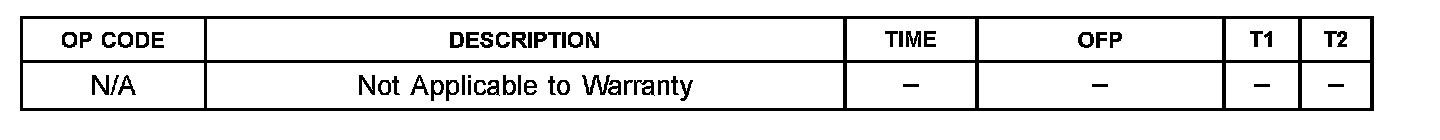

Warranty Information

Calibration Procedure

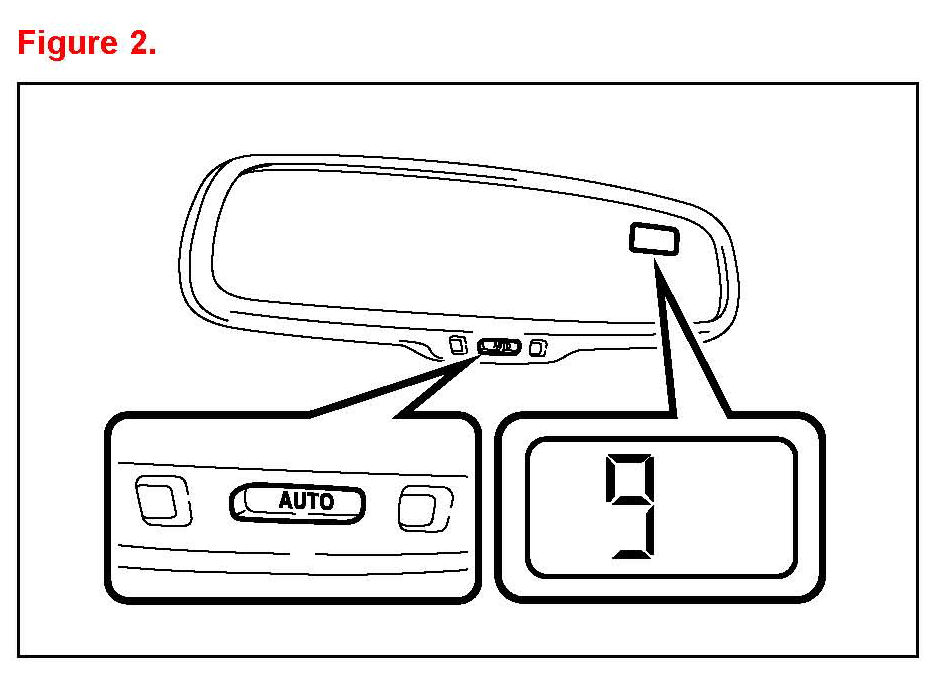

1. Cycle the ignition switch to the "IG-ON" position and hold the "AUTO" switch for 6 seconds until the zone number appears on the display.

Pushing the "AUTO" switch for 3 seconds turns ON or OFF the compass display.

2. Push the "AUTO" switch to select the number of the zone where the vehicle is located.





See the map for zone reference.





3. Start the engine and push the "AUTO" switch for about 9 seconds until "C" appears on the display.





4. Drive the vehicle slowly at 5 mph (8 km/h), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.

Once the direction is displayed, the calibration is complete.

NOTE

^ Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)

^ During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
