Relay Box

Engine Room R/B Assembly and Engine Room J/B Assembly Inner Circuit:

Engine Room R/B Assembly and Engine Room J/B Assembly Inner Circuit:

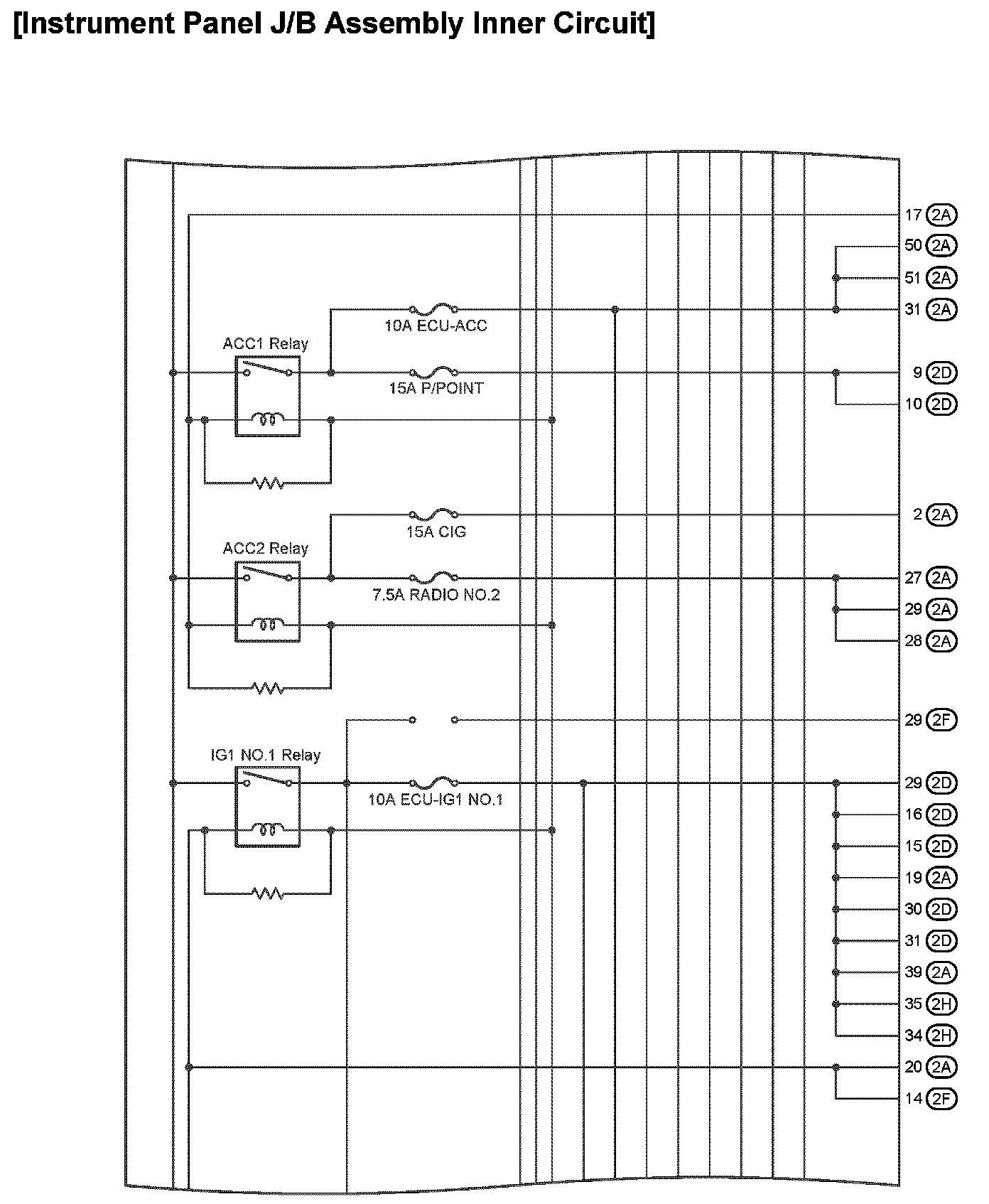

Instrument Panel J/B Assembly Inner Circuit:

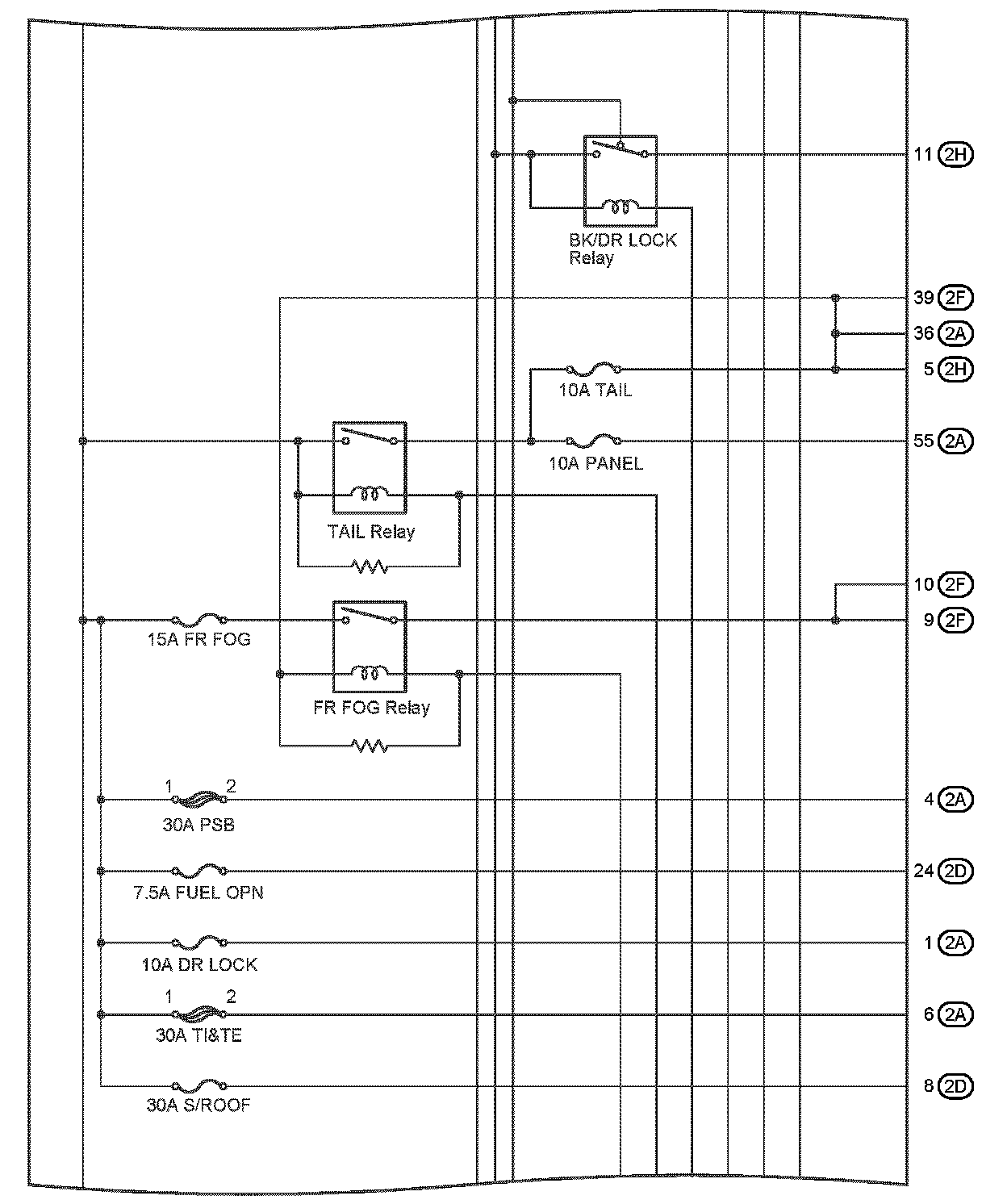

Instrument Panel J/B Assembly Inner Circuit:

Instrument Panel J/B Assembly Inner Circuit:

Instrument Panel J/B Assembly Inner Circuit:

Instrument Panel J/B Assembly Inner Circuit:

Instrument Panel J/B Assembly Inner Circuit:

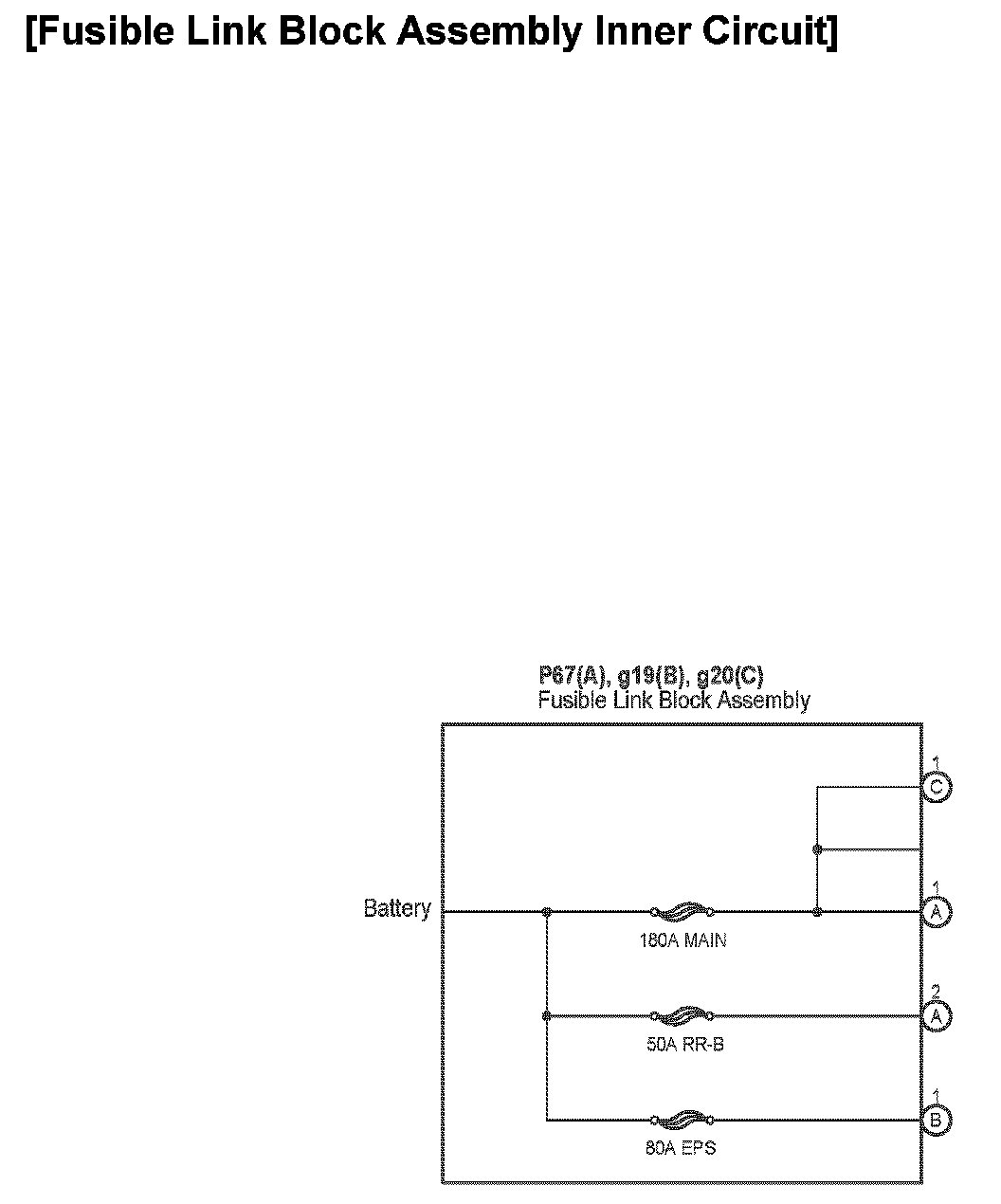

Fusible Link Block Assembly Inner Circuit:

Junction Connector (CAN No. 1) Inner Circuit:
