Cylinder Head Assembly: Specifications


















Cylinder head bolts





RH





LH

Step 1 36 Nm (367 kgf-cm, 26 ft-lbf)
Step 2 another 90°
Step 3 additional 90°





Standard diameter 10.85 to 11.00 mm (0.4272 to 0.4330 in.)
Minimum diameter 10.70 mm (0.4212 in.)

If the diameter is less than the minimum, replace the cylinder head bolt

Warpage

Cylinder head lower
Standard 0.05mm (0.00197 in)
Maximum 0.10 mm (0.00394 in)

Intake
Standard 0.08mm (0.00315 in)
Maximum 0.10 mm (0.00394 in)

Exhaust
Standard 0.08mm (0.00315 in)
Maximum 0.10 mm (0.00394 in)

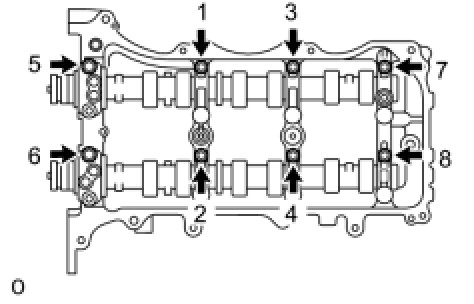

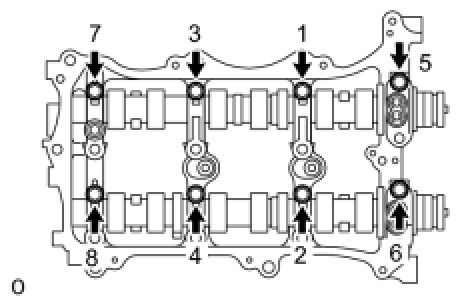

Camshaft caps








1st 10 Nm (102 kgf-cm, 7 ft-lbf)
2nd 16 Nm (163 kgf-cm, 12 ft lb)
