Fuse: Locations

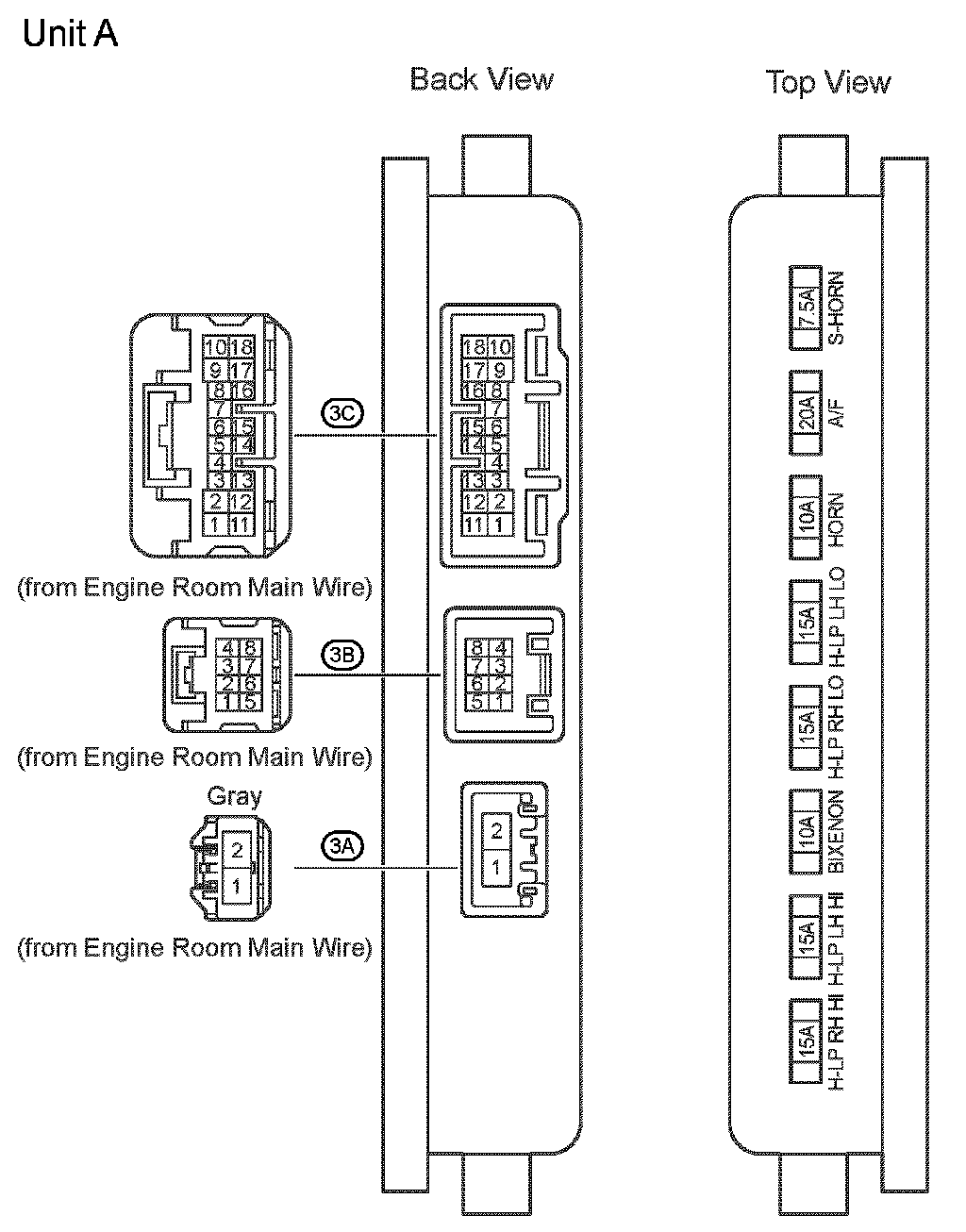

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

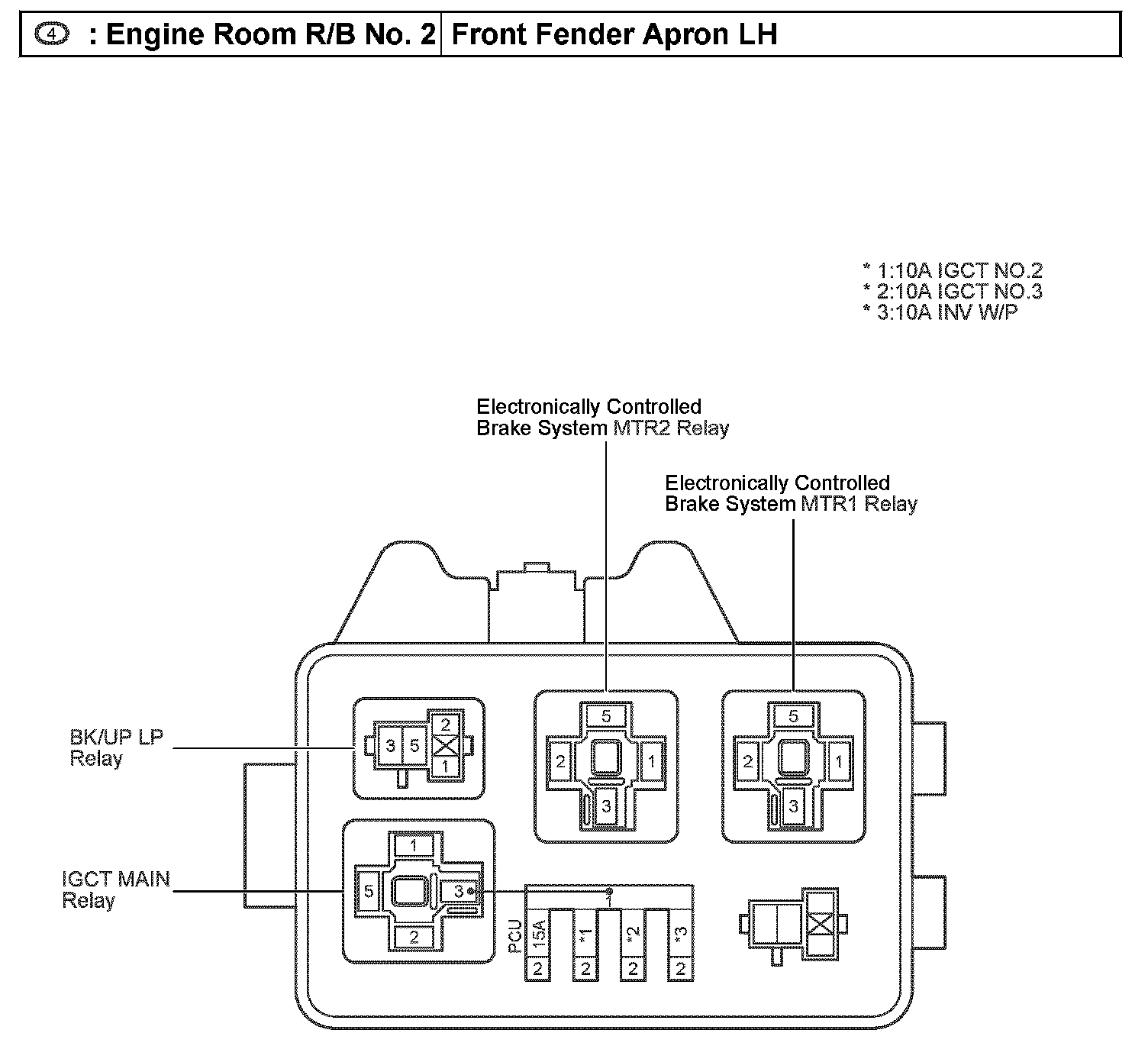

Engine Room R/B No. 2 - Front Fender Apron LH:

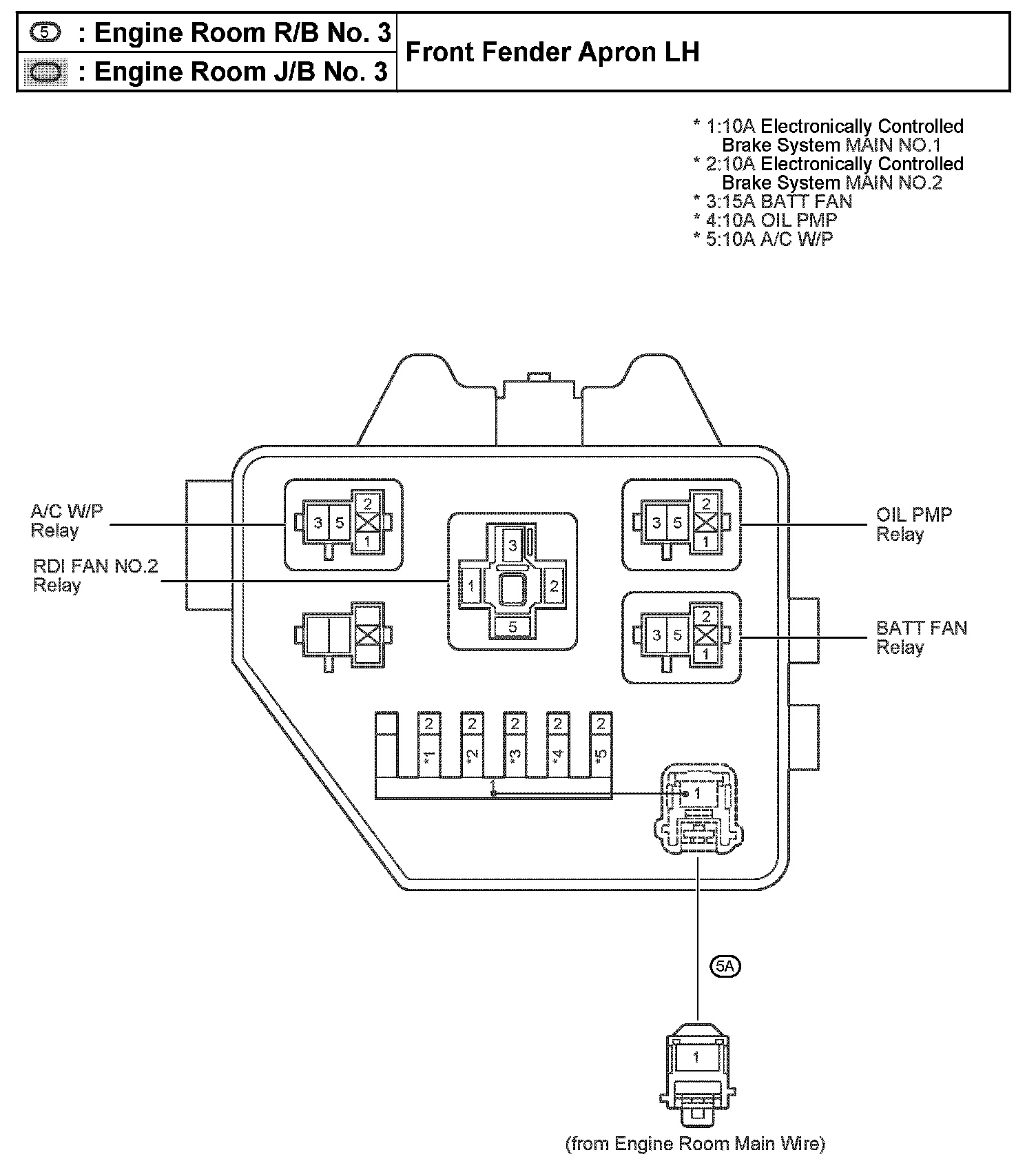

Engine Room R/B No. 3, Engine Room J/B No. 3 - Front Fender Apron LH:

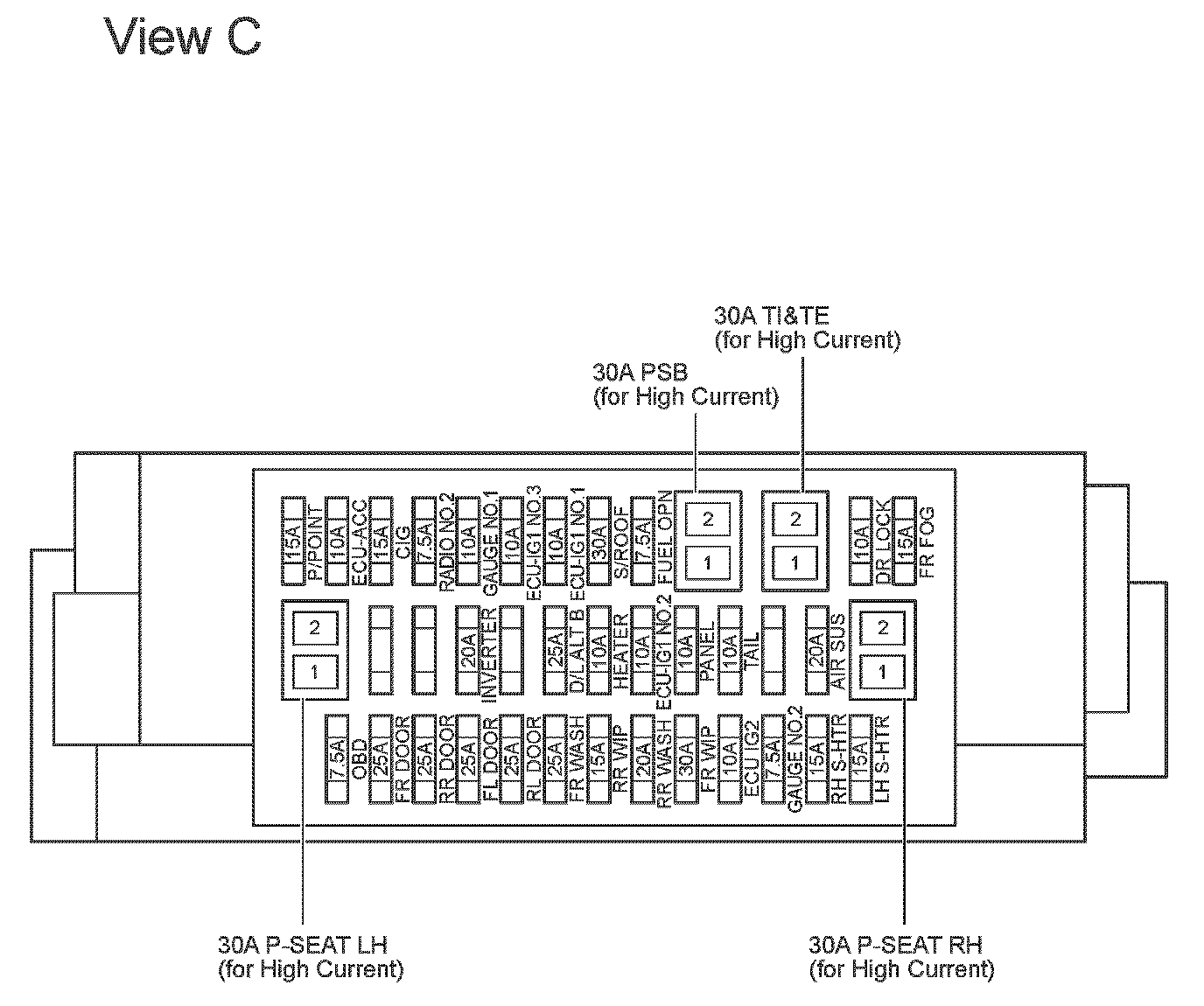

Instrument Panel J/B Assembly - Cowl Side Panel LH:

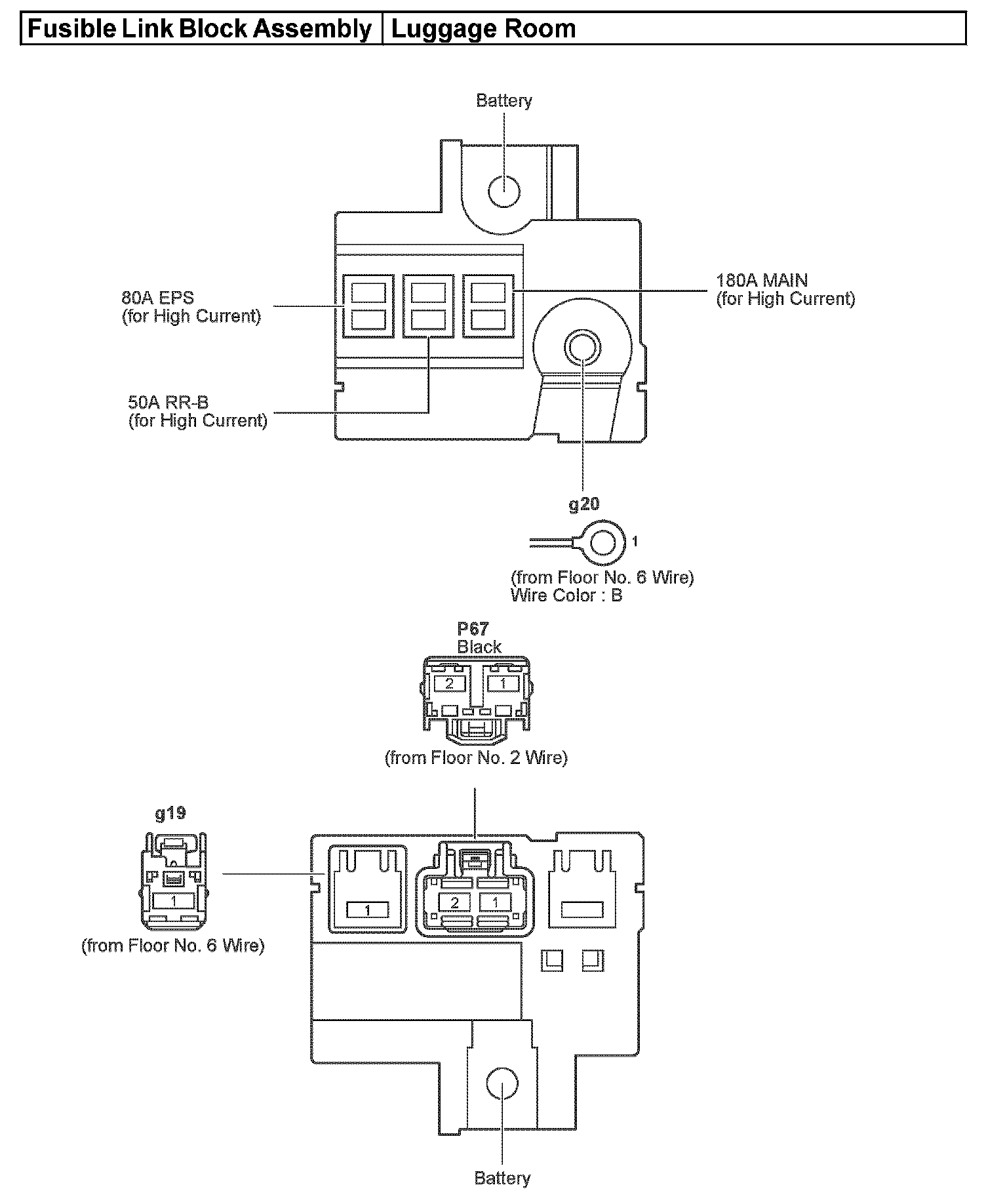

Fusible Link Block Assembly - Luggage Room:

Fuse Box - Lower Back Panel:
