Brake Rotor/Disc

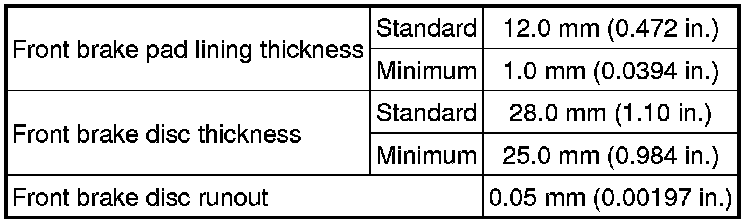

SPECIFICATIONS: BRAKE (FRONT): SERVICE DATA

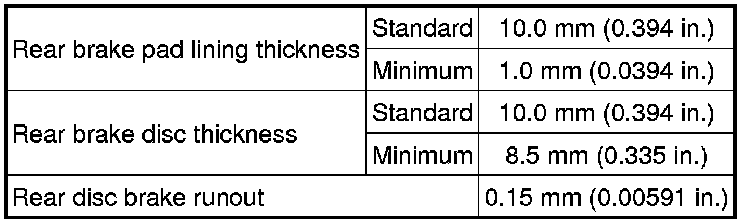

SPECIFICATIONS: BRAKE (REAR): SERVICE DATA
