Multiple Junction Connector: Locations

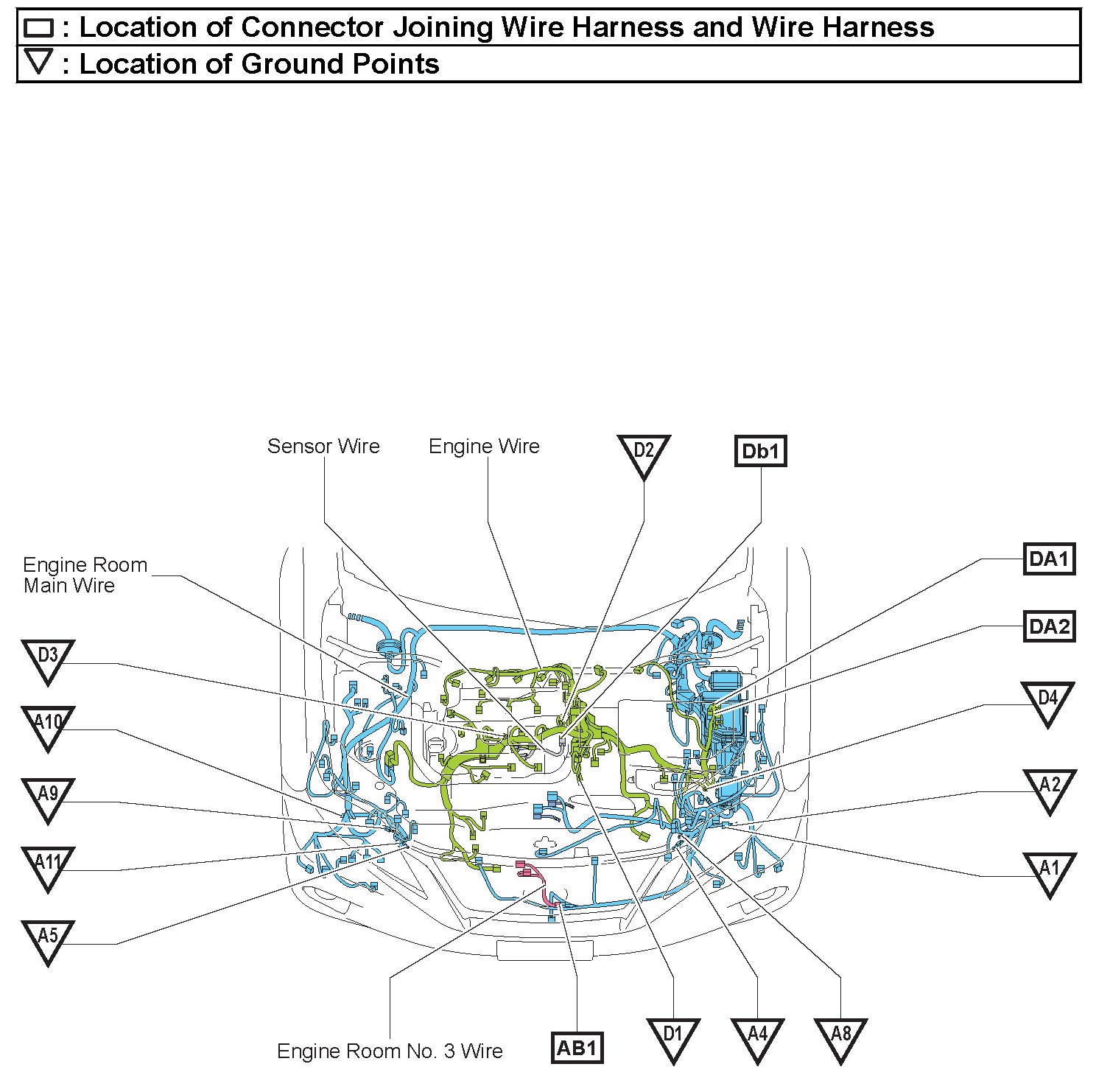

AB1-Db1 / A1-D4:




gA2:

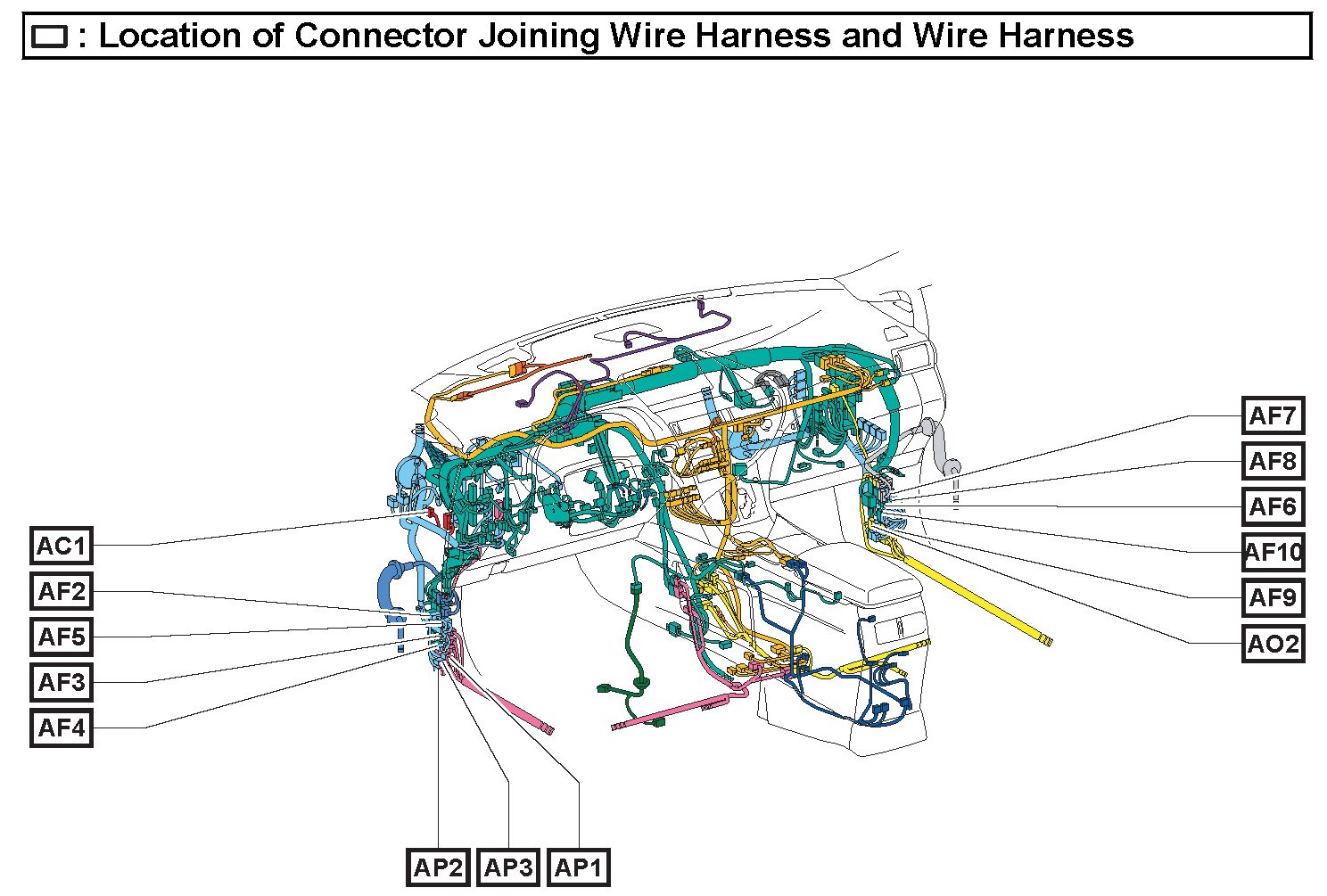

AC1-AP3:




Ff1-UG2:

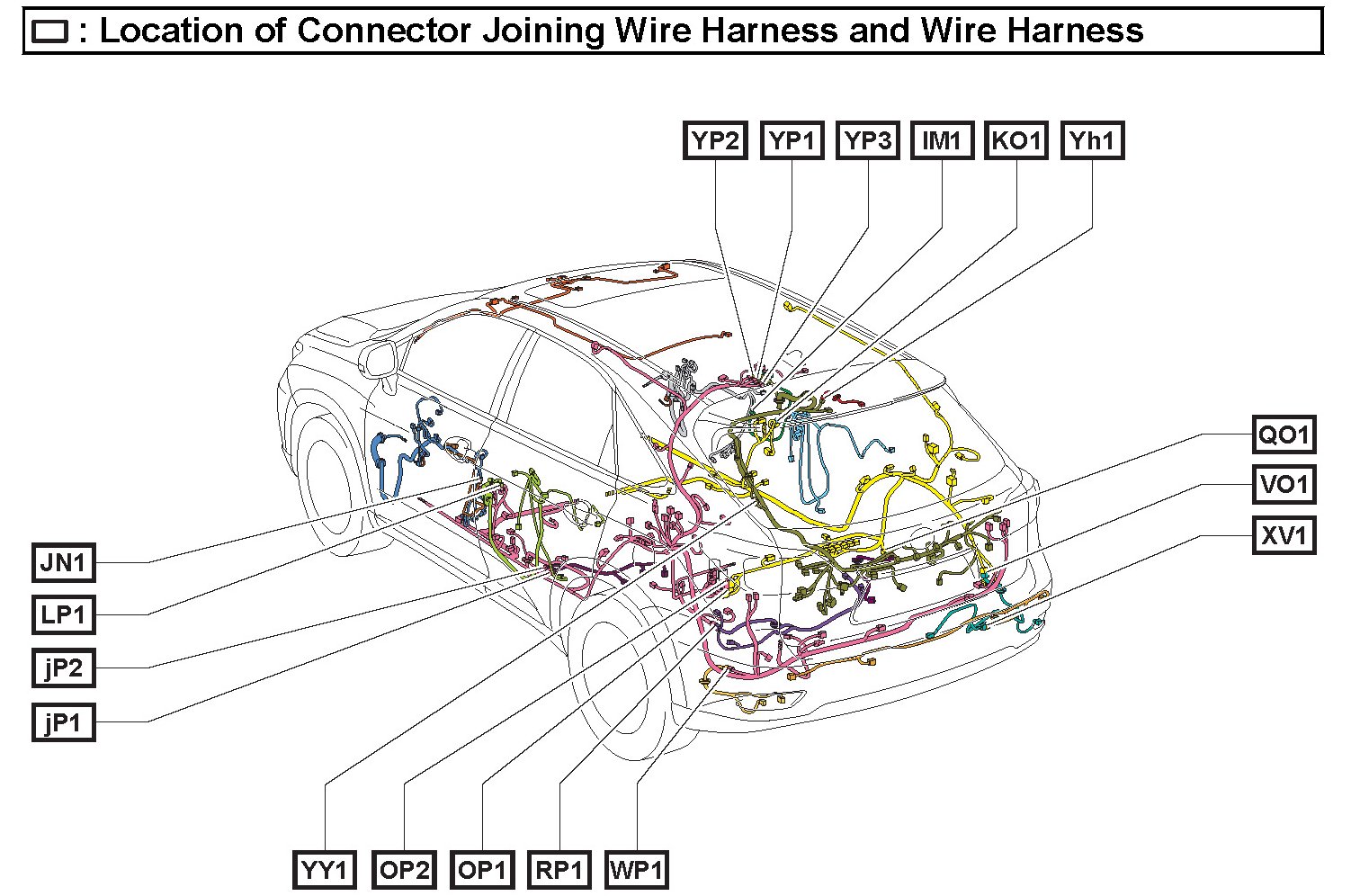

JN1-YY1:

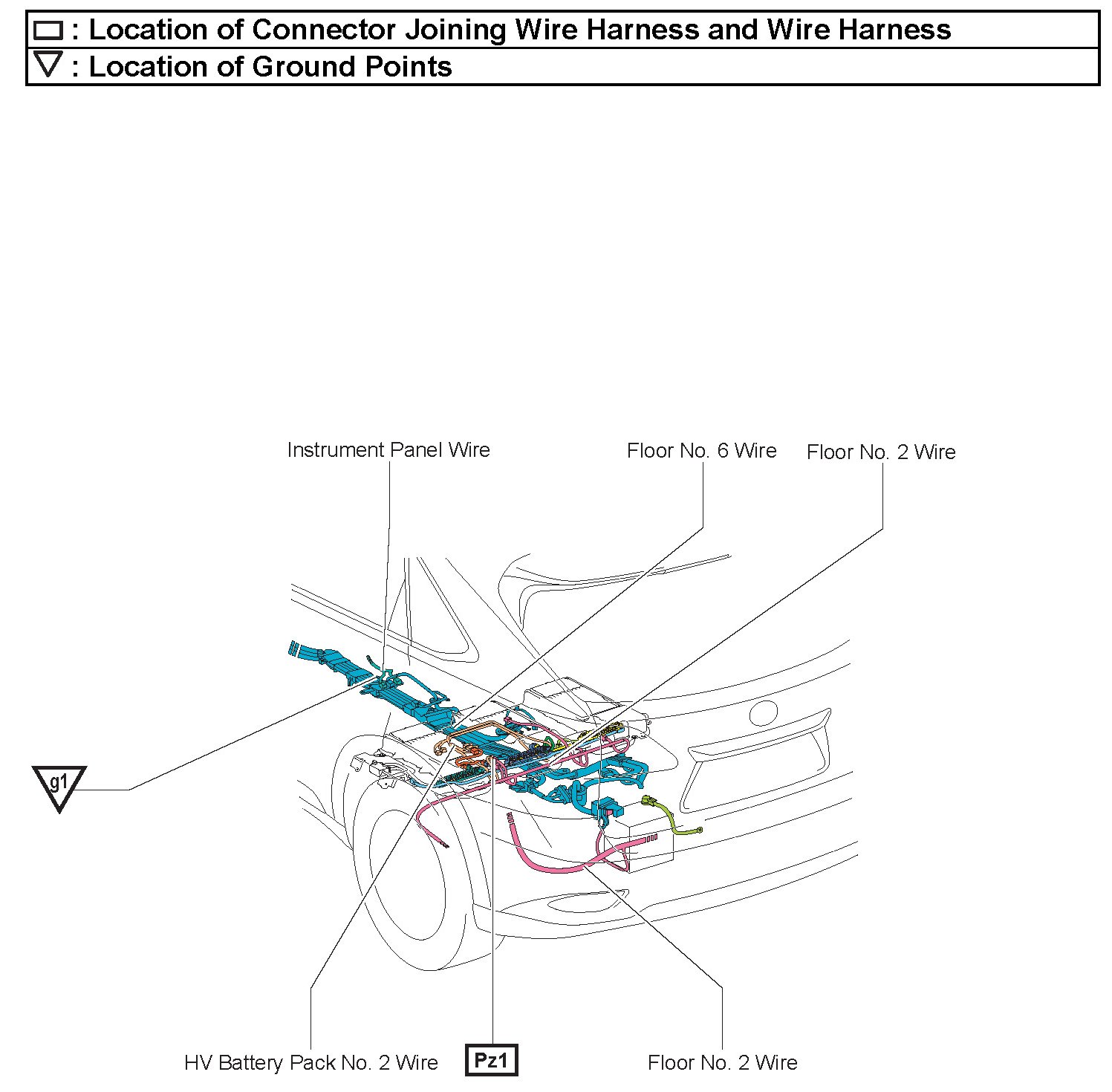

Pz1 / g1:

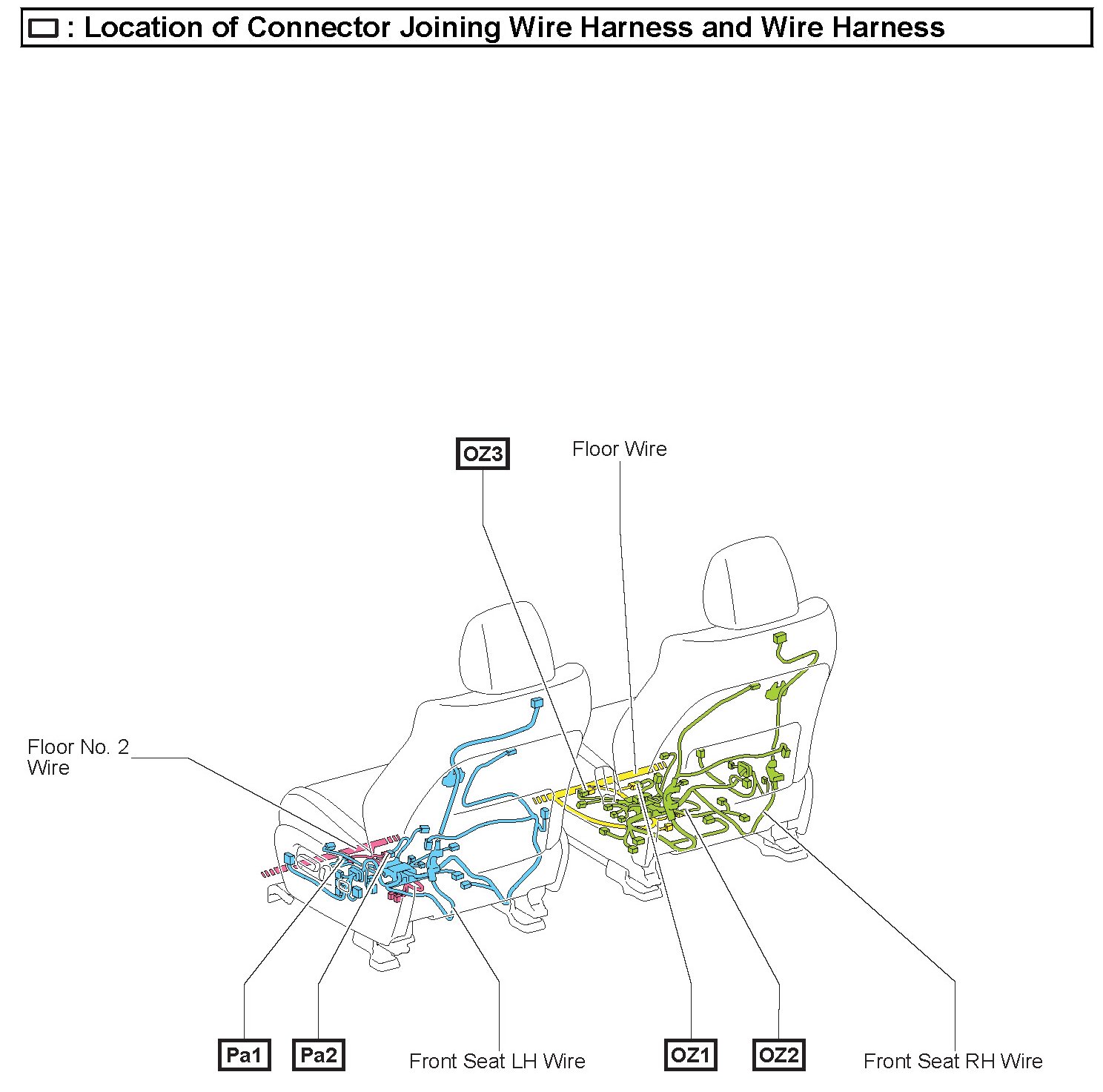

OZ1-Pa2:
