40 - 41 - Position of Parts In Engine Compartment
40 - 41 - Position of Parts In Engine Compartment

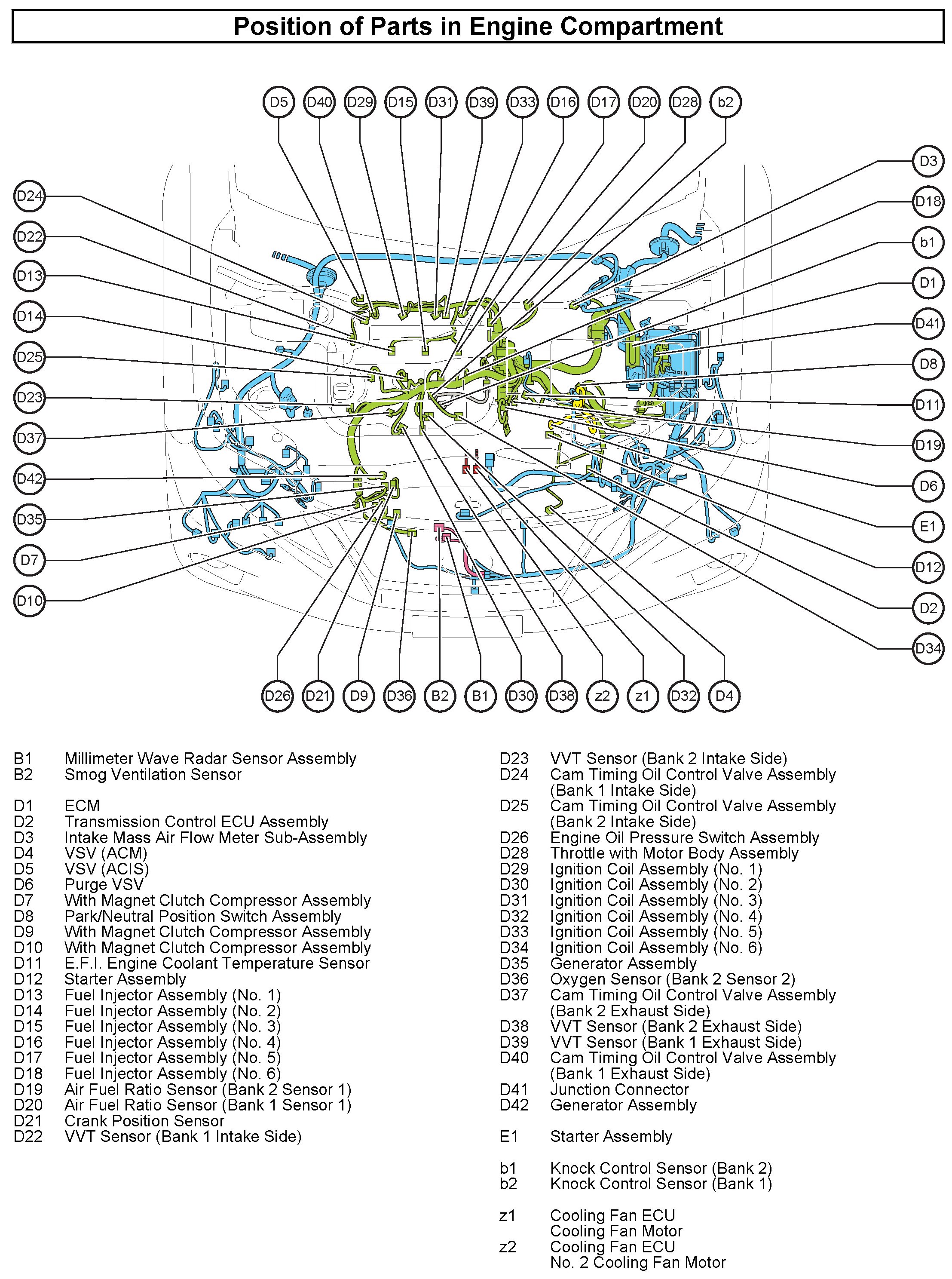

40 - Position Of Parts In Engine Compartment:
41 - Position Of Parts In Engine Compartment:
