42 - 45 - Position of Parts In Instrument Panel
42 - 45 - Position of Parts In Instrument Panel

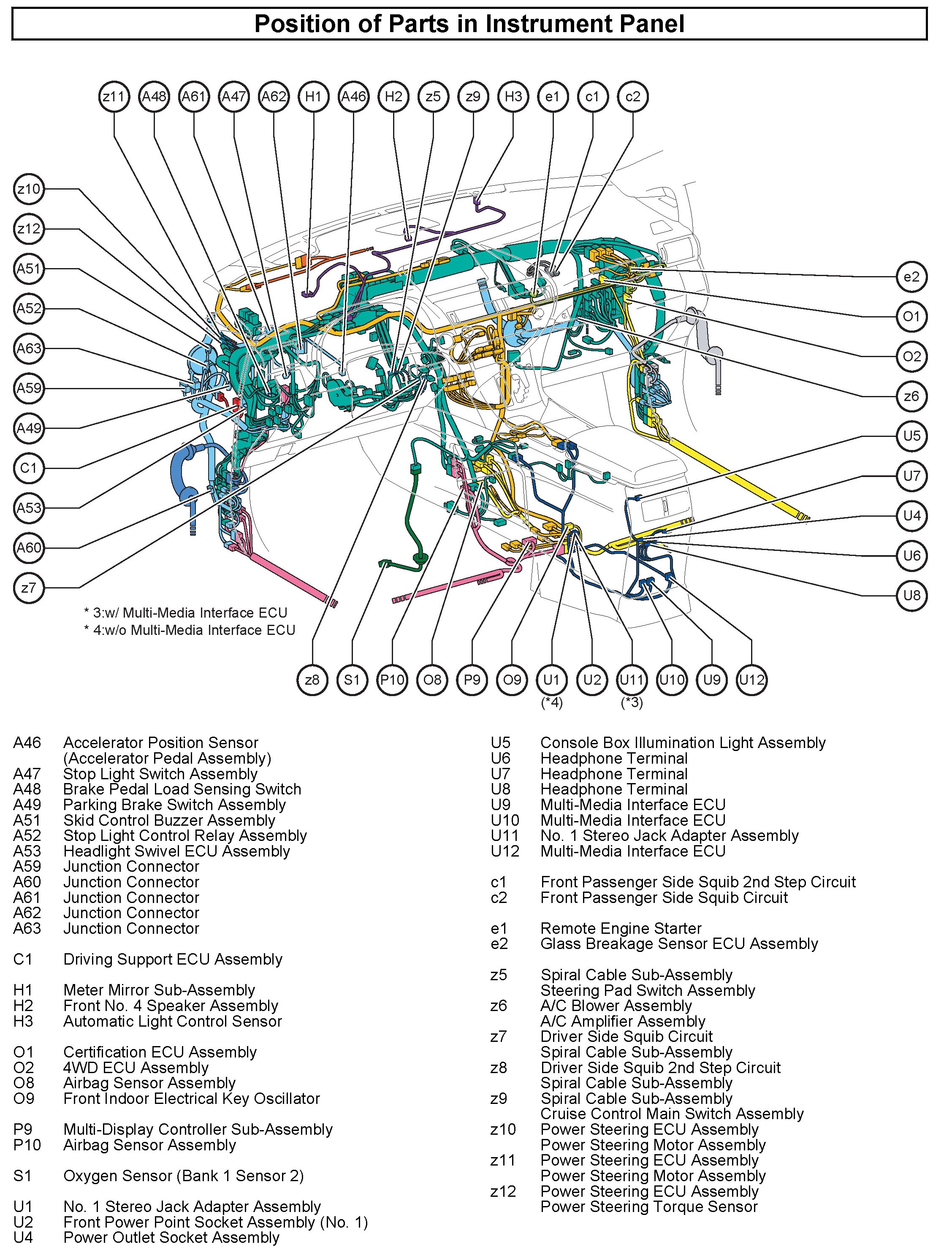

42 - Position Of Parts In Instrument Panel:

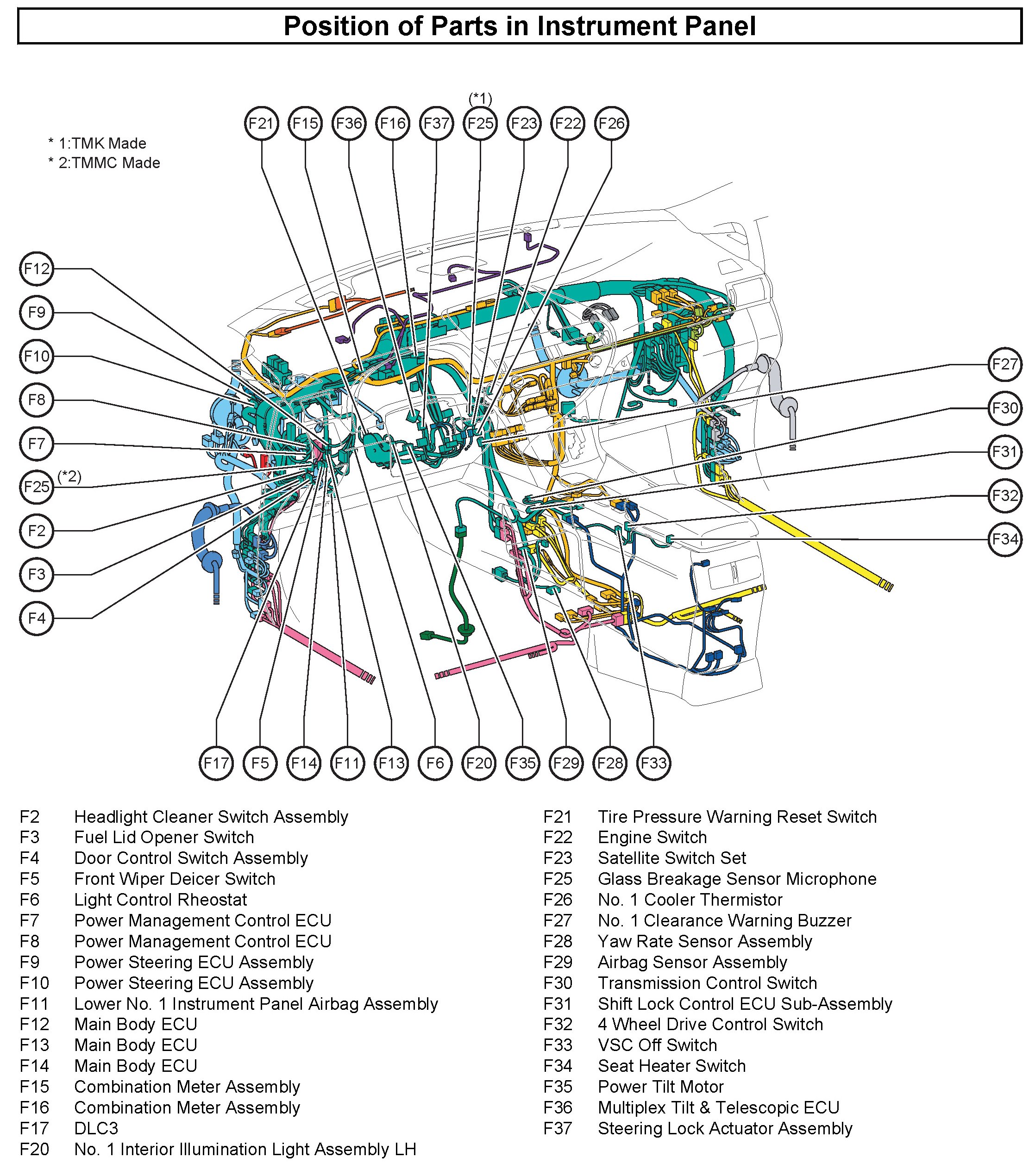

43 - Position Of Parts In Instrument Panel:
44 - Position Of Parts In Instrument Panel:
45 - Position Of Parts In Instrument Panel:
