System Description
METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION
1. OUTLINE OF COMBINATION METER ASSEMBLY
(a) Meter or Gauge
(b) Warning or Indicator
* *1: w/ Automatic High Beam System
* *2: for U.S.A.
* *3: except U.S.A.
* *4: for AWD
* *5: w/ Pre-collision System
* *6: w/ Dynamic Radar Cruise Control System
* *7: w/ Tire Pressure Warning System
* *8: w/ Intuitive Parking Assist System
* *9: w/ AFS
* *10: w/o Occupant Classification System
* *11: w/o Navigation System
* *12: w/ Navigation System
2. MULTI-INFORMATION DISPLAY
HINT
The timing of the ECO driving indicator light turning on and off may differ from the indication of the ECO driving indicator zone display, as their update cycles are different.
3. MULTI-INFORMATION DISPLAY FLOW CHART

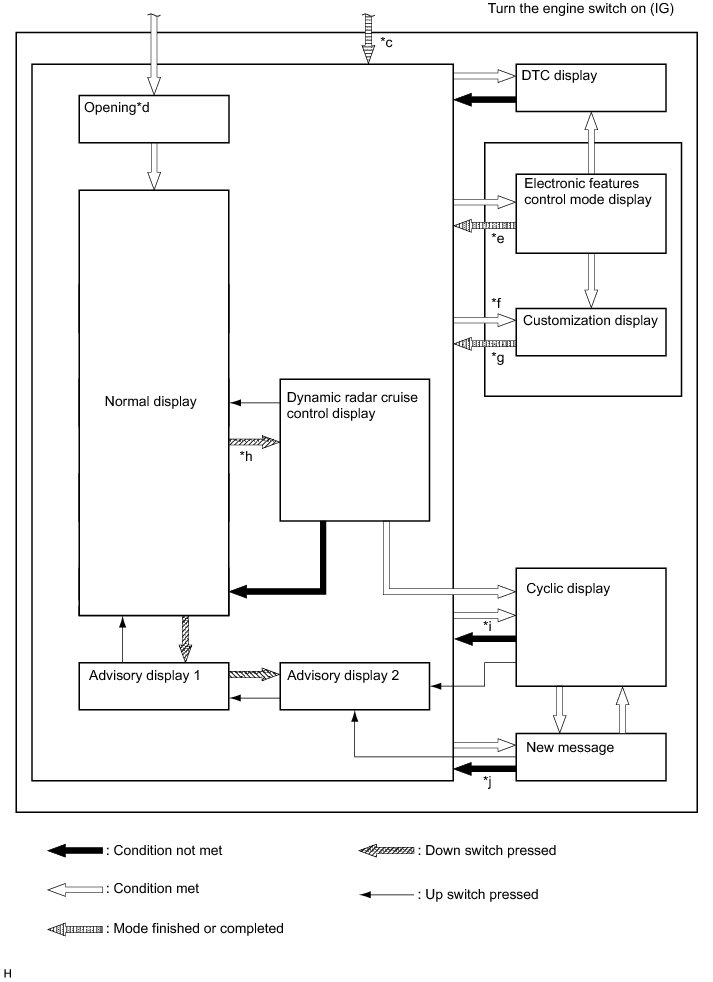

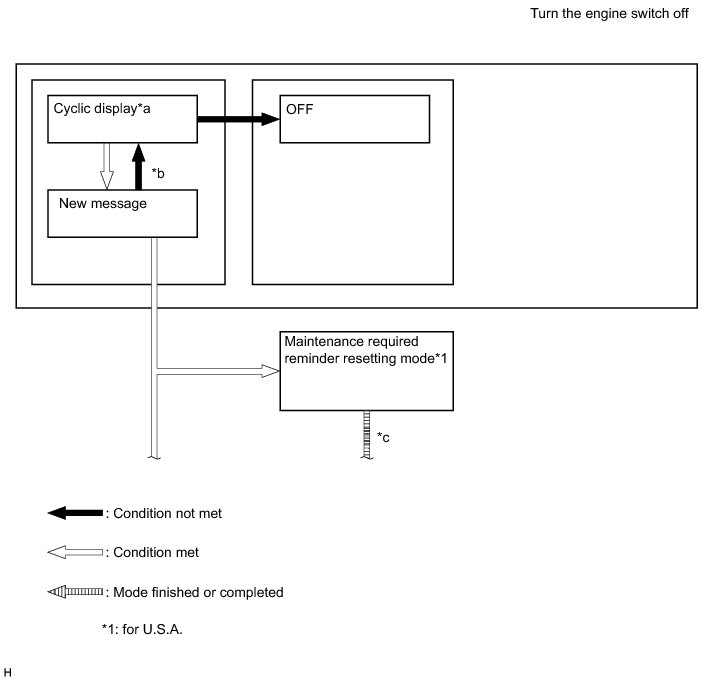

(a) Multi-information display flow chart

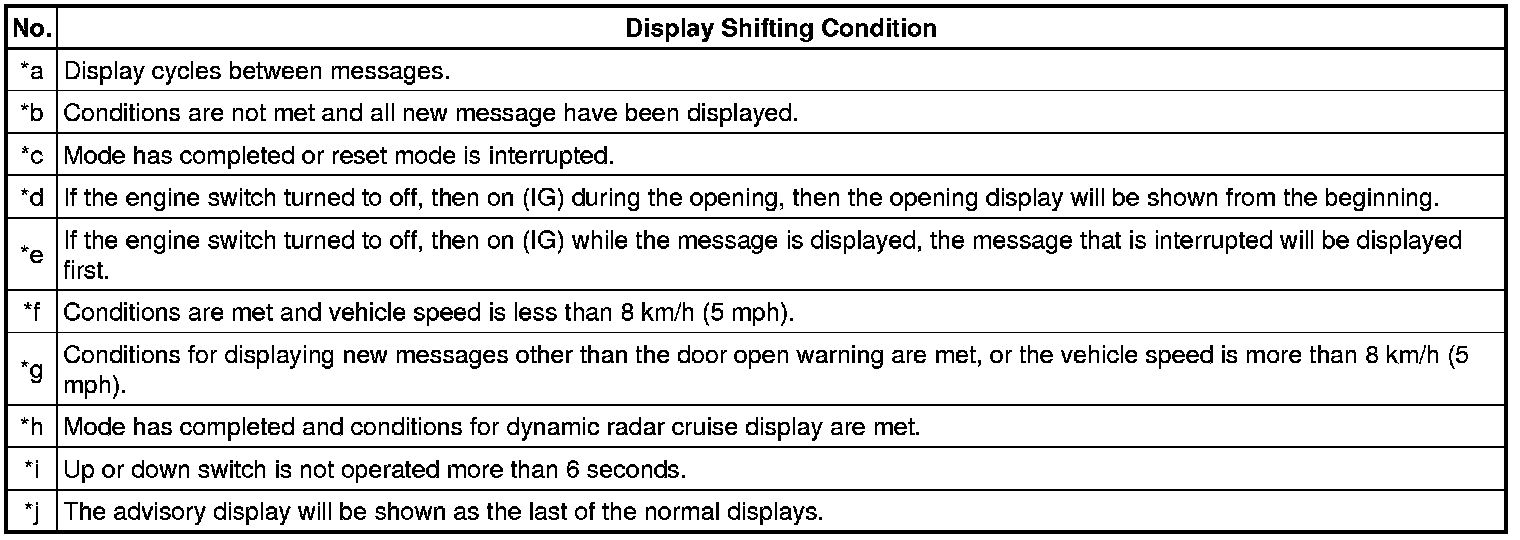

Display Shifting Condition:
4. HEADUP DISPLAY
* *1: w/ Dynamic Radar Cruise Control System
* *2: w/ Pre-collision System
5. EACH WARNING DISPLAY

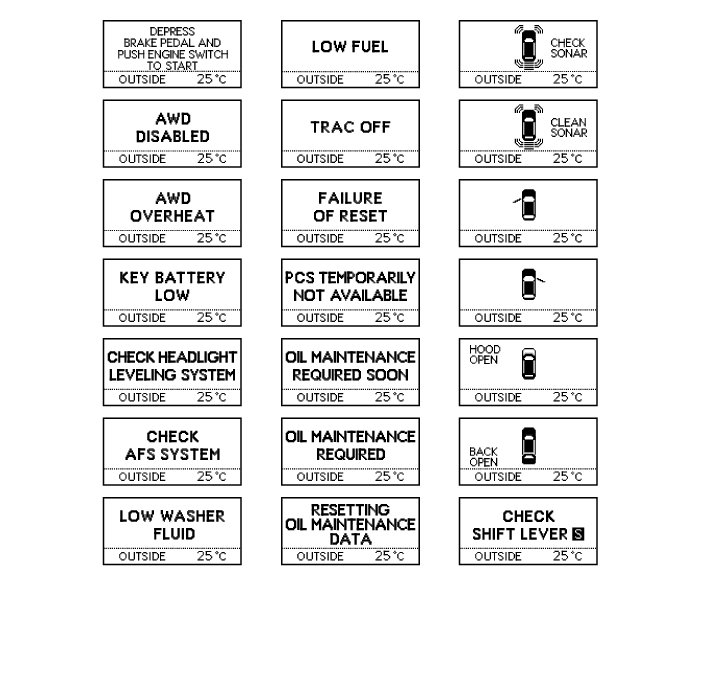

(a) for English
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

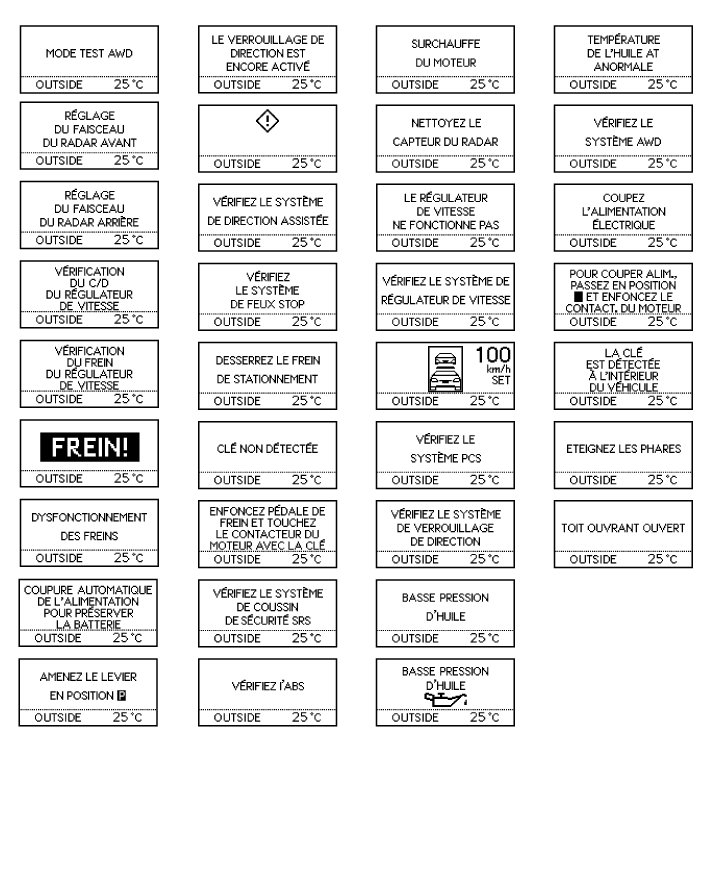

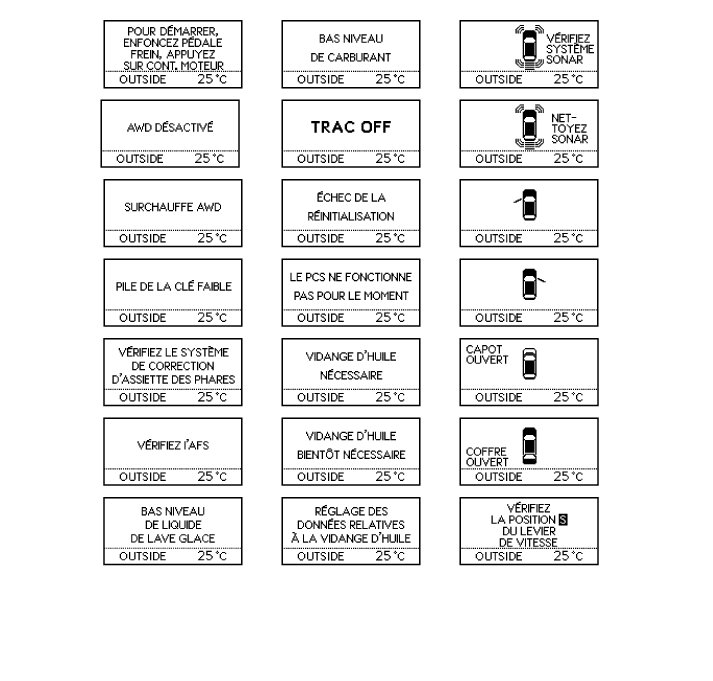

(b) for French
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

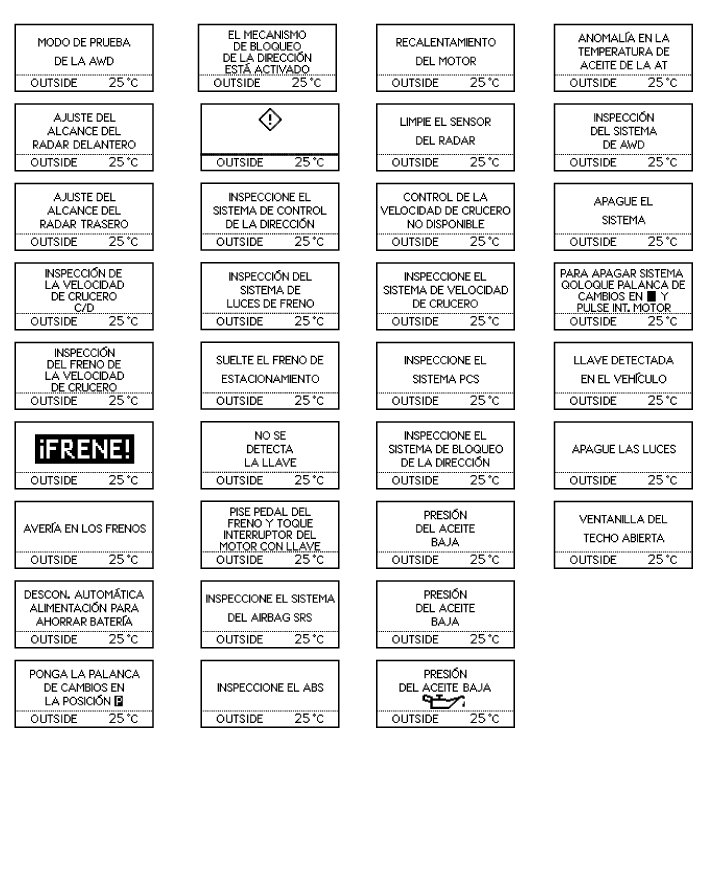

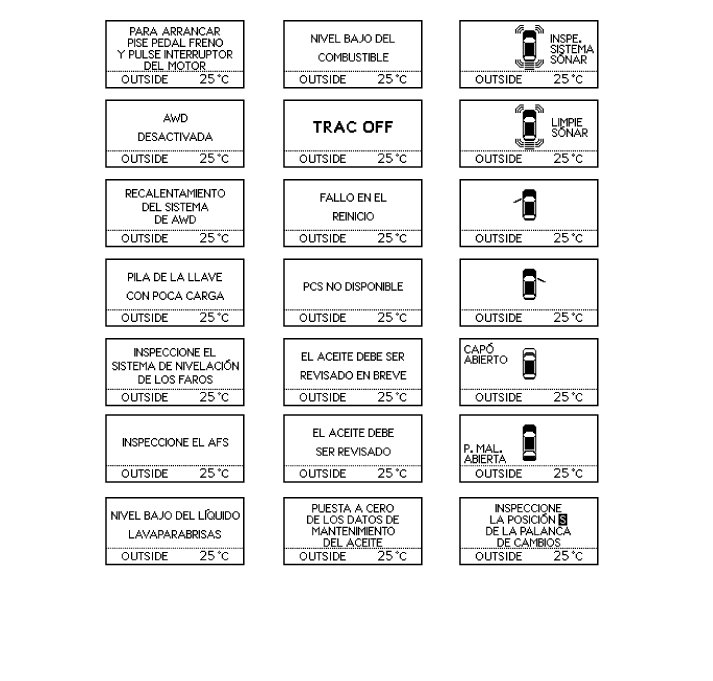

(c) for Spanish
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

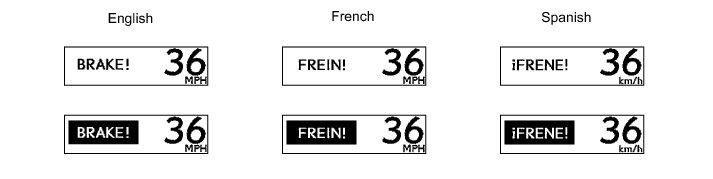

(d) Each display for headup display
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.
(e) Headup display for another language
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.
6. LED INITIAL CHECK
(a) Check the illumination function of the warning or indicator lights listed below when turn the engine switch on (IG).
OK:
* *1: for AWD
* *2: w/ Automatic High Beam System
* *3: w/ Pre-collision System
* *4: w/ Tire Pressure Warning System
* *5: w/ AFS
* *6: When the ECO drive mode setting is off, the meter CPU does not perform the LED initial check.
