System Diagram

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

1. CAN SIGNAL





2. DIRECT LINE SIGNAL

(a) Combination Meter Assembly





(b) Headup Display





3. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY

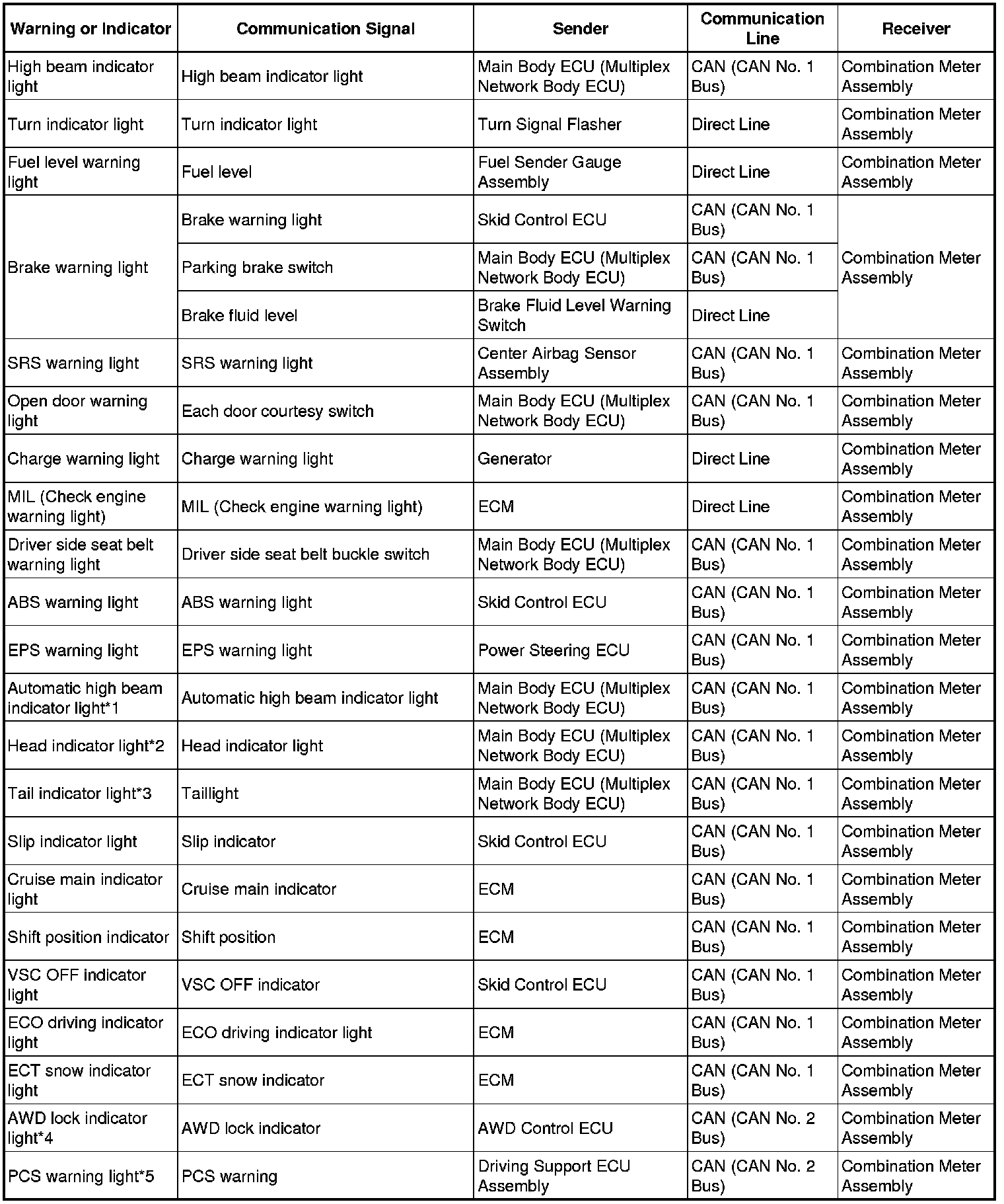

(a) Meter or Gauge

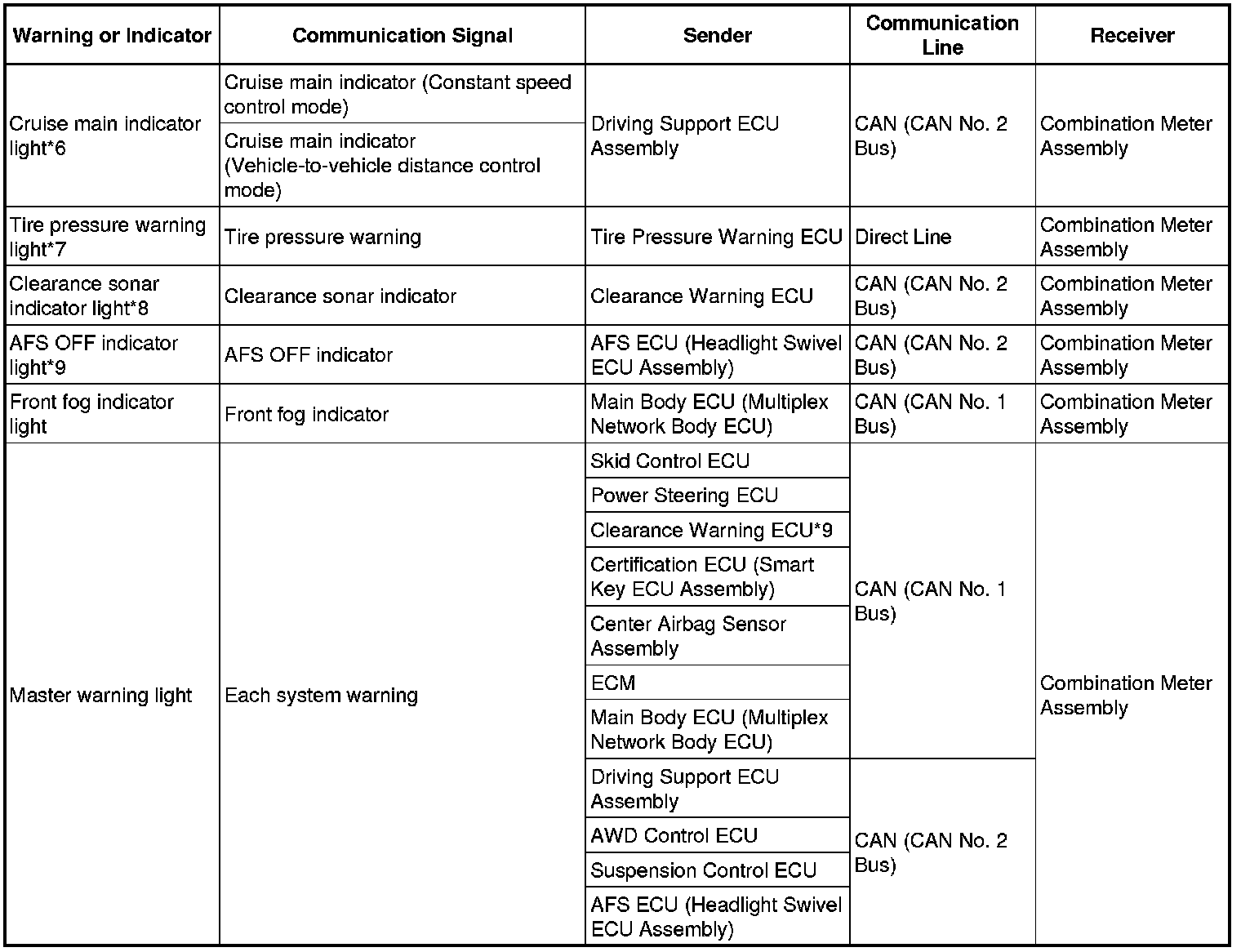

(b) Warning or Indicator









* *1: w/ Automatic High Beam System

* *2: for U.S.A.

* *3: except U.S.A.

* *4: for AWD

* *5: w/ Pre-collision System

* *6: w/ Dynamic Radar Cruise Control System

* *7: w/ Tire Pressure Warning System

* *8: w/ Intuitive Parking Assist System

* *9: w/ AFS

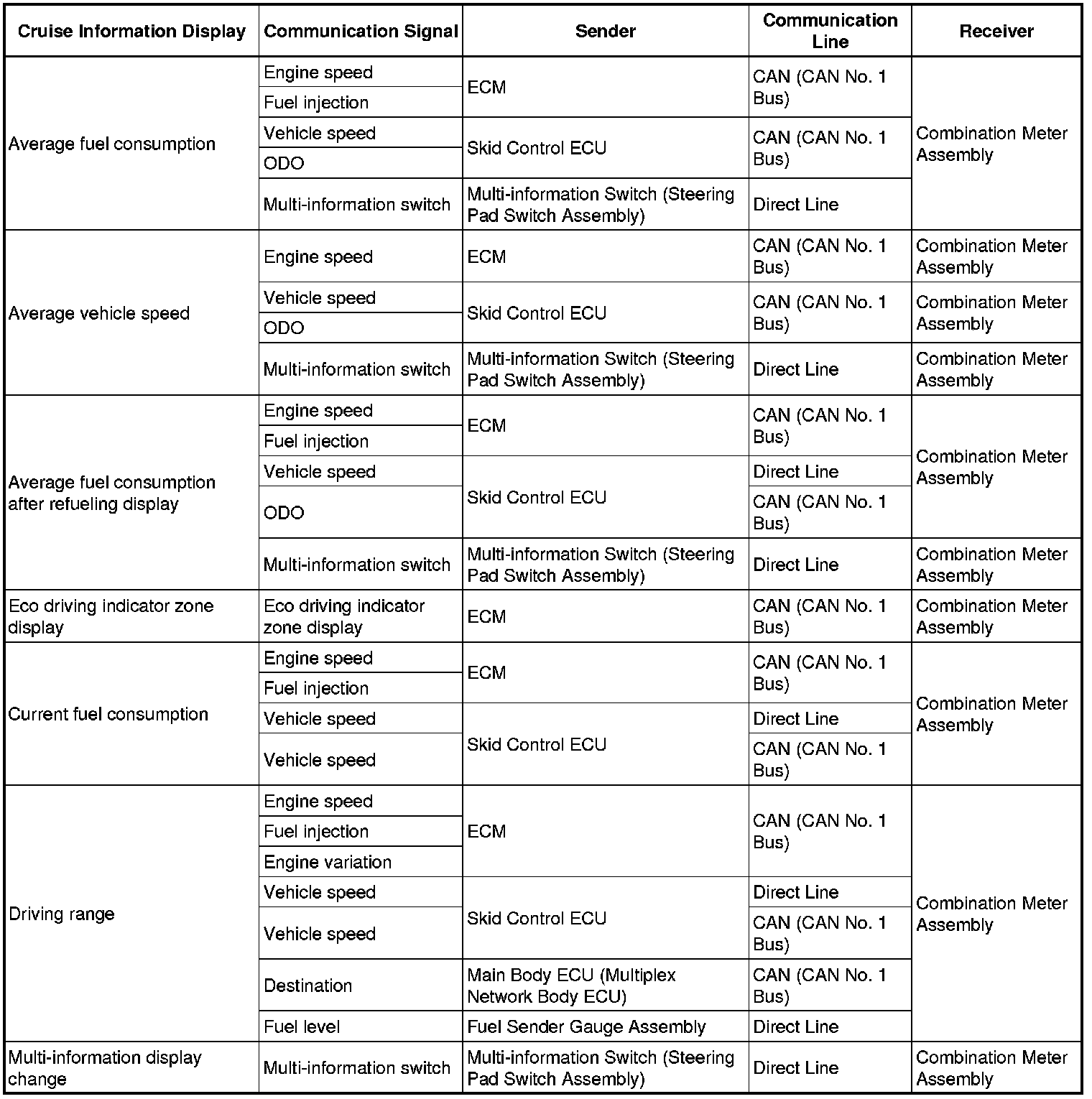

(c) Cruise Information Display

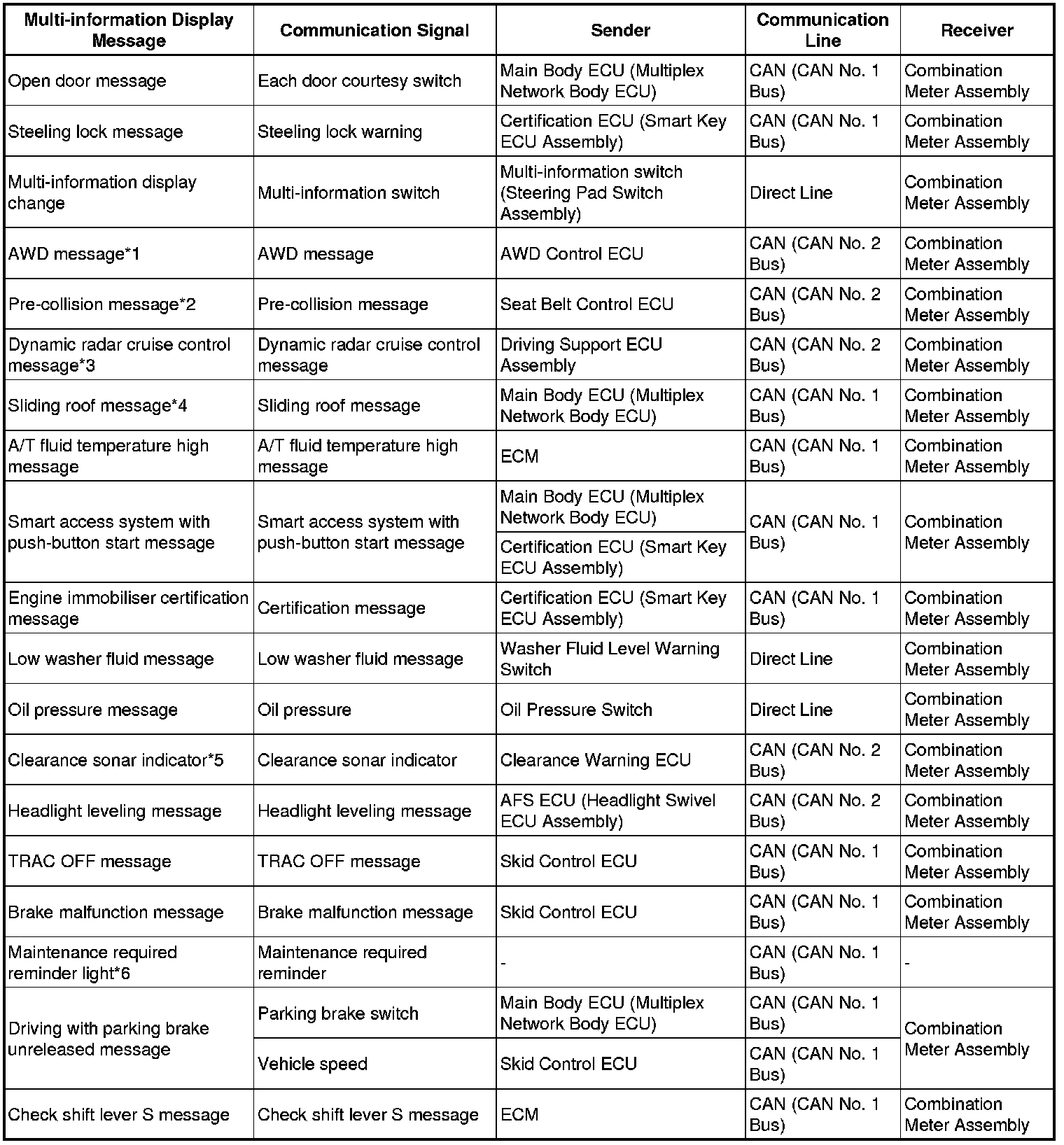

(d) Multi-information Display Message





* *1: for AWD

* *2: w/ Pre-collision System

* *3: w/ Dynamic Radar Cruise Control System

* *4: w/ Sliding Roof

* *5: w/ Intuitive Parking Assist System

* *6: for U.S.A.

(e) Buzzer





* *1: w/ Sliding Roof

* *2: w/ Dynamic Radar Cruise Control System

(f) Others





* *1: w/ Navigation System

* *2: for Separate Type Amplifier System

* *3: w/ Manual (SOS) Switch

* *4: w/o Occupant Classification System

* *5: w/o Navigation System
