Instruments - Compass Calibration Procedure

L-SB-0055-11

July 27, 2011

Initial Calibration of Compass During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

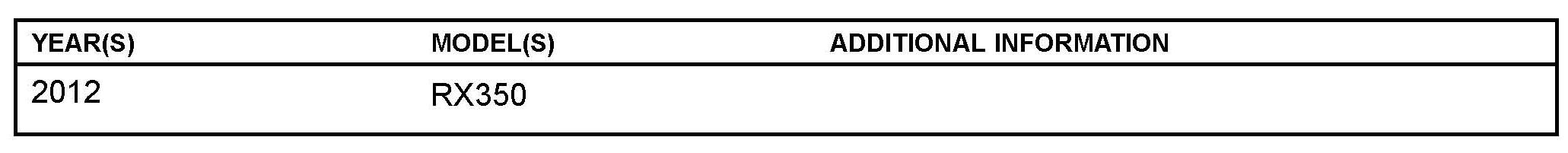

Applicability

Introduction





Some 2012 model RX350 vehicles are equipped with a compass in the rear view mirror. In order for the compass to correctly indicate the direction that the vehicle is heading it must be calibrated prior to vehicle delivery. Use the following procedure to perform initial calibration during Pre-Delivery Service (PDS).

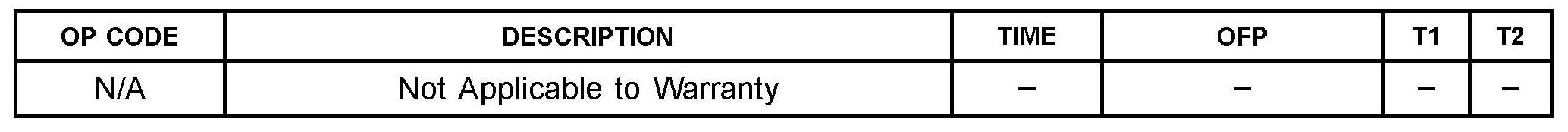

Warranty Information

Calibration Procedure

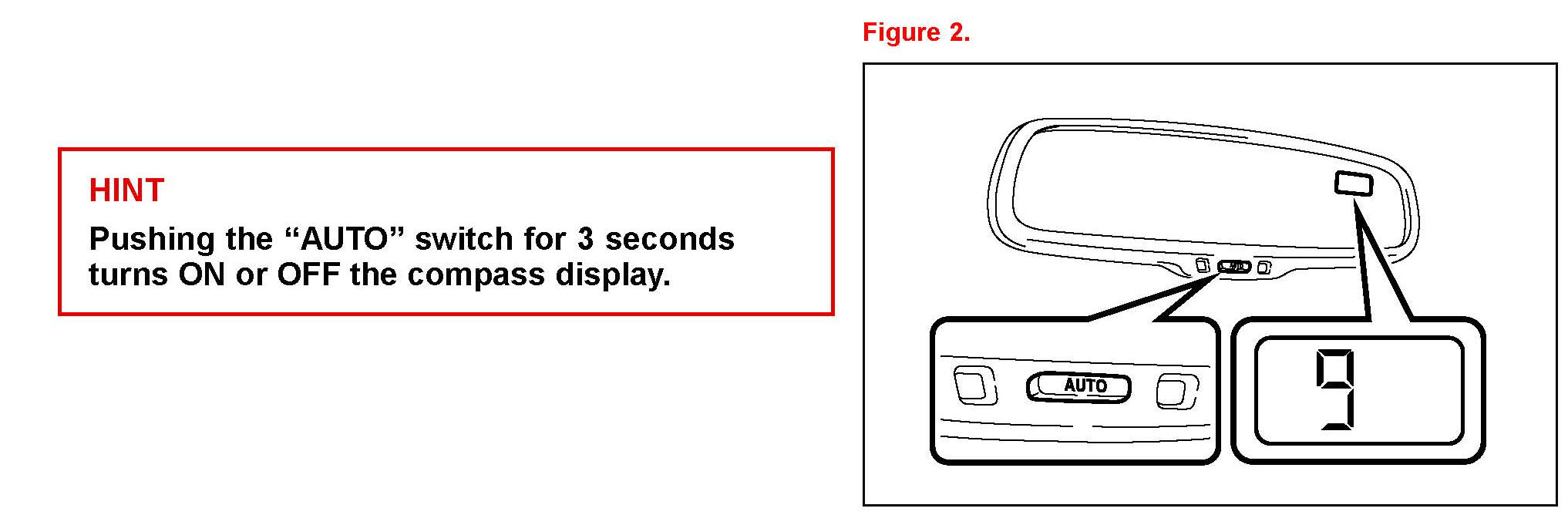

1. Cycle the ignition switch to the "IG-ON" position and hold the "AUTO" switch for 6 seconds until the zone number appears on the display.





2. Push the "AUTO" switch to select the number of the zone where the vehicle is located. See the map for zone reference.





3. Start the engine and push the 'AUTO" switch for about 9 seconds until "C" appears on the display.

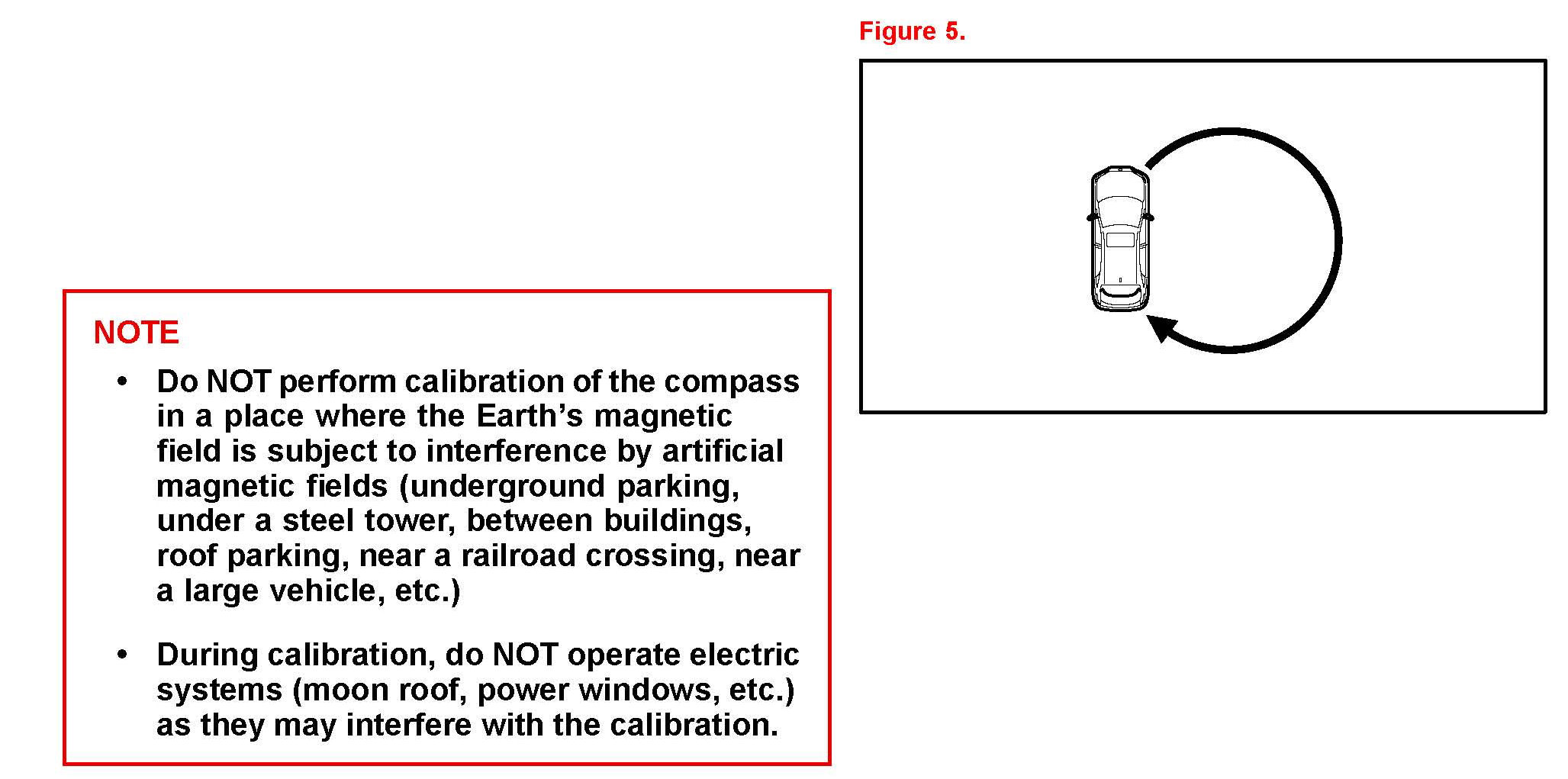

4. Drive the vehicle slowly at 5 mph (8 km/h), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.

Once the direction is displayed, the calibration is complete.
