Suspension - Rear Shock Absorber Squeaks and Fluid Leakage

L-SB-0013-13

February 28, 2013

Rear Shock Squeak and/or Leak

Service Category
Suspension

Section
Rear Suspension

Market
USA





Applicability

Introduction

Some 2010 - 2012 model year RX 350 and RX 450h vehicles may exhibit a squeak coming from the rear of the vehicle when going over an uneven road surface. In addition some vehicles may also display evidence of an oil leak from the rear shock absorber(s). Use the following repair procedure to address these conditions.





Warranty Information





Parts Information

Repair Procedure

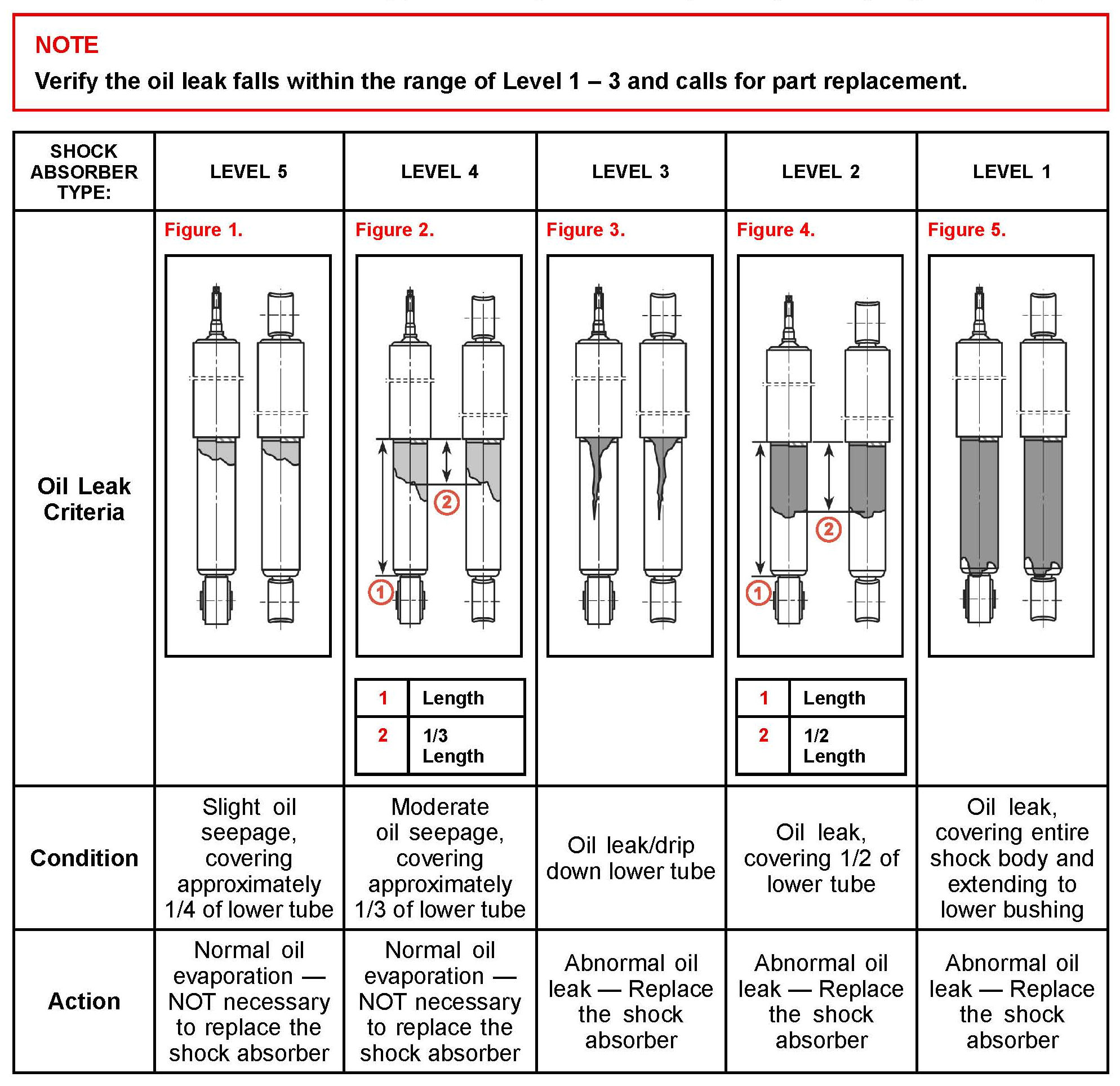

1. Confirm the rear shock absorber(s) are leaking oil and/or squeaking when going over bumps.

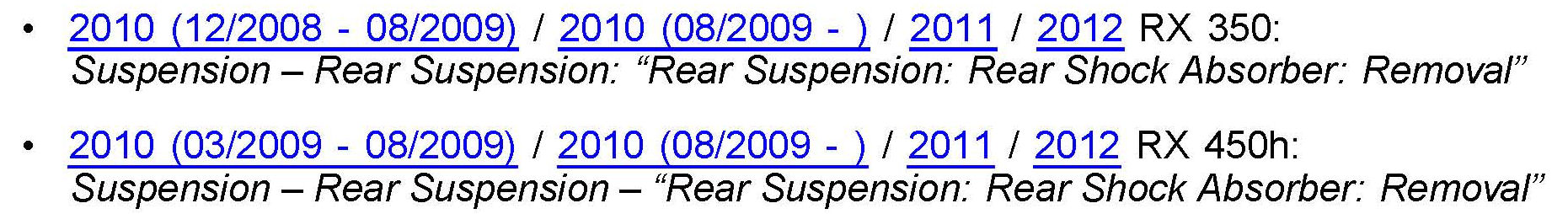

2. Remove rear shock absorber.





Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:

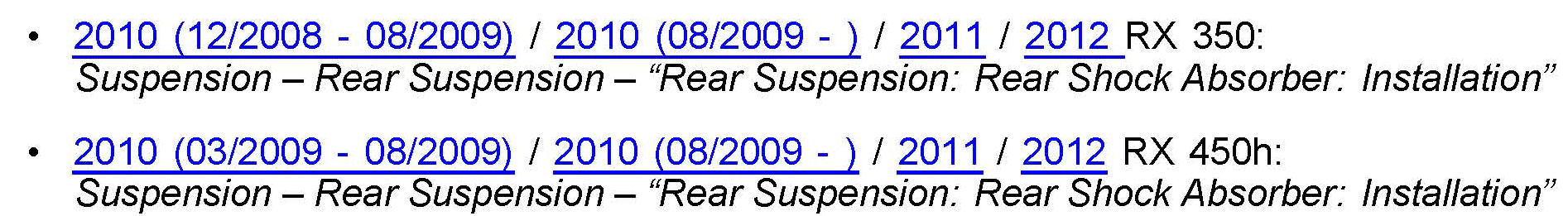

3. Replace rear shock absorber.





Refer to TIS applicable model and model year Repair Manual:

4. Drive the vehicle to confirm that squeak is not heard and oil is not leaking from the rear shock absorber(s).

© 2013 Lexus, a division of Toyota Motor Sales, USA
